Overview

See more behind you

The HM-CAM20 is a tough, universal rear camera for cars, utes, 4WDs and commercial vehicles. A wide 170° view shows more of what is behind you, guidelines are built into the picture, and the stainless steel housing is sealed to IP69K for dust, mud and wash-downs.

Hema HM-CAM20 Universal Stainless Steel Reversing Camera (Camera Only)
170°Diagonal View
800 TVLResolution
IP69KDust and Waterproof
12 / 24 VCars and Trucks

Camera only. The HM-CAM20 needs a reversing monitor or head unit with an RCA (composite) camera input, sold separately. Not sure what will work with your screen? contact our team.

Clear picture

Wide view, sharp detail

The 170° diagonal lens takes in more of the road, the kerb and anything behind the vehicle. 800 TVL resolution keeps the picture sharp, and the picture is mirrored for rear use, with a wire loop to switch it for a front camera.

  • ✓170° diagonal field of view
  • ✓800 TVL resolution
  • ✓Mirror image for rear use, switchable for front mounting

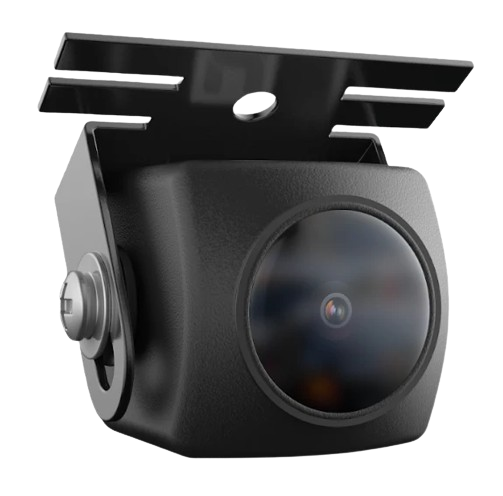

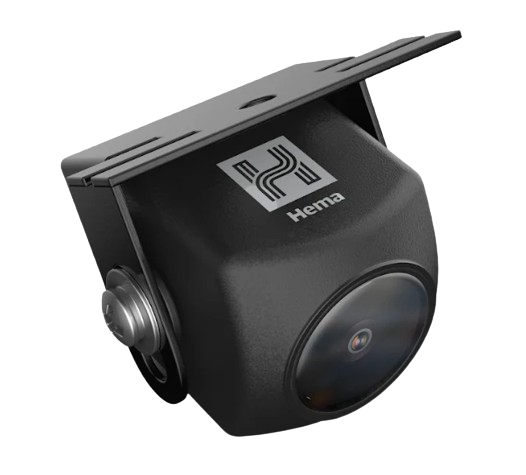

Hema HM-CAM20 reversing camera with stainless steel housing and mounting bracket

Safer reversing

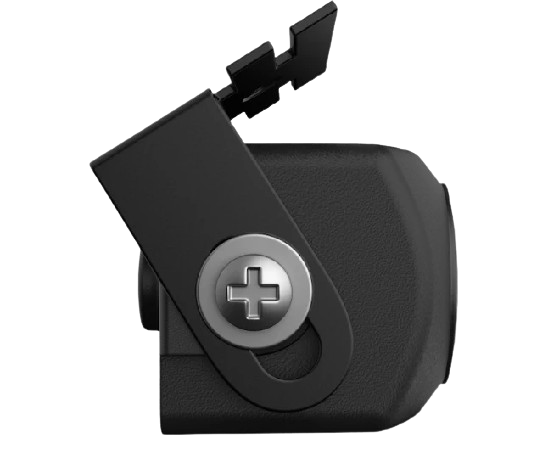

Side view of the Hema HM-CAM20 showing the adjustable mounting bracket and pivot bolt

Guidelines that move with you

Dynamic reversing guidelines are generated by the camera itself, so they appear on any compatible screen as soon as you select reverse. A built-in G-sensor adjusts the guidelines as the vehicle moves, so parking and hitching up are easier to judge.

  • ✓Dynamic reversing guidelines
  • ✓Built-in G-sensor
  • ✓Guidelines show on any compatible monitor

Built tough

Made for corrugations and wash-downs

The stainless steel housing is rated IP69K, so it is sealed against dust and water, including high-pressure cleaning. It works from -30°C to 85°C, and runs on 12 V or 24 V systems for passenger and commercial vehicles. A 6 m camera cable is supplied for the run to the front.

  • ✓Stainless steel heavy-duty housing
  • ✓Adjustable bracket for setting the camera angle
  • ✓6 m rear camera cable supplied

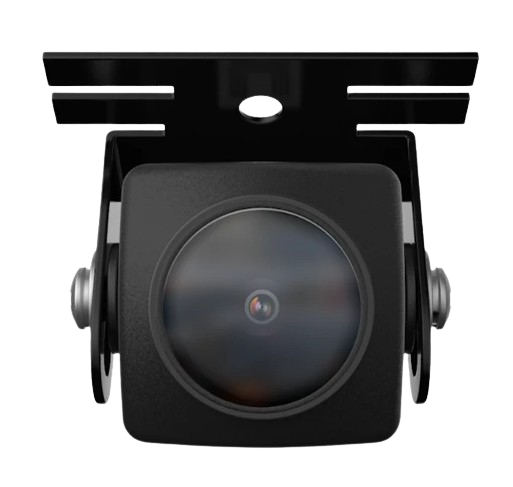

Front view of the Hema HM-CAM20 reversing camera lens and bracket

Frequently asked questions

Does it come with a screen?

No. This is the camera on its own (standalone). You will need a reversing monitor or head unit with an RCA (composite) camera input to view the picture.

What video signal does it use?

It is an analogue composite (CVBS) camera with NTSC/PAL output at 800 TVL and an RCA video plug. Most aftermarket reversing monitors and head units with an RCA camera input will work. The Hema HM-MNT uses 6-pin camera connectors, so it needs an RCA adaptor. Not sure? contact our team before you order.

Will it work on a truck or a 24 V vehicle?

Yes. It is rated for 12 V and 24 V systems, so it suits cars, utes and commercial vehicles.

Is it waterproof?

Yes. The housing is rated IP69K, which means it is sealed against dust and high-pressure water. It operates from -30°C to 85°C.

How is it wired?

Power comes from the reversing light circuit: red to the reversing light positive and black to earth, on 12 V or 24 V. The 6 m cable runs the video signal to your screen.

Pairs well with

Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor
Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor

Touchscreen monitor for up to four cameras. Takes up to four cameras, 12/24 V. Needs an RCA adaptor for this camera.

$499.00 · View

Hema HM-CAM15 Heavy Duty Rear Camera
Hema HM-CAM15 Heavy Duty Rear Camera

Heavy-duty 800 TVL camera with a 10 m cable and 6-pin connector, made for the HM-MNT.

$199.95 · View

Hema HM-CAM202 Heavy Duty Dual Lens Reversing Camera
Hema HM-CAM202 Heavy Duty Dual Lens Reversing Camera

Two adjustable lenses (120° and 60°) for wider and taller vehicles.

$299.95 · View

Features

  • ✓Wide 170° diagonal view shows more behind the vehicle
  • ✓800 TVL resolution for a sharp picture
  • ✓Analogue composite (CVBS) output with RCA plug
  • ✓Dynamic reversing guidelines with built-in G-sensor
  • ✓Mirror image for rear use, switchable for front mounting
  • ✓Stainless steel housing sealed to IP69K
  • ✓Works from -30°C to 85°C
  • ✓12 V and 24 V compatible for cars, utes and trucks
  • ✓6 m rear camera cable supplied

Specifications

Camera

BrandHema Maps
ModelHM-CAM20
Resolution800 TVL
Field of view170° diagonal
Signal systemNTSC / PAL
Minimum illumination0.1 to 0.5 lux
Video outputAnalogue composite (CVBS), RCA plug
Reversing guidelinesDynamic, generated by the camera (built-in G-sensor)
Mirror imageMirrored by default, wire loop for front use

Build & power

HousingStainless steel
Ingress ratingIP69K
Operating temperature-30°C to 85°C
Voltage12 V / 24 V
Cable6 m rear camera cable (supplied)
MonitorNot included. Works with screens that have an RCA camera input
Warranty3-year limited warranty

What's Included

  • ✓1 x Hema HM-CAM20 reversing camera with mounting bracket
  • ✓1 x 6 m rear camera cable
  • ✓1 x installation guide

Product Details

SKU 9339398012946
Barcode # 9339398012946
Brand Hema Maps
Shipping Weight 0.7800kg
