DETAILS

Overview

The tough rear camera for your HM-MNT

Built to work with the Hema HM-MNT AHD monitor, the HM-CAM15 gives a sharp, wide view behind cars, 4WDs, caravans and commercial vehicles. It runs on 12 V or 24 V, sees in the dark with IR LEDs, and connects with a heavy-duty 6-pin plug that stays put on rough roads.

Hema HM-CAM15 Heavy Duty Rear Camera for HM-MNT Monitor (Camera Only)
150°Diagonal View
800 TVLResolution
IP69KDust and Waterproof
10 mExtension Cable

Camera only. Hema lists the HM-CAM15 as compatible with the HM-MNT AHD monitor only (sold separately). Questions? contact our team.

Clear picture

Wide view, fine detail

800 TVL resolution captures fine detail, and the wide 150° diagonal lens takes in more of the area behind your vehicle or van.

  • ✓800 TVL high-quality resolution
  • ✓150° diagonal field of view
  • ✓NTSC signal

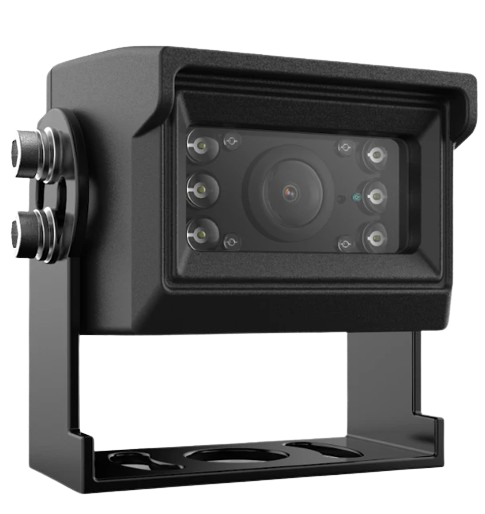

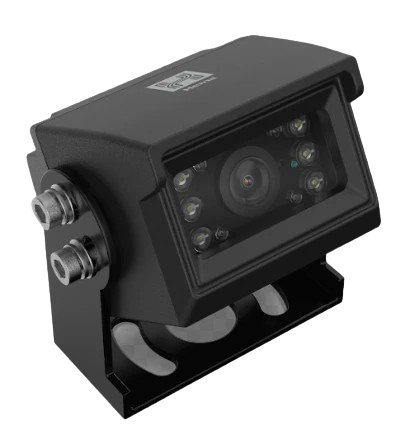

Hema HM-CAM15 heavy-duty rear camera with IR LEDs and mounting bracket

24-hour vision

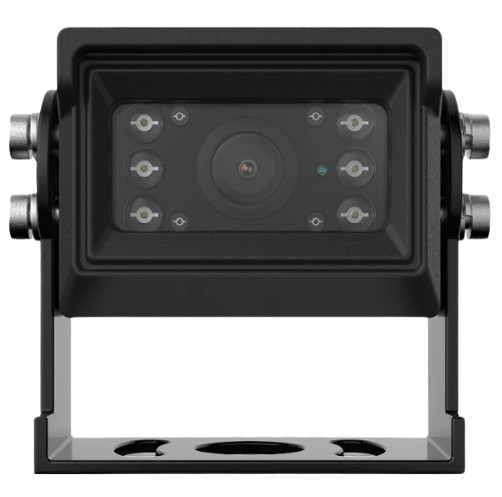

Front view of the Hema HM-CAM15 camera showing the lens and IR LEDs

See clearly after dark

High-powered IR LEDs keep the picture clear at night and in low light, down to 0.0 lux, so reversing into a dark campsite or loading dock is easier.

  • ✓High-powered IR LEDs
  • ✓Minimum illumination 0.0 lux

Built tough

Connections that stay put

When the going gets rough, the durable gold-plated 6-pin mini DIN connector and 10 m extension cable keep connections firmly in place. The housing is rated IP69K and works from -30°C to 85°C.

  • ✓Gold-plated 6-pin mini DIN connector
  • ✓10 m rear extension cable supplied
  • ✓12 V / 24 V for passenger and commercial vehicles
  • ✓IP69K rated

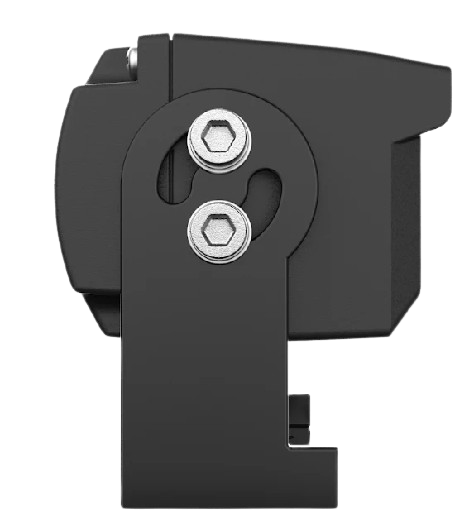

Side view of the Hema HM-CAM15 showing the adjustable bracket bolts

Frequently asked questions

Which monitor does it work with?

Hema lists the HM-CAM15 as compatible with the Hema HM-MNT AHD monitor only. The monitor is sold separately.

Can I run it through to a caravan or trailer?

Yes, with Hema WOZA cables. The HM-WOZ2 and HM-WOZ4 connector cables list the HM-CAM15 as compatible, and they are used with the HM-WOZCBL coiled trailer cable.

Will it work on a 24 V truck?

Yes. It is rated for 12 V and 24 V systems, and a 12/24 V adaptor is in the box.

How is it installed?

It comes with a 10 m rear extension cable, a 12/24 V adaptor and an RCA adaptor. Hema advises the first install should be wired by a qualified auto electrician.

Is it waterproof?

Yes. It is rated IP69K against dust and high-pressure water.

Pairs well with

Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor
Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor

The 177 mm touchscreen monitor this camera is made for. Up to four cameras.

$499.00 · View

Hema HM-WOZ2 2-Channel Heavy Duty WOZA Connector Cable
Hema HM-WOZ2 2-Channel Heavy Duty WOZA Connector Cable

WOZA connector cable for running up to 2 cameras to a caravan or trailer.

$129.95 · View

Hema HM-WOZCBL 2 m Heavy Duty Coiled WOZA Trailer Cable
Hema HM-WOZCBL 2 m Heavy Duty Coiled WOZA Trailer Cable

Coiled 2 m WOZA cable that joins the vehicle and trailer connectors.

$129.95 · View

Features

  • ✓Made for the Hema HM-MNT AHD monitor
  • ✓800 TVL high-quality resolution
  • ✓Wide 150° diagonal view
  • ✓High-powered IR LEDs for night vision
  • ✓Gold-plated 6-pin mini DIN connector
  • ✓10 m rear extension cable supplied
  • ✓12 V / 24 V for cars, caravans and trucks
  • ✓IP69K rated, -30°C to 85°C
  • ✓3-year limited Hema warranty

Specifications

Camera

BrandHema Maps
ModelHM-CAM15
Resolution800 TVL
Signal systemNTSC
Field of view150° diagonal
Minimum illumination0.0 lux
Night visionHigh-powered IR LEDs

Build & power

Waterproof ratingIP69K
Operating temperature-30°C to 85°C
Voltage12 V / 24 V
ConnectorGold-plated 6-pin mini DIN
Cable10 m rear extension cable (supplied)
CompatibilityHema HM-MNT AHD monitor only
MonitorNot included
Warranty3-year limited warranty

What's Included

  • ✓1 x Hema HM-CAM15 camera
  • ✓1 x 12/24 V adaptor
  • ✓1 x RCA adaptor
  • ✓1 x 10 m rear extension cable
  • ✓1 x User manual

Product Details

SKU 9339398012960
Barcode # 9339398012960
Brand Hema Maps
Shipping Weight 1.2200kg
