Overview

All your cameras on one screen

The HM-MNT is a 177 mm touchscreen reversing monitor that takes up to four cameras. Show one, two or all four at once for all-round awareness on a caravan, camper trailer, fifth wheeler or truck. It is designed for Hema's HM-CAM15 and HM-CAM202 rear cameras and Hema WOZA cables.

Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor
177 mmIPS Touch Screen
4Camera Inputs
1024 x 600Resolution
12-32 VCars and Trucks

Monitor only. Cameras are sold separately. Hema advises the first install should be wired by a qualified auto electrician.

Quad display

Up to four cameras, one glance

Choose single, dual or quad view. With four cameras fitted you can cover all around the vehicle, and the monitor switches automatically when a camera's trigger wire is powered, such as when you select reverse.

  • ✓4 camera inputs with built-in quad split
  • ✓Selectable single, dual or quad view
  • ✓Trigger priority CH1 to CH4, adjustable 0-20 second delay
  • ✓Mirror image and image rotation

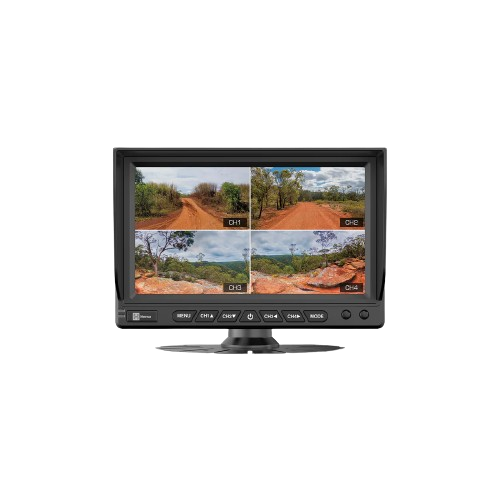

Hema HM-MNT monitor showing four camera views in quad split mode

Clear screen

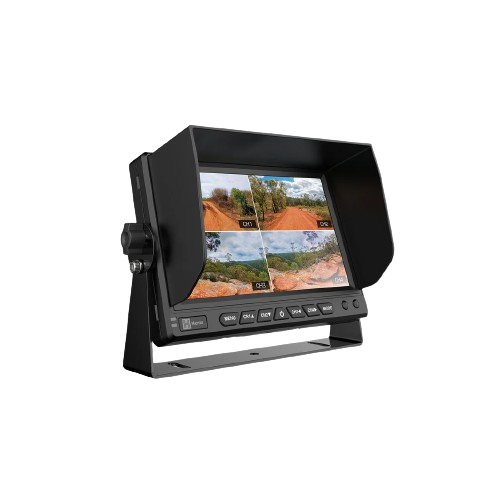

Hema HM-MNT monitor on its U-shape bracket with the sun visor fitted

Bright and easy to read

The 177 mm IPS touchscreen runs at 1024 x 600 with 600 cd/m² brightness, and a detachable sun visor cuts glare in bright conditions. It accepts AHD (720p, 960p, 1080p) and CVBS cameras, with PAL/NTSC auto detection.

  • ✓177 mm IPS touchscreen, 1024 x 600
  • ✓600 cd/m² LED backlight
  • ✓AHD and CVBS camera compatible
  • ✓Detachable sun visor

Easy to fit

Two mounts and a remote

A U-shape bracket and a 3M adhesive dash mount give you two ways to fit it, and a remote control means you can change views without reaching across a big dash. Gold-plated 6-pin connectors keep camera connections secure.

  • ✓U-shape bracket and 3M dashboard mount included
  • ✓Remote control included
  • ✓Gold-plated 6-pin camera connectors
  • ✓3-year limited Hema warranty

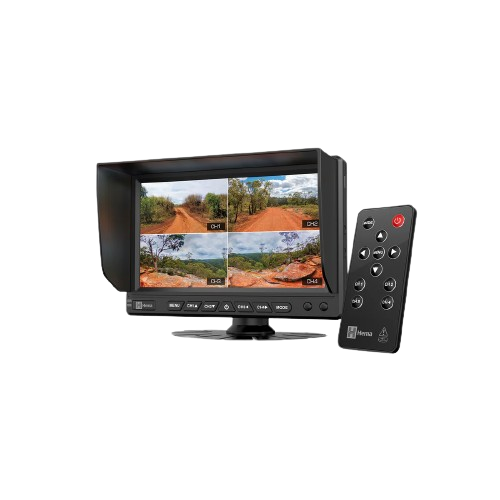

Hema HM-MNT reversing monitor with sun visor and remote control

Frequently asked questions

Which cameras does it work with?

Hema designed it for the HM-CAM15 and HM-CAM202 rear cameras. It accepts AHD (720p, 960p, 1080p) and CVBS cameras. For other cameras, contact our team to check the connector.

Does it come with a camera?

No. It is the monitor only, with remote, sun visor, two mounts and a wire harness.

Will it run on 24 V?

Yes. The input range is 12-32 V DC, so it suits cars, caravans and trucks.

Can I connect cameras on my caravan or trailer?

Yes. Hema WOZA cables (HM-WOZ2, HM-WOZ4 and the HM-WOZCBL coiled cable) are made for running Hema cameras across to a trailer.

How big is the screen?

It is a 177 mm diagonal IPS touchscreen with 1024 x 600 resolution.

Pairs well with

Hema HM-CAM15 Heavy Duty Rear Camera
Hema HM-CAM15 Heavy Duty Rear Camera

Heavy-duty 150° rear camera with a 10 m cable and 6-pin connector.

$199.95 · View

Hema HM-CAM202 Heavy Duty Dual Lens Reversing Camera
Hema HM-CAM202 Heavy Duty Dual Lens Reversing Camera

Dual lens camera (120° and 60°) for tall and wide vehicles.

$299.95 · View

Hema HM-WOZ4 4-Channel Heavy Duty WOZA Connector Cable
Hema HM-WOZ4 4-Channel Heavy Duty WOZA Connector Cable

WOZA connector cable for up to 4 cameras on a caravan or trailer.

$169.95 · View

Features

  • ✓177 mm IPS touchscreen, 1024 x 600 resolution
  • ✓Up to four cameras with built-in quad split
  • ✓Selectable single, dual or quad view
  • ✓AHD (720p/960p/1080p) and CVBS compatible
  • ✓Mirror image and image rotation
  • ✓Detachable sun visor
  • ✓Remote control included
  • ✓U-shape bracket and 3M dash mount included
  • ✓12-32 V DC for cars, caravans and trucks
  • ✓3-year limited Hema warranty

Specifications

Display

Screen177 mm diagonal AHD IPS touchscreen
Resolution1024 x 600
Brightness600 cd/m²
BacklightLED
Viewing angle90° left/right/up/down
Menu languageEnglish

Cameras & video

Camera inputs4
View modesSingle, dual or quad
Camera compatibilityAHD (720p, 960p, 1080p) / CVBS
Video systemPAL/NTSC auto
Trigger priorityCH1 > CH2 > CH3 > CH4
Trigger12-32 V DC, adjustable delay 0-20 seconds
Mirror imageMirror image and rotation
Designed forHema HM-CAM15 and HM-CAM202

Power & build

BrandHema Maps
ModelHM-MNT
Input voltage12-32 V DC
Input current700 mA at 12 V DC
Operating temperature-10°C to 65°C
Sun visorDetachable
Remote controlIncluded
Warranty3-year limited warranty

What's Included

  • ✓1 x Hema HM-MNT monitor
  • ✓1 x Remote control
  • ✓1 x U-shape mounting bracket
  • ✓4 x U-shape bracket mounting bolts
  • ✓1 x Detachable sun visor
  • ✓1 x 3M adhesive dashboard mount
  • ✓1 x Wire harness
  • ✓1 x User manual

Product Details

SKU 9339398012984
Barcode # 9339398012984
Brand Hema Maps
Shipping Weight 1.6400kg
