DETAILS

Overview

Two lenses for tall and wide vehicles

The HM-CAM202 puts two adjustable lenses in one heavy-duty housing. Aim one wide at the ground behind you and the other further back, for better coverage on caravans, motorhomes, trucks and other tall or wide vehicles. It is made to work with the Hema HM-MNT AHD monitor.

Hema HM-CAM202 Heavy Duty Dual Lens Reversing Camera (Camera Only)
120° + 60°Two Adjustable Lenses
800 TVLBoth Lenses
IP69KDust and Waterproof
20 mDual Channel Cable

Camera only. Hema lists the HM-CAM202 as compatible with the HM-MNT AHD monitor only (sold separately). Questions? contact our team.

Dual lens

See near and far at once

Lens 1 has a wide 120° field of view for the area right behind you. Lens 2 has a 60° view for a longer look down the road. Both are adjustable, which helps with tall vehicles and trailers.

  • ✓Adjustable 120° lens and 60° lens
  • ✓800 TVL resolution on both lenses
  • ✓Reversing guidelines and mirror image mode with the HM-MNT

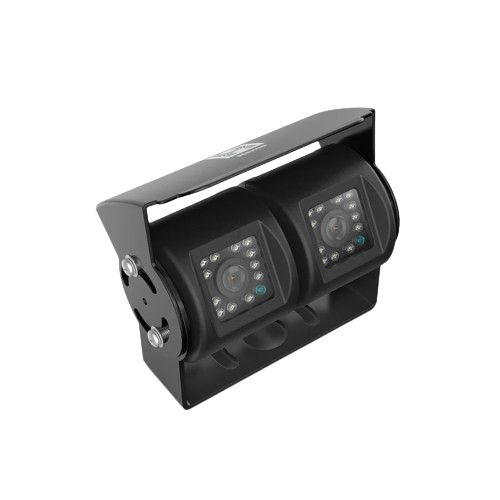

Hema HM-CAM202 dual lens reversing camera with two lenses in a metal housing and hood

24-hour vision

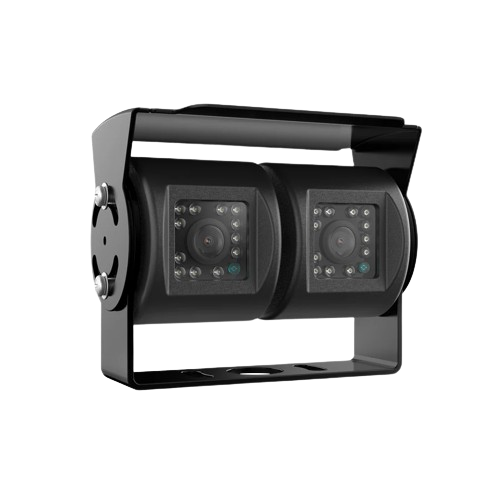

Front view of the Hema HM-CAM202 showing both lenses ringed by IR LEDs

Clear day and night

Built-in high-powered IR LEDs give a clear picture at night and in low light, down to 0.0 lux, so backing into a dark site is easier.

  • ✓High-powered IR LEDs
  • ✓Minimum illumination 0.0 lux

Built tough

Heavy-duty and weather-sealed

A sturdy metal housing rated IP69K handles rain, dust and wash-downs. A 20 m dual channel cable is included for the long run on a big rig.

  • ✓Metal housing rated IP69K
  • ✓20 m dual channel cable supplied
  • ✓Screws and Allen key included
  • ✓3-year limited Hema warranty

Side view of the Hema HM-CAM202 showing the adjustable bracket

Frequently asked questions

Which monitor does it work with?

Hema lists the HM-CAM202 as compatible with the Hema HM-MNT AHD monitor only. The monitor is sold separately.

Why two lenses?

The 120° lens covers the ground close behind the vehicle and the 60° lens looks further back. Both are adjustable, which suits tall and wide vehicles and towing.

Can I run it to a caravan or trailer?

Yes, with Hema WOZA cables. The HM-WOZ2 and HM-WOZ4 list the HM-CAM202 as compatible, used with the HM-WOZCBL coiled trailer cable.

What voltage does it need?

Hema lists a nominal 12 V. If your vehicle is 24 V, contact our team before you order.

How is it installed?

A 20 m dual channel cable, screws and an Allen key are included. Hema advises the first install should be wired by a qualified auto electrician.

Pairs well with

Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor
Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor

The 177 mm touchscreen monitor this camera is made for. Up to four cameras.

$499.00 · View

Hema HM-WOZ2 2-Channel Heavy Duty WOZA Connector Cable
Hema HM-WOZ2 2-Channel Heavy Duty WOZA Connector Cable

WOZA connector cable for running up to 2 cameras to a caravan or trailer.

$129.95 · View

Hema HM-WOZCBL 2 m Heavy Duty Coiled WOZA Trailer Cable
Hema HM-WOZCBL 2 m Heavy Duty Coiled WOZA Trailer Cable

Coiled 2 m WOZA cable that joins the vehicle and trailer connectors.

$129.95 · View

Features

  • ✓Two adjustable lenses: 120° and 60°
  • ✓Better coverage for tall and wide vehicles and trailers
  • ✓800 TVL resolution on both lenses
  • ✓High-powered IR LEDs for night vision
  • ✓Reversing guidelines and mirror image mode (with HM-MNT)
  • ✓Sturdy metal housing rated IP69K
  • ✓20 m dual channel cable supplied
  • ✓Made for the Hema HM-MNT AHD monitor
  • ✓3-year limited Hema warranty

Specifications

Camera

BrandHema Maps
ModelHM-CAM202
Lenses2, adjustable
Field of viewLens 1: 120°, Lens 2: 60°
Resolution800 TVL (both lenses)
Signal systemNTSC
Minimum illumination0.0 lux
Night visionHigh-powered IR LEDs

Build & power

HousingMetal, heavy duty
Waterproof ratingIP69K
Operating temperature-30°C to 75°C
Voltage12 V nominal
Cable20 m dual channel cable (supplied)
CompatibilityHema HM-MNT AHD monitor only
MonitorNot included
Warranty3-year limited warranty

What's Included

  • ✓1 x Hema HM-CAM202 dual lens camera
  • ✓1 x 20 m dual channel cable
  • ✓1 x Screws and Allen key
  • ✓1 x User manual

Product Details

SKU 9339398012977
Barcode # 9339398012977
Brand Hema Maps
Shipping Weight 1.9700kg
