DETAILS

Overview

Hitch up your cameras as easily as your van

The HM-WOZ4 is a heavy-duty WOZA connector cable for running up to 4 Hema cameras from a caravan, trailer or boat back to your vehicle. Used with the HM-WOZCBL coiled WOZA cable, it gives a durable, reliable camera connection between the tow vehicle and whatever you are towing.

Hema HM-WOZ4 4-Channel Heavy Duty WOZA Connector Cable
Up to 4Cameras
6-pinGold-Plated Connectors
12 / 24 VCompatible
AHD / CVBSCamera Support

Used together with the HM-WOZCBL coiled WOZA cable (sold separately). Hema lists it for the HM-CAM15 and HM-CAM202 cameras and HM-MNT monitor. Not sure what you need? contact our team.

Made for towing

Camera connections that stay secure

The heavy-duty gold-plated 6-pin connectors keep camera connections firmly secured, even when towing caravans, trailers or boats over rough roads. The cable is dust and waterproof for all weather.

  • ✓Heavy-duty gold-plated 6-pin connectors
  • ✓Dust and waterproof
  • ✓12 V and 24 V compatible

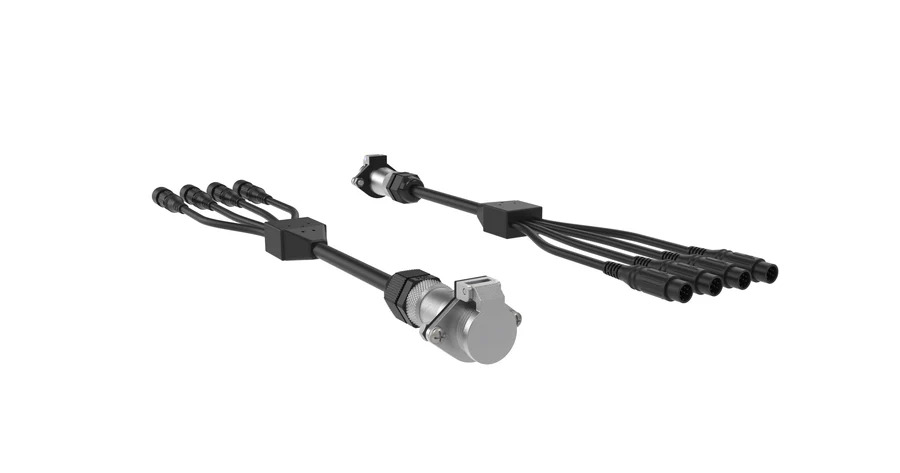

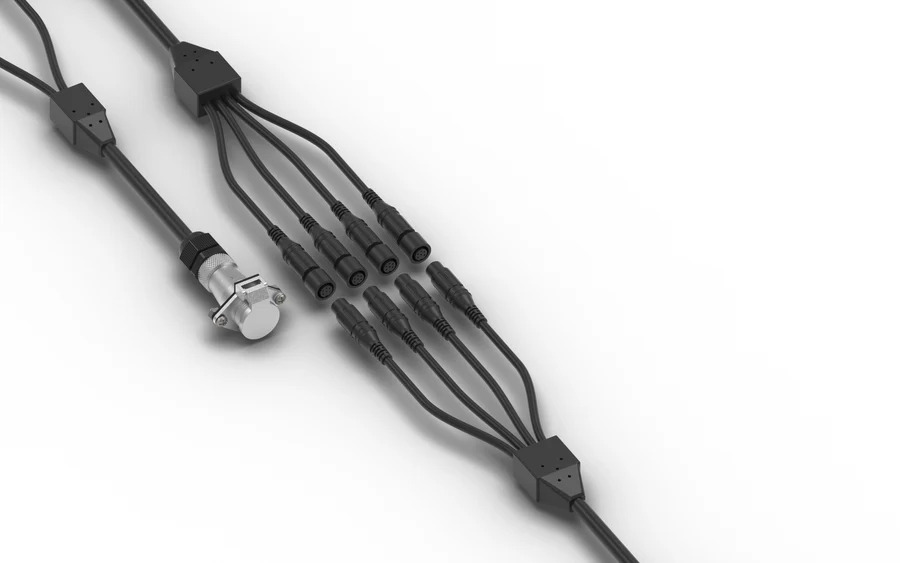

Hema HM-WOZ4 WOZA connector cables with heavy-duty socket and camera leads

How it fits together

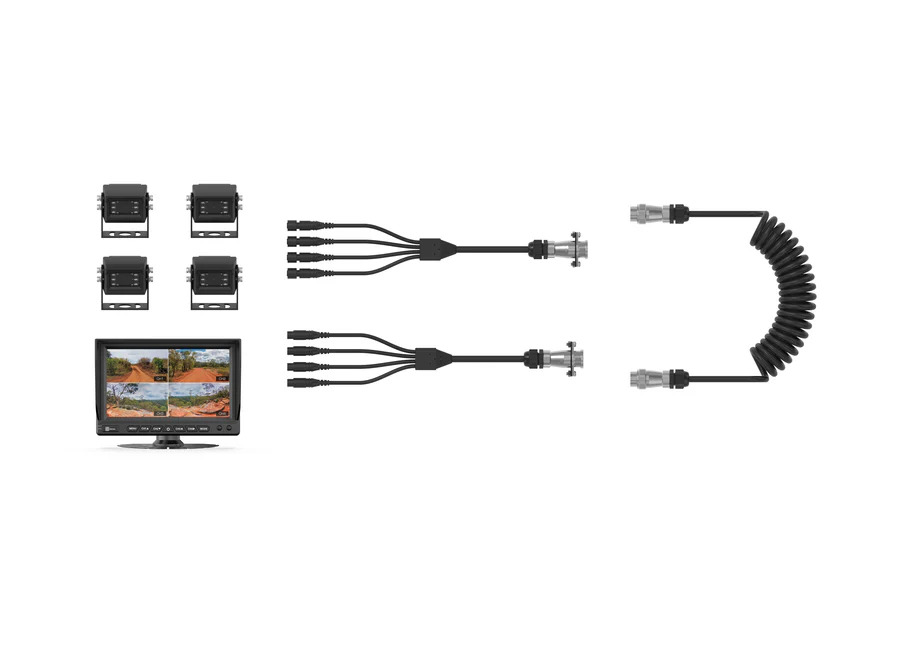

Hema camera system with four cameras, HM-MNT monitor, WOZA connector cables and coiled trailer cable

A complete Hema camera system

Up to four Hema cameras plug into the HM-WOZ4. The coiled HM-WOZCBL cable bridges the gap between the vehicle and trailer, and the HM-MNT monitor shows all four on one screen.

  • ✓Supports up to 4 cameras
  • ✓Works with CVBS and AHD cameras
  • ✓Compatible with HM-CAM15, HM-CAM202 and HM-MNT

Frequently asked questions

What do I need with it?

Hema says it is used with the HM-WOZCBL coiled WOZA cable. Hema lists it as compatible with the HM-CAM15 and HM-CAM202 rear cameras and the HM-MNT 4-channel monitor.

How many cameras can it carry?

Up to 4 cameras. If you only need two, see the HM-WOZ2.

Will it work on a 24 V vehicle?

Yes. It is 12 V and 24 V compatible.

Is it waterproof?

Hema describes it as dust and waterproof, made to work in all weather conditions.

Pairs well with

Hema HM-WOZCBL 2 m Heavy Duty Coiled WOZA Trailer Cable
Hema HM-WOZCBL 2 m Heavy Duty Coiled WOZA Trailer Cable

Coiled 2 m WOZA cable that links the vehicle and trailer connectors.

$129.95 · View

Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor
Hema HM-MNT 177 mm AHD Quad Display Touchscreen Reversing Monitor

The 177 mm touchscreen monitor that shows up to four cameras.

$499.00 · View

Hema HM-WOZ2 2-Channel Heavy Duty WOZA Connector Cable
Hema HM-WOZ2 2-Channel Heavy Duty WOZA Connector Cable

The 2-channel version of this WOZA connector cable.

$129.95 · View

Features

  • ✓Supports up to 4 cameras
  • ✓Used with the HM-WOZCBL coiled WOZA cable
  • ✓Heavy-duty gold-plated 6-pin connectors
  • ✓CVBS and AHD camera compatible
  • ✓12 V and 24 V compatible
  • ✓Dust and waterproof
  • ✓For caravans, trailers, boats and other towing gear
  • ✓Compatible with HM-CAM15, HM-CAM202 and HM-MNT
  • ✓3-year limited Hema warranty

Specifications

Connector cable

BrandHema Maps
ModelHM-WOZ4
Channels4 (up to 4 cameras)
ConnectorGold-plated 6-pin
Camera technologyCVBS / AHD
Voltage12 V / 24 V
Weather sealingDust and waterproof
Used withHM-WOZCBL coiled WOZA cable
CompatibilityHM-CAM15, HM-CAM202, HM-MNT
Warranty3-year limited warranty

What's Included

  • ✓1 x Hema HM-WOZ4 4-channel WOZA connector cable
  • ✓1 x User manual

Product Details

SKU 9339398013011
Barcode # 9339398013011
Brand Hema Maps
Shipping Weight 0.9300kg
