Overview

3-port USB socket: 45W USB-C PD + QC 3.0

Three fast-charging ports in one standard-size socket: two USB-C Power Delivery ports with up to 45 W, and a Quick Charge 3.0 USB-A port with up to 36 W. Enough to fast charge phones, run a tablet and top up a small USB-C laptop, from any 12V or 24V system. It fits the same 29.2 mm hole as a standard USB socket and works down to -40°C.

45 Watts
USB-C PD Max
36 Watts
QC 3.0 USB-A Max
3 Ports
2 x USB-C + 1 x USB-A
12V / 24V
Input Voltage
2 Years
Warranty

Compare our USB sockets

Which one is right for you? All six fit the same 29.2 mm hole, so you can upgrade an older socket without re-cutting the panel.

TVDSU USB socket
1 x USB-A 5V 1A (5 W)
1 x USB-A 5V 2.1A (10.5 W)
Total 15.5 W
Input 12–24V DC
Best for Everyday phone and GPS charging in older vehicles, caravans and boats
TVDSU2 USB socket
2 x USB-A QC 3.0 (18 W each)
Total 36 W
Input 8–32V DC
Best for Fast-charging two phones while keeping an eye on battery voltage
TVDSU3 USB socket
1 x USB-C PD (45 W)
1 x USB-A QC 3.0 (18 W)
Total 36 W on 12V, 45 W on 24V
Input 12–24V DC
Best for Charging a USB-A and a USB-C phone, both fast
TVDSU4 USB socket
TVDSU4 THIS SOCKET
2 x USB-C PD (45 W)
1 x USB-A QC 3.0 (36 W)
Input 12–24V DC (32V max)
Best for Families: three devices at once, two on fast USB-C
TVDSU5 USB socket
1 x USB-C PD (65 W)
1 x USB-A QC 3.0 (18 W)
Total 83 W
Input 12–24V DC
Best for Charging a laptop or tablet on the road (65 W USB-C)
TVDSU6 USB socket
1 x USB-C PD (100 W)
1 x USB-A QC 3.0 (36 W)
Total 136 W
Input 12V / 24V DC (32V max)
Best for Big laptops, and wet spots like boats and exposed panels (100 W, IP65)
3-Port USB Socket: 2 x USB-C PD 45W + QC 3.0 USB-A 36W, 12V / 24V Flush Mount

Ports and charging

PortOutputMax Power
USB-C PD5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 2.2A		45 W
USB-A QC 3.05V / 3A
9V / 3A
12V / 3A		36 W

At 45 W the USB-C output charges an iPad Pro, a Nintendo Switch, most phones at full speed, and many small USB-C laptops and ultrabooks. Each device negotiates its own voltage, from 5V up to 20V, so it is safe for older USB devices too.

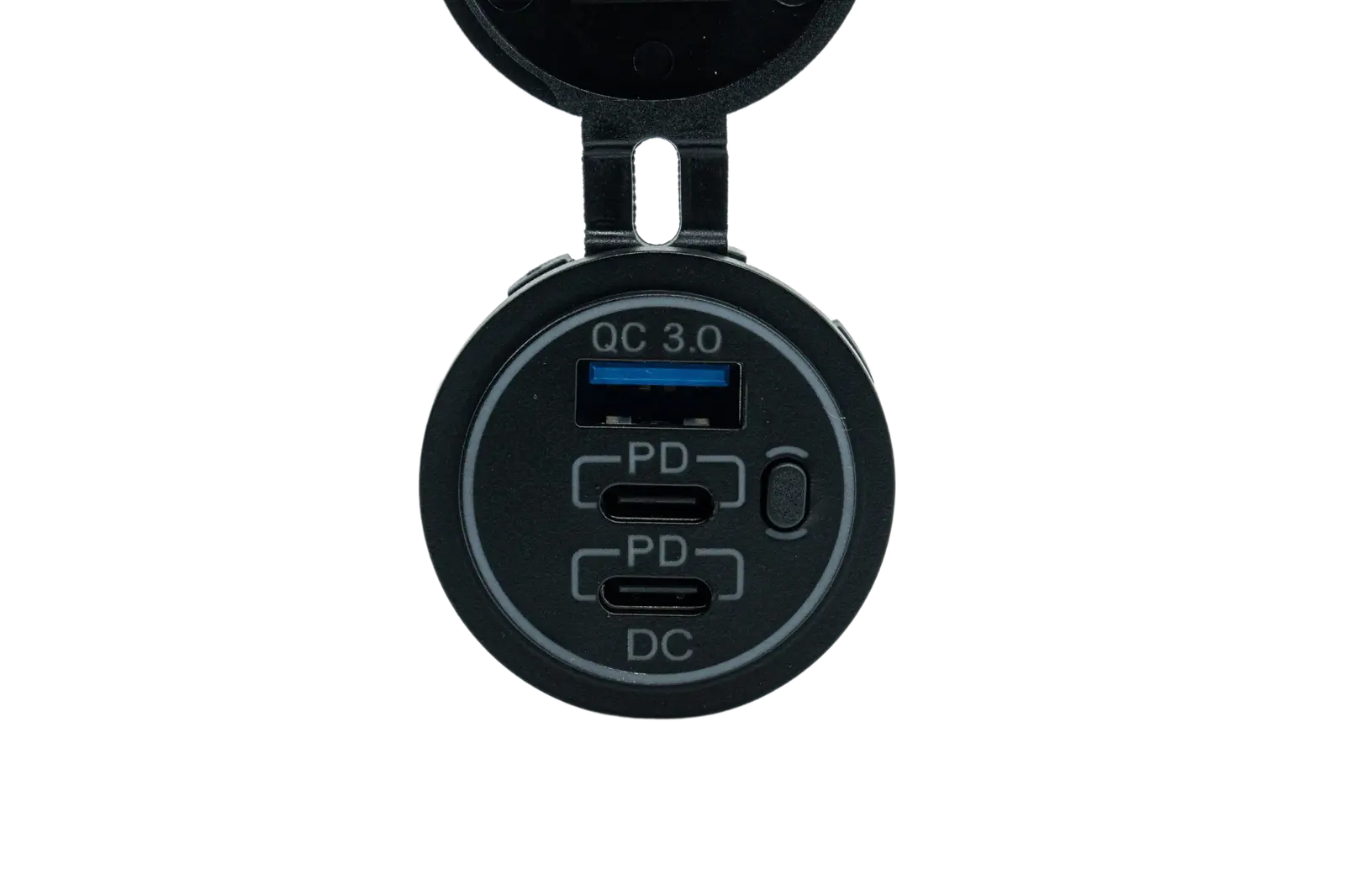

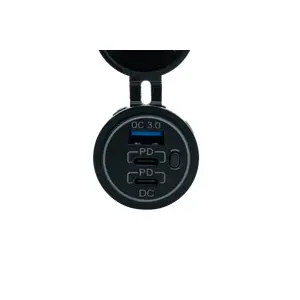

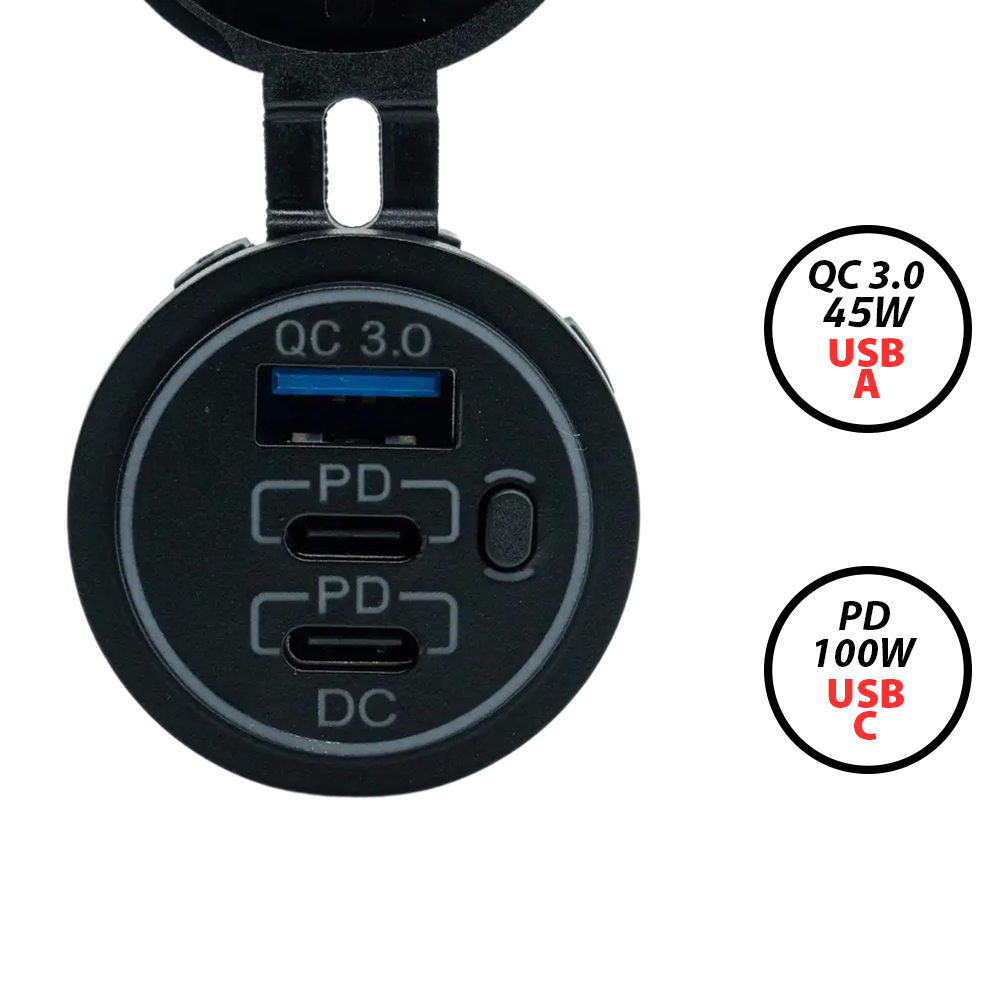

3-port USB socket face: QC 3.0 USB-A and two USB-C PD ports

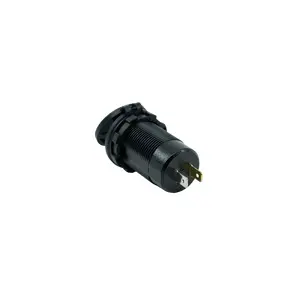

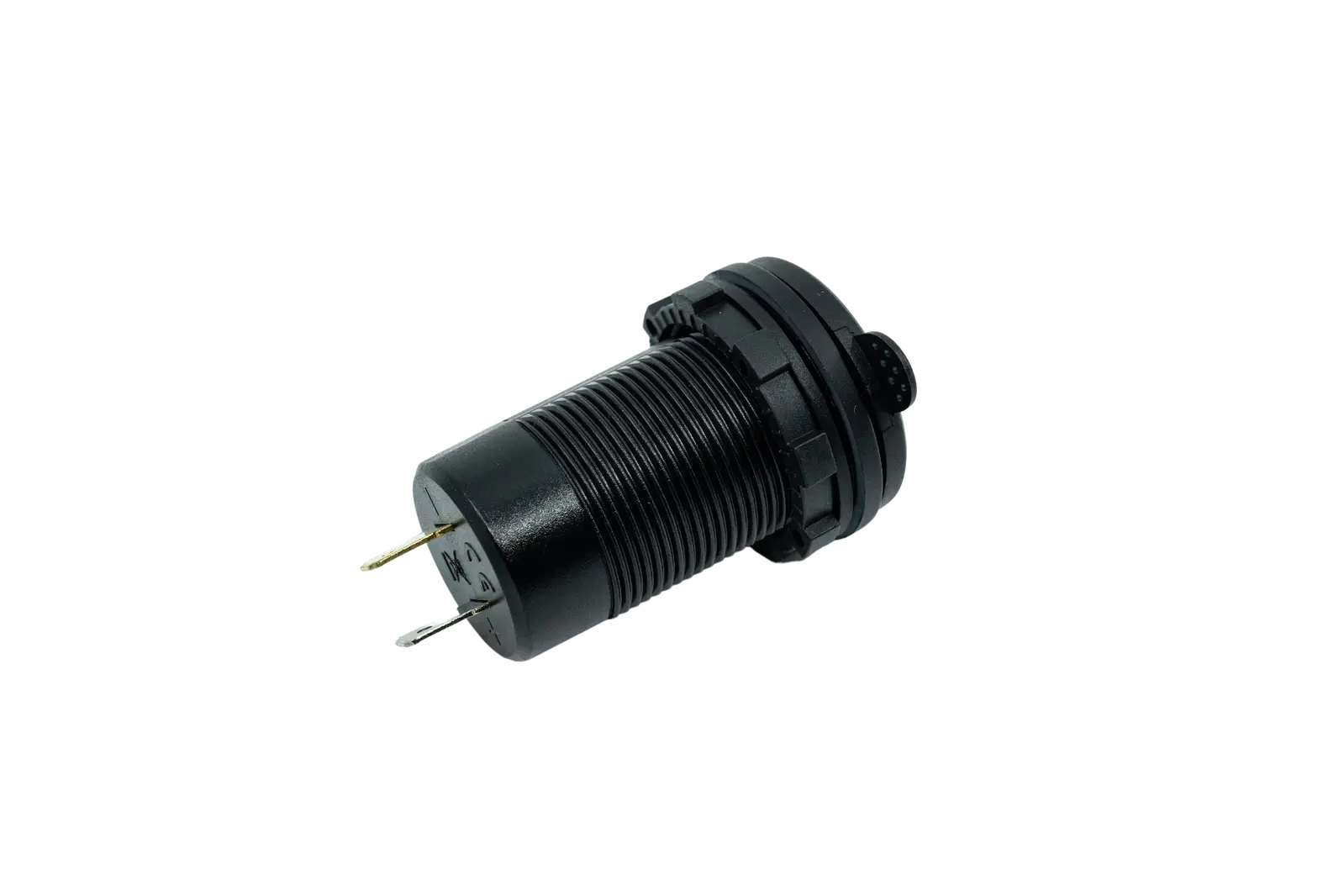

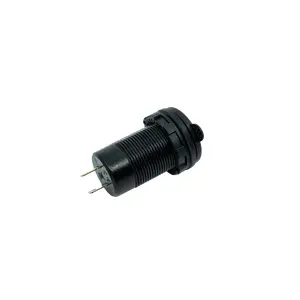

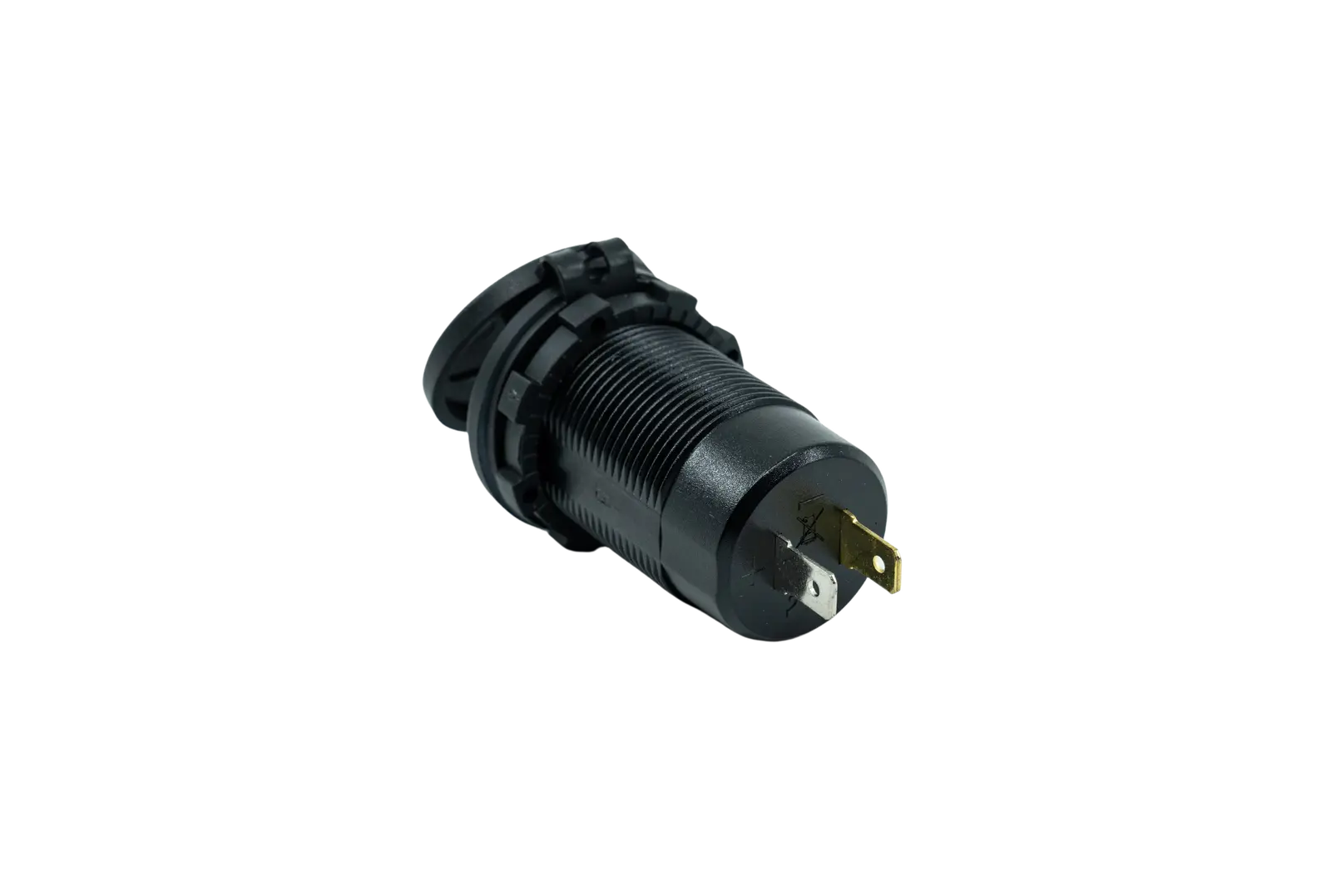

Side view of the 3-port USB socket with retaining nut

A single USB-C port delivers up to 45 W. When both USB-C ports are in use, the power is shared between them.

Built for the cold and the heat

  • ✓Working temperature -40°C to +60°C: keeps charging on frosty alpine mornings and in hot canopies
  • ✓Input up to 32V: handles the charging voltage of 24V trucks and buses
  • ✓Hinged weather cap: keeps dust and water out of the ports when not in use

Fitting

  • ✓Hole size: cut a round hole of at least 29.2 mm (a 30 mm hole saw works) in any panel, dash, battery box or canopy wall
  • ✓Space behind the panel: allow about 62 mm for the body and terminals, plus room for the wires
  • ✓Mounting: push the socket through from the front and tighten the threaded retaining nut from behind
  • ✓Wiring: push-on spade terminals marked + and −. Run the positive through an inline fuse close to the battery
  • ✓Suggested fuse: 10A on the positive feed
  • ✓Terminals: push-on spade terminals marked + and −

TVDSU4 size diagram: 37 mm face, 52 mm body length, 30 mm panel hole

2
Year
Warranty
Why buy from Perception Lighting12 Volt DirectSPC Enterprises
Australian business since 2007
Sydney store, shipping Australia-wide
Real people, here in Australia
Not an overseas call centre
2-year warranty
Plus 30-day change-of-mind returns

Need a hand choosing?

Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.

Features

  • ✓2 x USB-C Power Delivery ports, up to 45 W (20V / 2.2A)
  • ✓1 x Quick Charge 3.0 USB-A port, up to 36 W (12V / 3A)
  • ✓USB-C output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.2A
  • ✓Input 12–24V DC, up to 32V max
  • ✓Works from -40°C to +60°C
  • ✓Hinged weather cap
  • ✓Fits a standard 29.2 mm hole, flush mount with threaded nut
  • ✓2-year warranty

Specifications

Ports2 x USB-C PD, 1 x USB-A QC 3.0
USB-C PD Output5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 2.2A (45 W Max)
USB-A QC 3.0 Output5V / 3A
9V / 3A
12V / 3A (36 W Max)
Input Voltage12–24V DC (32V Max)
Working Temperature-40°C to +60°C
Mounting Hole29.2 mm Minimum
Overall Length62 mm (incl. Terminals)
Body Length43 mm, plus 10 mm Terminals
Bezel Diameter37 mm
Height with Cap48 mm
Body Diameter29 mm (Threaded)
ModelYJ-DS2045B-1
Warranty2 Years

What's Included

  • 1 x 3-port USB socket with hinged cap
  • 1 x threaded retaining nut

Product Details

SKU TVDSU4
Barcode # 9359968001811
Brand 12 Volt Direct
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.000288000m3
