Overview

83W USB socket: 65W USB-C PD + QC 3.0

Charge a laptop and a phone at the same time from your vehicle battery. The USB-C Power Delivery port delivers up to 65 W, enough for most laptops including MacBook Air and 13″ MacBook Pro, iPads, Nintendo Switch and cameras, while the Quick Charge 3.0 USB-A port fast charges your phone at up to 18 W. Fits a standard 29.2 mm hole in the dash, console, battery box or caravan wall.

83 Watts
Total Output
65 Watts
USB-C PD
18 Watts
QC 3.0 USB-A
12V / 24V
Input Voltage
2 Years
Warranty

Compare our USB sockets

Which one is right for you? All six fit the same 29.2 mm hole, so you can upgrade an older socket without re-cutting the panel.

TVDSU USB socket
1 x USB-A 5V 1A (5 W)
1 x USB-A 5V 2.1A (10.5 W)
Total 15.5 W
Input 12–24V DC
Best for Everyday phone and GPS charging in older vehicles, caravans and boats
TVDSU2 USB socket
2 x USB-A QC 3.0 (18 W each)
Total 36 W
Input 8–32V DC
Best for Fast-charging two phones while keeping an eye on battery voltage
TVDSU3 USB socket
1 x USB-C PD (45 W)
1 x USB-A QC 3.0 (18 W)
Total 36 W on 12V, 45 W on 24V
Input 12–24V DC
Best for Charging a USB-A and a USB-C phone, both fast
TVDSU4 USB socket
2 x USB-C PD (45 W)
1 x USB-A QC 3.0 (36 W)
Input 12–24V DC (32V max)
Best for Families: three devices at once, two on fast USB-C
TVDSU5 USB socket
TVDSU5 THIS SOCKET
1 x USB-C PD (65 W)
1 x USB-A QC 3.0 (18 W)
Total 83 W
Input 12–24V DC
Best for Charging a laptop or tablet on the road (65 W USB-C)
TVDSU6 USB socket
1 x USB-C PD (100 W)
1 x USB-A QC 3.0 (36 W)
Total 136 W
Input 12V / 24V DC (32V max)
Best for Big laptops, and wet spots like boats and exposed panels (100 W, IP65)
83W USB Socket: 65W USB-C PD + 18W QC 3.0 USB-A, 12V / 24V Flush Mount

Ports and charging

PortOutputMax Power
USB-C PD5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 3.25A		65 W
USB-A QC 3.05V / 3A
9V / 2A
12V / 1.5A		18 W
Both together 83 W max

Each device negotiates the voltage it needs, from 5V for older gadgets up to 20V for a laptop, so one socket safely charges everything you carry.

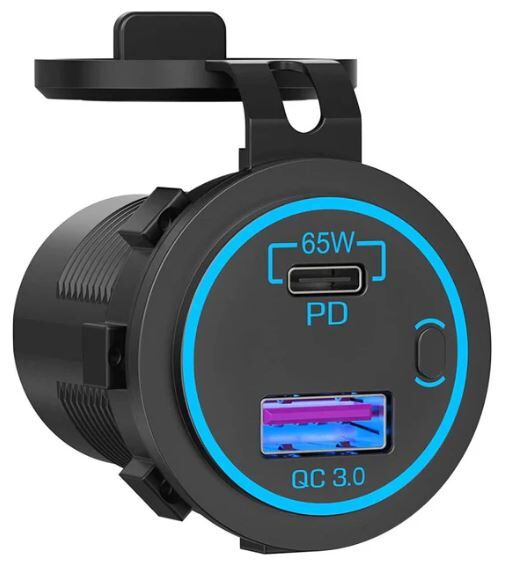

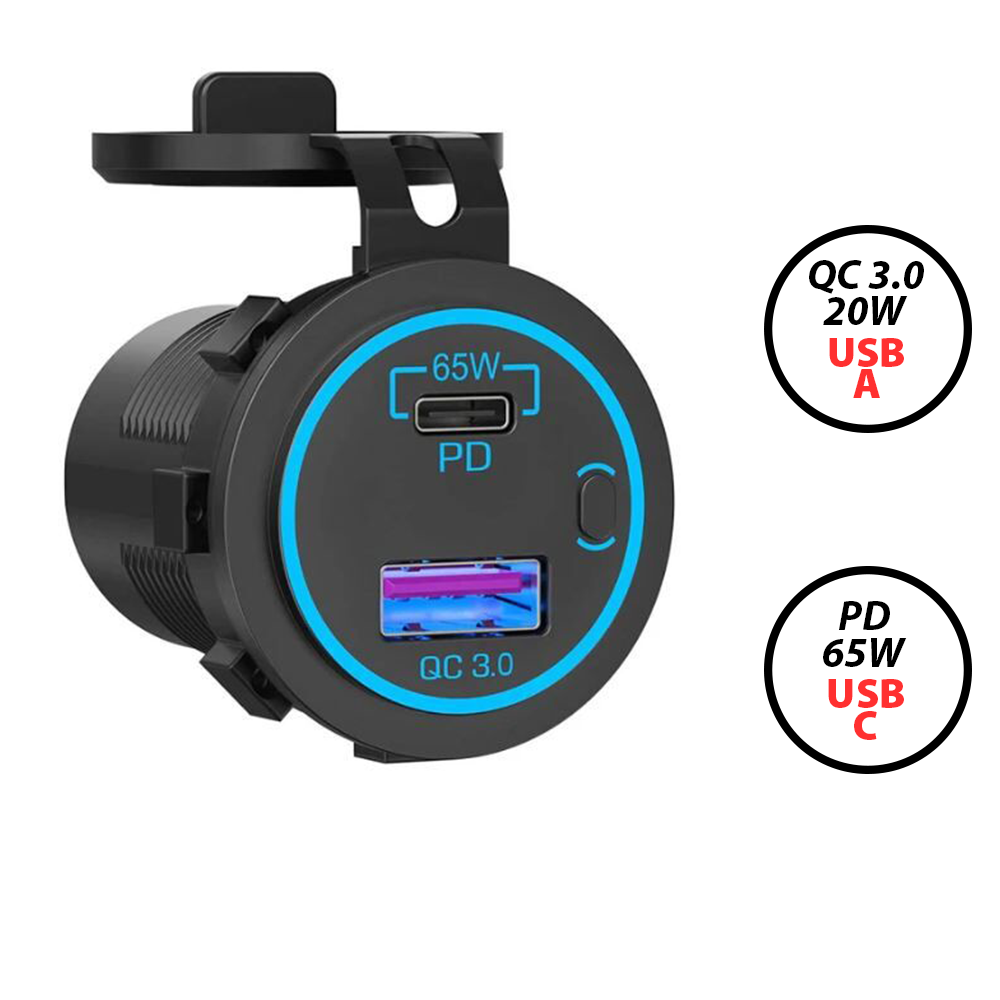

83W socket face with 65W USB-C PD and QC 3.0 USB-A ports

Protected supply

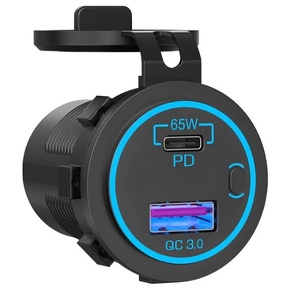

83W USB-C PD and QC 3.0 socket with hinged cap

  • ✓Voltage limit range 9–31V: the socket works across the full swing of a 12V or 24V system, from a flat battery to a charging alternator
  • ✓Low contact resistance (under 100 mΩ): less heat at the plug, more power to the device
  • ✓Firm plug grip: plugs need up to 1,500 gf to pull out, so cables stay put on corrugations
  • ✓Salt spray tested and impact rated to 8 kgf: made for boats, beaches and rough tracks
  • ✓Rated -25°C to +85°C, with a hinged weather cap over the ports

Fitting

  • ✓Hole size: cut a round hole of at least 29.2 mm (a 30 mm hole saw works) in any panel, dash, battery box or canopy wall
  • ✓Space behind the panel: allow about 53 mm for the body and terminals, plus room for the wires
  • ✓Mounting: push the socket through from the front and tighten the threaded retaining nut from behind
  • ✓Wiring: push-on spade terminals marked + and −. Run the positive through an inline fuse close to the battery
  • ✓Suggested fuse: 10A on the positive feed
  • ✓Terminals: 6.3 mm spade terminals, 10 mm apart

For best laptop charging, use a USB-C to USB-C cable rated for at least 3A (60 W). Most cables that come with laptops are.

TVDSU5 size diagram: 34 mm face, 43 mm body length, 30 mm panel hole

2
Year
Warranty
Why buy from Perception Lighting12 Volt DirectSPC Enterprises
Australian business since 2007
Sydney store, shipping Australia-wide
Real people, here in Australia
Not an overseas call centre
2-year warranty
Plus 30-day change-of-mind returns

Need a hand choosing?

Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.

Features

  • ✓83 W total: 65 W USB-C PD + 18 W QC 3.0 USB-A
  • ✓USB-C output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
  • ✓USB-A output: 5V/3A, 9V/2A, 12V/1.5A
  • ✓Charges most laptops, tablets, cameras and phones
  • ✓Input 12–24V DC, works from 9V to 31V
  • ✓Hinged weather cap
  • ✓Fits a standard 29.2 mm hole, flush mount with threaded nut
  • ✓Salt spray tested (8 hours, 5% NaCl) and impact rated to 8 kgf
  • ✓2-year warranty

Specifications

Ports1 x USB-C PD, 1 x USB-A QC 3.0
USB-C PD Output5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 3.25A (65 W Max)
USB-A QC 3.0 Output5V / 3A
9V / 2A
12V / 1.5A (18 W Max)
Total Output83 W Max
Input Voltage12–24V DC
Voltage Limit Range9–31V DC
Mounting Hole29.2 mm Minimum
Overall Length53 mm
Face Diameter34 mm
Height with Cap45 mm
Body Diameter29 mm (Threaded)
Terminals6.3 mm Spade, 10 mm Apart
USB Contact ResistanceUnder 100 mΩ
Cover Opening ForceUnder 3,000 gf (about 29 N)
Plug Insertion ForceUnder 1,000 gf (about 9.8 N)
Plug Pull-Out ForceUnder 1,500 gf (about 14.7 N)
Salt Spray Test8 Hours Minimum, 5% NaCl
Impact Resistance8 kgf Minimum
Temperature Range-25°C to +85°C
ModelDS2077
Warranty2 Years

What's Included

  • 1 x 83 W USB-C PD + QC 3.0 socket with hinged cap
  • 1 x threaded retaining nut

Product Details

SKU TVDSU5
Barcode # 9359968003853
Brand 12 Volt Direct

12 Volt Direct is a 12 V power specialist for the automotive, 4WD, caravan and off-grid industry. When 12V matters, trust the professionals. 12 Volt Direct was built around a simple idea: 12 V systems should be done properly. Its range is designed for the way Australians power their vehicles, carava...
