Overview

QC 3.0 + USB-C PD fast charge socket

One USB-A and one USB-C port in a single compact socket, both with fast charging. The USB-A port supports Quick Charge 3.0 for Android phones, and the USB-C port speaks USB Power Delivery and the other common fast-charge protocols, so a modern iPhone, Samsung or Pixel charges at speed from your 12V system. Ideal for the dash, centre console, camper trailer, caravan or battery box.

45 Watts
USB-C PD Max
18 Watts
QC 3.0 USB-A Max
12V / 24V
Input Voltage
29.2 mm
Mounting Hole
2 Years
Warranty

Compare our USB sockets

Which one is right for you? All six fit the same 29.2 mm hole, so you can upgrade an older socket without re-cutting the panel.

TVDSU USB socket
1 x USB-A 5V 1A (5 W)
1 x USB-A 5V 2.1A (10.5 W)
Total 15.5 W
Input 12–24V DC
Best for Everyday phone and GPS charging in older vehicles, caravans and boats
TVDSU2 USB socket
2 x USB-A QC 3.0 (18 W each)
Total 36 W
Input 8–32V DC
Best for Fast-charging two phones while keeping an eye on battery voltage
TVDSU3 USB socket
TVDSU3 THIS SOCKET
1 x USB-C PD (45 W)
1 x USB-A QC 3.0 (18 W)
Total 36 W on 12V, 45 W on 24V
Input 12–24V DC
Best for Charging a USB-A and a USB-C phone, both fast
TVDSU4 USB socket
2 x USB-C PD (45 W)
1 x USB-A QC 3.0 (36 W)
Input 12–24V DC (32V max)
Best for Families: three devices at once, two on fast USB-C
TVDSU5 USB socket
1 x USB-C PD (65 W)
1 x USB-A QC 3.0 (18 W)
Total 83 W
Input 12–24V DC
Best for Charging a laptop or tablet on the road (65 W USB-C)
TVDSU6 USB socket
1 x USB-C PD (100 W)
1 x USB-A QC 3.0 (36 W)
Total 136 W
Input 12V / 24V DC (32V max)
Best for Big laptops, and wet spots like boats and exposed panels (100 W, IP65)
QC 3.0 USB-A + USB-C PD Fast Charge Socket, 12V / 24V Flush Mount

Ports and charging

PortOutputMax Power
USB-C PD5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 2.2A
45 W
USB-A QC 3.05V / 3A
9V / 2A
12V / 1.5A
18 W
Both together 36 W on 12V, 45 W on 24V

The socket talks to each device and picks the fastest charge it supports: USB PD for iPhones, iPads and most USB-C phones, QC 3.0 for many Android phones, FCP for Huawei and AFC for Samsung. Older devices charge at standard 5V.

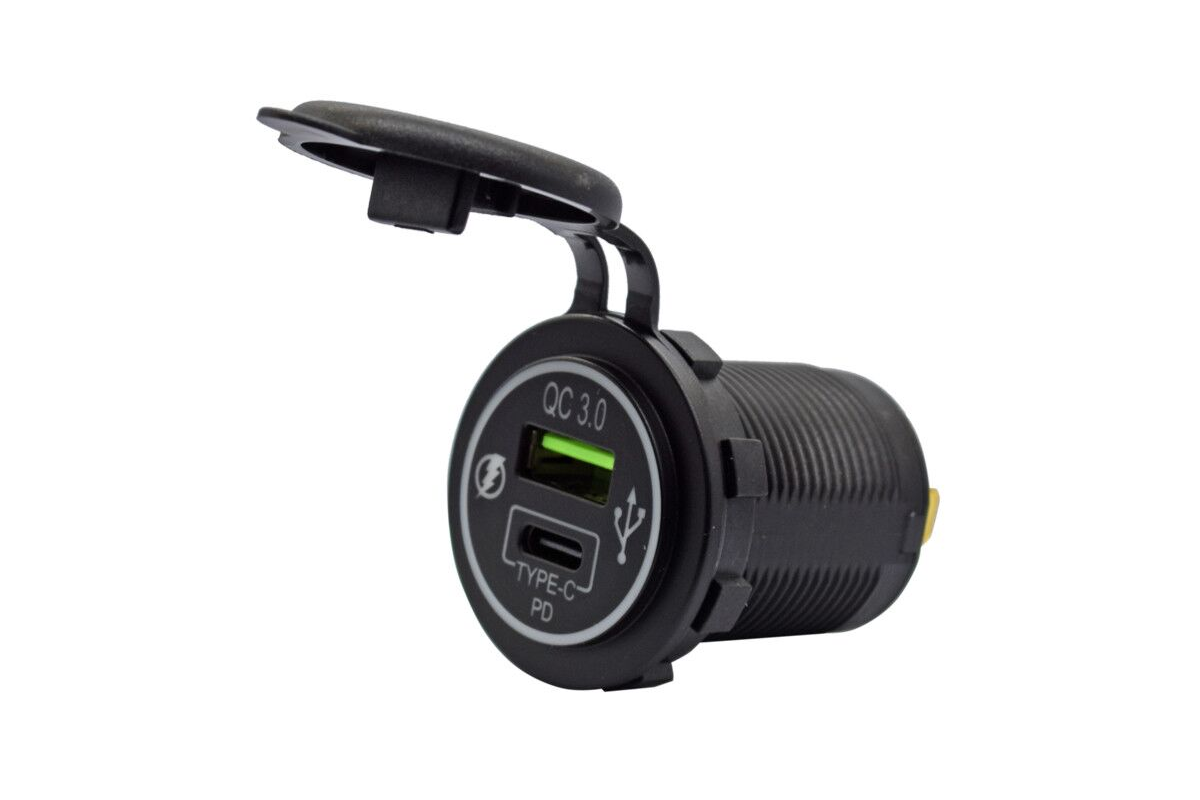

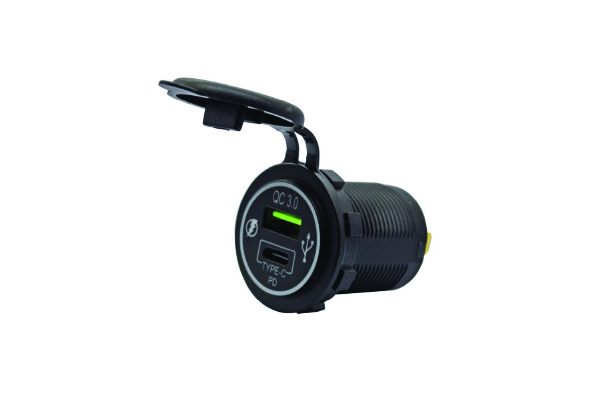

QC 3.0 USB-A and USB-C PD socket with hinged cap

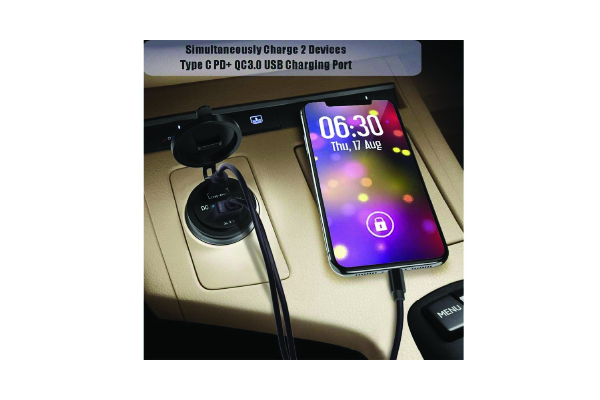

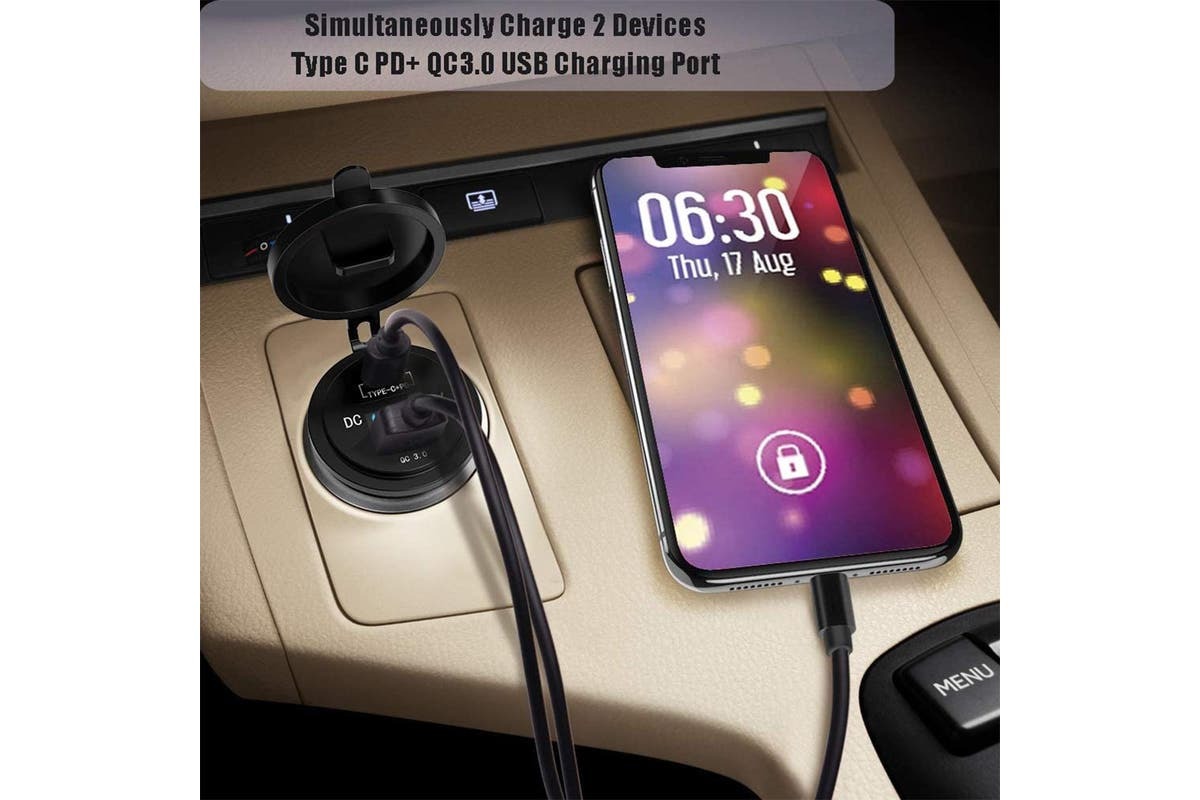

QC 3.0 and USB-C socket fitted in a car console, charging a phone

On a 12V system the socket delivers up to 36 W in total; on 24V it delivers up to 45 W. To charge a laptop at full speed, choose our 65 W TVDSU5 or 100 W TVDSU6.

Tested for vehicle life

Every socket in our range is built to the same factory test standard, so it holds up to dust, damp and corrugations, not just a clean office desk:

  • ✓Low contact resistance (under 100 mΩ): less power lost as heat in the port, so more reaches your device
  • ✓Firm plug grip: plugs push in with under 1,000 gf and need up to 1,500 gf to pull out, so a cable stays put on rough tracks
  • ✓Salt spray tested: 8 hours minimum in 5% salt fog, for boats, beach trips and coastal caravans
  • ✓Impact rated to 8 kgf: takes a knock from a boot, bag or esky lid
  • ✓Hinged weather cap: keeps dust and water out of the ports when not in use
  • ✓Rated -25°C to +85°C: handles a hot dashboard in summer and frosty mornings in the high country

Fitting

  • ✓Hole size: cut a round hole of at least 29.2 mm (a 30 mm hole saw works) in any panel, dash, battery box or canopy wall
  • ✓Space behind the panel: allow about 45 mm for the body and terminals, plus room for the wires
  • ✓Mounting: push the socket through from the front and tighten the threaded retaining nut from behind
  • ✓Wiring: push-on spade terminals marked + and −. Run the positive through an inline fuse close to the battery
  • ✓Suggested fuse: 5A on the positive feed
  • ✓Terminals: push-on spade terminals, 10 mm apart

USB sockets draw a small current even with nothing plugged in. If the vehicle will sit for weeks, wire the socket through a switch or turn off the battery isolator.

TVDSU3 size diagram: 37 mm face, 43 mm body length, 30 mm panel hole

2
Year
Warranty
Why buy from Perception Lighting12 Volt DirectSPC Enterprises
Australian business since 2007
Sydney store, shipping Australia-wide
Real people, here in Australia
Not an overseas call centre
2-year warranty
Plus 30-day change-of-mind returns

Need a hand choosing?

Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.



Features

  • ✓USB-C PD port: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.2A (45 W)
  • ✓USB-A port with Quick Charge 3.0: 5V/3A, 9V/2A, 12V/1.5A (18 W)
  • ✓Total output: 36 W on 12V, 45 W on 24V
  • ✓Also supports DCP, FCP (Huawei) and AFC (Samsung) fast charging
  • ✓Hinged weather cap
  • ✓Fits a standard 29.2 mm hole, flush mount with threaded nut
  • ✓Salt spray tested (8 hours, 5% NaCl) and impact rated to 8 kgf
  • ✓Rated -25°C to +85°C
  • ✓2-year warranty

Specifications

Ports1 x USB-A QC 3.0, 1 x USB-C PD
USB-C PD Output5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 2.2A (45 W Max)
USB-A QC 3.0 Output5V / 3A
9V / 2A
12V / 1.5A (18 W Max)
Maximum Power36 W on 12V, 45 W on 24V
USB-C ProtocolsUSB PD, QC 3.0, DCP, FCP, AFC
Input Voltage12–24V DC
Mounting Hole29.2 mm Minimum
Height Behind Bezel43 mm, plus 10 mm Terminals
Bezel Diameter37 mm
Height with Cap45 mm
Body Diameter29 mm (Threaded)
Retaining Nut5 mm Thick
USB Contact ResistanceUnder 100 mΩ
Cover Opening ForceUnder 3,000 gf (about 29 N)
Plug Insertion ForceUnder 1,000 gf (about 9.8 N)
Plug Pull-Out ForceUnder 1,500 gf (about 14.7 N)
Salt Spray Test8 Hours Minimum, 5% NaCl
Impact Resistance8 kgf Minimum
Temperature Rating-25°C to +85°C
Warranty2 Years

What's Included

  • 1 x QC 3.0 + USB-C PD socket with hinged cap
  • 1 x threaded retaining nut

Product Details

SKU TVDSU3
Barcode # 9359968001781
Brand 12 Volt Direct
Shipping Weight 0.0500kg
Shipping Width 0.130m
Shipping Height 0.050m
Shipping Length 0.185m
Shipping Cubic 0.001202500m3
