Low Profile Solar Panel Mounting Brackets Black Aluminium Pair

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

Overview

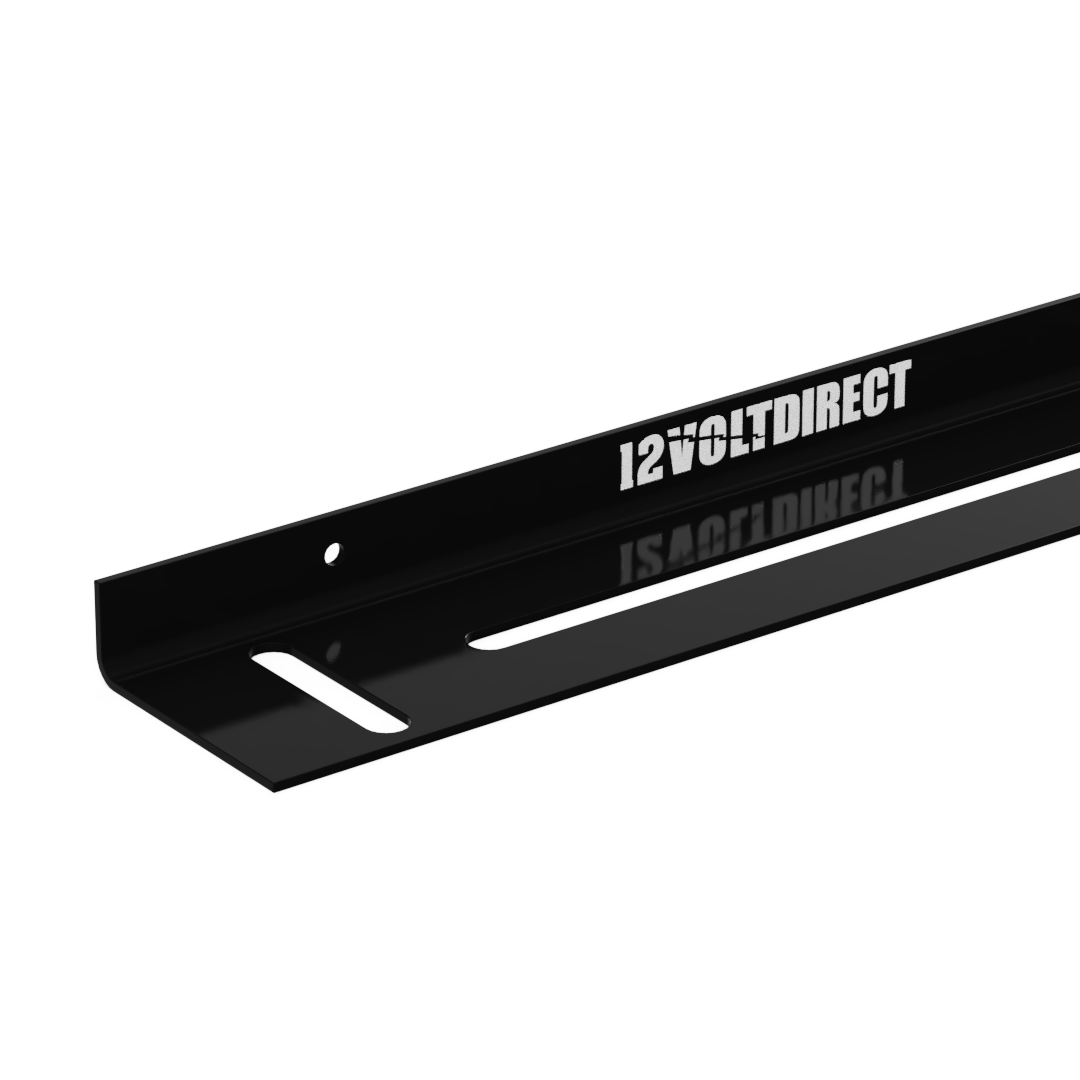

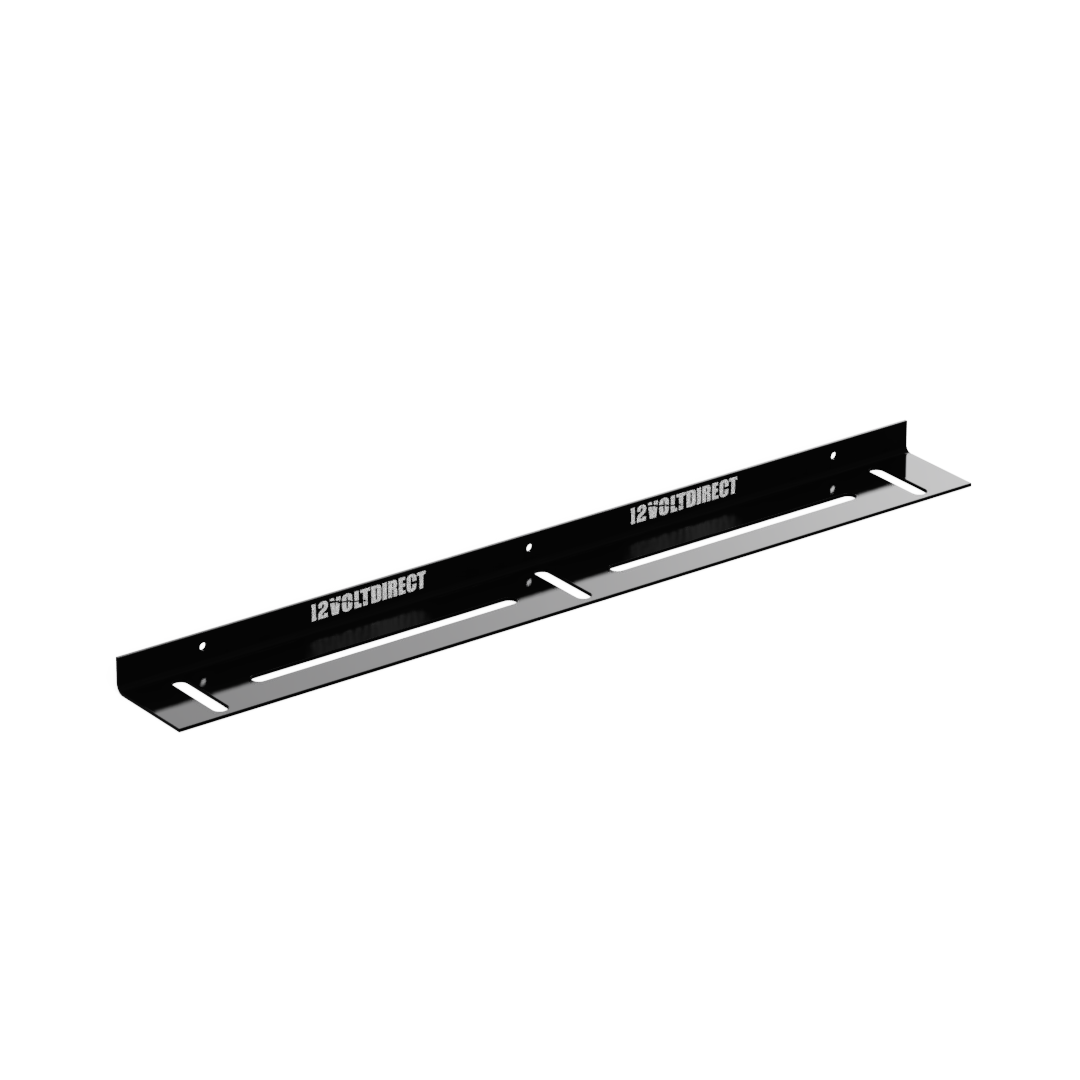

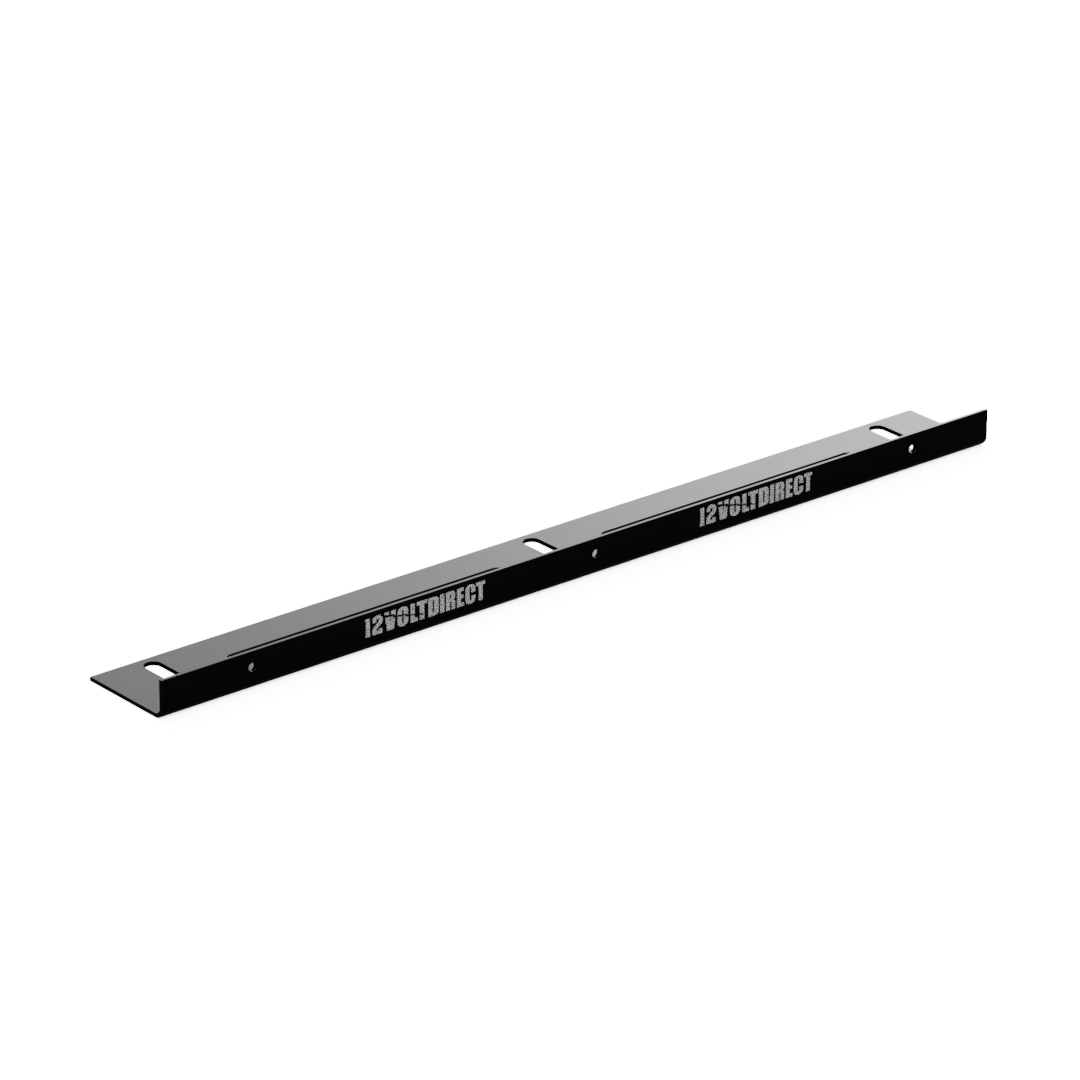

Low-profile solar panel mounting brackets

The lowest, cleanest way to mount a solar panel. We designed these brackets for our 17 mm low-profile panels, which come pre-drilled to suit, so the brackets pop-rivet straight onto the frame. They're laser-cut, folded aluminium in black and come as a pair with black pop rivets, so the finished install looks factory-made.

Pair

2 brackets per pack

500 mm

Bracket length

20 mm

Lip height

Alu

Laser-cut, folded, black

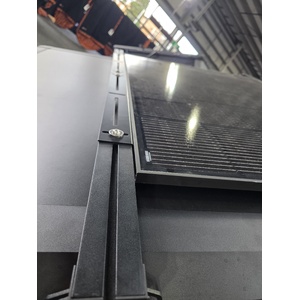

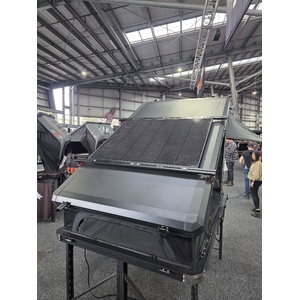

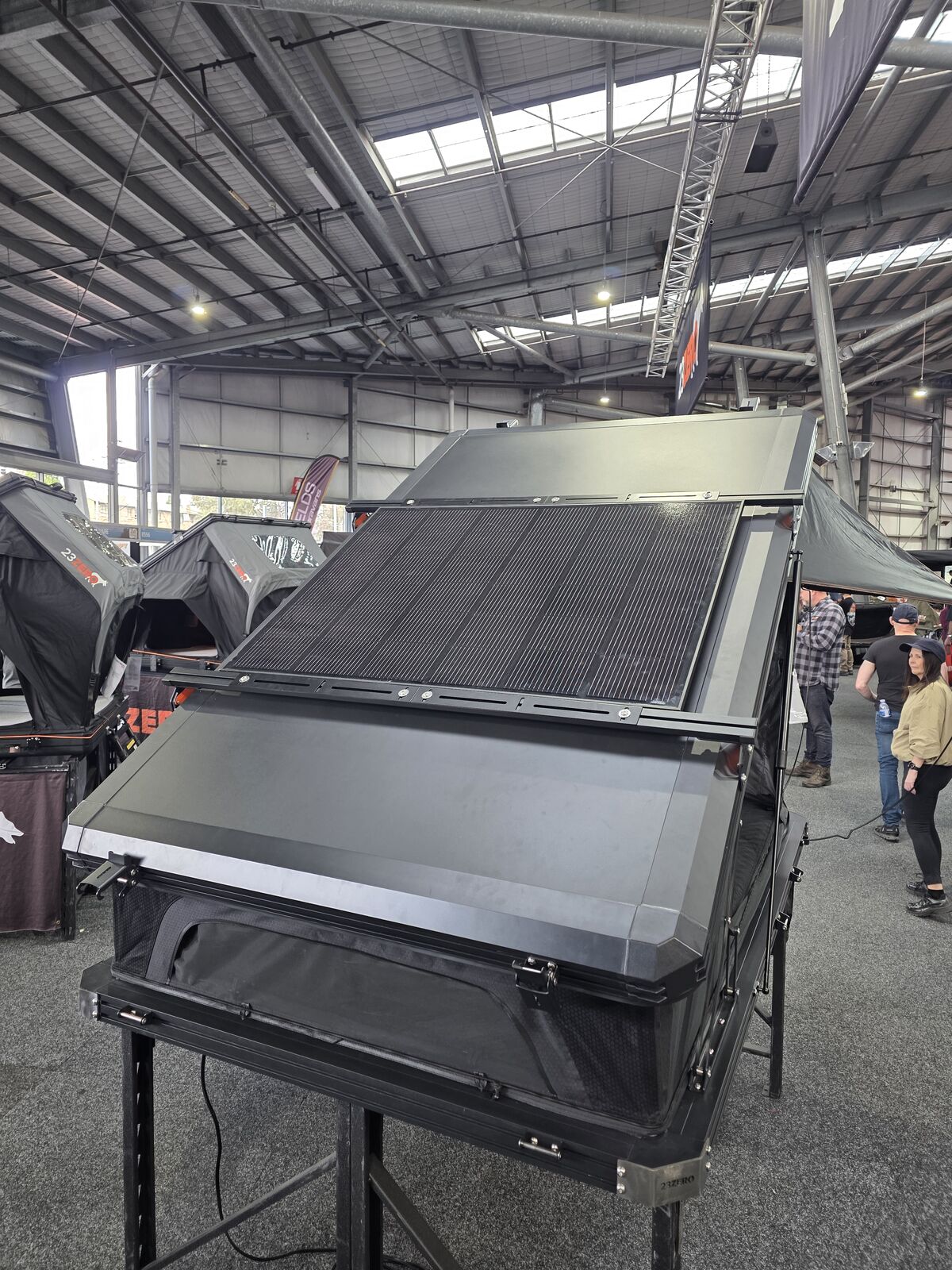

12 Volt Direct Low Profile Solar Panel Mounting Brackets Black Aluminium 500mm Pair with Pop Rivets Fitted lip-down between roof rails on a rooftop tent

How many pairs do I need?

200W 1145 x 870 mm panel: 2 pairs (4 brackets)
200W 1480 x 680 mm panel: 2 pairs (4 brackets)
130W 1000 x 670 mm panel: 1 pair (2 brackets)

Two ways to mount

Flush between roof rails: fit the brackets lip-down, bolt the slotted base to each rail, and the panel sits level between them, like on the rooftop tent in our photos.
On a roof rack platform: flip the brackets so the slotted base sits flat, then bolt down on a Rhino-Rack, Front Runner or similar platform. The panel sits almost as low as its own 17 mm frame, much lower than with standard Z-brackets.

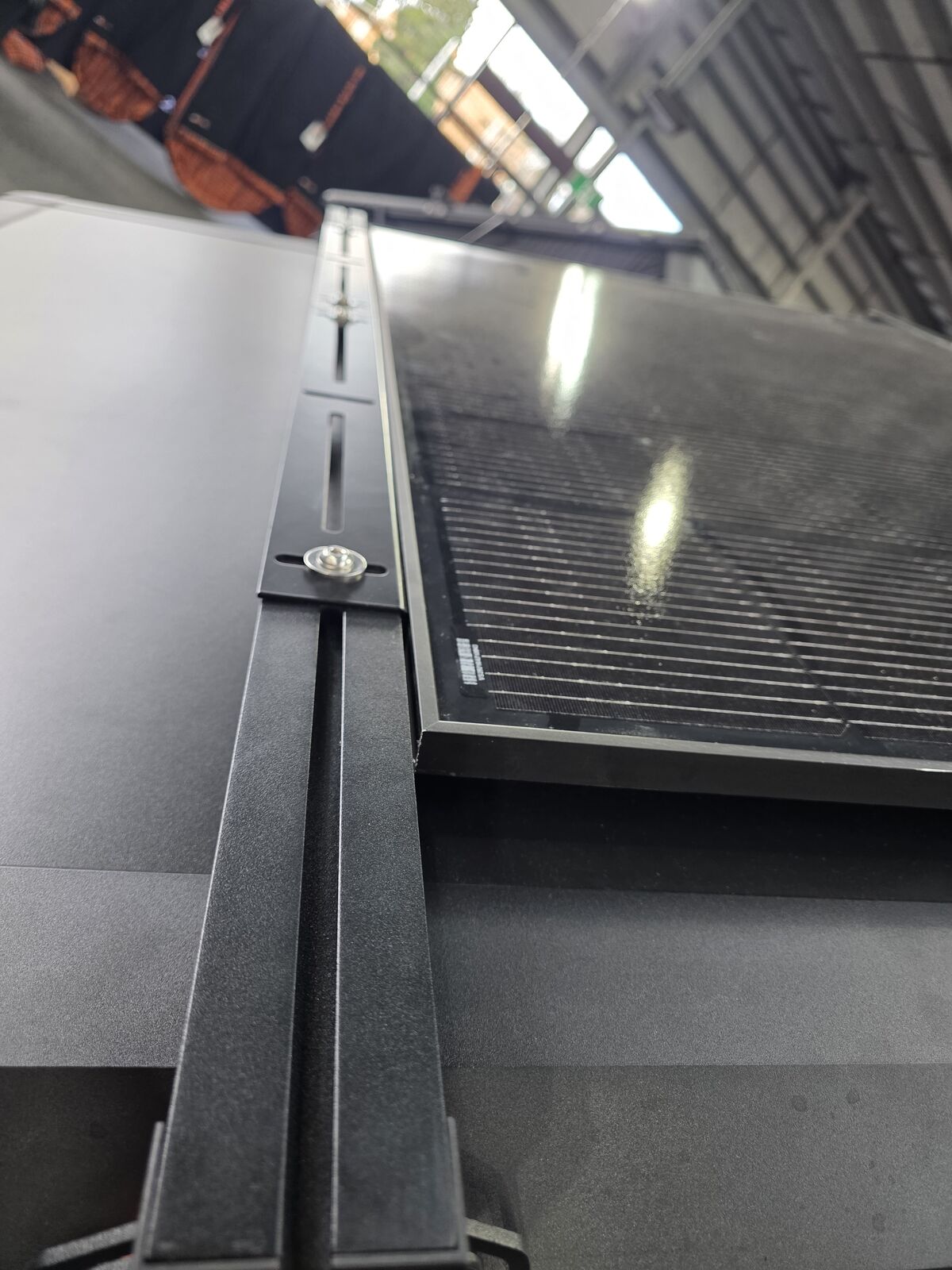

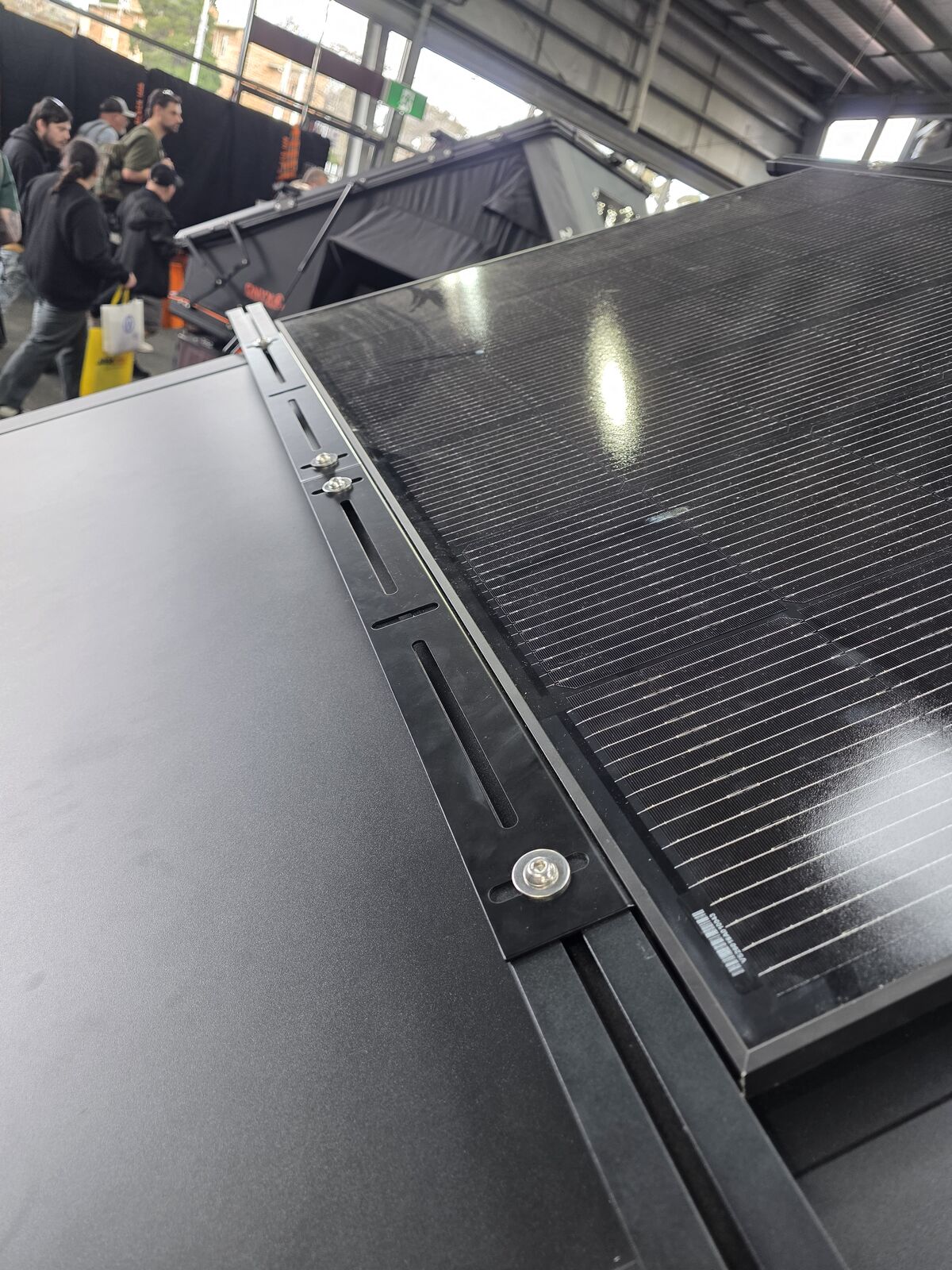

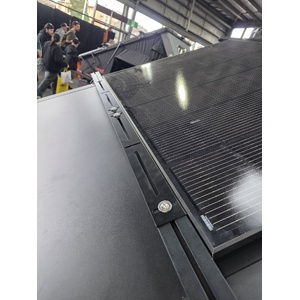

Close-up on the rooftop tent, and two pairs on the 1145 mm and 1480 mm panels

These brackets suit our pre-drilled 17 mm low-profile panels. Fitting them to another panel means drilling its frame for the rivets. Panels are sold separately.

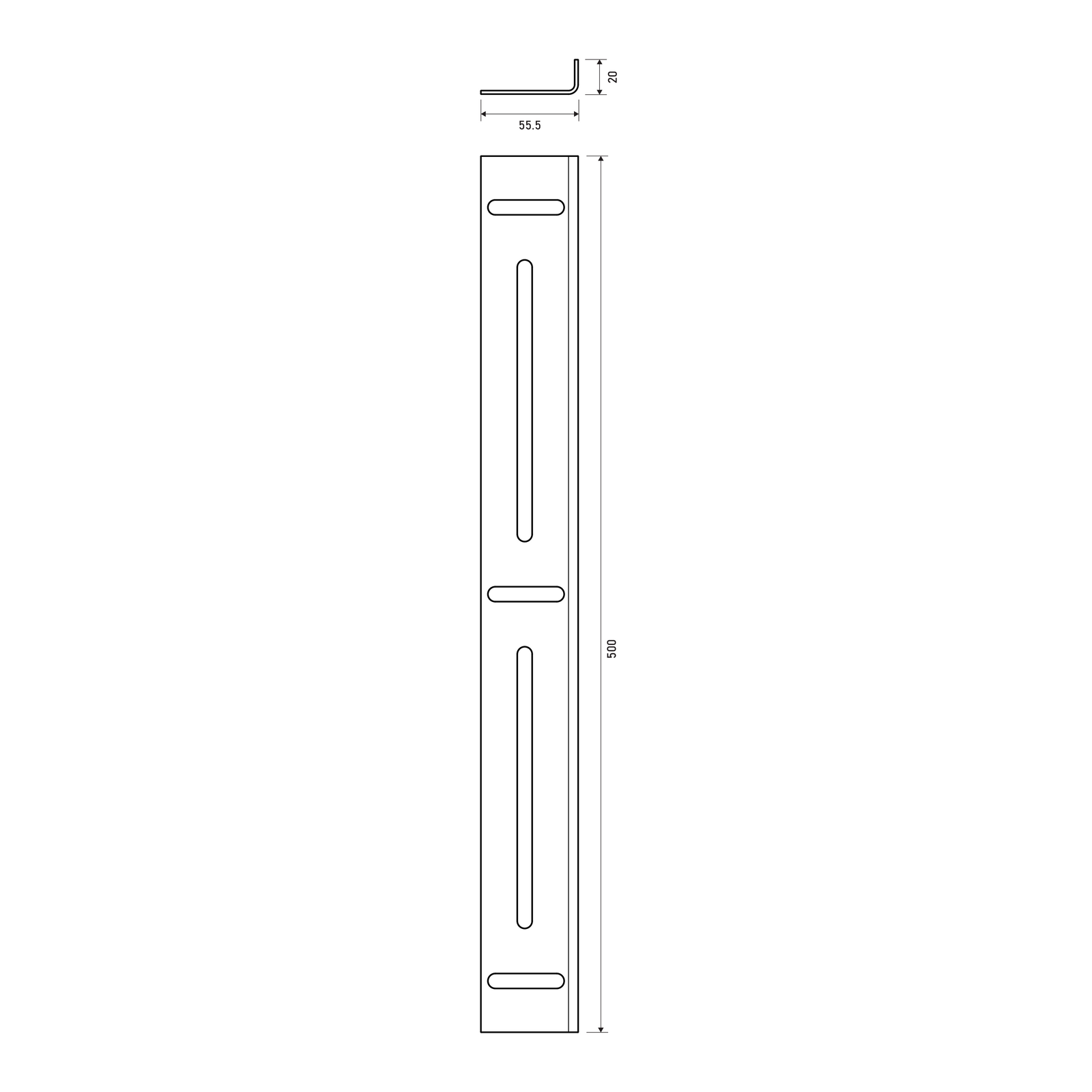

Dimensions

12 Volt Direct Low Profile Solar Panel Mounting Brackets Black Aluminium 500mm Pair with Pop Rivets dimensions

Why buy from us

Your local solar team

Get your panel, brackets and cabling sorted in one go, with advice from a local team. We ship Australia-wide.

These panels and brackets are our own 12 Volt Direct design, made to work together for the lowest, cleanest install you can get.

A real shop in Sydney

We're a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.

Talk to a real person in Australia

Call or message our Sydney team (details on our contact page). You'll speak to someone local, not an overseas call centre.

Checked to fit

Tell us which panel and rack or tent you're mounting to and we'll confirm these brackets suit before they ship.

Ask us a question

Features

Made for our pre-drilled 17 mm low-profile panels: pop-rivet straight on
Laser-cut, folded aluminium with a black finish
Sold as a pair, with black pop rivets
Two fitting options: flush between roof rails, or flat on a roof rack platform
Slotted base for flexible bolt positions
500 mm long, 55.5 mm wide base, 20 mm lip

Specifications

Model	TVD-SOL-BRKT3
Material	Aluminium, laser-cut and folded
Finish	Black
Length	500 mm
Base width	55.5 mm
Lip height	20 mm
Pack	2 brackets + black pop rivets
Suits	TVD-SOL200-1145 and TVD-SOL200-1480 (2 pairs each), TVD-SOL130-1000 (1 pair)

What's Included

2 x low-profile solar panel mounting brackets (500 mm, black aluminium)
Black pop rivets
Solar panel not included

Product Details

SKU	TVD-SOL-BRKT3
Barcode #	9359968003723
Brand	12 Volt Direct
Shipping Weight	0.5000kg
Shipping Width	0.080m
Shipping Height	0.050m
Shipping Length	0.510m
