12 Volt Direct 200W Monocrystalline Solar Panel - Sleek, Low Profile for Rooftop Tents & Roof Racks

DETAILS

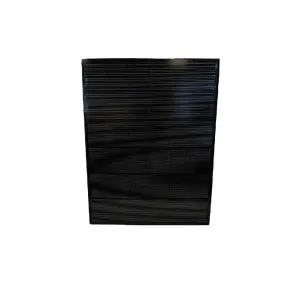

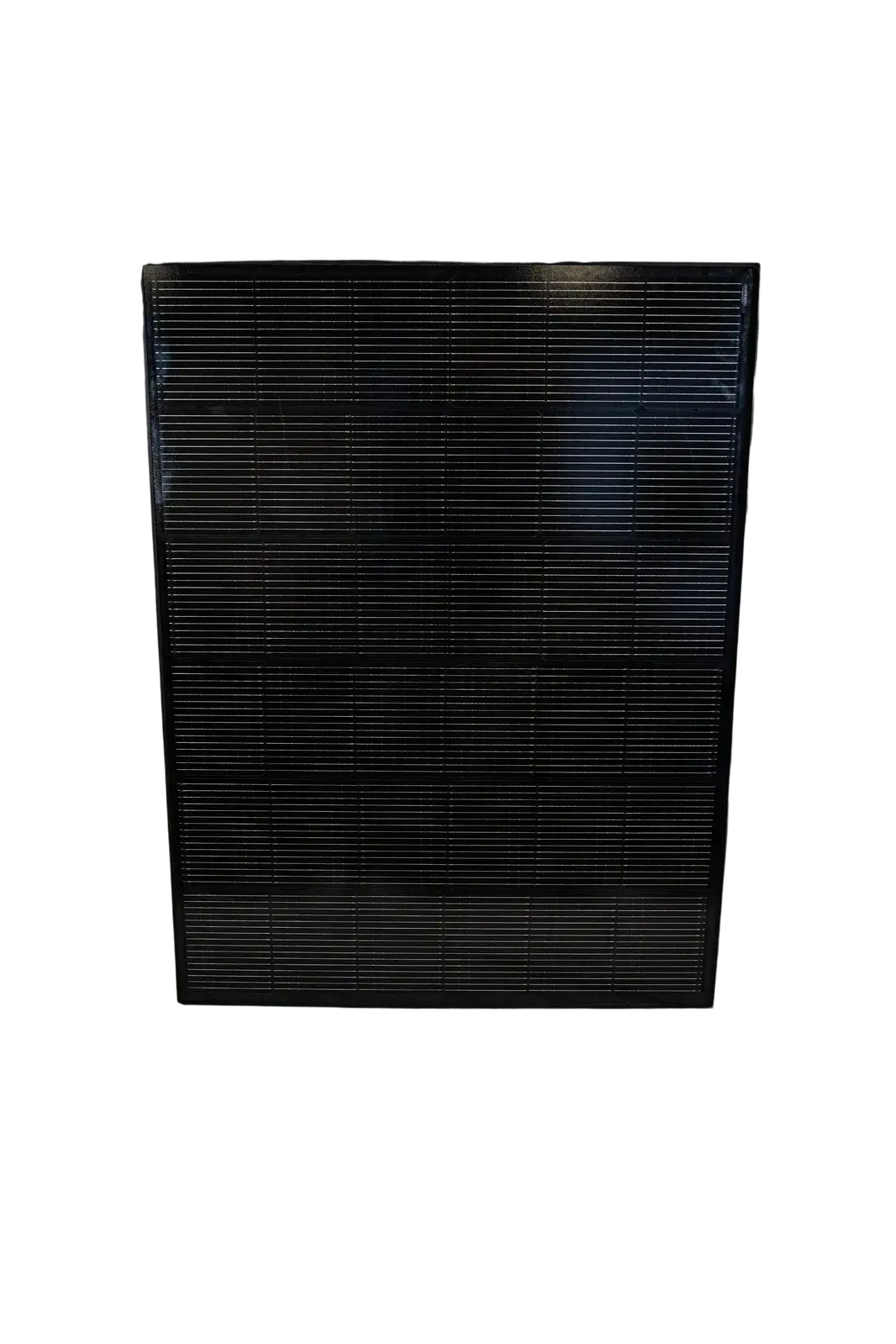

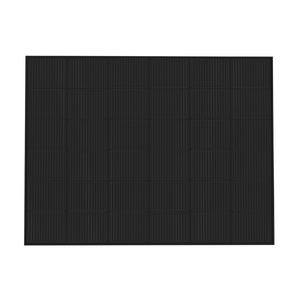

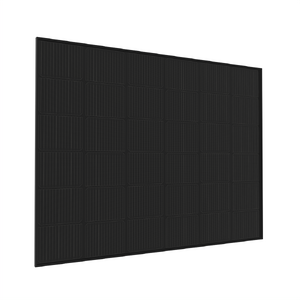

The 12 Volt Direct 200W Monocrystalline Solar Panel (TVD-SOL200-1145) has been engineered specifically for rooftop tents and roof-rack touring setups. Unlike traditional long rectangular panels, this model uses a more square, compact footprint, making it far better suited to RTT platforms, fold-out tents, and roof space where every centimetre counts.

Its sleek low-profile design, high efficiency and all-black finish make it the perfect blend of performance, durability and aesthetics for modern off-grid travel.

Backed by a 10-year warranty, the 12 Volt Direct 200W Monocrystalline Solar Panel is the ideal solution for travellers wanting maximum performance in a compact, RTT-friendly format. Designed for reliability, efficiency and a modern blacked-out look, it’s the perfect upgrade for any rooftop tent or roof-rack adventure build.

Purpose-Built Size for Rooftop Tents

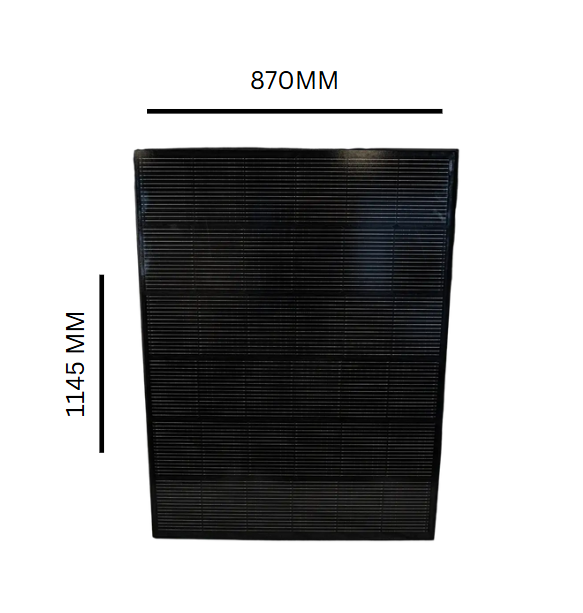

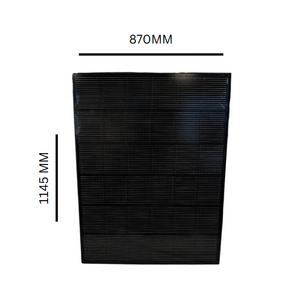

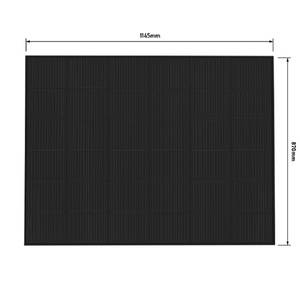

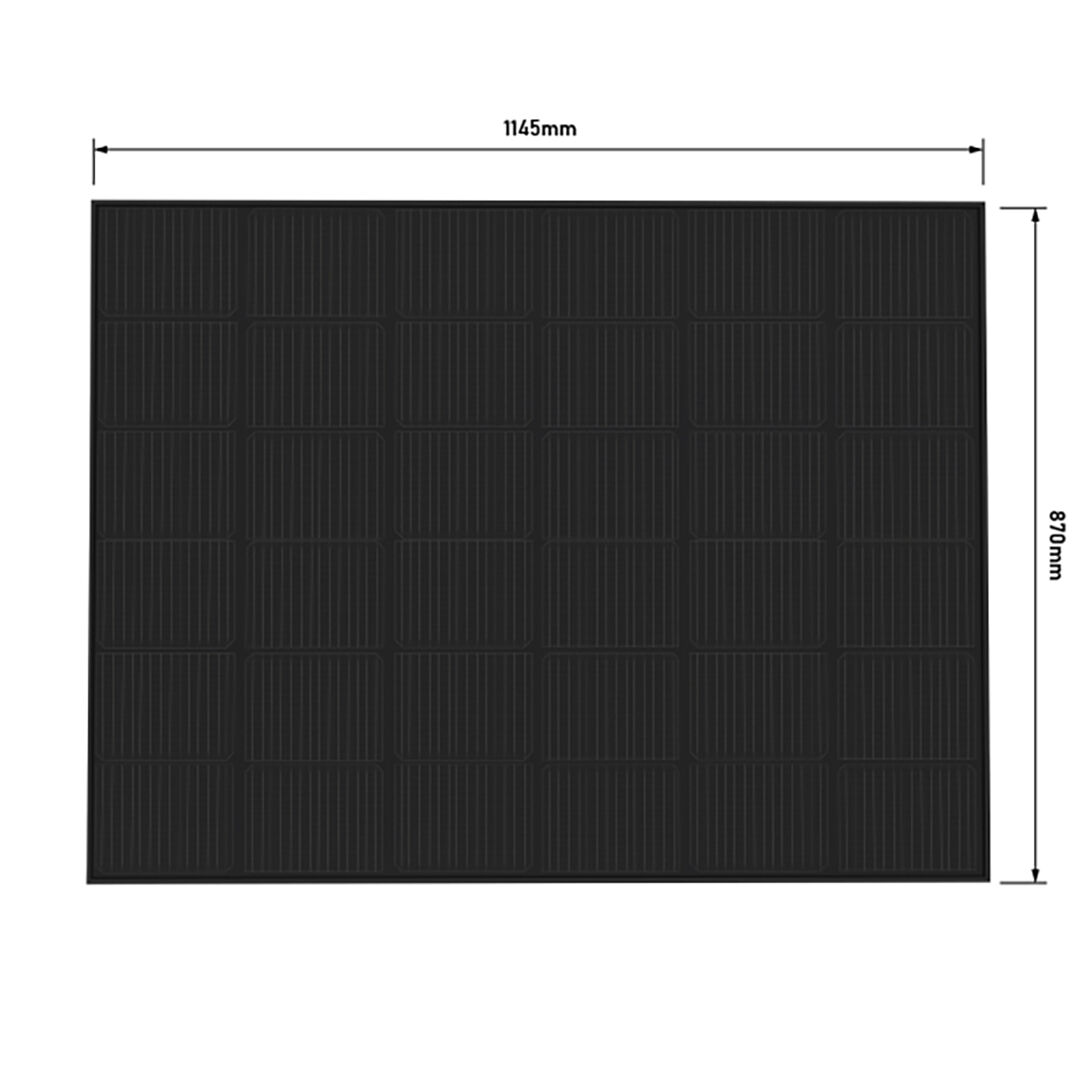

Measuring 1145 x 870 x 17mm, the panel’s squarer layout fits rooftop tent bases and roof racks far more efficiently than standard long panels, allowing for strong output without compromising usable roof space.

High Efficiency 200W Output
Delivers dependable power generation from a compact footprint, ideal for campers, 4WD tourers and off-grid setups needing reliable charging.

Built Tough for Australian Conditions
Constructed with 3.2mm high-transmission tempered glass and a robust anodised aluminium frame for long-term durability in harsh environments.

High Efficiency 200W Output
Delivers dependable power generation from a compact footprint, ideal for campers, 4WD tourers and off-grid setups needing reliable charging.

Built Tough for Australian Conditions
Constructed with 3.2mm high-transmission tempered glass and a robust anodised aluminium frame for long-term durability in harsh environments.

Weatherproof & Travel Ready
An IP65-rated junction box protects the panel from dust, rain and extreme conditions, ensuring stable performance in all seasons.

Quick, Secure Installation

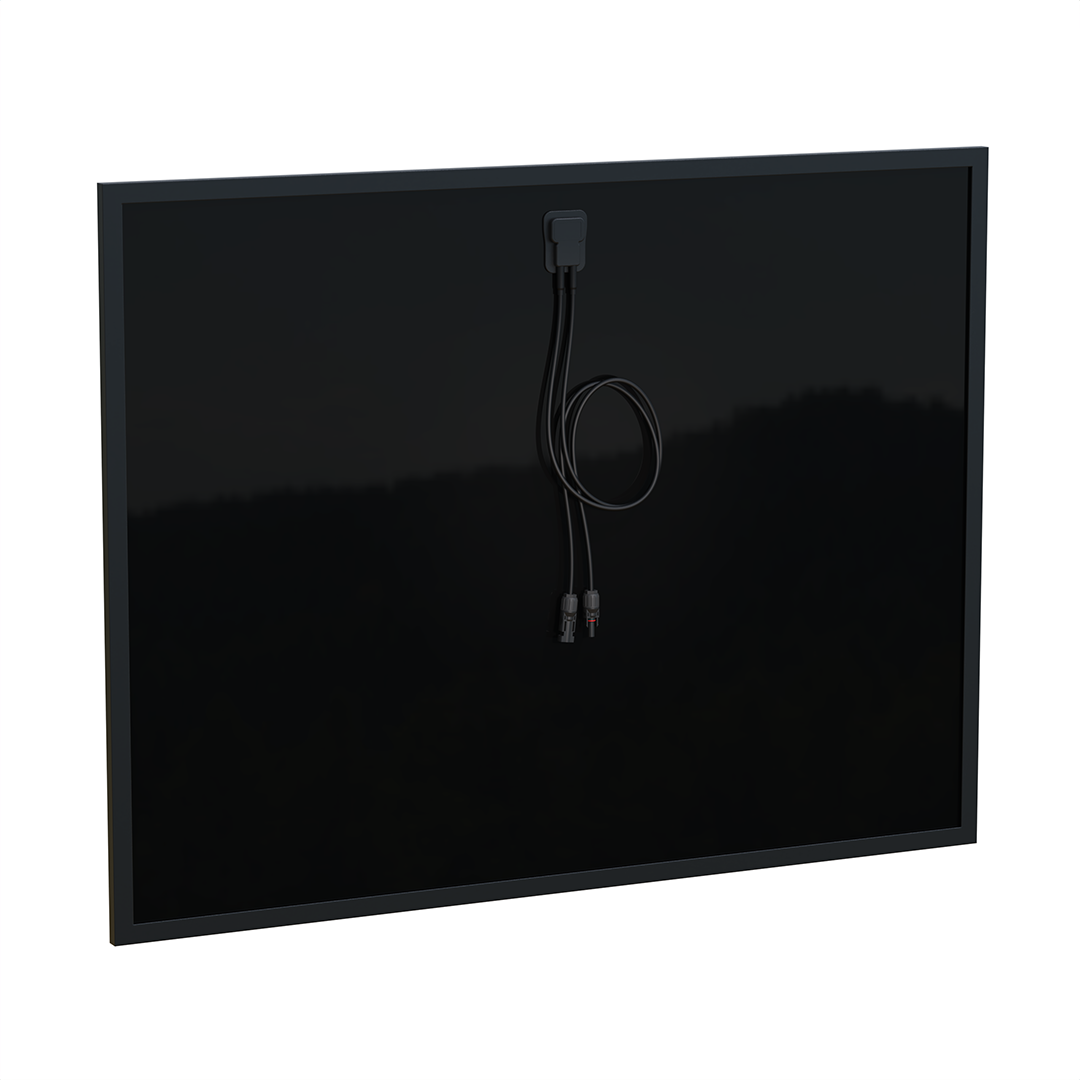

Supplied with 90cm of 4mm² cabling and MC4 connectors, ready for easy mounting to tents, racks and vehicle platforms.

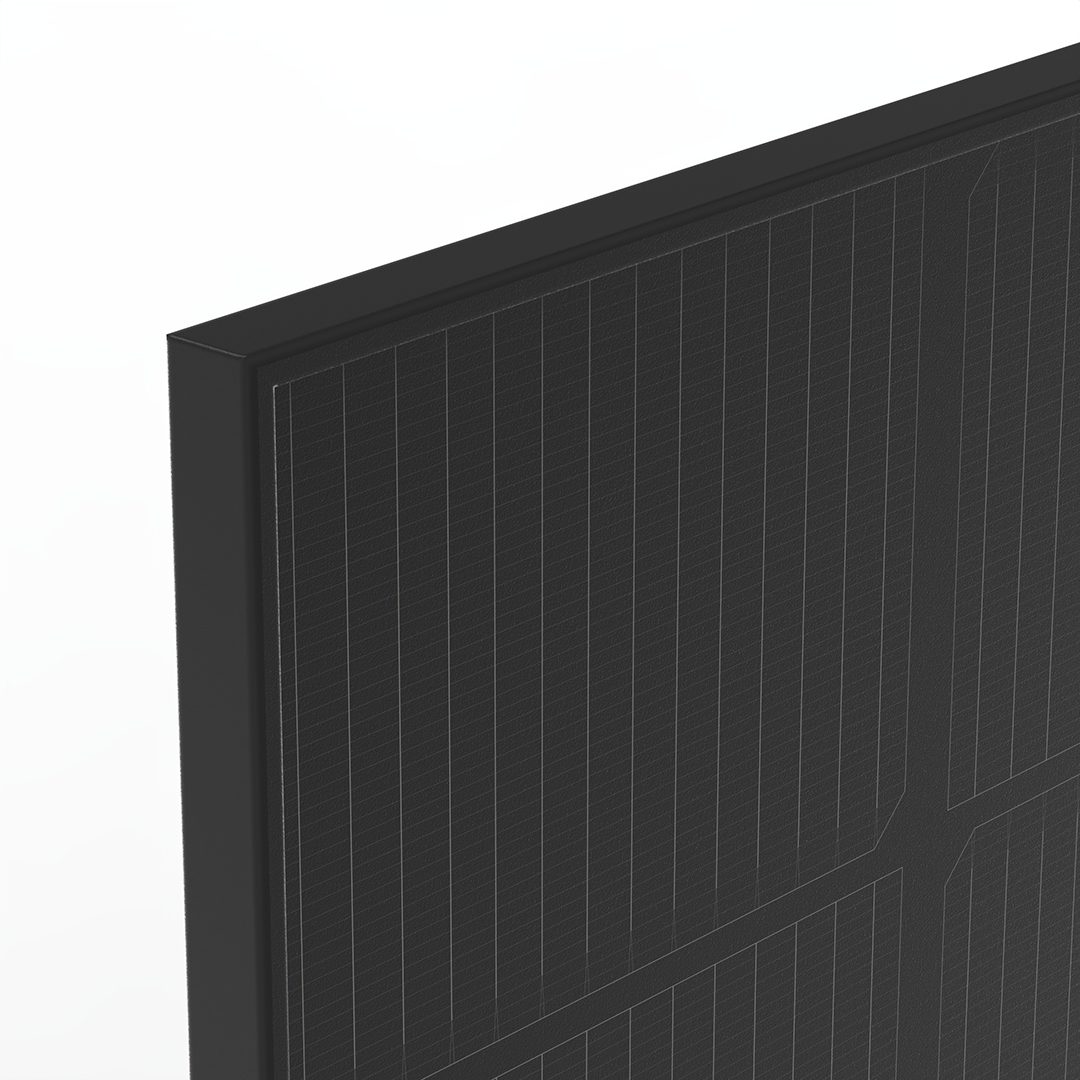

Sleek, Low-Profile Finish
At only 17mm thick, it sits noticeably slimmer than typical 35mm panels, giving your roof setup a cleaner, more streamlined appearance.

Technical Specifications
• Model: TVD-SOL200-1145
• Rated Power: 200W
• Open Circuit Voltage (Voc): 23.5V
• Short Circuit Current (Isc): 11.13A
• Max Power Voltage (Vmpp): 19.8V
• Max Power Current (Impp): 10.10A
• Dimensions: 1145 x 870 x 17mm
• Weight: 7.98kg
