Overview

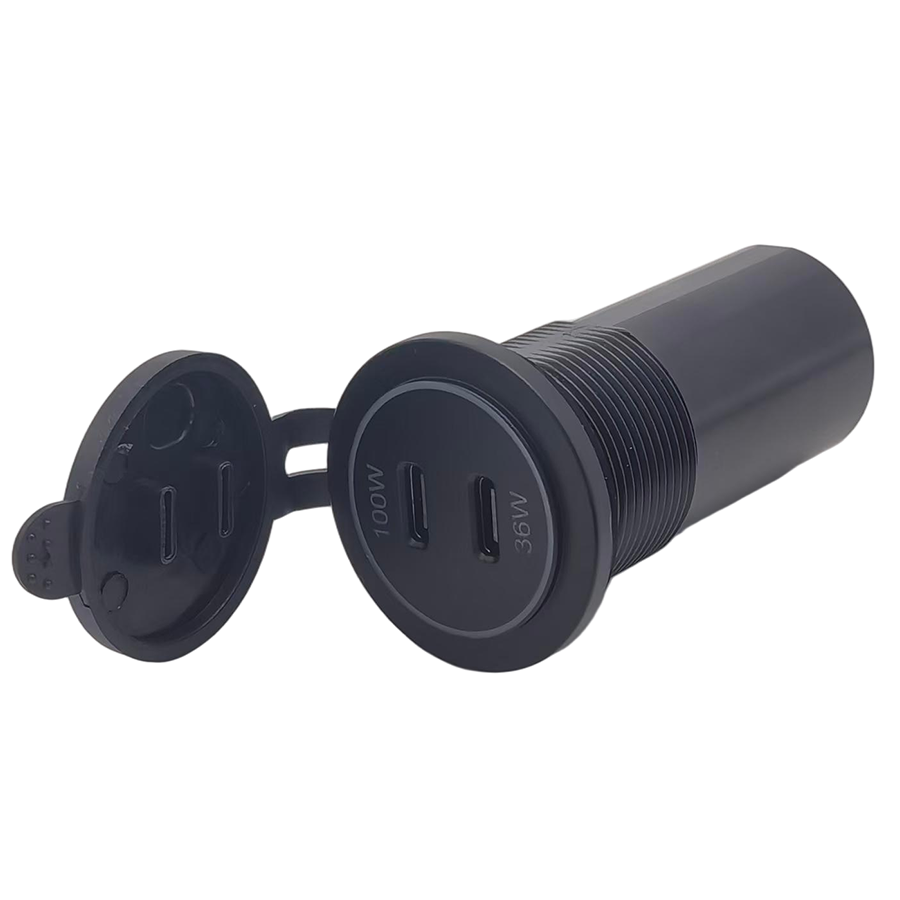

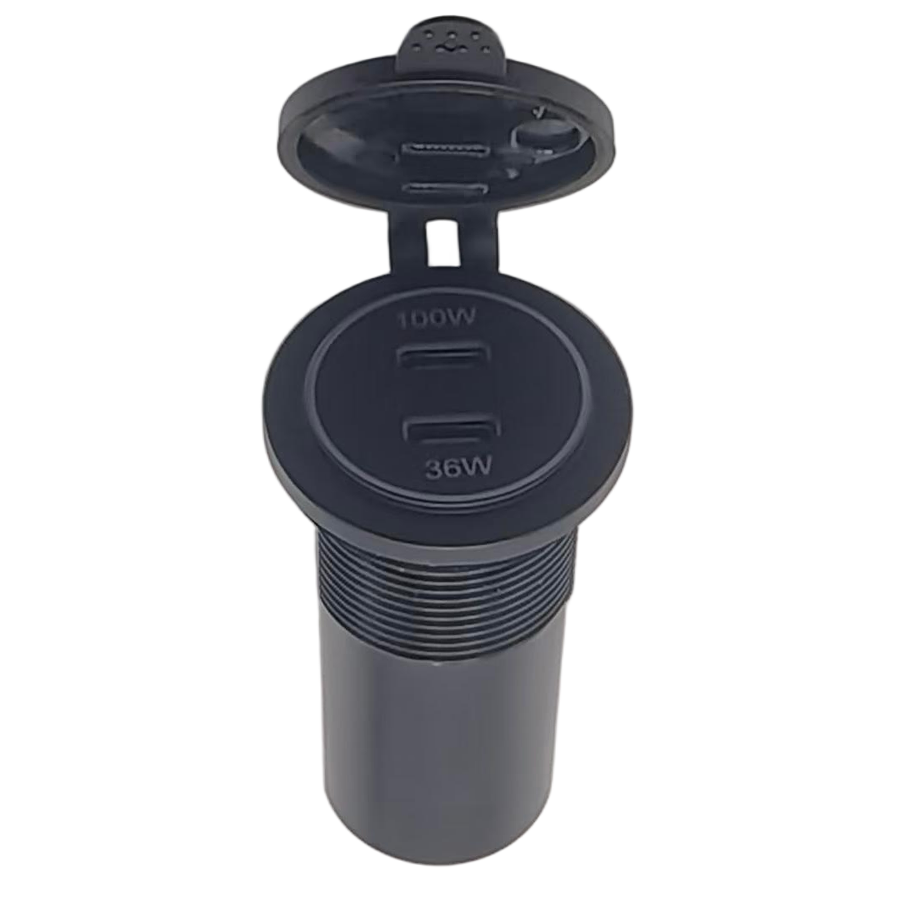

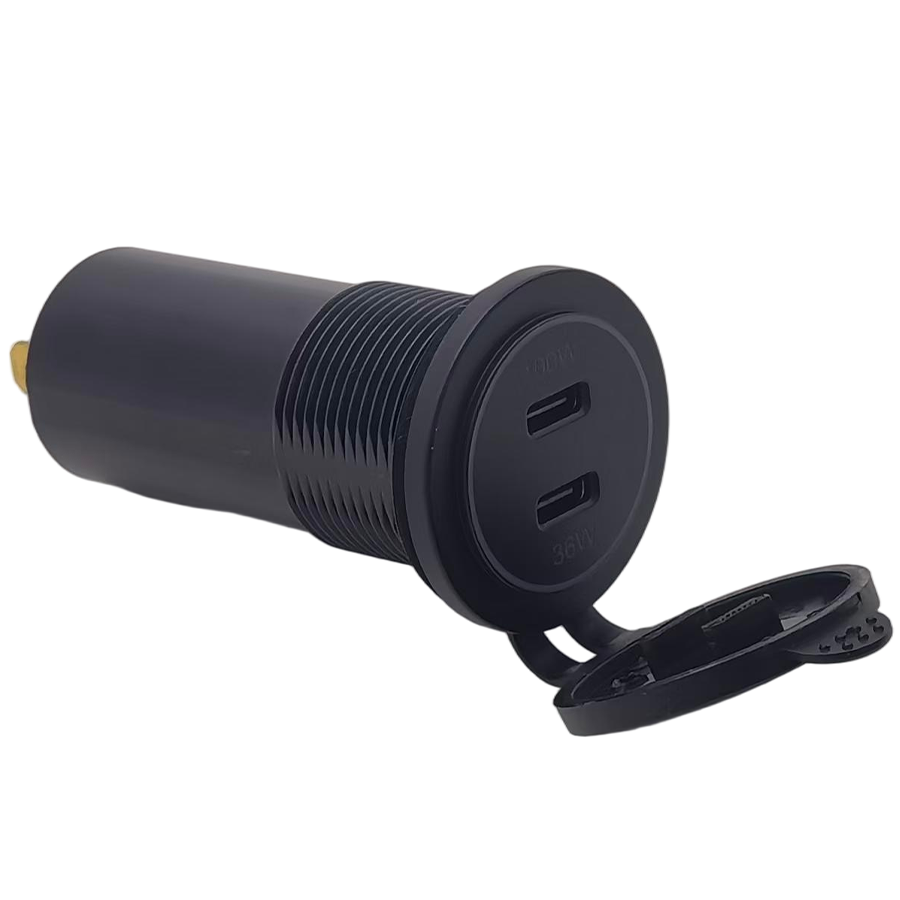

136W USB socket: 100W USB-C PD

Our most powerful USB socket. The USB-C Power Delivery port delivers a full 100 W, even on a 12V system, because the socket boosts the voltage up to 20V internally. That is enough for a 16″ laptop, a Starlink Mini or a power-hungry camera rig, while the second port fast charges a phone or tablet at up to 36 W. IP65 rated, fully protected, and it fits the same 29.2 mm hole as a standard USB socket.

136 Watts
Total Output
100 Watts
USB-C PD
36 Watts
Second Port
IP65
Sealed
2 Years
Warranty

Compare our USB sockets

Which one is right for you? All six fit the same 29.2 mm hole, so you can upgrade an older socket without re-cutting the panel.

TVDSU USB socket
1 x USB-A 5V 1A (5 W)
1 x USB-A 5V 2.1A (10.5 W)
Total 15.5 W
Input 12–24V DC
Best for Everyday phone and GPS charging in older vehicles, caravans and boats
TVDSU2 USB socket
2 x USB-A QC 3.0 (18 W each)
Total 36 W
Input 8–32V DC
Best for Fast-charging two phones while keeping an eye on battery voltage
TVDSU3 USB socket
1 x USB-C PD (45 W)
1 x USB-A QC 3.0 (18 W)
Total 36 W on 12V, 45 W on 24V
Input 12–24V DC
Best for Charging a USB-A and a USB-C phone, both fast
TVDSU4 USB socket
2 x USB-C PD (45 W)
1 x USB-A QC 3.0 (36 W)
Input 12–24V DC (32V max)
Best for Families: three devices at once, two on fast USB-C
TVDSU5 USB socket
1 x USB-C PD (65 W)
1 x USB-A QC 3.0 (18 W)
Total 83 W
Input 12–24V DC
Best for Charging a laptop or tablet on the road (65 W USB-C)
TVDSU6 USB socket
TVDSU6 THIS SOCKET
1 x USB-C PD (100 W)
1 x USB-A QC 3.0 (36 W)
Total 136 W
Input 12V / 24V DC (32V max)
Best for Big laptops, and wet spots like boats and exposed panels (100 W, IP65)
136W USB Socket: 100W USB-C PD + 36W QC 3.0, 12V / 24V, IP65

Ports and charging

PortOutputMax Power
USB-C PD5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 5A		100 W
USB-A QC 3.05V / 3A
9V / 3A
12V / 3A		36 W
Both together 136 W max

On a 12V battery the socket steps up to 20V at 5A for the full 100 W, so you get laptop-charger power without an inverter. Every device negotiates its own voltage, so phones, earbuds and torches charge safely from the same socket.

To get the full 100 W you need a USB-C to USB-C cable rated for 5A (100 W). Standard 3A cables limit charging to 60 W.

Powers a Starlink Mini

Starlink specifies a 100 W USB-C PD supply for the Starlink Mini. This socket delivers it straight from your 12V or 24V battery, with no inverter and no power brick, so you can mount it in the canopy, camper or caravan and plug the dish straight in.

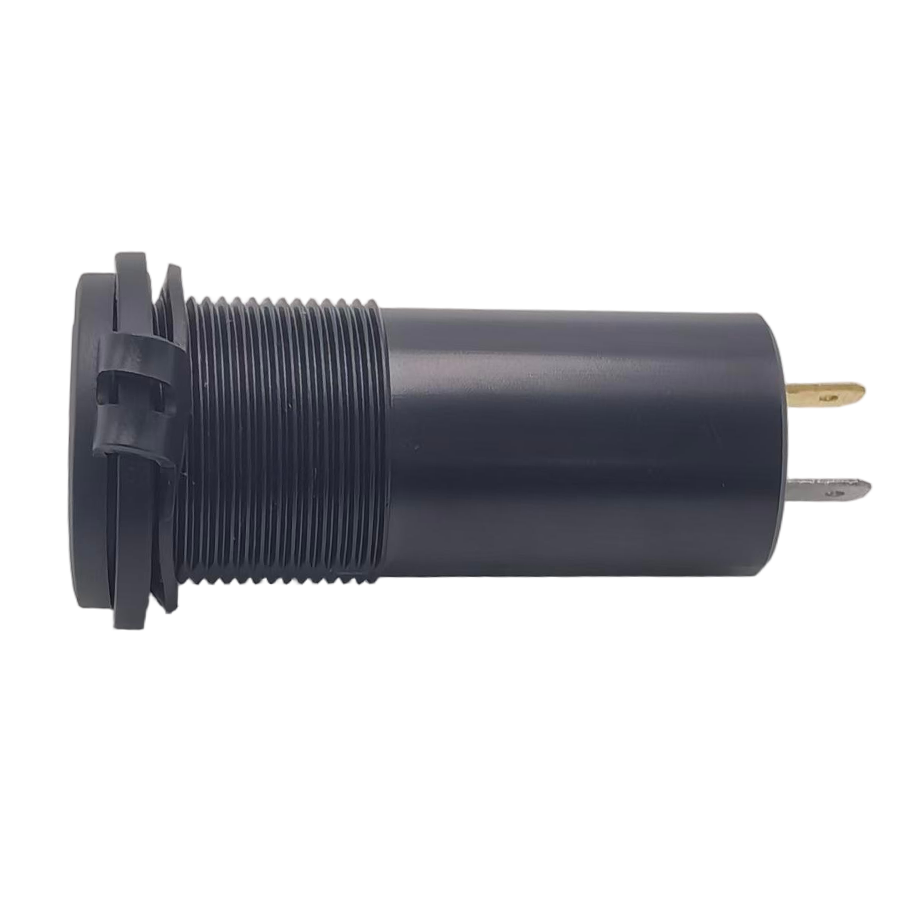

Side view of the 136W USB socket: threaded body, nut and terminals

Fully protected

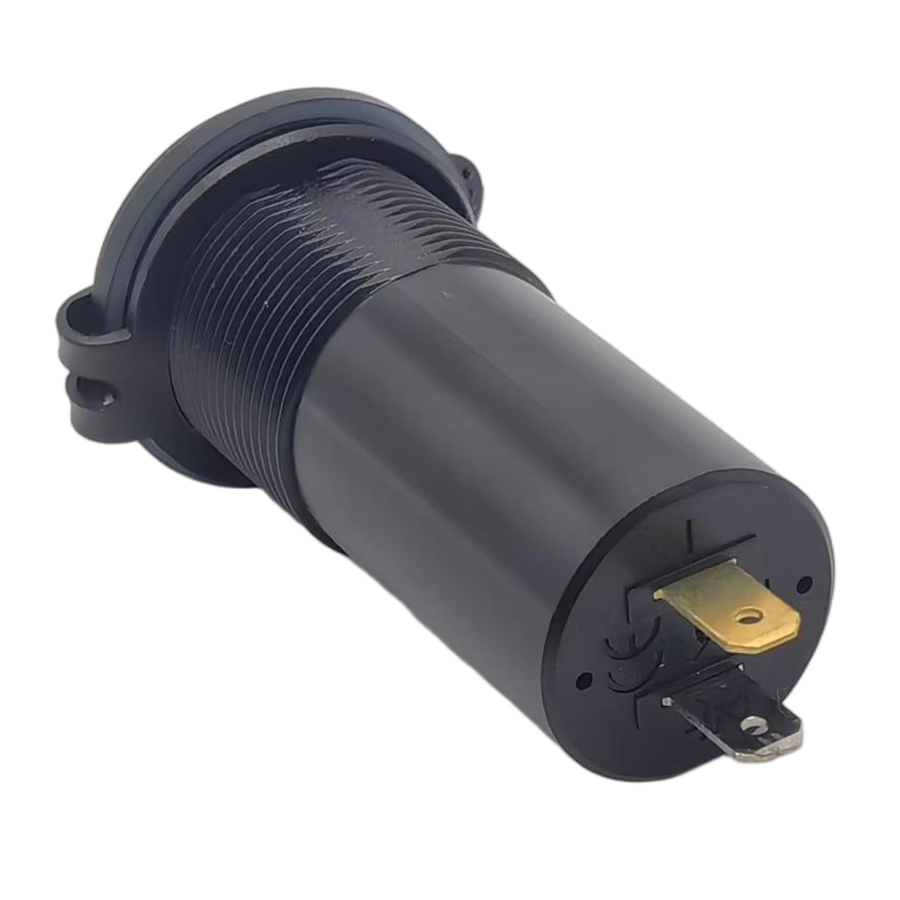

Rear of the 136W USB socket showing the nickel-plated spade terminals

  • ✓Over-voltage, over-current and over-temperature protection
  • ✓Short circuit protection on the outputs
  • ✓Reverse polarity protection: no damage if the wires are swapped during fitting
  • ✓Handles voltage spikes: runs up to 32V and survives peaks of 36V for 3–4 seconds, common when 24V systems charge
  • ✓IP65 sealed: dust tight and protected against water jets
  • ✓Low standby draw: just 20 mA with nothing plugged in
  • ✓Rated for 5,000 plug cycles, with copper terminals, nickel plated against corrosion

Fitting

  • ✓Hole size: cut a round hole of at least 29.2 mm (a 30 mm hole saw works) in any panel, dash, battery box or canopy wall
  • ✓Space behind the panel: allow about 80 mm for the body and terminals, plus room for the wires
  • ✓Mounting: push the socket through from the front and tighten the threaded retaining nut from behind
  • ✓Wiring: push-on spade terminals marked + and −. Run the positive through an inline fuse close to the battery
  • ✓Suggested fuse: 15A on the positive feed (the socket can draw over 12A at full output on 12V)
  • ✓Terminals: 6.3 mm copper spade terminals, nickel plated
  • ✓Check depth first: this socket is longer than most (78 mm overall), so make sure there is room behind the panel

TVDSU6 size diagram: 37 mm face, 67 mm body length, 30 mm panel hole

2
Year
Warranty
Why buy from Perception Lighting12 Volt DirectSPC Enterprises
Australian business since 2007
Sydney store, shipping Australia-wide
Real people, here in Australia
Not an overseas call centre
2-year warranty
Plus 30-day change-of-mind returns

Need a hand choosing?

Not sure which socket suits your setup? contact our team and we’ll help you pick the right one. Every socket ships from our Sydney store with a 2-year warranty.

Features

  • ✓136 W total: 100 W USB-C PD + 36 W QC 3.0
  • ✓Full 100 W USB-C (20V / 5A) even on 12V systems
  • ✓Powers a Starlink Mini, laptops up to 100 W, tablets and phones
  • ✓Over-voltage, over-current, over-temperature, short circuit and reverse polarity protection
  • ✓IP65 sealed
  • ✓Nominal 12V / 24V DC, operating up to 32V
  • ✓Low 20 mA standby draw
  • ✓Fits a standard 29.2 mm hole, flush mount with threaded nut
  • ✓2-year warranty

Specifications

Ports1 x USB-C PD, 1 x USB-A QC 3.0
USB-C PD Output5V / 3A
9V / 3A
12V / 3A
15V / 3A
20V / 5A (100 W Max)
USB-A Output5V / 3A
9V / 3A
12V / 3A (36 W Max)
Maximum Power136 W
On 12V InputUSB-C boosts to 20V / 5A (100 W)
Nominal Voltage12V / 24V DC
Operating VoltageUp to 32V DC
Peak Voltage36V DC (3–4 Seconds)
ProtectionOver-Voltage, Over-Current, Over-Temperature, Short Circuit, Reverse Polarity
SealingIP65
Standby Current20 mA
Operating Frequency150–200 kHz
Life5,000 Operating Cycles
Terminals6.3 mm Copper, Nickel Plated
Operating Temperature-20°C to +60°C
Temperature Rating-25°C to +85°C
Mounting Hole29.2 mm Minimum
Overall Length78 mm
Body Length Behind Bezel60 mm
Body Diameter29 mm (Threaded)
ModelYJ-DS2137B
Warranty2 Years

What's Included

  • 1 x 136 W USB-C PD socket with tethered cap
  • 1 x threaded retaining nut
