DETAILS

Overview

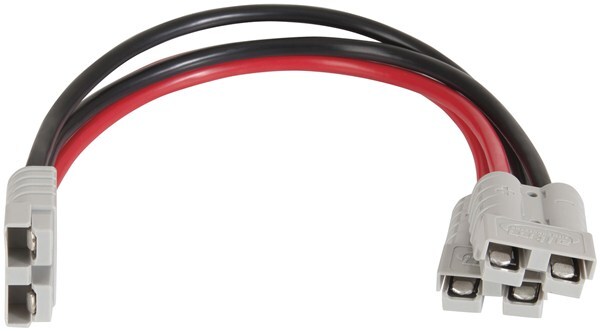

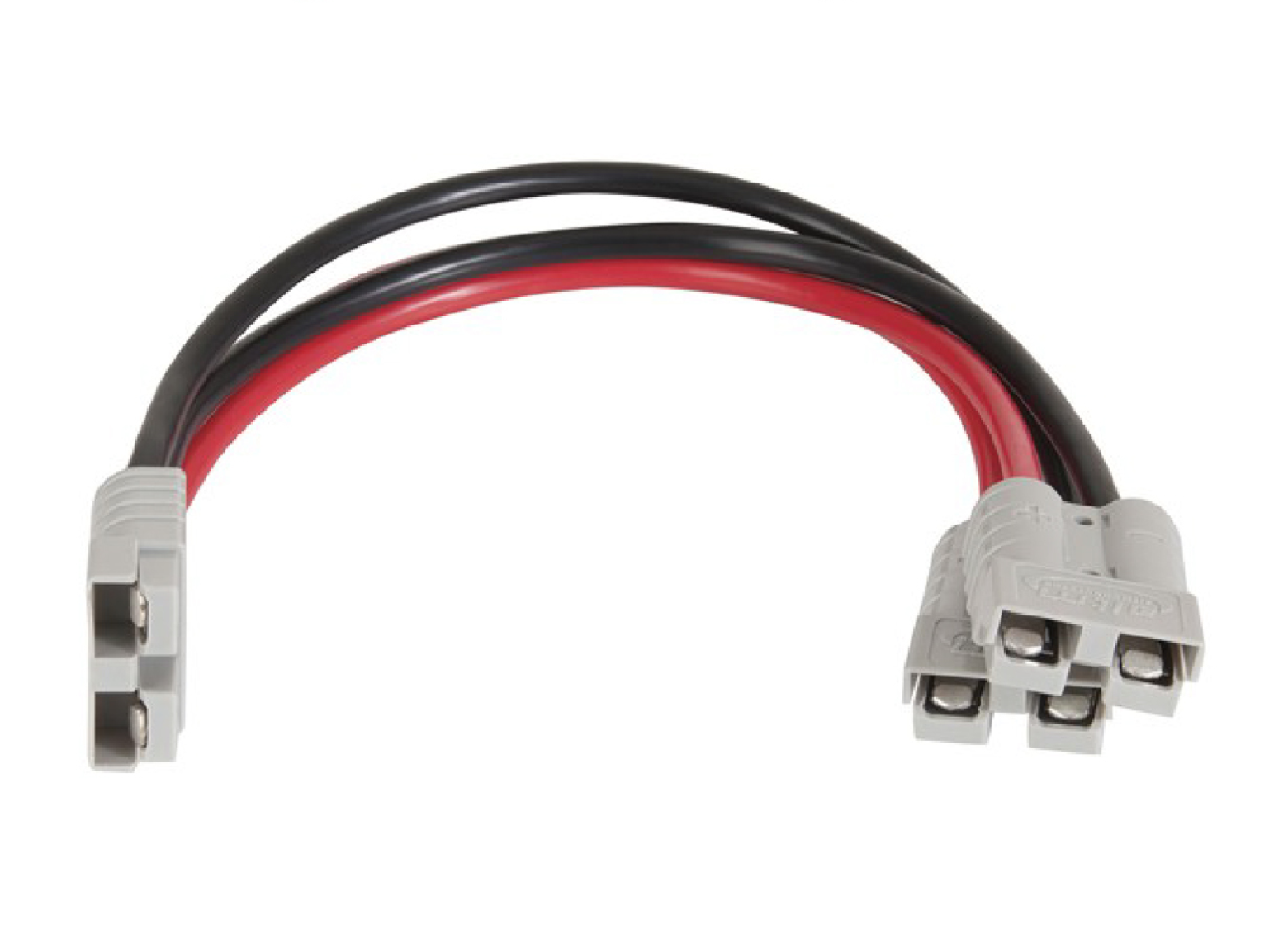

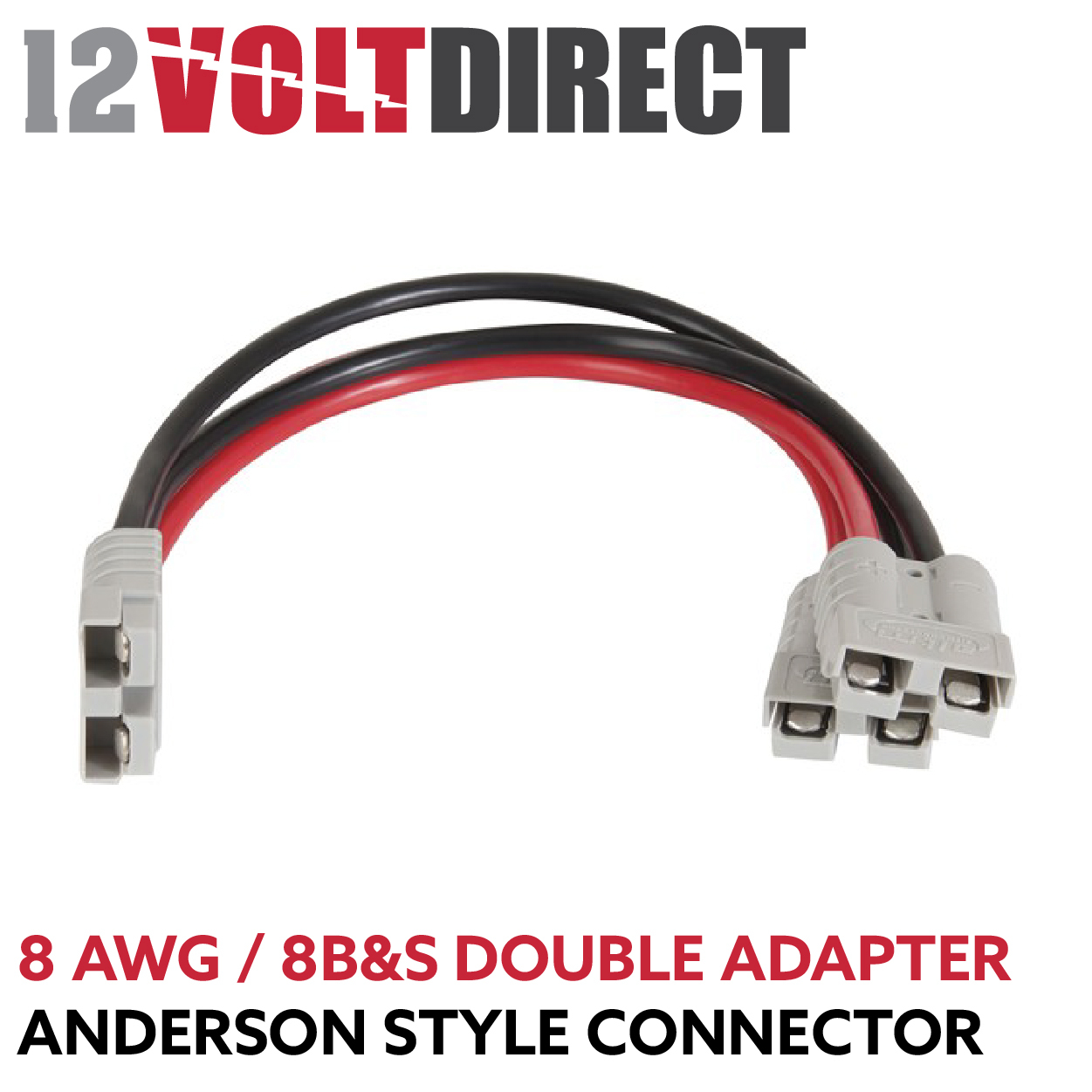

Anderson double adapter (Y splitter)

Turn one Anderson outlet into two. Run a fridge and a light from the same battery box socket, or join two solar panels in parallel into one Anderson input. Heavy 8 B&S cable carries up to 50A in total.

1 → 2
Anderson outlets
8 B&S
Heavy cable
50A
Total rating
33 cm
Lead length

Take a closer look

Anderson Plug Double Adapter Y Splitter Lead 8 AWG / 8 B&S
Anderson Plug Double Adapter Y Splitter Lead 8 AWG / 8 B&S
Anderson Plug Double Adapter Y Splitter Lead 8 AWG / 8 B&S

The 50A rating is shared between both outlets. When paralleling solar panels, make sure your regulator or power station can handle the combined current.

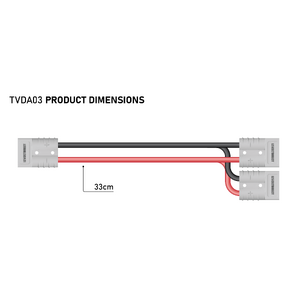

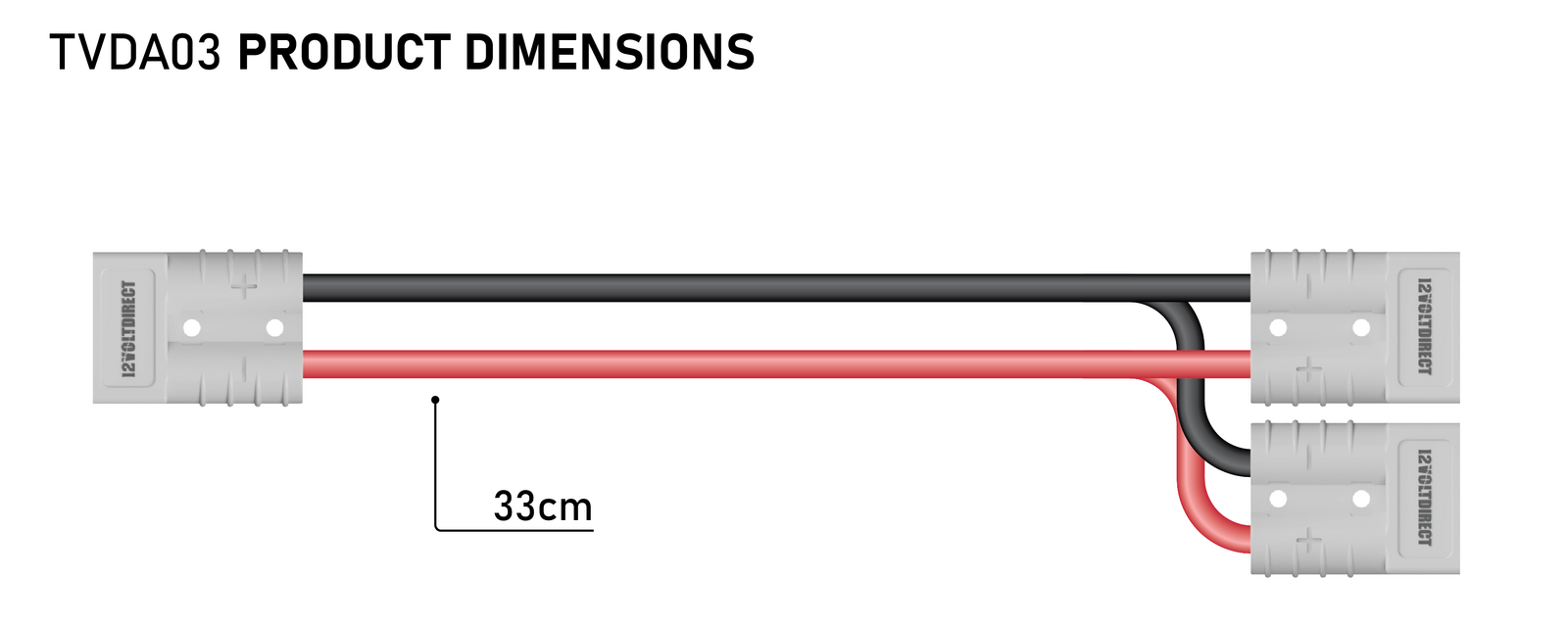

Dimensions

Anderson Plug Double Adapter Y Splitter Lead 8 AWG / 8 B&S dimensions

Can’t see the lead you need?

12 Volt Direct makes a full range of 12V connection leads: Anderson to cigarette, fridge leads, extensions, splitters, fuse leads, and solar and power station adapters. If this lead doesn’t do quite what you need, there’s a good chance we have one that does. Browse the range, or send our team a text and we’ll find the right one.

Why buy from us

  • ✓Australian business with a Sydney store, shipping Australia-wide
  • ✓Talk to a real person here in Australia, not an overseas call centre
  • ✓3-year warranty and 30-day returns
Anderson Plug Double Adapter Y Splitter Lead 8 AWG / 8 B&S

Features

  • ✓One Anderson plug in, two Anderson plugs out
  • ✓Heavy 8 B&S (8 AWG) red and black cable
  • ✓Rated to 50A continuous in total
  • ✓Parallel two solar panels or run two 12V devices
  • ✓SB50 Anderson-style plugs (grey)

Specifications

Configuration1 x Anderson plug to 2 x Anderson plugs
Cable8 B&S (8 AWG), red and black
Rating50A continuous, total
Length33 cm
Connectors3 x SB50 Anderson-style plug, grey
Warranty3 years

What's Included

  • 1 x Anderson double adapter (Y splitter) lead

Product Details

SKU TVDA03
Barcode # 9359968000937
Brand 12 Volt Direct
Shipping Weight 0.2000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.000500000m3
