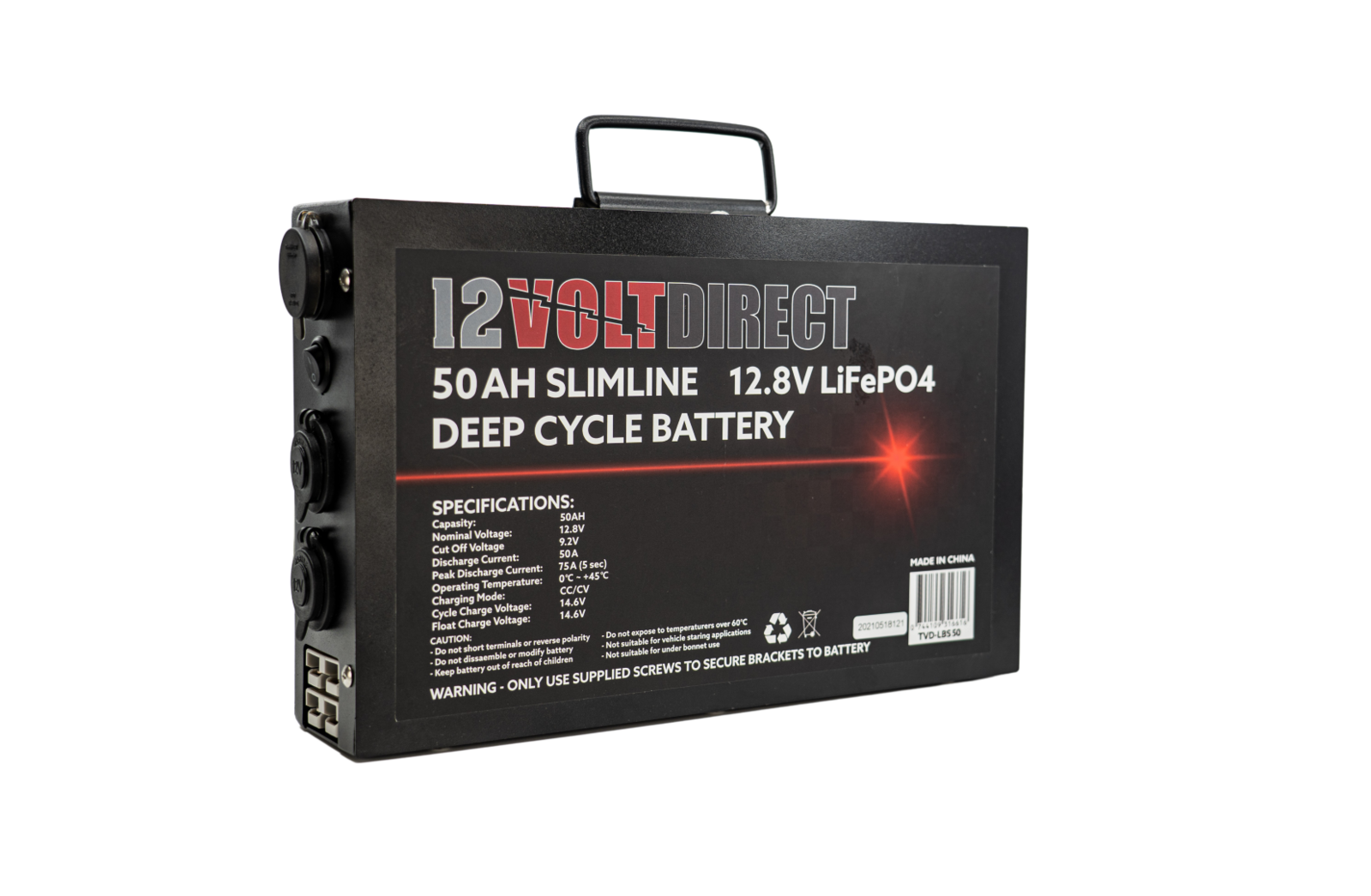

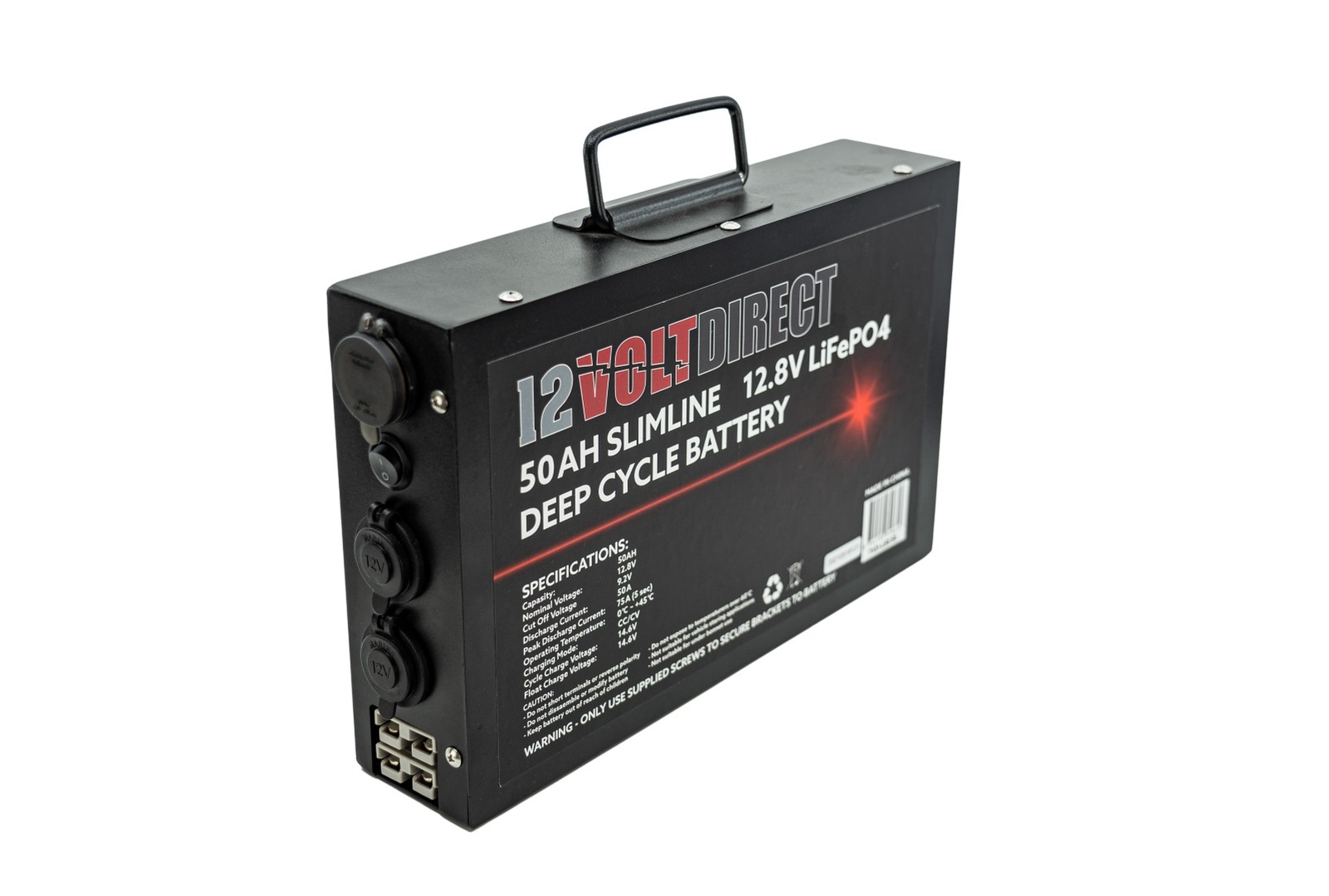

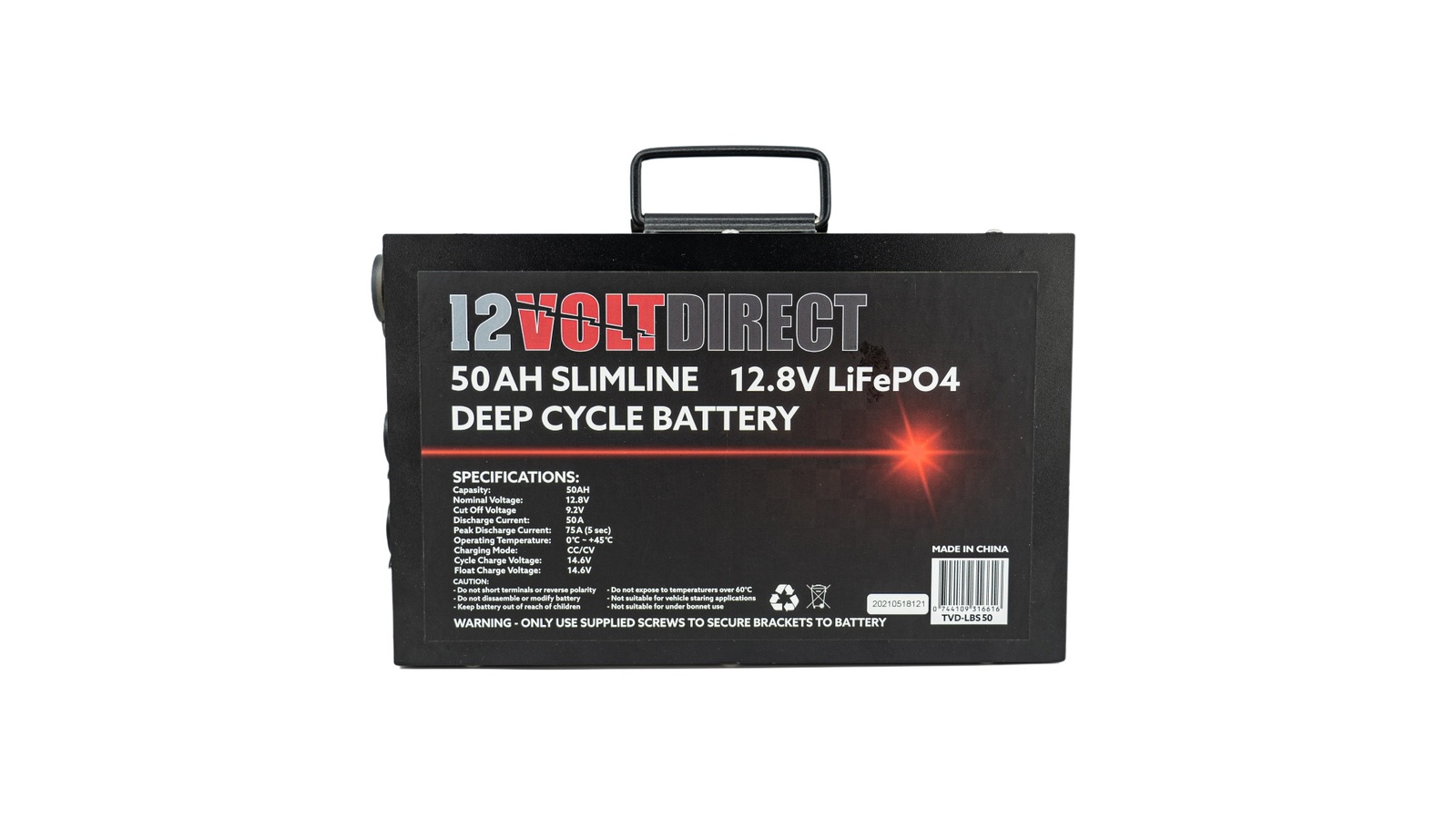

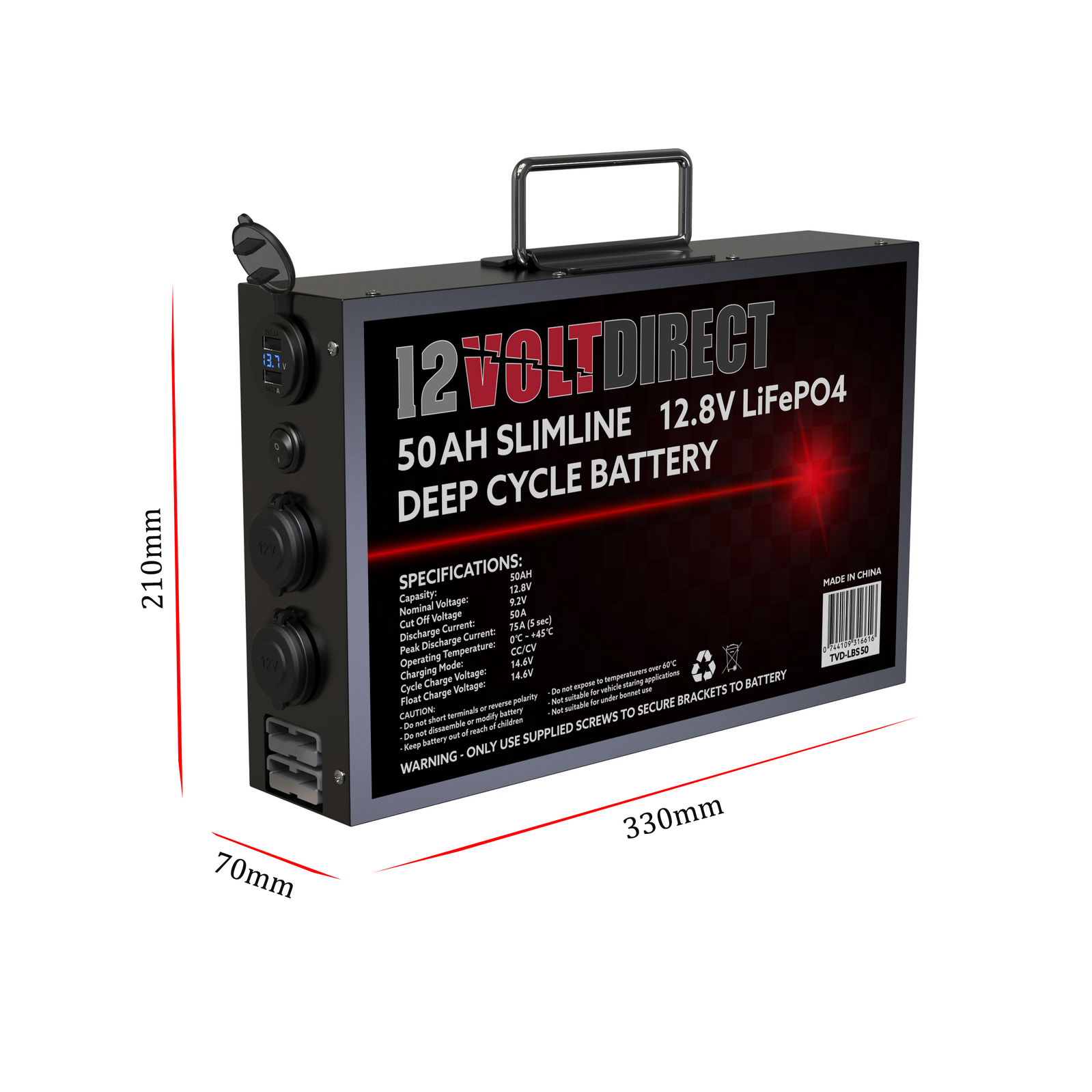

50AH 12.8V Portable LifePo4 Lithium Battery Power Pack

DETAILS

WANT MORE CAPACITY AND LESS WEIGHT?

Introducing 12 Volt Direct's latest release the 50AH 12.8V Portable LifePo4 Lithium Battery Power Pack

Stop hauling overweight camping power packs around, our 50AH 12.8V Portable LifePo4 Lithium Battery Power Pack weighs only 7.3kg. With its sturdy steel casing and easy carry handel this battery is ready to go when you are.

Capable of delivering a constant discharge current of 50 Amps this compact unit won't let you down.

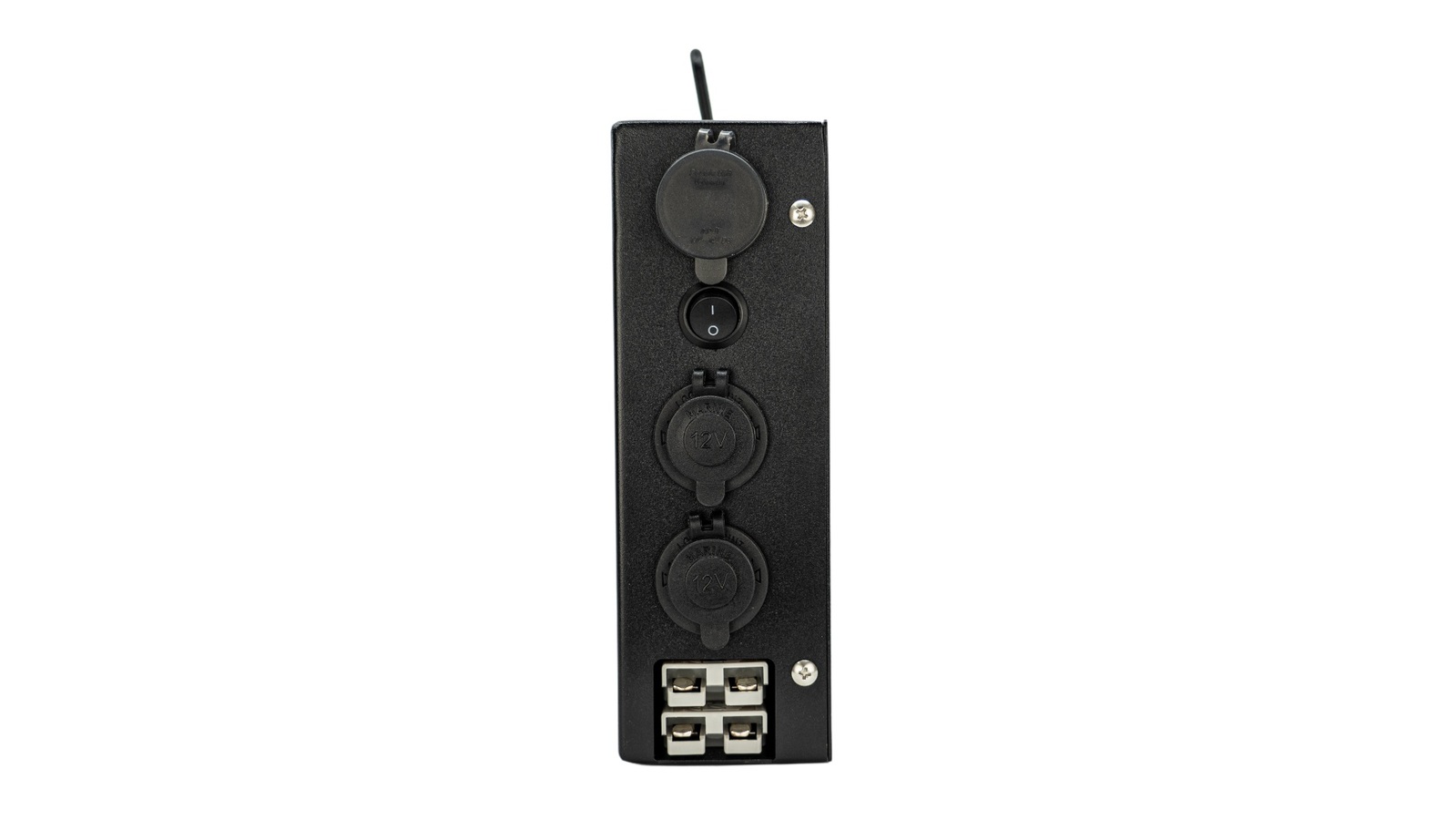

This unit comes equipped for anything you have to throw at it complete with 2 x 50 Amp Anderson style sockets, 2 x 12V cigarette sockets, twin 2.1 amp usb sockets, and switch controlled volt meter.

WHY LITHIUM?

Lithium batteries provide far greater useable amp hours than their lead-acid counterparts. Unlike lead-acid lithium batteries can be deeply discharged without affecting the cycle life. This means you can use the battery for longer before having to recharge. In comparison, AGM batteries are generally recommended to only be discharged to 50% of their capacity to maximize their cycle life whereas lithium can generally be discharged to 80-90% of the capacity.

COST

While the initial investment of a lithium battery is more than lead-acid the service/cycle life of lithium is far superior. Typically lead-acid batteries have a service life of 300-900 cycles whereas Lithium has a cycle life of 2000+ cycles at a much higher discharge. That being said you would expect to replace your lead acid battery 2 or 3 times in comparison to replacing 1 Lithium battery.

WHY LITHIUM?

COST

Longer life
Lithium batteries are rated for 2,000 – 5,000 cycles and much more if used carefully, giving you several times the life expectancy of standard lead-acid batteries

Powerful
Lithium batteries allow you to pull far more amps out of the same size battery systems

Light-weight
Lithium batteries are less than half the weight of the equivalent lead-acid battery.

Fast recharge
Lithium batteries charge more efficiently and don’t require as many stages during charging. Therefore, they will charge faster, and hold more of the energy from solar panels and other charging devices.

Lithium v AGM Capacities

100Ah Lithium = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium = 320Ah AGM
300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

Lithium v AGM Capacities

100Ah Lithium = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium = 320Ah AGM
300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The 12 Volt Direct Difference

Deep cycle batteries may appear similar on the outside but don't be fooled, there are key differences between low-quality offerings often found on online auction sites and 12 Volt Direct's premium quality offerings.

LiFePO4 Cells

The TVD-LBS50 is four high-quality 3.2 volt 100AH LiFePO4 Pouch cells connected in series to provide superior performance.

Built-in Battery Management System (BMS)

The TVD-LB50 is equipped with an advanced internal Battery Management System. This monitors and optimizes each cell within the battery. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Built-in Volt Meter
The TVD-LBS50 features a volt meter on the side of the battery to allow you to easily see your battery voltage at any point in time.

SPECIFICATIONS

NOMINAL VOLTAGE		12.8V
CAPACITY		50AH
FLOAT VOLTAGE		14.6V
DISCHARGE CURRENT		50A
PEAK DISCHARGE CURRENT		75A (5 sec)
OPERATING TEMP		0°C - +45°C
CHARGING MODE		CC/CV
WEIGHT		7.3KG
CYCLE CHARGE VOLTAGE		14.6V
FLOAT CHARGE VOLTAGE		14.6V

SPECIFICATIONS

NOMINAL VOLTAGE		12.8V
CAPACITY		50AH
FLOAT VOLTAGE		14.6V
DISCHARGE CURRENT		50A
PEAK DISCHARGE CURRENT		75A (5 sec)
OPERATING TEMP		0°C - +45°C
CHARGING MODE		CC/CV
WEIGHT		7.3KG
CYCLE CHARGE VOLTAGE		14.6V
FLOAT CHARGE VOLTAGE		14.6V
