Key Features

Built-In 30V Voltage Booster
Converts a 12V or 24V DC supply into a stable 30V output suitable for powering the Starlink Mini.

No Inverter Required
Runs directly from your vehicle, caravan or auxiliary battery system, helping reduce power conversion losses and simplifying your installation.

Waterproof External Connection
Designed for installation on external caravan, canopy or motorhome panels, with a protective waterproof cap for added protection when disconnected.

Heavy-Duty Aluminium Construction
The full aluminium housing provides a durable, professional finish and is built to handle demanding Australian touring conditions.

Copper Internal Contacts
Quality copper pins provide reliable conductivity and help maintain a secure electrical connection.

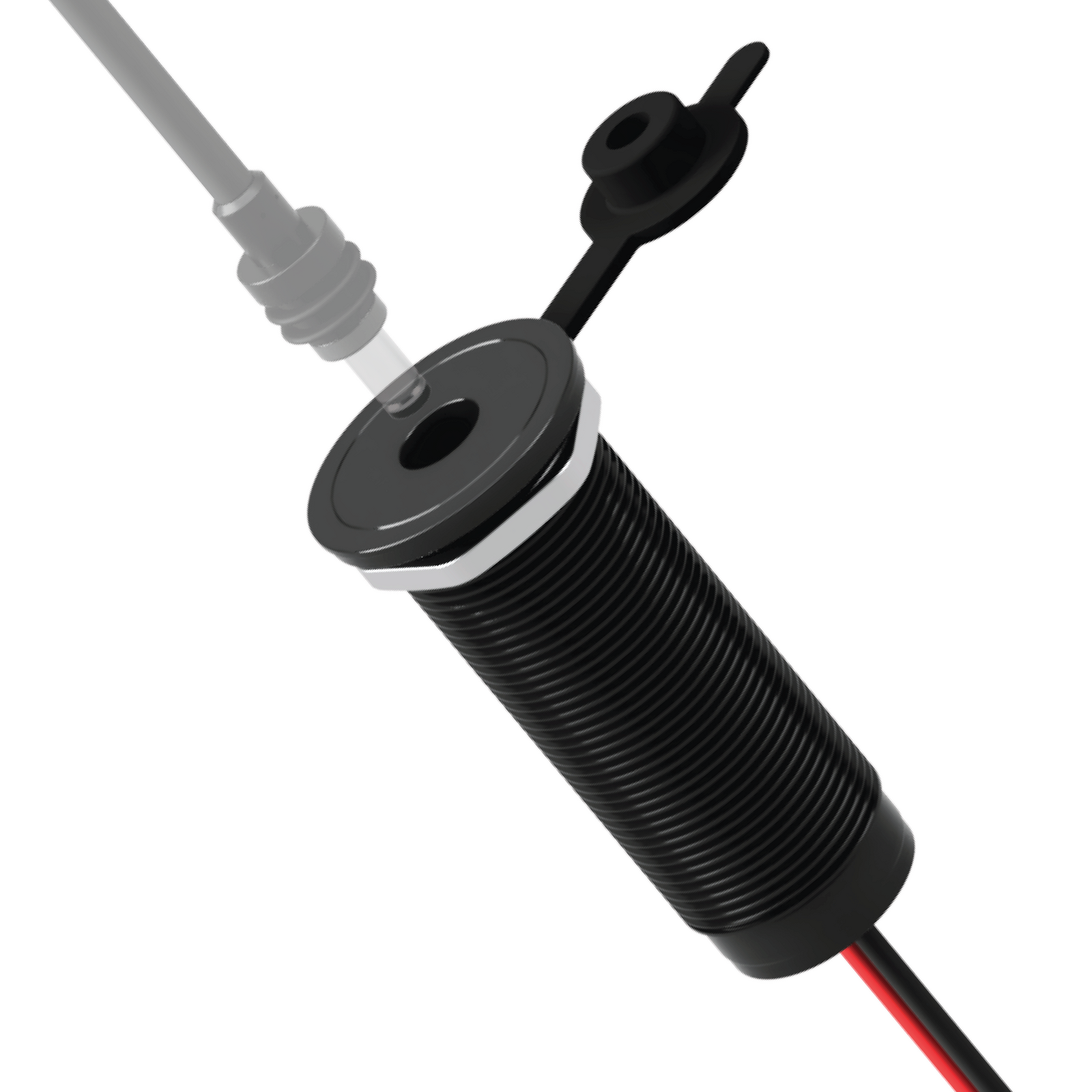

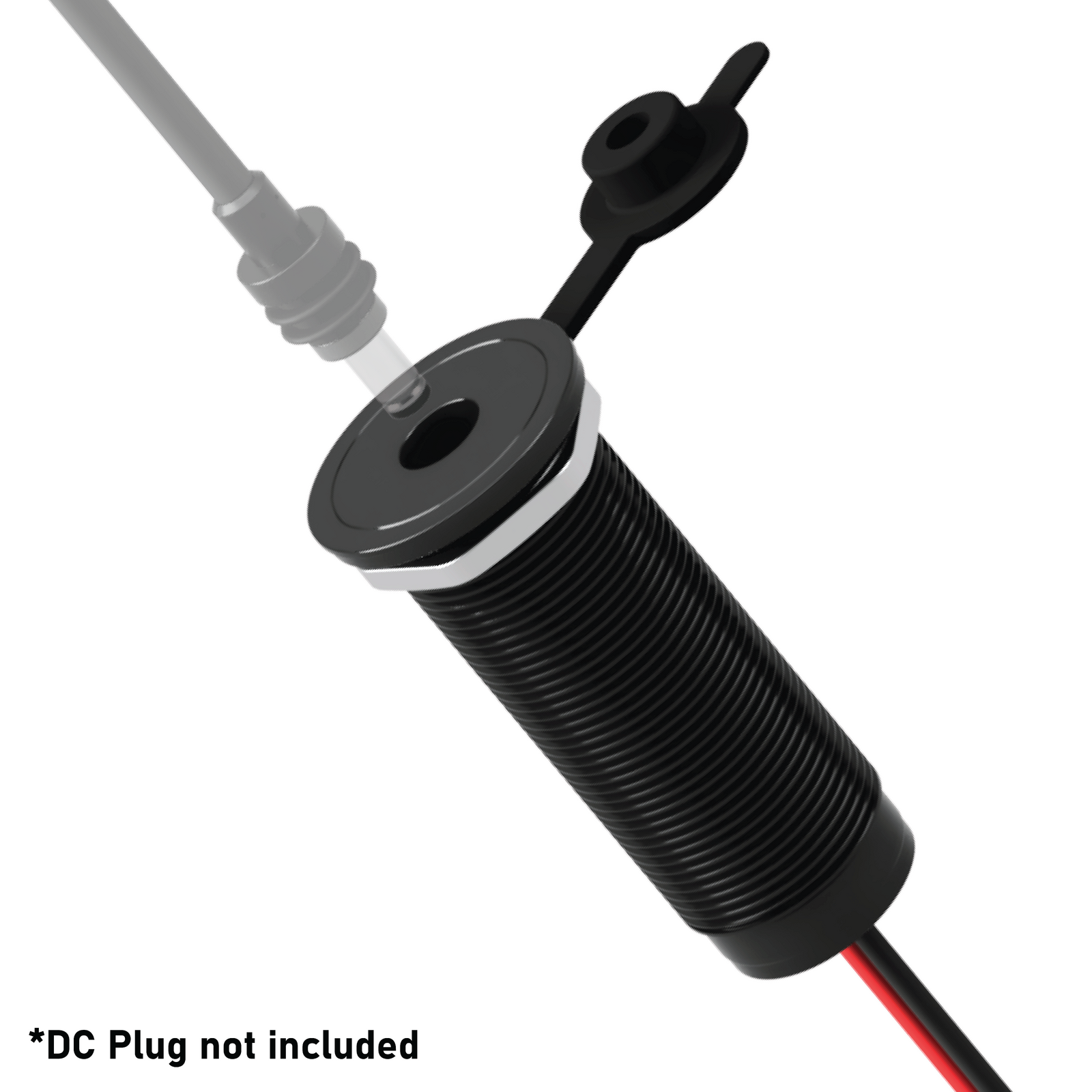

Compact Threaded Installation
The threaded 27mm body allows the outlet to be securely mounted through panels and walls up to 55mm thick.

Plug-and-Play Starlink Mini Connection
Compatible with the standard Starlink Mini power cable, including cable lengths up to 15 metres.

Product Specifications

• Inut voltage: 12V or 24V DC

• Output voltage: Regulated 30V DC

• Maximum output: More than 100W

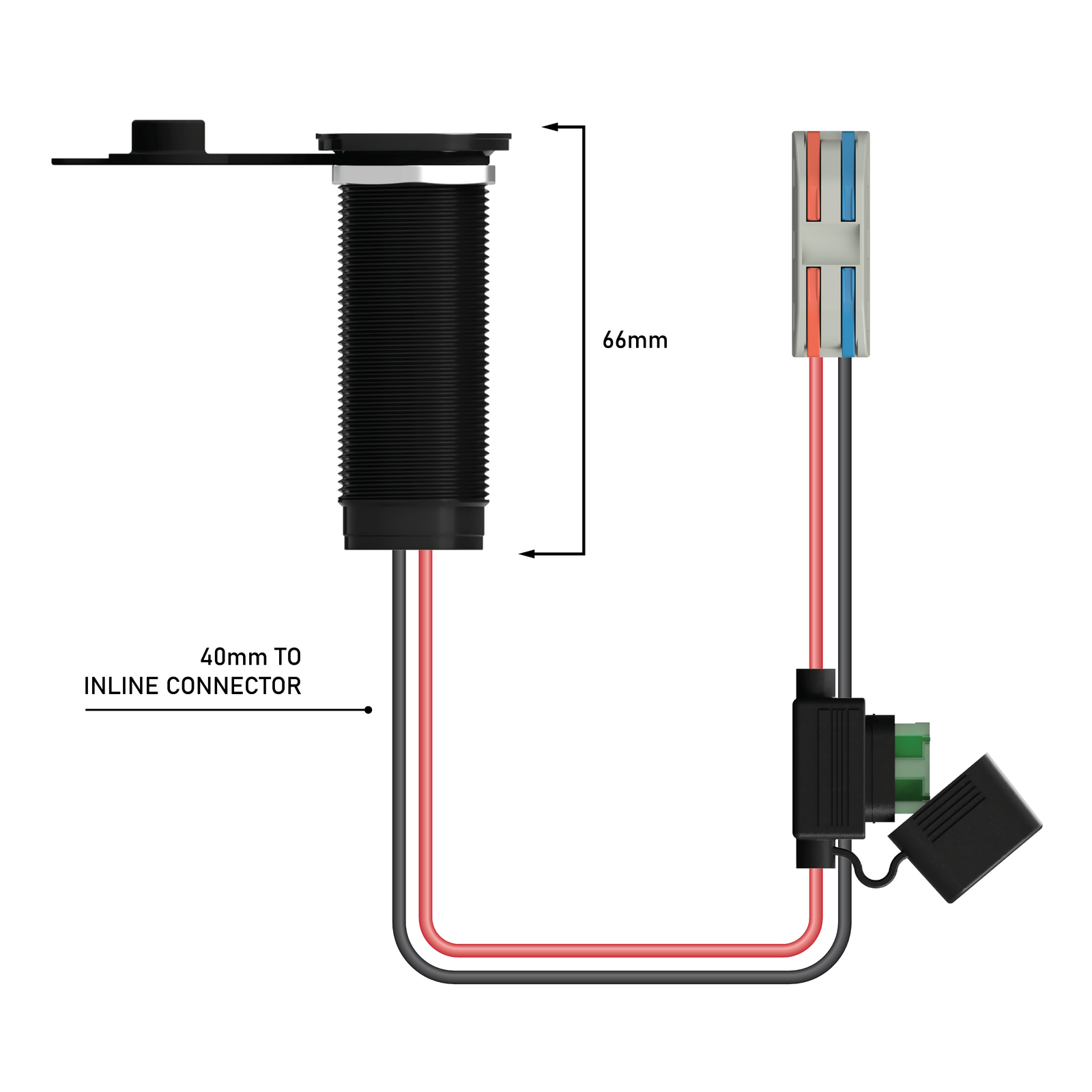

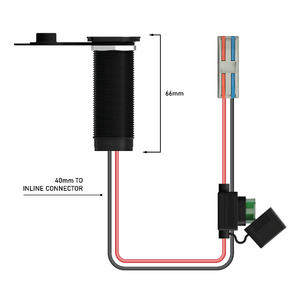

• Mounting hole diameter: 27mm

• Maximum wall thickness: 55mm

• Body length: 66mm

• Wiring length: Approximately 170mm

• Housing material: Aluminium

• Internal contact material: Copper

• Weather protection: IP67 with protective cap fitted

• Installation difficulty: Easy to moderate

Why Choose This Boosted Power Outlet?

Standard DC sockets may not provide the voltage stability required for reliable Starlink Mini operation, particularly when longer cables or fluctuating battery voltages are involved.

This purpose-built outlet combines a regulated 30V booster, durable aluminium housing and weather-resistant external connection in one compact unit. It provides a cleaner and more efficient installation than running a 240V inverter and Starlink AC adapter inside your vehicle.

Whether you are travelling through remote areas, working from your caravan or setting up camp off-grid, this outlet gives your Starlink Mini a stable and convenient power connection wherever you travel.

Installation

This outlet requires basic drilling and 12V electrical wiring.

Drill a 27mm mounting hole, insert the threaded outlet body and secure it firmly to the panel. Connect the input wiring to a suitable fused 12V or 24V power supply, ensuring correct polarity and adequate cable sizing.

For external installations, apply a suitable exterior-grade sealant around the mounting surface to help create a watertight finish.

Professional installation is recommended when you are unsure about cable sizing, fuse selection or electrical connections.
