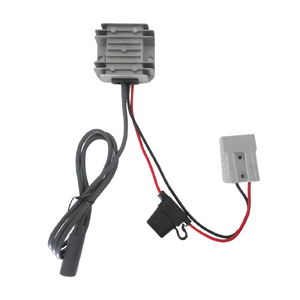

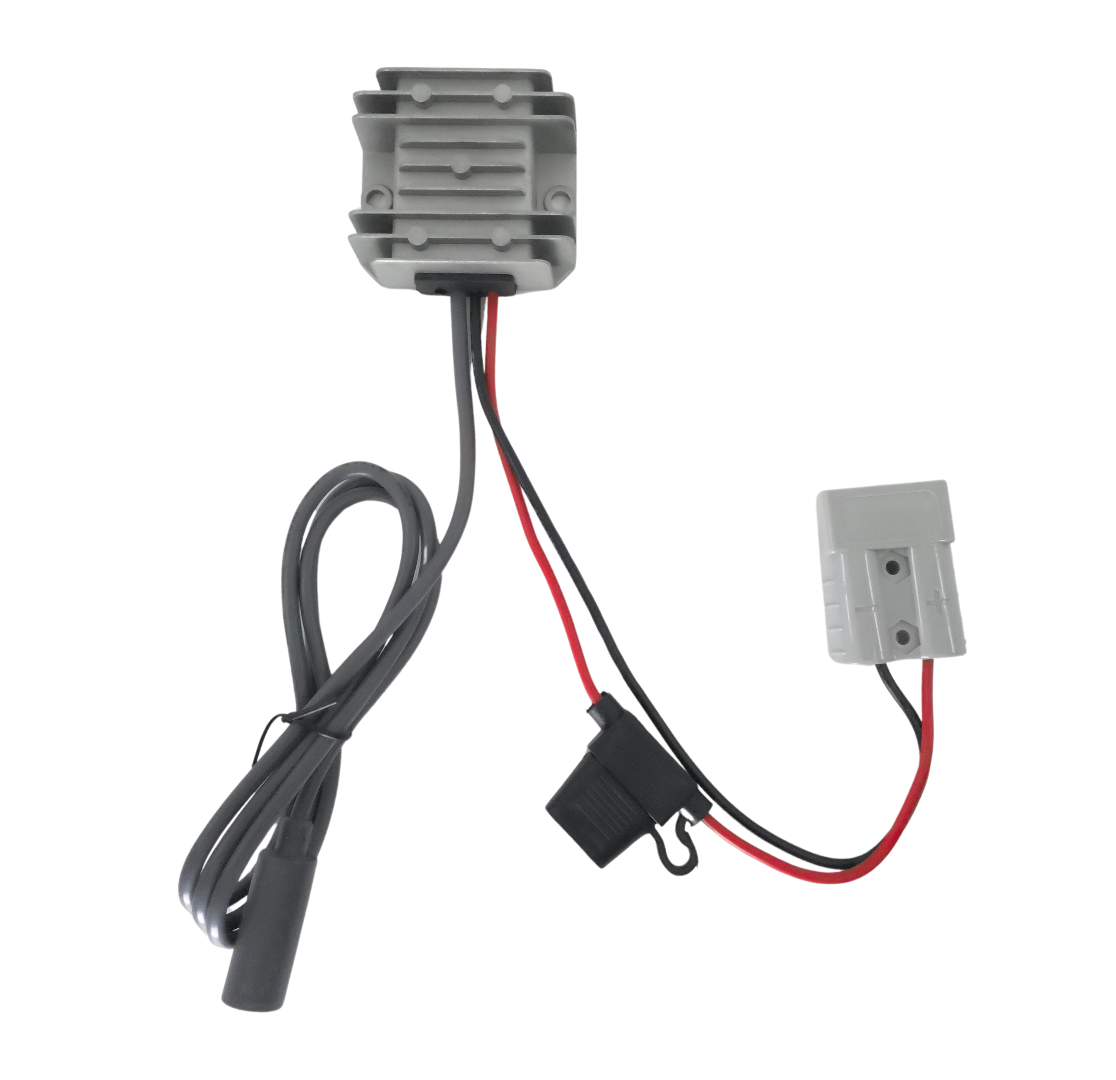

Starlink Mini 12V to 30V Step Up Voltage Booster with Anderson Plug
Buy Now, Pay Later.
DETAILS
Overview
Steady 30V from your Anderson outlet
Plug this booster into your battery box or any Anderson outlet and your Starlink Mini gets a steady 30V, no matter how far the cable runs or how low the battery sags.
Purpose-built by 12 Volt Direct for caravans, 4WDs and off-grid battery systems.
30VRegulated Output
60W2A Continuous
IP67Potted Aluminium Case
9–15VInput Range
Video
Why you need it
No more 12V dropouts
Starlink Mini needs at least 12V to run. A 12V system can easily sag below that on a long cable run, with a flat-ish battery, in the cold or under load, and the Mini drops out or will not start. A step-up booster turns that 9–15V into a steady 30V, so the Mini always gets what it needs.
- ✓Keeps the Mini online on long cable runs
- ✓Rides through battery sag and cold mornings
- ✓Less current through your wiring, so less voltage drop

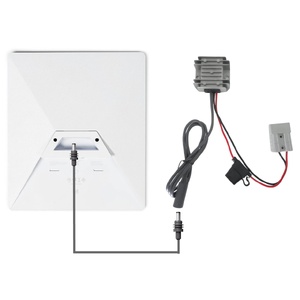

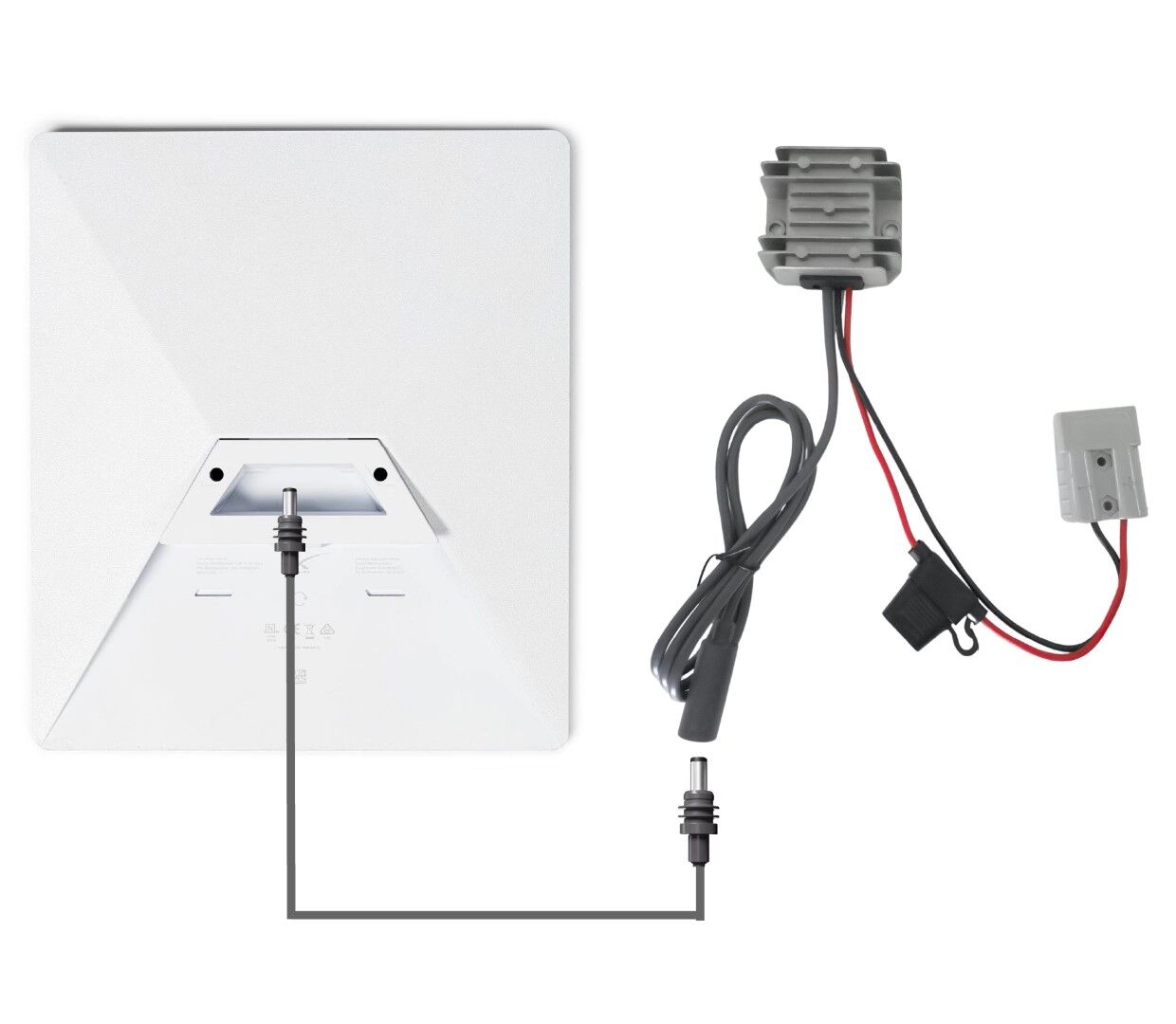

Plug and play
Set up in a minute
- ✓Plug the Anderson connector into your battery box or 12V outlet
- ✓Mount the booster somewhere ventilated with screws, adhesive or Velcro
- ✓Plug the Mini's DC cable into the booster's barrel socket
- ✓Power up and you are online
The Mini's 15m cable is long for most cars and caravans. A 3m or 5m DC cable makes a far tidier install.
Complete your setup
Frequently asked questions
Do I really need a booster?
Not always, but most dropouts on 12V are caused by voltage drop. If your cable run is long or your battery sags under load, a booster fixes it.
Which booster should I choose?
This one for an Anderson outlet. TVD-SL29 plugs into a cigarette socket, and TVD-SL54 has short leads to fit inside our roof rack mounts.
Does it work on 24V?
No. The input is 9–15V DC, so it suits 12V systems only.
Which cable connects it to the Mini?
The Mini's own DC cable, or our 3m or 5m DC cable for a shorter run.
Is it waterproof?
Yes. The aluminium case is fully silicone potted and rated IP67.
What's the warranty?
12 months against manufacturing faults. Contact our team if you have any trouble.

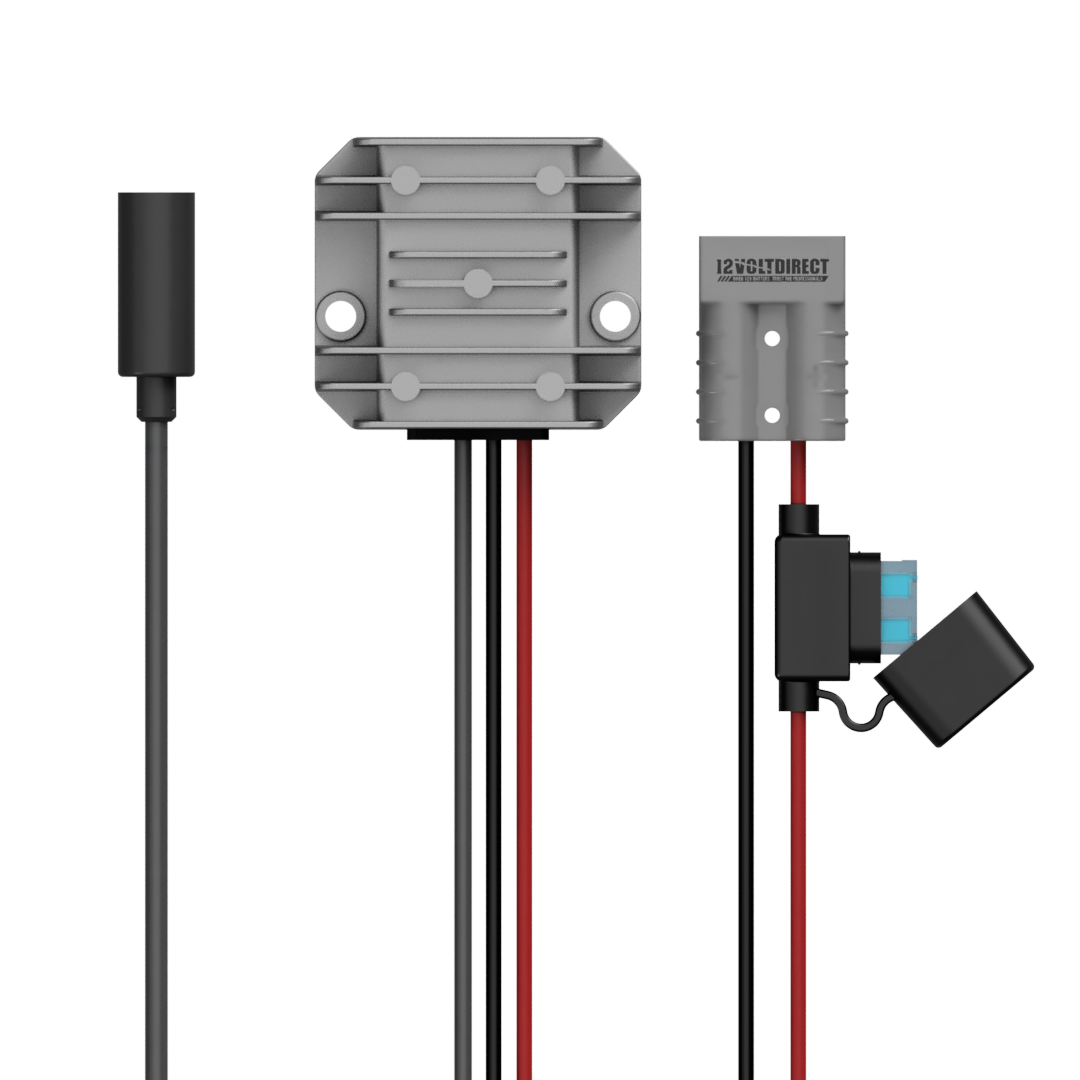

Features
- ✓Steps 9–15V up to a regulated 30V DC
- ✓60W (2A) output, factory set for Starlink Mini
- ✓Anderson plug input with inline blade fuse
- ✓Barrel socket output for the Mini's DC cable
- ✓IP67 silicone-potted die-cast aluminium case
- ✓Reverse polarity, over-current, short circuit and thermal protection
Specifications
Booster
| Input voltage | 9–15V DC |
| Output voltage | 30V DC regulated |
| Output power | 60W (2A) |
| Efficiency | 92% or better at full load |
| Input connector | Anderson style plug with inline blade fuse |
| Output connector | Barrel socket to suit the Starlink Mini DC cable |

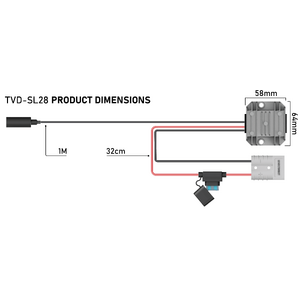

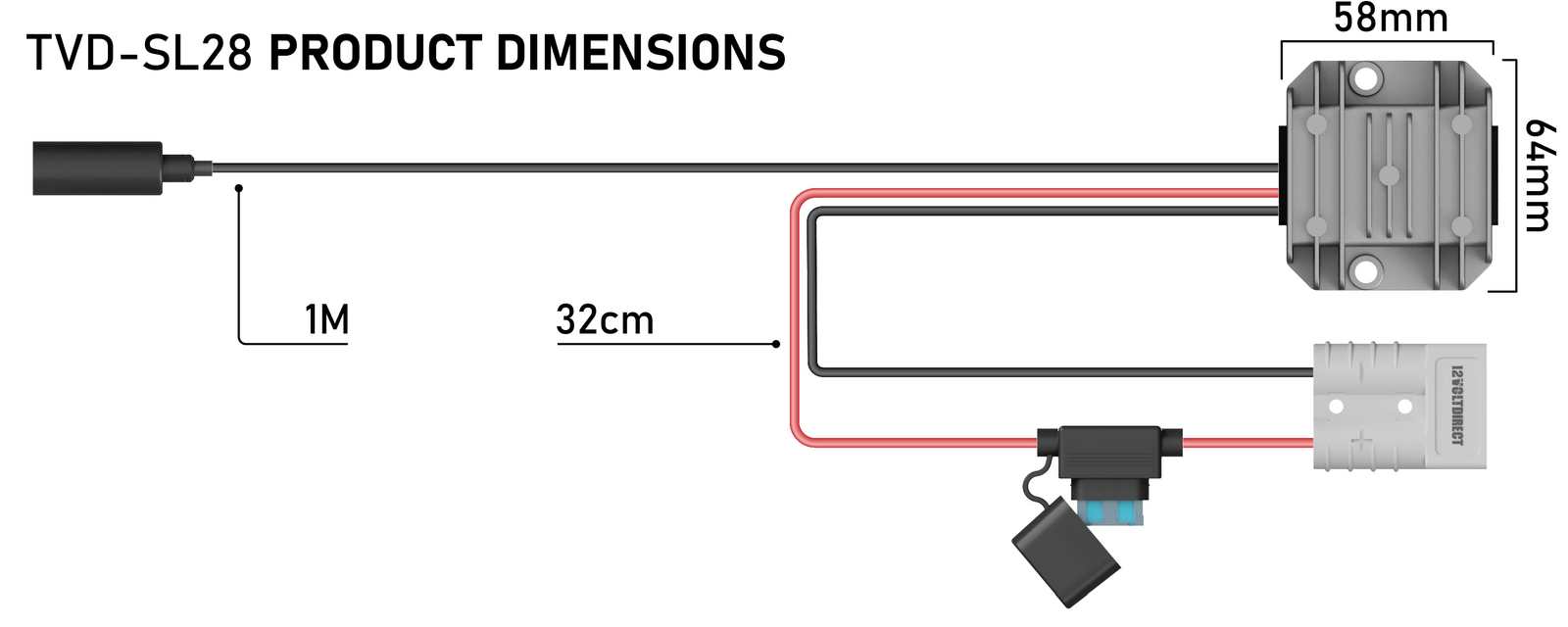

| Lead lengths | Input approx. 32cm, output approx. 1m |
| Housing | Die-cast aluminium, 60 x 60mm, silicone potted |
| Rating | IP67 |
| Protection | Reverse polarity, over-current, short circuit, thermal shutdown |
| Warranty | 12 months |
What's Included
- 1 x 12V to 30V step-up booster with Anderson input lead and inline fuse
- 1 x 1m output lead with barrel socket
Product Details
| SKU | TVD-SL28 |
| Barcode # | 9359968003198 |
| Brand | 12 Volt Direct |
| Shipping Weight | 0.2400kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001547000m3 |
12 Volt Direct is a 12 V power specialist for the automotive, 4WD, caravan and off-grid industry. When 12V matters, trust the professionals. 12 Volt Direct was built around a simple idea: 12 V systems should be done properly. Its range is designed for the way Australians power their vehicles, carava...
