Starlink Mini Power Cable to Anderson Style Plug - 5 Meters
Make 4 payments of $12.49 over 8 weeks with
In Stock - Ready for immediate dispatch or pickup
Pickup Available from Punchbowl, NSW
Aluminium Caravan Waterproof Wall Socket Passthrough for Starlink Mini
Buy Now, Pay Later.
DETAILS

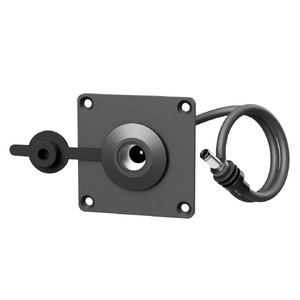

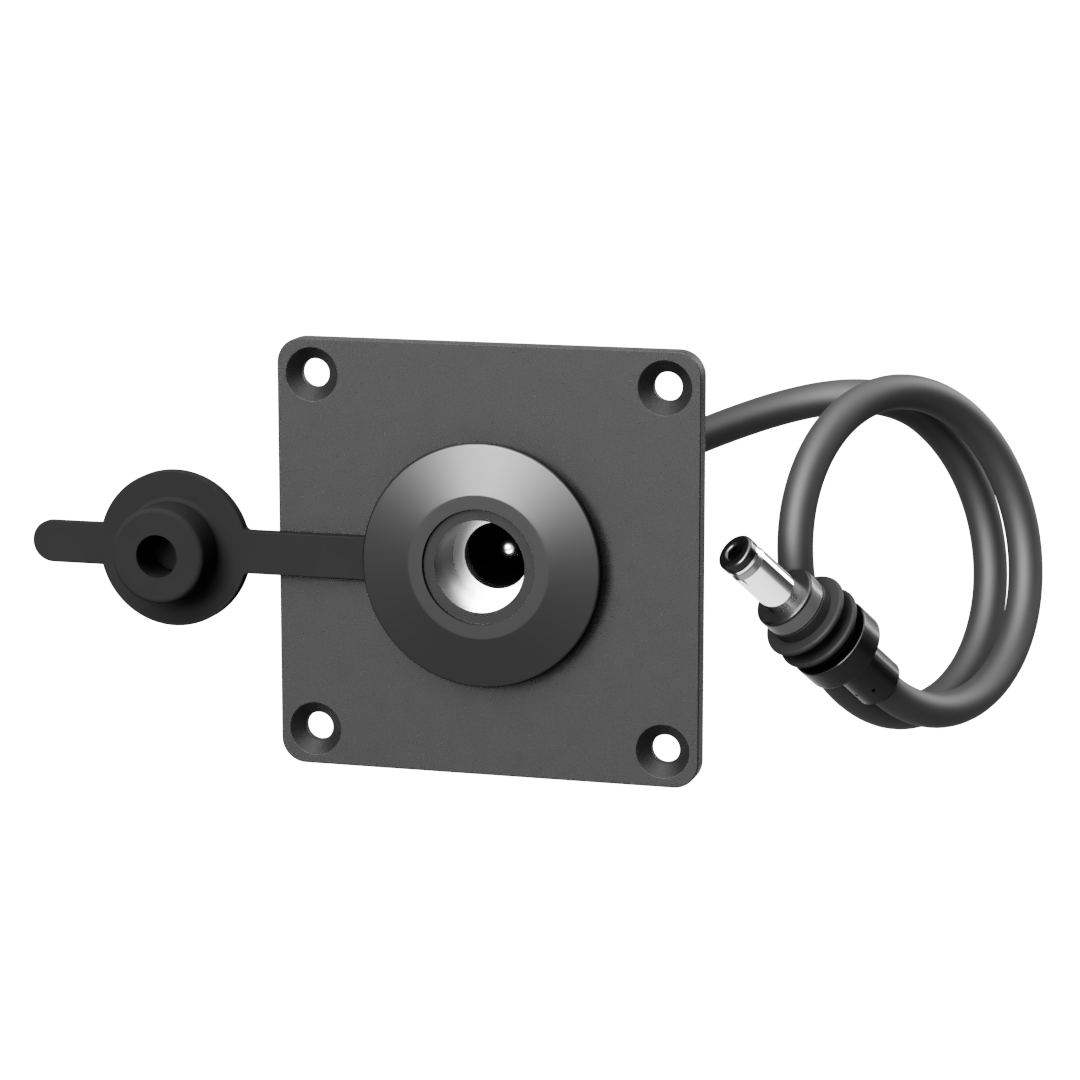

Caravan wall socket
A proper outside power point for the Mini
Fit this aluminium wall socket to your caravan, campervan or motorhome and the Starlink Mini plugs in outside, while the power supply or booster stays tucked away inside.
No cables jammed in doors or windows, no untidy holes. A rubber bung seals it when it is not in use.

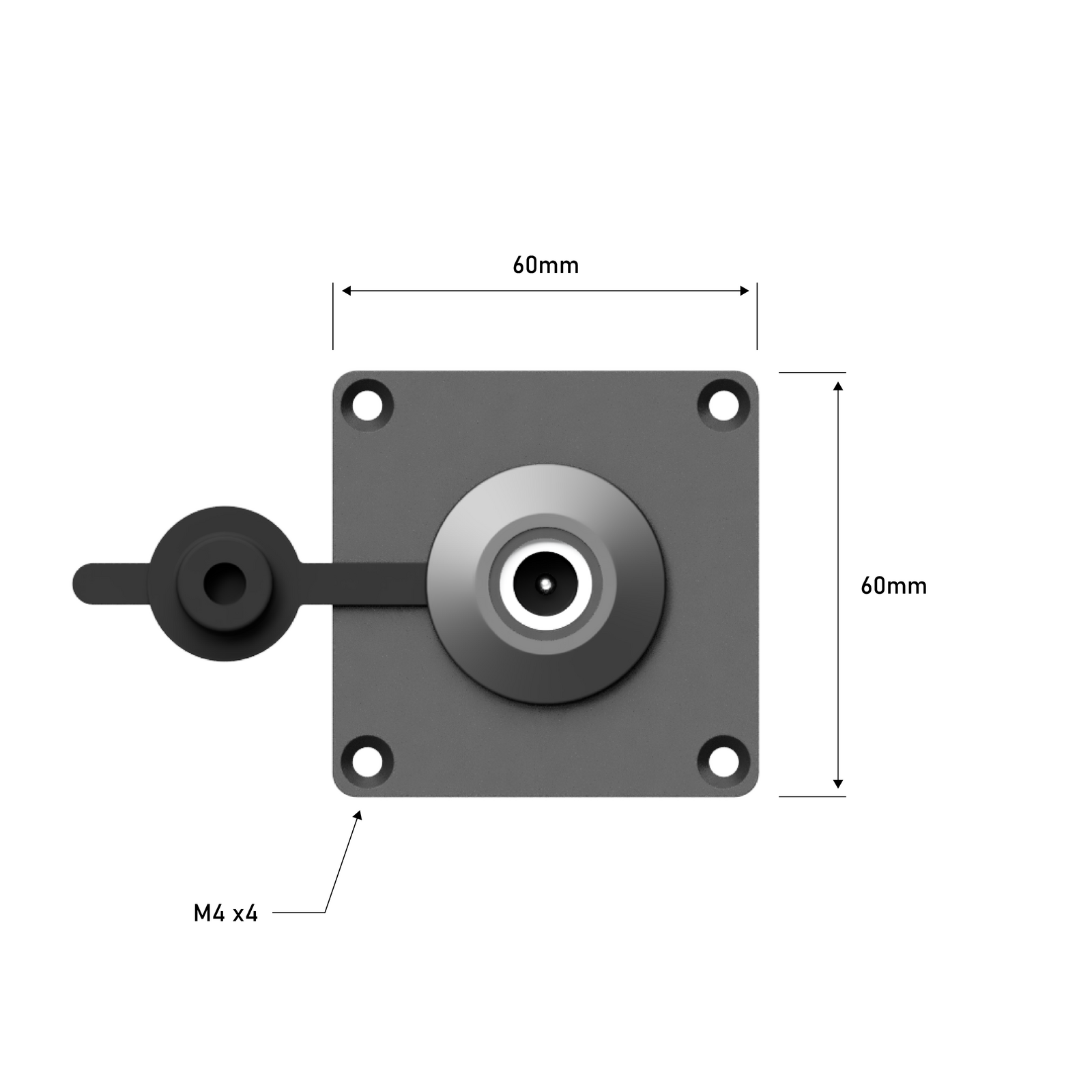

60 x 60mm
aluminium plate
5.5 x 2.1mm
DC socket

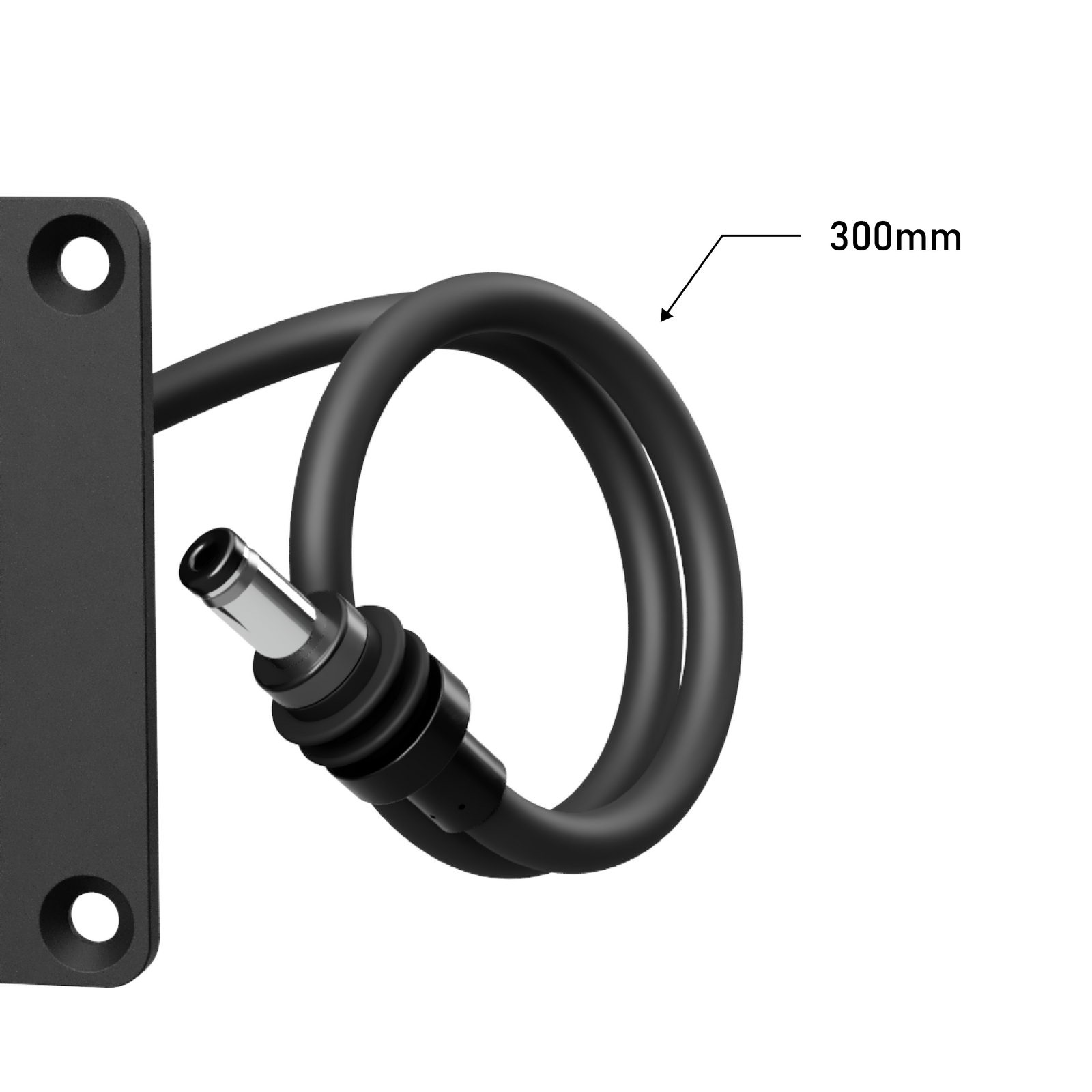

300mm
rear lead
Bung
seals when not in use
Clean install
Power inside, dish outside
Plug the rear lead into your booster or DC supply inside the van. Outside, plug the Mini's DC cable into the socket and you are online.
- ✓60 x 60mm aluminium plate
- ✓Rear lead with male DC plug
- ✓Rubber bung on a tether
Installation
Fit it in an afternoon
- ✓Pick a spot with about 50mm clear behind the wall
- ✓Drill a hole between 29mm and 44mm
- ✓Feed the lead through and connect it to your booster or DC supply
- ✓Screw the plate on and seal around it with exterior-grade silicone
- ✓Fit the bung whenever the socket is not in use
For runs longer than about 3m, voltage drop can affect the Mini. Fit one of our 30V boosters on the input side of the socket.
Complete your setup
Goes well with
12V to 30V Booster, Anderson Plug
For battery boxes and Anderson outlets. Steady 30V, no dropouts.
$99.95 · View
Starlink Mini DC Power Cable (DC5521) - 10 Meters
10m DC5521 lead for longer camp and caravan runs.
$49.95 · View
Starlink Mini Waterproof Boosted Power Outlet – 12V/24V to 30V
Panel-mount outlet with a built-in 12/24V to 30V booster.
$79.95 · View
Not sure what your setup needs? Contact our team and we will check it with you.
Frequently asked questions
What plugs into the outside?
A DC cable with a male 5.5 x 2.1mm plug, such as the Mini's own DC cable or our DC cables.
What do I connect inside?
The 300mm rear lead has a male DC plug. Plug it into a booster or DC supply with a 5.5 x 2.1mm socket output.
Is it hard to install?
It suits professional installers and experienced DIYers. Different screws may be needed depending on your wall.
Does it boost the voltage?
No. For a socket with a built-in 30V booster, see our Boosted Power Outlet.
What's the warranty?
12 months against manufacturing faults. Contact our team if you have any trouble.
FEATURES
- ✓Heavy-duty aluminium wall plate
- ✓5.5 x 2.1mm DC socket with copper connector
- ✓Weatherproof cable seal and foam gasket
- ✓Rubber bung seals the socket when not in use
- ✓300mm rear lead with male DC plug
- ✓Mounting screws included
WHAT'S INCLUDED?
- 1 x Aluminium external wall plate with 5.5 x 2.1mm DC socket
- 1 x 300mm connection cable
- 1 x Weatherproof rubber bung
- 1 x Foam sealing gasket
- 1 x Set of mounting screws
SPECIFICATIONS
Wall socket
| Faceplate | 60 x 60mm |
| Installation depth | Approx. 50mm |
| Hole size | 29mm to 44mm |
| Connector | 5.5 x 2.1mm DC, copper |
| Rear lead | Approx. 300mm with male DC plug |
| Housing | Aluminium |
| Mounting | 4 screw holes, 20mm screws supplied |
| Suits | Starlink Mini |
| Warranty | 12 months |
| SKU | TVD-SL62 |
