A sharper view behind, day and night

The HM-CAM10 is a heavy-duty AHD rear camera designed to work with Hema smart mirror and monitor DVRs. 1080p Analogue High Definition gives a crisp picture, the 120° lens shows more of what is behind you, and eight IR LEDs keep it clear after dark.

Hema HM-CAM10 Heavy Duty AHD 1080p Rear Camera (Camera Only)
1080pAHD Resolution
120°Diagonal View
IP69KDust and Waterproof
8 mCable Included

Camera only. It plugs into a compatible Hema smart mirror or monitor DVR (sold separately) and suits 12 V vehicles. Not sure what will work with your screen? contact our team.

Clear picture

Twice the detail of standard definition

1080p AHD (Analogue High Definition) doubles the resolution of standard-definition video, so number plates, kerbs and tow balls are easier to make out. The wide 120° diagonal view takes in more of the road and objects behind the vehicle.

  • ✓1080p AHD resolution
  • ✓120° diagonal field of view
  • ✓Built-in G-sensor

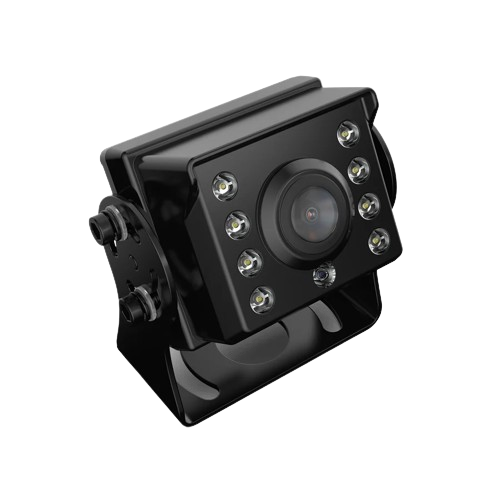

Hema HM-CAM10 heavy-duty rear camera with eight IR LEDs on its mounting bracket

24-hour vision

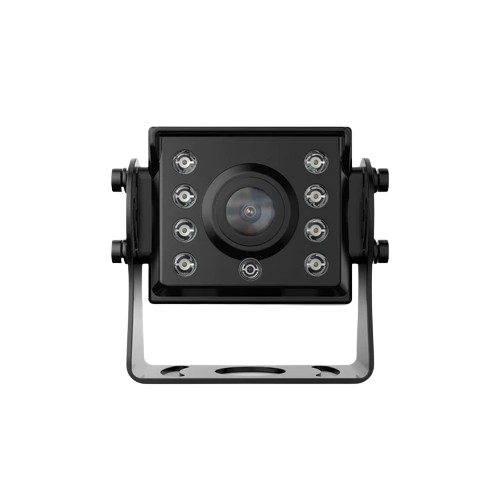

Front view of the Hema HM-CAM10 rear camera showing the lens and IR LEDs

Clear after dark

Eight high-powered IR LEDs light up the scene behind you, so the picture stays clear at night and in low light, right down to 0 lux.

  • ✓Eight high-powered IR LEDs
  • ✓Minimum illumination 0 lux
  • ✓Wired for a reliable connection

Built tough

Heavy-duty metal housing

The sturdy metal housing is rated IP69K for dust and water, so it handles rain, mud and wash-downs. The supplied 2.5 mm connector plugs into the smart mirror monitor, and the 8 m rear camera cable makes the run to the front simpler.

  • ✓IP69K rated metal housing
  • ✓8 m rear camera cable supplied
  • ✓3-year limited Hema warranty

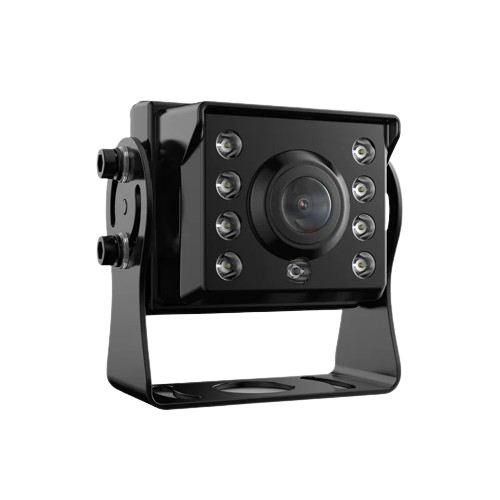

Angled view of the Hema HM-CAM10 rear camera and adjustable bracket

Frequently asked questions

Does it come with a screen?

No. This is the camera only. Hema says it is compatible with Hema mirror/monitor DVRs only, and the compatible Hema monitor is sold separately.

Will it work with the HM-MNT monitor?

Hema does not list the HM-CAM10 as compatible with the HM-MNT, which is designed for the HM-CAM15 and HM-CAM202. Please contact our team before you order.

Is it suitable for 24 V trucks?

Hema lists it for compatible 12 V vehicles only.

How is it installed?

It comes with an 8 m rear camera cable and a 2.5 mm connector. Hema advises the first install should be wired by a qualified auto electrician.

Is it waterproof?

Yes. The metal housing is rated IP69K against dust and high-pressure water.

Pairs well with

Hema HM-CAM20 Universal Stainless Steel Reversing Camera
Hema HM-CAM20 Universal Stainless Steel Reversing Camera

Universal stainless steel camera with a 170° view and 12/24 V support.

$129.95 · View

Hema HM-DVR22 4K Dual Channel Dash Camera with 81 mm Screen
Hema HM-DVR22 4K Dual Channel Dash Camera with 81 mm Screen

4K front and 1080p rear dash camera with a built-in screen.

$399.95 · View

Hema HM-DVR2 2K QHD Discreet Dual Channel Dash Camera
Hema HM-DVR2 2K QHD Discreet Dual Channel Dash Camera

Discreet 2K front and 1080p rear dash camera with GPS and Wi-Fi.

$349.95 · View

Features

  • ✓1080p AHD resolution for a sharp picture
  • ✓Wide 120° diagonal view
  • ✓Eight high-powered IR LEDs for night vision
  • ✓Minimum illumination 0 lux
  • ✓Built-in G-sensor
  • ✓Heavy-duty metal housing rated IP69K
  • ✓8 m rear camera cable supplied
  • ✓2.5 mm connector for Hema smart mirror monitors
  • ✓3-year limited Hema warranty

Specifications

Camera

BrandHema Maps
ModelHM-CAM10
Resolution1080p AHD
Signal systemPAL
Field of view120° diagonal
Minimum illumination0 lux
Night vision8 x IR LEDs

Build & power

HousingMetal, heavy duty
Waterproof ratingIP69K
Operating temperature-20°C to 65°C
Voltage12 V
Cable8 m rear camera cable (supplied)
Connector2.5 mm
CompatibilityHema mirror/monitor DVRs only
MonitorNot included
Warranty3-year limited warranty

What's Included

  • ✓1 x Hema HM-CAM10 rear camera
  • ✓1 x 8 m rear camera cable
  • ✓1 x Allen key
  • ✓1 x User manual

Product Details

SKU 9339398012953
Barcode # 9339398012953
Brand Hema Maps
Shipping Weight 0.4300kg
