Uniden ATX970S Heavy Duty Fibreglass Raydome UHF CB Antenna | Black | 3.0 dBi | 702mm
Buy Now, Pay Later.
DETAILS
Overview
Short, tough antenna for 4WDs and trucks

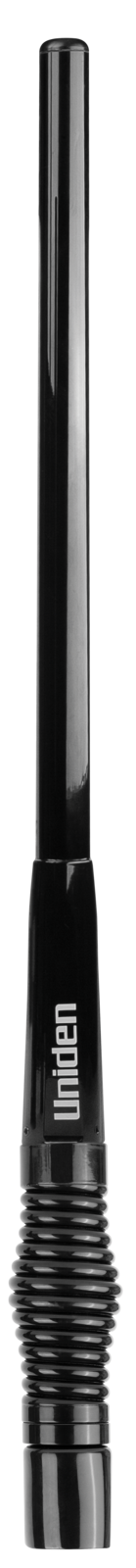

A 3.0 dBi heavy duty fibreglass radome UHF CB antenna that stands just 702mm when mounted. Its barrel style stainless steel spring is built for rough tracks and daily work.
The ATX970S is ground independent and comes with 4.5m of low loss coax, an FME female connector and a PL259 adaptor. A locking key and weather cap are included. Want a taller, higher gain option as well? The ATX970 Twin Pack pairs a 1200mm 6.6 dBi antenna with this 702mm 3.0 dBi one.
3.0 dBiGain
702mmMounted Height
4.5mLow Loss Coax
477MHzUHF CB
Low profile
702mm when it's on the vehicle
The 570mm whip sits 702mm tall once mounted, so it's easier to live with in car parks, garages and under low branches. It still gives you 3.0 dBi of gain for everyday UHF CB use on 477MHz.
- ✓570mm whip
- ✓702mm mounted height
- ✓3.0 dBi gain
Built tough
Heavy duty spring and ferrule
A 44-55-44mm barrel style stainless steel spring takes the knocks from scrub and corrugations, and the aluminium ferrule holds the fibreglass radome firm. Uniden rates it for 4WD and truck use in town and country.
- ✓Stainless steel barrel spring
- ✓Aluminium ferrule
- ✓8mm thread
Fitting
Ready to connect to your radio
It's ground independent, so it doesn't rely on a metal ground plane under the mount. The 4.5m low loss coax ends in an FME female connector, and a PL259 adaptor is in the box. A locking key and weather cap come with it too.
- ✓Ground independent
- ✓4.5m low loss coax
- ✓FME female plus PL259 adaptor
Goes well with
Complete your setup
Uniden MGU-01 Glossy Boot Z Antenna Mount Bracket with Cable Slot
Stainless Z bracket for antennas up to 800mm long, fitted in the guard channel under the bonnet.
Uniden XTRAK 80 Smart UHF CB Radio | 5W | OLED Display
Uniden in-car UHF CB radio to run with the antenna.
Uniden X80 Compact UHF CB Mobile Radio | 5W | Dual/Triple Watch
Compact Uniden UHF CB mobile with dual and triple watch.
Frequently asked questions
How tall is the ATX970S?
The whip is 570mm long and the antenna stands 702mm high when mounted.
Does it need a ground plane?
No. It's ground independent, so it can go on a bull bar, bracket or other mount without a metal ground plane.
What connector does it have?
The 4.5m low loss coax is terminated with an FME female connector, and a PL259 adaptor is supplied.
What frequency is it for?
It's a UHF CB antenna for 477MHz, with 3.0 dBi gain.
Is there a taller version?
Yes. The ATX970 is the 6.6 dBi version at 1200mm mounted height, and the ATX970 Twin Pack gives you both.
Features
- ✓Heavy duty fibreglass radome antenna with aluminium ferrule
- ✓Barrel style stainless steel spring, 44-55-44mm
- ✓Ground independent, so no ground plane is needed
- ✓3.0 dBi gain on 477MHz UHF CB
- ✓Low 702mm mounted height
- ✓4.5m low loss coax with FME female connector and PL259 adaptor
- ✓Locking key and weather cap included
Specifications
| Type | Heavy duty fibreglass radome UHF CB antenna |
| Frequency | 477MHz |
| Gain | 3.0 dBi |
| Ground plane | Ground independent |
| Whip length | 570mm |
| Mounted height | 702mm |
| Spring | Stainless steel, 44-55-44mm barrel style |
| Thread | 8mm |
| Ferrule | Aluminium |
| Coax cable | 4.5m low loss |
| Connector | FME female, PL259 adaptor supplied |
| Colour | Black |
| Ideal for | 4WDs and trucks |
| Brand | Uniden |
What's Included
- 1 x ATX970S antenna with stainless steel spring
- 1 x low loss coax cable with FME female connector
- 1 x PL259 adaptor
- 1 x locking key
- 1 x weather cap
Product Details
| SKU | ATX970S |
| Barcode # | 9322402015125 |
| Brand | Uniden |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.090m |
| Shipping Length | 0.800m |
| Shipping Cubic | 0.006480000m3 |
Founded in Japan in 1966, Uniden is a global pioneer in wireless communication, with Japanese engineering behind every radio, dash cam and camera it makes. Uniden was founded in Japan in 1966 by Hidero Fujimoto and built its reputation on CB and marine radio, growing through the 1980s into one of th...
