Uniden MGU-01 Glossy Boot Z Antenna Mount Bracket with Cable Slot
DETAILS
Overview
Stainless Z mount beside the bonnet

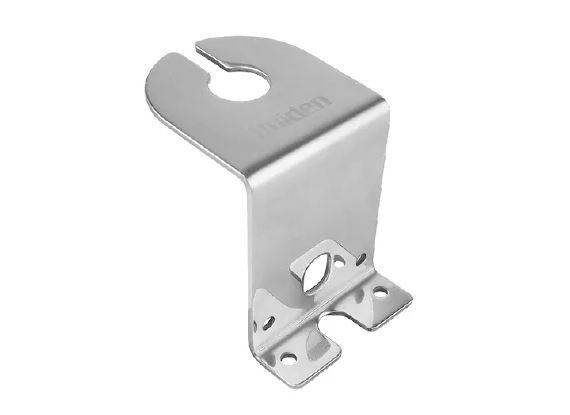

A polished stainless steel "Z" type antenna bracket with a cable slot. It mounts an antenna up to 800mm long in the mudguard channel beside the bonnet.
Fix it under one of the existing bolts in the mudguard channel, or screw it into the same channel through the predrilled holes. The bracket is 2.0mm thick, so you need about 2.5mm to 3mm of clearance between the bonnet and the mudguard. It suits a short whip like the Uniden AT380 3.0 dBi antenna.

Fitting
Uses the mudguard channel
The MGU-01 sits in the channel between the bonnet and the mudguard. Fix it under one of the existing bolts, or screw it into the channel through the predrilled holes. At 2.0mm thick it needs about 2.5mm to 3mm of clearance to the bonnet.
- ✓Uses an existing bolt or predrilled holes
- ✓Needs about 2.5mm to 3mm clearance
- ✓Takes antennas up to 800mm

Build

Polished stainless with a cable slot
The bracket is polished stainless steel in a "Z" shape. A cable slot lets the coax pass through cleanly, and Uniden says its mounting brackets fit any Uniden antenna.
- ✓Polished stainless steel
- ✓Cable slot
- ✓Fits any Uniden antenna
Goes well with

Complete your setup
335mm flexible 3.0 dBi whip, well under the 800mm limit.
Compact Uniden UHF CB mobile radio to complete the install.
Frequently asked questions
Which antennas will it hold?
Uniden says its mounting brackets fit any Uniden antenna. Our listing rates the MGU-01 for antennas up to 800mm long, such as the AT380.
Will it fit my vehicle?
It suits vehicles with a bonnet and a mudguard channel. The bracket is 2.0mm thick, so you need about 2.5mm to 3mm of clearance between the bonnet and the mudguard.
Do I need to drill?
Not always. You can fix it under one of the existing bolts in the mudguard channel, or screw it into the channel using the bracket's predrilled holes.
Does it come with bolts?
Uniden doesn't list fixings for the MGU-01. Contact us if you need to check before you order.
What is it made of?
Polished stainless steel, 2.0mm thick, with a cable slot.

Features
- ✓Z type antenna mount for vehicles with a bonnet
- ✓Polished stainless steel, 2.0mm thick
- ✓Cable slot for a tidy install
- ✓Takes antennas up to 800mm long
- ✓Fixes under an existing mudguard channel bolt or with predrilled holes
- ✓Fits any Uniden antenna
Specifications
| Type | "Z" type antenna mount |
| Material | Polished stainless steel |
| Thickness | 2.0mm |
| Cable slot | Yes |
| Max antenna length | 800mm |
| Clearance needed | About 2.5mm to 3mm between bonnet and mudguard |
| Fitting | Under an existing mudguard channel bolt, or screwed through predrilled holes |
| Brand | Uniden |
What's Included
- 1 x MGU-01 Z type antenna mount bracket
Product Details
| SKU | MGU-01 |
| Brand | Uniden |
