Uniden ATX970-TWIN Heavy Duty UHF CB Antenna Pack | 1200mm 6.6 dBi + 702mm 3.0 dBi
Buy Now, Pay Later.
DETAILS
Uniden UHF CB antennas
Tall and short whips in one pack

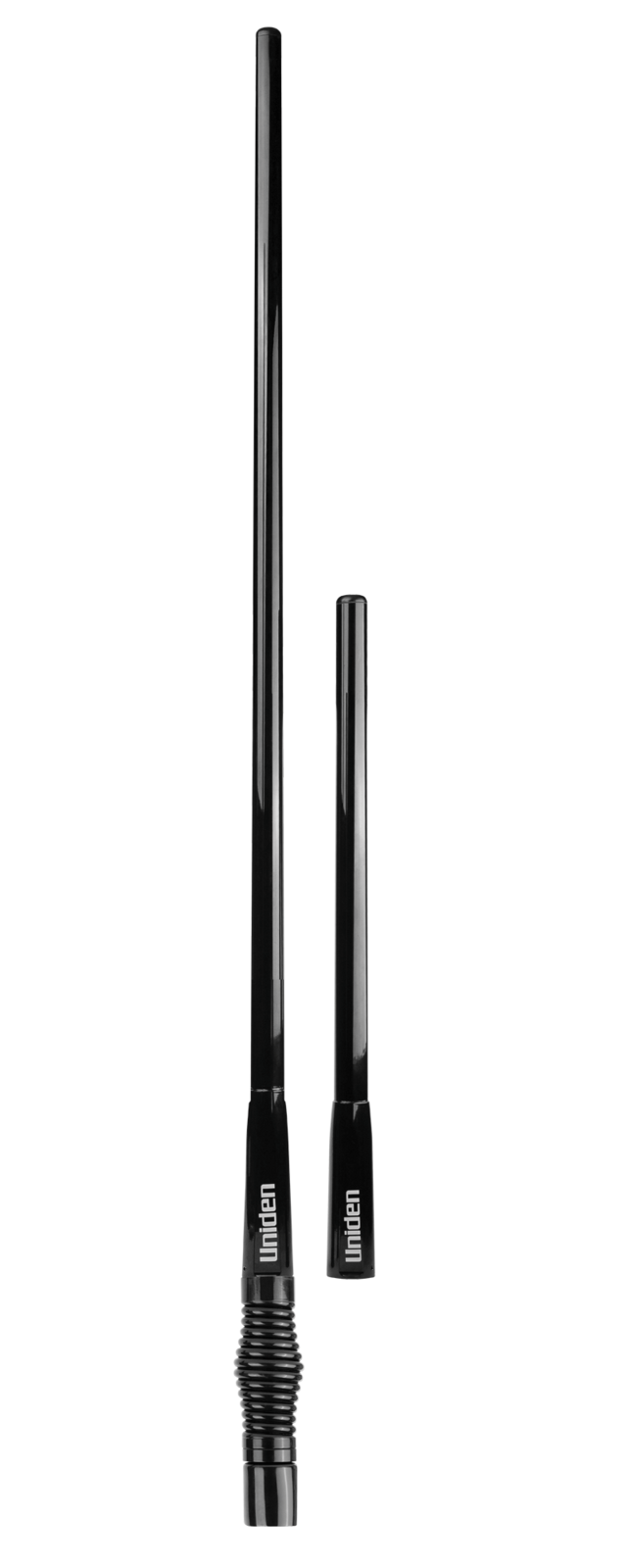

Uniden's ATX970 Twin gives you a 1200mm 6.6 dBi fibreglass radome antenna and a 702mm 3.0 dBi one in the same heavy duty range. Run the tall whip on open roads and the short one when height matters.
Both antennas use Uniden's 44-55-44mm barrel style stainless steel spring and aluminium ferrule, and both are ground independent. You get 4.5m of low loss coax with an FME female connector and a PL259 adaptor. For a folding mount, add the MBU-05BK bracket.
6.6/3.0 dBi
Gain
1200mm
Tall whip
702mm
Short whip
4.5m
Low loss coax
Two heights
1200mm or 702mm, your call

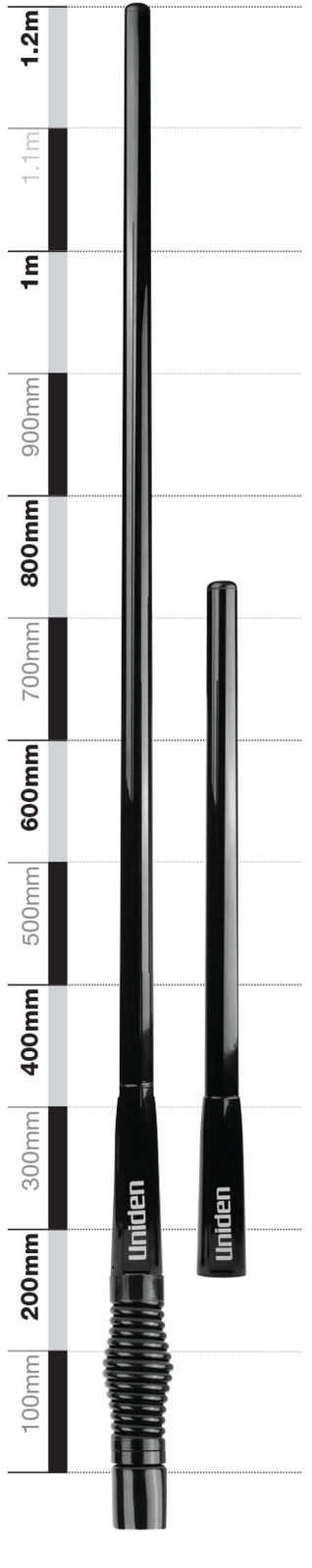

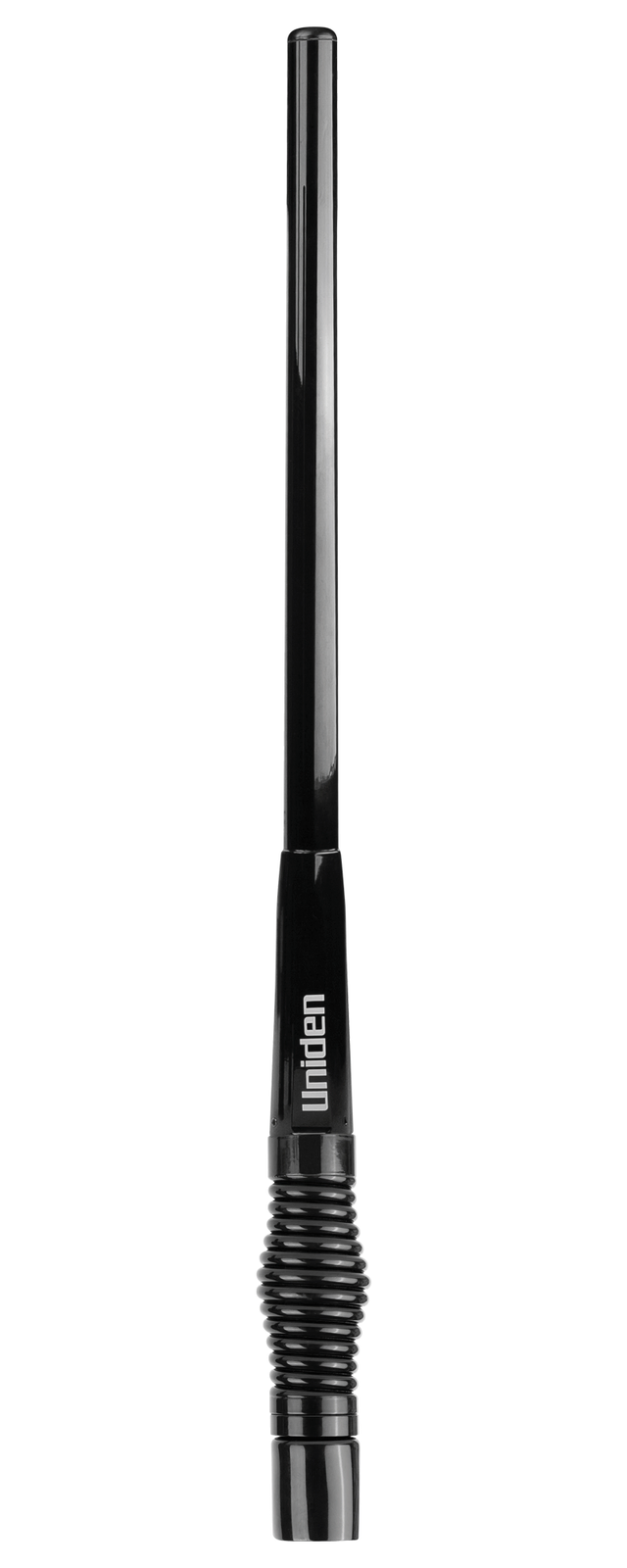

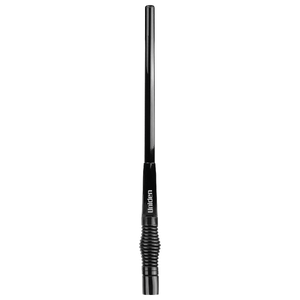

The ATX970 stands 1200mm when mounted and gives 6.6 dBi of gain. The ATX970S stands 702mm with 3.0 dBi, so it's easier to live with in car parks, garages and tight tracks. Having both in the kit means you aren't stuck with one height.
- ✓6.6 dBi at 1200mm
- ✓3.0 dBi at 702mm
- ✓Same heavy duty ATX970 range
Built tough
Stainless spring, aluminium ferrule
Uniden's 44-55-44mm barrel style stainless steel spring flexes back from branches and soaks up corrugations. The aluminium ferrule holds the fibreglass radome firm on an 8mm thread.
- ✓Stainless steel barrel spring
- ✓Aluminium ferrule
- ✓Rated for 4WDs and trucks
Fitting
No ground plane needed
Both antennas are ground independent, so they suit bull bars and brackets without a metal ground plane. The 4.5m low loss coax ends in an FME female connector, and a PL259 adaptor is supplied for the radio end.
- ✓Ground independent
- ✓4.5m low loss coax
- ✓FME female plus PL259 adaptor
Goes well with
Complete your setup
Uniden MBU-05BK Heavy Duty Folding Antenna Mount Bracket | Black
Folding bracket that fits a standard bull bar mount so a tall antenna can be laid down.
Uniden XTRAK 80 Smart UHF CB Radio | 5W | OLED Display
Uniden in-car UHF CB radio to run with the antenna.
Uniden X80 Compact UHF CB Mobile Radio | 5W | Dual/Triple Watch
Compact Uniden UHF CB mobile with dual and triple watch.
Frequently asked questions
What's the difference between the two antennas?
The ATX970 is 1200mm mounted with 6.6 dBi gain. The ATX970S is 702mm mounted with 3.0 dBi gain. Both use the same heavy duty spring and ferrule.
Do they need a ground plane?
No. Both are ground independent.
What connector is on the cable?
The 4.5m low loss coax has an FME female connector, and a PL259 adaptor is included.
What frequency are they for?
477MHz UHF CB.
Can I fold the tall one down?
Yes, with the MBU-05BK folding bracket, which attaches to a standard bull bar mount.
Features
- ✓Two heavy duty fibreglass radome antennas: 6.6 dBi and 3.0 dBi
- ✓1200mm and 702mm mounted heights
- ✓Barrel style stainless steel spring, 44-55-44mm
- ✓Aluminium ferrule, 8mm thread
- ✓Ground independent, so no ground plane is needed
- ✓4.5m low loss coax with FME female connector and PL259 adaptor
- ✓477MHz UHF CB, rated for 4WDs and trucks
Specifications
| Type | Heavy duty fibreglass radome UHF CB antenna pack |
| Frequency | 477MHz |
| Gain | 6.6 dBi (ATX970) and 3.0 dBi (ATX970S) |
| Whip length | 1068mm and 570mm |
| Mounted height | 1200mm and 702mm |
| Ground plane | Ground independent |
| Spring | Stainless steel, 44-55-44mm barrel style |
| Thread | 8mm |
| Ferrule | Aluminium |
| Coax cable | 4.5m low loss |
| Connector | FME female, PL259 adaptor supplied |
| Colour | Black |
| Ideal for | 4WDs and trucks |
| Brand | Uniden |
What's Included
- 1 x ATX970 6.6 dBi fibreglass radome antenna (1200mm mounted)
- 1 x ATX970S 3.0 dBi fibreglass radome antenna (702mm mounted)
- Stainless steel spring, low loss coax with FME female connector and PL259 adaptor
- Locking key and weather cap
Product Details
| SKU | ATX970-TWIN |
| Barcode # | 9322402015149 |
| Brand | Uniden |
| Shipping Weight | 2.3000kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.090m |
| Shipping Length | 1.360m |
| Shipping Cubic | 0.011016000m3 |
