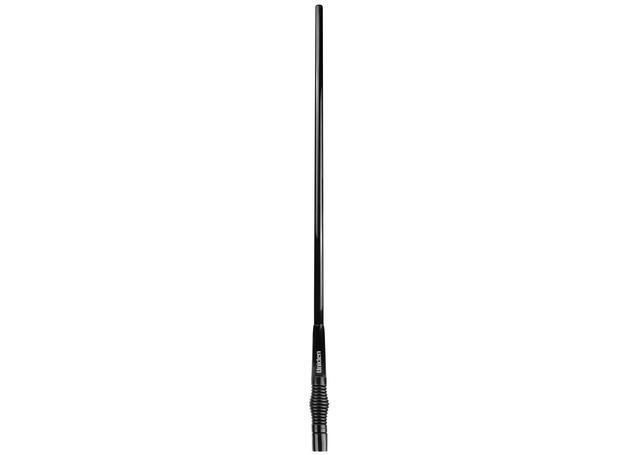

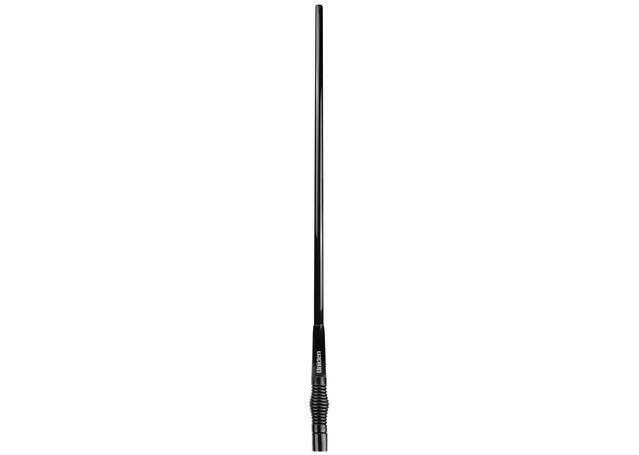

Uniden ATX970 Heavy Duty Fibreglass Raydome UHF CB Antenna | Black | 6.6 dBi | 1200mm
Buy Now, Pay Later.
DETAILS
Overview
1200mm of high gain heavy duty antenna
A 6.6 dBi heavy duty fibreglass radome UHF CB antenna, 1200mm tall when mounted. Built on a stainless steel barrel spring for 4WD and truck work.
The ATX970 is ground independent and comes with 4.5m of low loss coax, an FME female connector, a PL259 adaptor, a locking key and a weather cap. At 1200mm it's a tall antenna, so a folding antenna mount bracket lets you lay it down for car parks and garages.
6.6 dBiGain
1200mmMounted height
4.5mLow loss coax
477MHzUHF CB
Height and gain
6.6 dBi from a 1200mm antenna
The 1068mm whip puts the antenna at 1200mm when mounted. That length gives you 6.6 dBi of gain on 477MHz UHF CB, the higher gain option in Uniden's ATX970 range.
- ✓1068mm whip
- ✓1200mm mounted height
- ✓6.6 dBi gain
Built tough
Stainless spring for rough tracks
A 44-55-44mm barrel style stainless steel spring lets the antenna flex back from branches and soak up corrugations. The aluminium ferrule holds the fibreglass radome firm on its 8mm thread.
- ✓Stainless steel barrel spring
- ✓Aluminium ferrule
- ✓Rated for 4WDs and trucks
Fitting
Connect it and go
It's ground independent, so it doesn't need a metal ground plane under the mount. Run the 4.5m low loss coax to the radio, use the FME female connector or the PL259 adaptor, and lock it on with the supplied key. A weather cap is included.
- ✓Ground independent
- ✓4.5m low loss coax
- ✓Locking key and weather cap
Goes well with
Complete your setup
Uniden MBU-05BK Heavy Duty Folding Antenna Mount Bracket | Black
Folding bracket that fits a standard bull bar mount so a tall antenna can be laid down.
Uniden XTRAK 80 Smart UHF CB Radio | 5W | OLED Display
Uniden in-car UHF CB radio to run with the antenna.
Uniden X80 Compact UHF CB Mobile Radio | 5W | Dual/Triple Watch
Compact Uniden UHF CB mobile with dual and triple watch.
Frequently asked questions
How tall is the ATX970?
The whip is 1068mm and the antenna stands 1200mm high when mounted.
Does it need a ground plane?
No. The ATX970 is ground independent.
What comes with it?
The antenna with its stainless steel spring, low loss coax with an FME female connector, a PL259 adaptor, a locking key and a weather cap.
Can I fold it down?
Fit it on a MBU-05BK folding bracket, which attaches to a standard bull bar mount and lets a long antenna fold down when needed.
Is there a shorter version?
Yes. The ATX970S is the 3.0 dBi version at 702mm mounted height.
Features
- ✓Heavy duty fibreglass radome antenna with aluminium ferrule
- ✓Barrel style stainless steel spring, 44-55-44mm
- ✓Ground independent, so no ground plane is needed
- ✓6.6 dBi gain on 477MHz UHF CB
- ✓1068mm whip, 1200mm mounted height
- ✓4.5m low loss coax with FME female connector and PL259 adaptor
- ✓Locking key and weather cap included
Specifications
| Type | Heavy duty fibreglass radome UHF CB antenna |
| Frequency | 477MHz |
| Gain | 6.6 dBi |
| Ground plane | Ground independent |
| Whip length | 1068mm |
| Mounted height | 1200mm |
| Spring | Stainless steel, 44-55-44mm barrel style |
| Thread | 8mm |
| Ferrule | Aluminium |
| Coax cable | 4.5m low loss |
| Connector | FME female, PL259 adaptor supplied |
| Colour | Black |
| Ideal for | 4WDs and trucks |
| Brand | Uniden |
What's Included
- 1 x ATX970 antenna with stainless steel spring
- 1 x low loss coax cable with FME female connector
- 1 x PL259 adaptor
- 1 x locking key
- 1 x weather cap
Product Details
| SKU | ATX970 |
| Barcode # | 9322402015132 |
| Brand | Uniden |
| Shipping Weight | 1.8000kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.090m |
| Shipping Length | 1.260m |
| Shipping Cubic | 0.010206000m3 |
