DETAILS

Overview

White to work, orange for the bugs

A 250mm dual colour LED awning light for caravans, campers, canopies and trailers. Run bright white when you are setting up or cooking, switch to orange once the bugs come out, or run both together.

A touch switch on the light changes colour and dims it, and it remembers your last setting. At 800 lumens from 8 W it is bright enough to light the camp while drawing only about 0.7 A at 12 V, and it is IP67 waterproof for life outside.

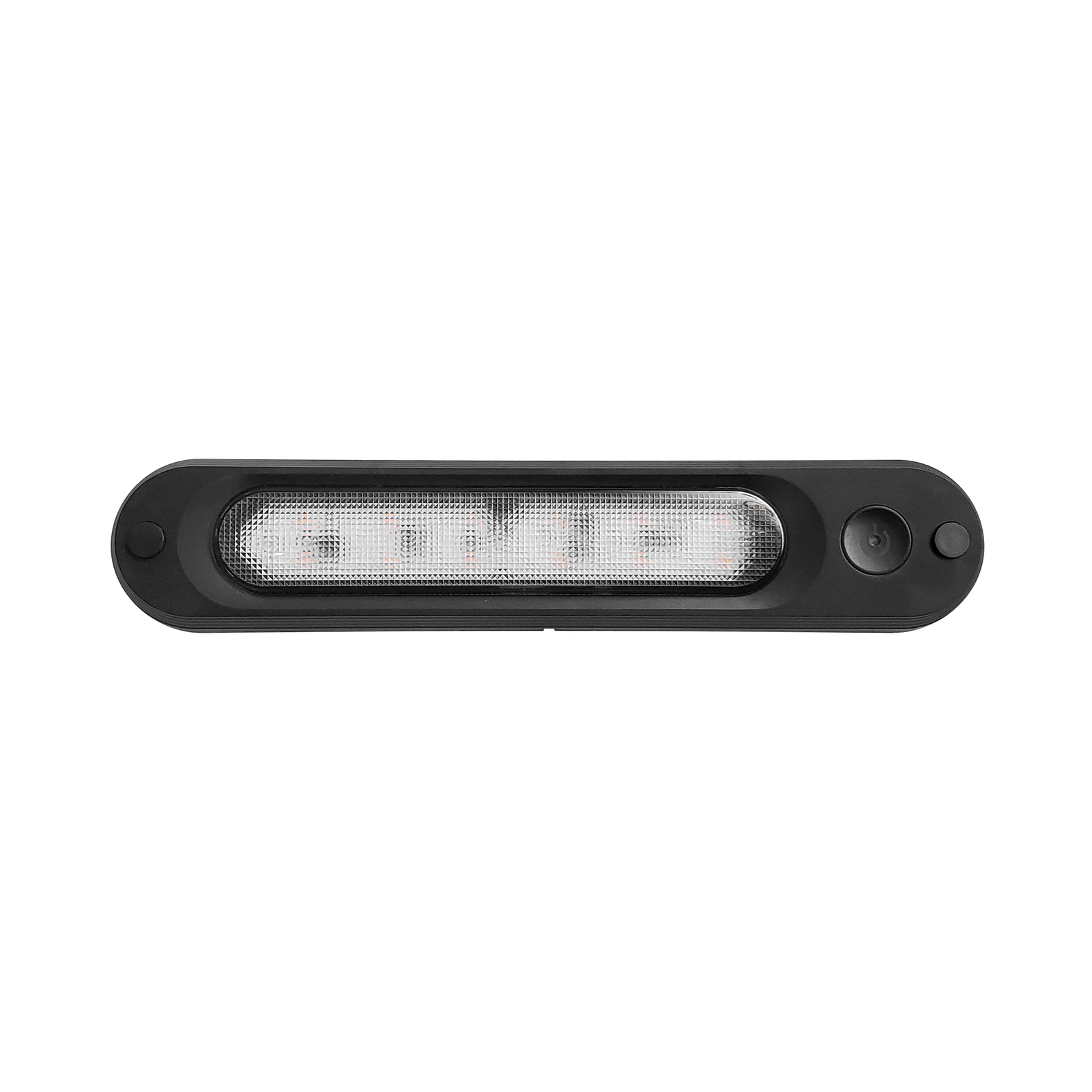

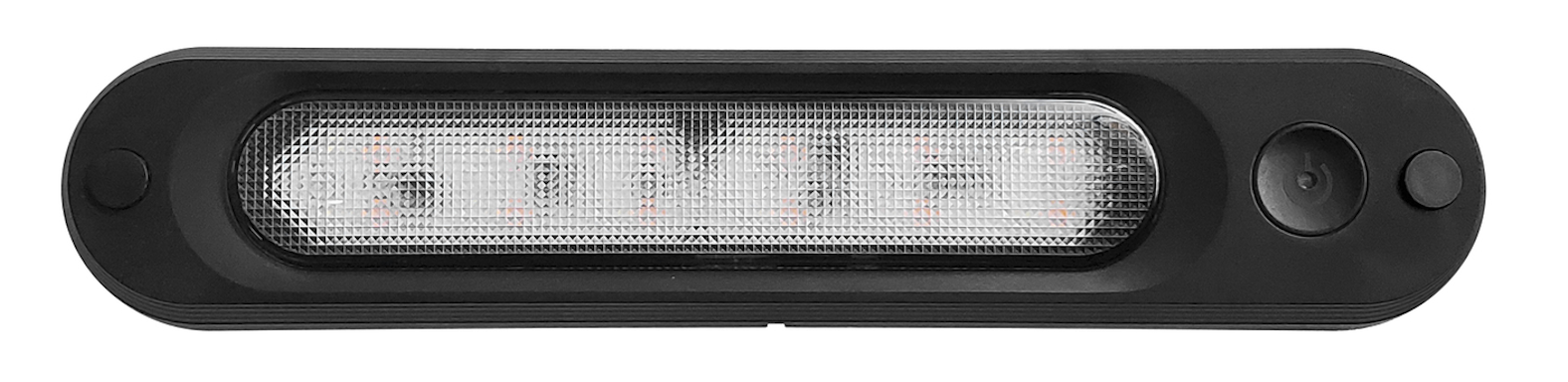

Perception Lighting 250mm Dual Colour Flat LED Awning Light - Orange & White with Touch Dimmer
800 lmMax Output
8 WAbout 0.7 A at 12 V
IP67Waterproof
12-28 VDC Input

Two colours, one light

Keep the bugs down

  • ✓White: clear, bright light for cooking, packing up and finding things in the dark
  • ✓Orange: a warm light that draws fewer moths and mozzies to the awning
  • ✓Both: run the two together for a softer warm-white glow

Perception Lighting 250mm dual colour LED awning light

Easy to run

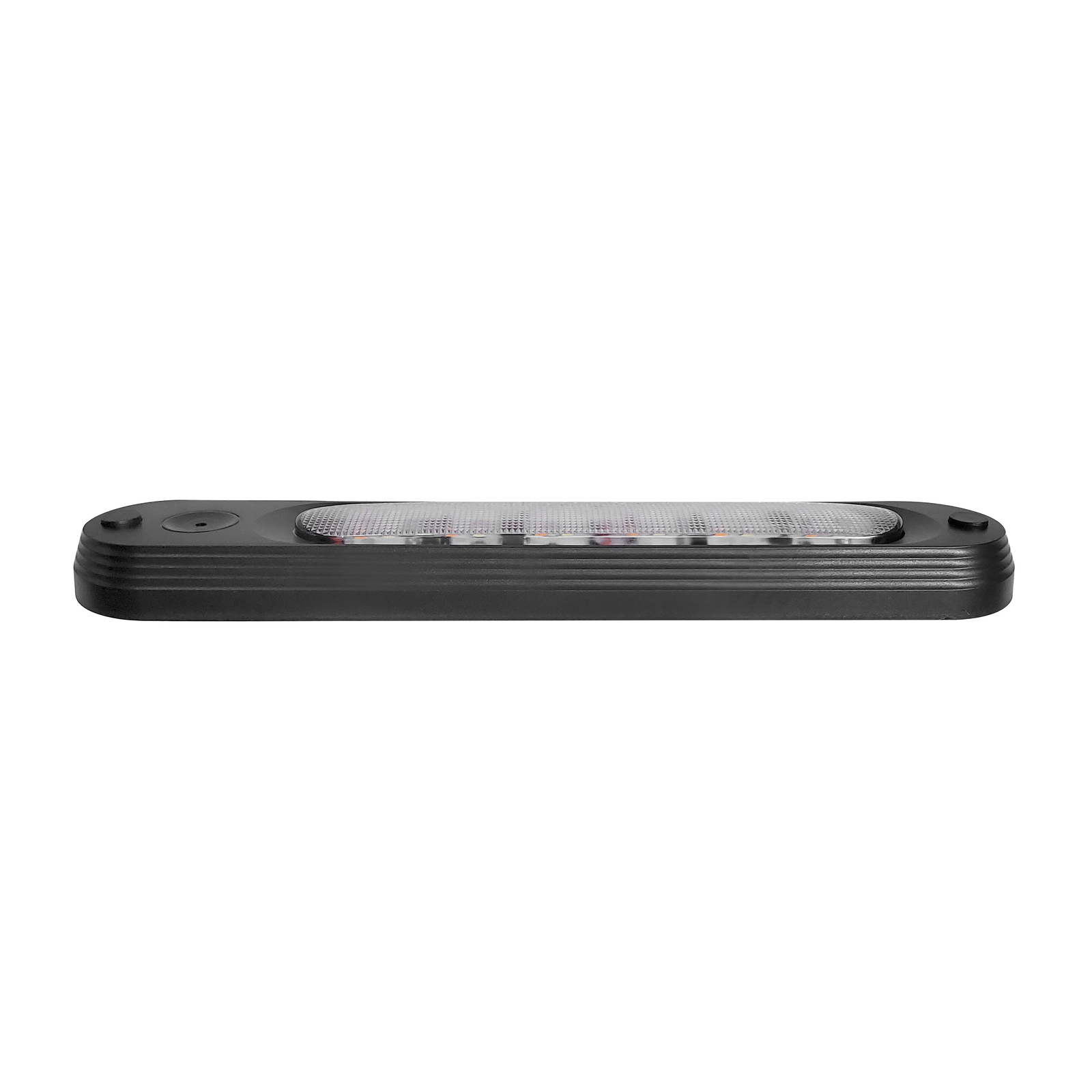

Perception Lighting 250mm dual colour LED awning light, side view

Touch to switch, hold to dim

Short press the touch switch to step through white, orange and white plus orange. Press and hold to dim the light up or down. If the power drops out, the light comes back on at the colour and brightness you last used.

Made to live outside

Fit it and forget it

The flat, low-profile body sits just 25 mm off the wall, so it tucks in under an awning rail, canopy lip or tailgate. The light is sealed to IP67, measures 248 x 50 x 25 mm and screws on through two mounting holes at 222 mm centres.

It runs on anything from 12 to 28 V DC, so it wires straight into a 12 V or 24 V system. Download the installation & user guide (PDF).

Perception Lighting 250mm dual colour LED awning light

Frequently asked questions

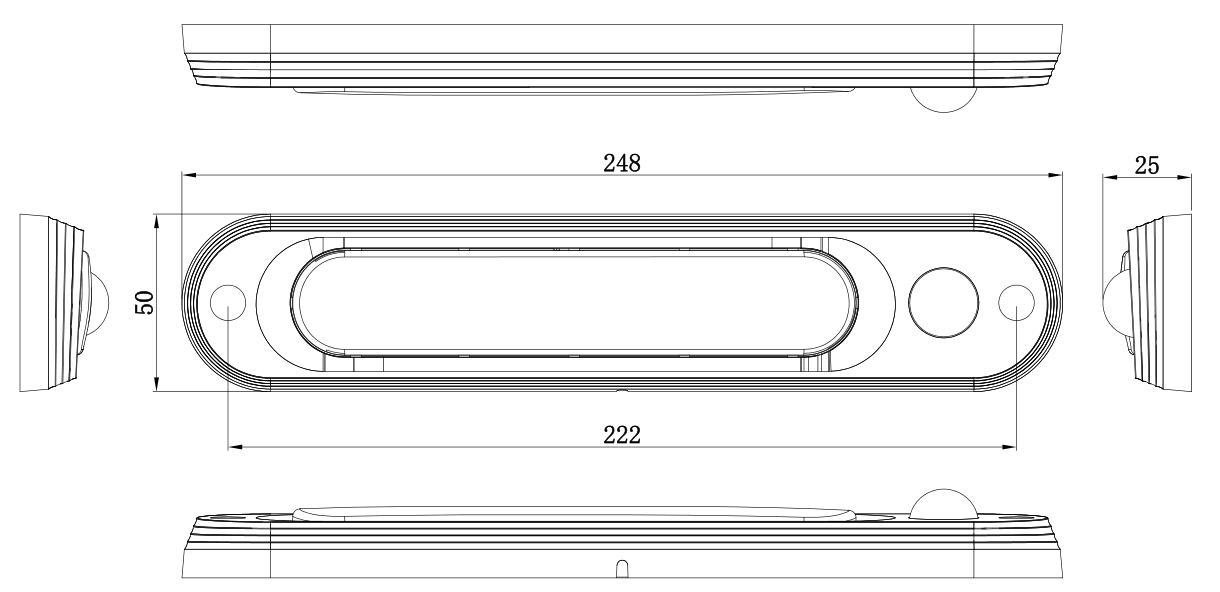

Perception Lighting 250mm dual colour LED awning light dimensions

What colours does it have?

White, orange, or both together. Short press the touch switch to step through them.

Can I dim it?

Yes. Press and hold the touch switch to adjust the brightness. The light remembers your last colour and brightness.

Will it run on 24 V?

Yes. It takes 12 to 28 V DC, so it suits 12 V and 24 V systems. It draws 8 W, about 0.7 A at 12 V.

Is it waterproof?

Yes, it is rated IP67, so it is fine mounted outside under an awning or canopy.

How big is it?

248 x 50 x 25 mm, with mounting holes at 222 mm centres.

Are there other sizes?

Yes, this light also comes in 290mm angled (800 lm), 500mm angled (2,400 lm). Search “dual colour awning light” to see the range.

Do you supply bulk or trade orders?

Yes, we supply caravan builders, fleets and trade. Please contact our team for a quote.

Features

  • ✓250mm dual colour awning light: white, orange, or both at once
  • ✓Orange light attracts fewer insects than white, so the camp stays usable after dark
  • ✓Built-in touch switch to change colour and dim
  • ✓Memory function: comes back on at your last colour and brightness
  • ✓800 lumens of wide, even light from 24 wide-angle LEDs
  • ✓Low draw: 8 W, about 0.7 A at 12 V
  • ✓IP67 waterproof for mounting outside
  • ✓12-28 V DC input suits 12 V and 24 V systems

Specifications

Performance

Max output800 lumens
Light coloursWhite, orange, white + orange
DimmingYes, touch switch (press and hold)
MemoryReturns to last colour and brightness
LEDs24 wide-angle LEDs

Electrical

Input voltage12-28 V DC
Power8 W (about 0.7 A at 12 V)

General

Length250mm model
Size (L x H x D)248 x 50 x 25 mm
Mounting hole centres222 mm
BodyFlat, low profile
Waterproof ratingIP67
Warranty2 years
BrandPerception Lighting

Download the installation & user guide (PDF)

What's Included

  • 1 x Perception Lighting 250mm dual colour LED awning light

Comes with our 2 year warranty against manufacturing defects, on top of your rights under the Australian Consumer Law.

Product Details

SKU LEDAL-250DC
Barcode # 769807742871
Brand Perception Lighting
Length 250mm
Input Voltage 12-28 V DC
Max output 800 lumens
Light colour Orange & White
Shipping Weight 0.2000kg
Shipping Width 0.070m
Shipping Height 0.050m
Shipping Length 0.320m
Shipping Cubic 0.000609000m3

Perception Lighting is an automotive lighting and wiring specialist for the 4WD, caravan and camping industry, known for vehicle-specific solutions that are hard to find anywhere else. Perception Lighting has spent more than a decade focused on one thing: lighting and wiring that work properly on Au...
