Overview

White for work, amber for camp

The dual colour ROK-3 gives you two lights in one compact pod: bright 5700K white when you need to see what you are doing, and warm amber when you want to relax without the bugs.

It is the easy choice for awnings, canopies and camper trailers, where one light has to do the cooking, the packing up and the evening by the fire.

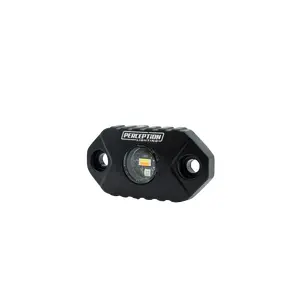

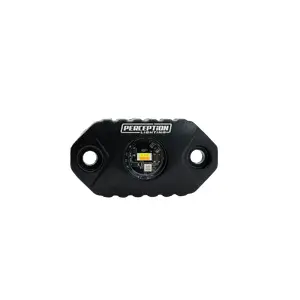

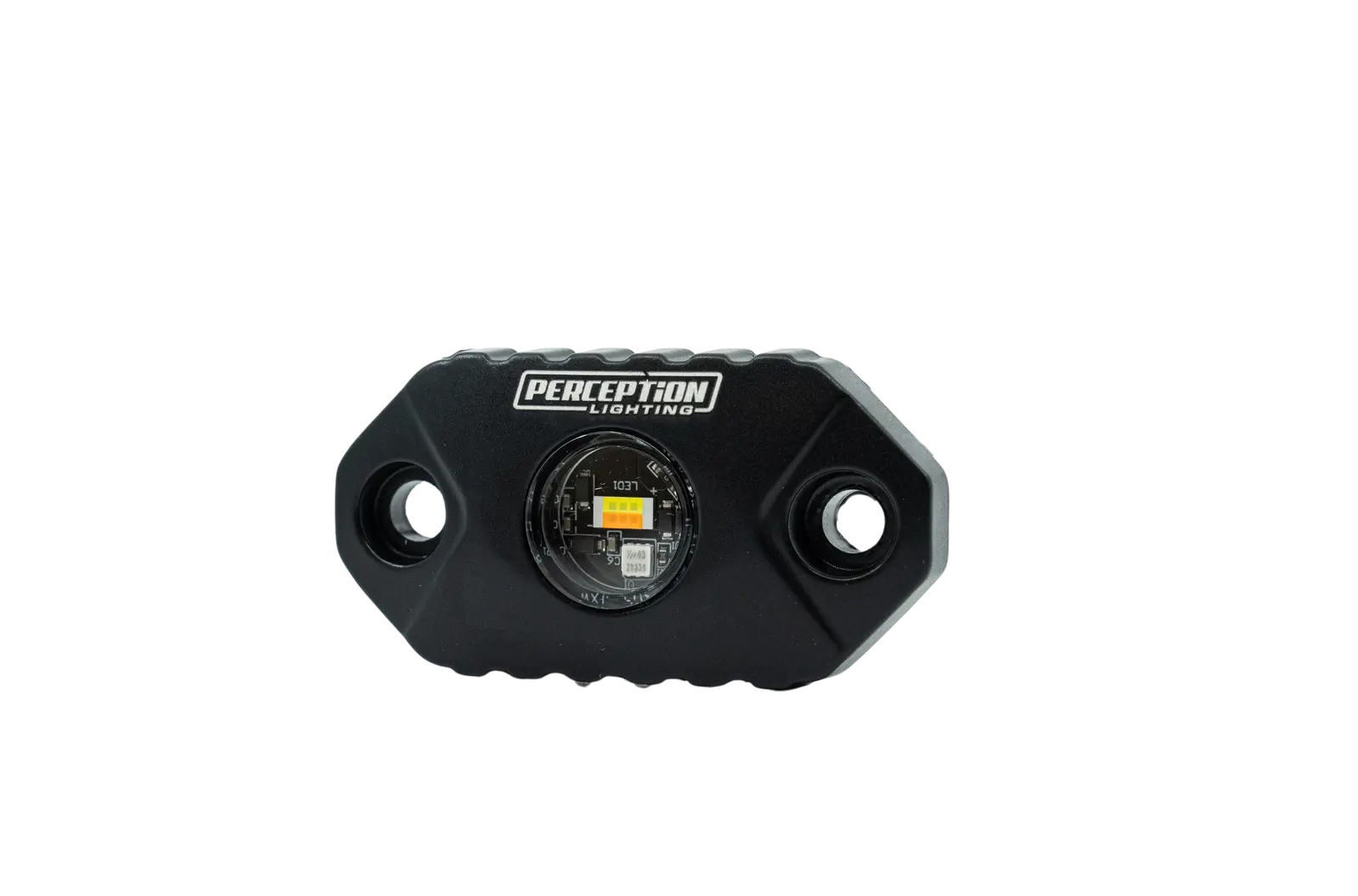

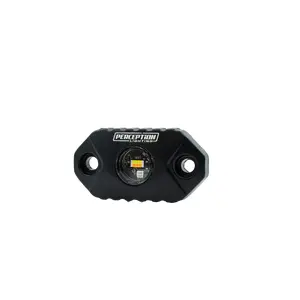

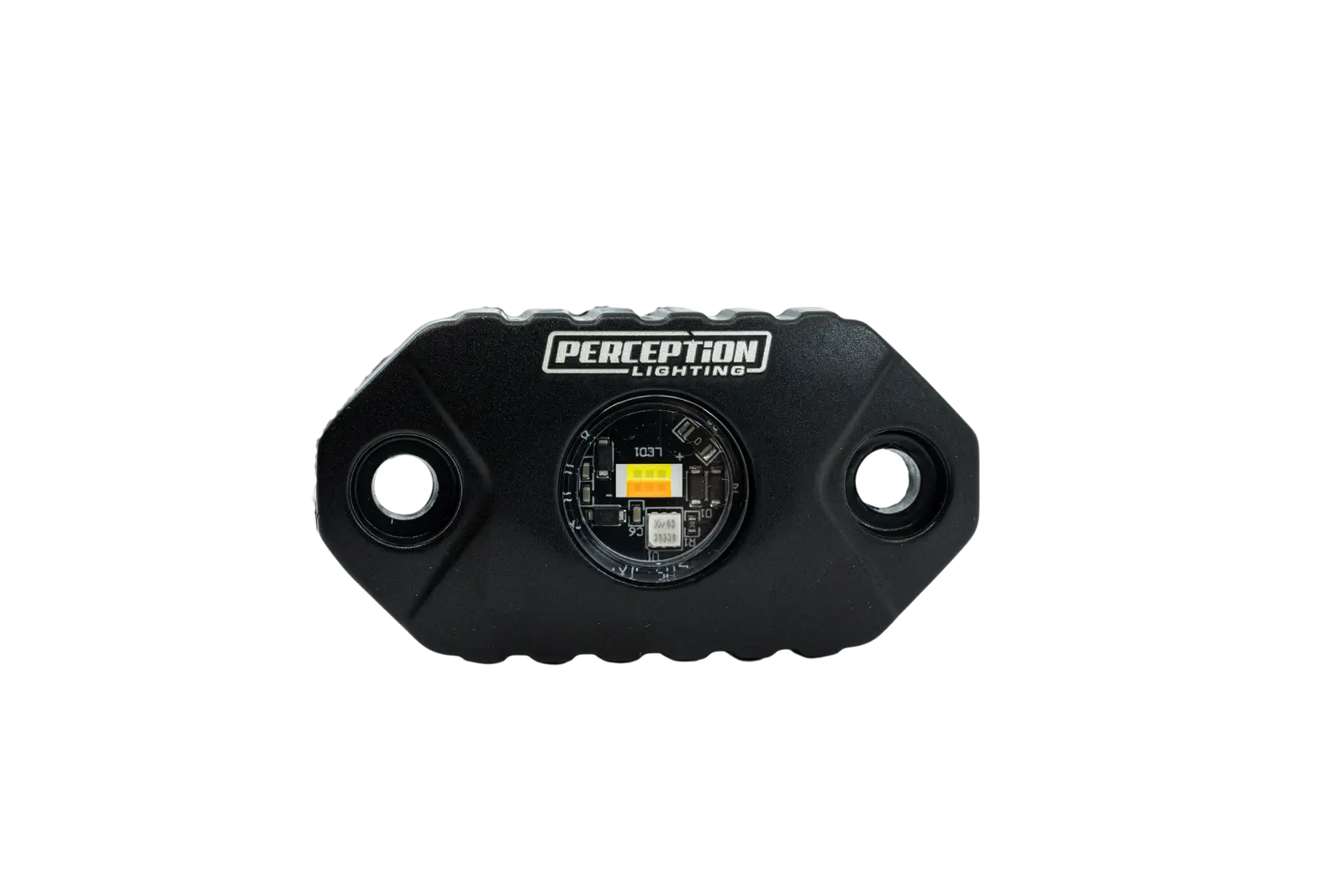

ROK-3 Dual Colour LED Rock Light - White / Amber
2Colours
570 lmWhite Output
IP69KSealed Rating
0.5 AAt 12V

Bug-free evenings

Switch to amber when the sun goes down

Insects are drawn to white and blue light. Switch the ROK-3 to amber and far fewer moths and mozzies gather around camp, so you can cook and eat in peace. Switch back to white for packing up or finding things in the canopy.

White and amber ROK-3 rock lights under the awning lighting up the ground behind a 4WD at night

Built for the bush

ROK-3 rock lights on white under a 4WD awning at a beach camp

Sealed to IP69K

Rated IP69K, with stainless steel fasteners and a rubber base pad. It handles river crossings, wash-downs and salt spray on the boat.

Easy install

Fits every ROK bracket

Same footprint as the single colour ROK-3, so it fits our 30 degree base, Rhino-Rack Pioneer brackets and awning brackets. It has three wires: a positive for white, a positive for amber and a common earth. Run each colour to its own switch or controller output and change colour from the cab or camper. Want to change colour on the light itself? See the ROK-3 with built-in switch.

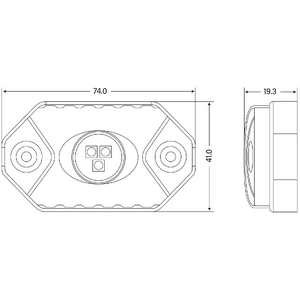

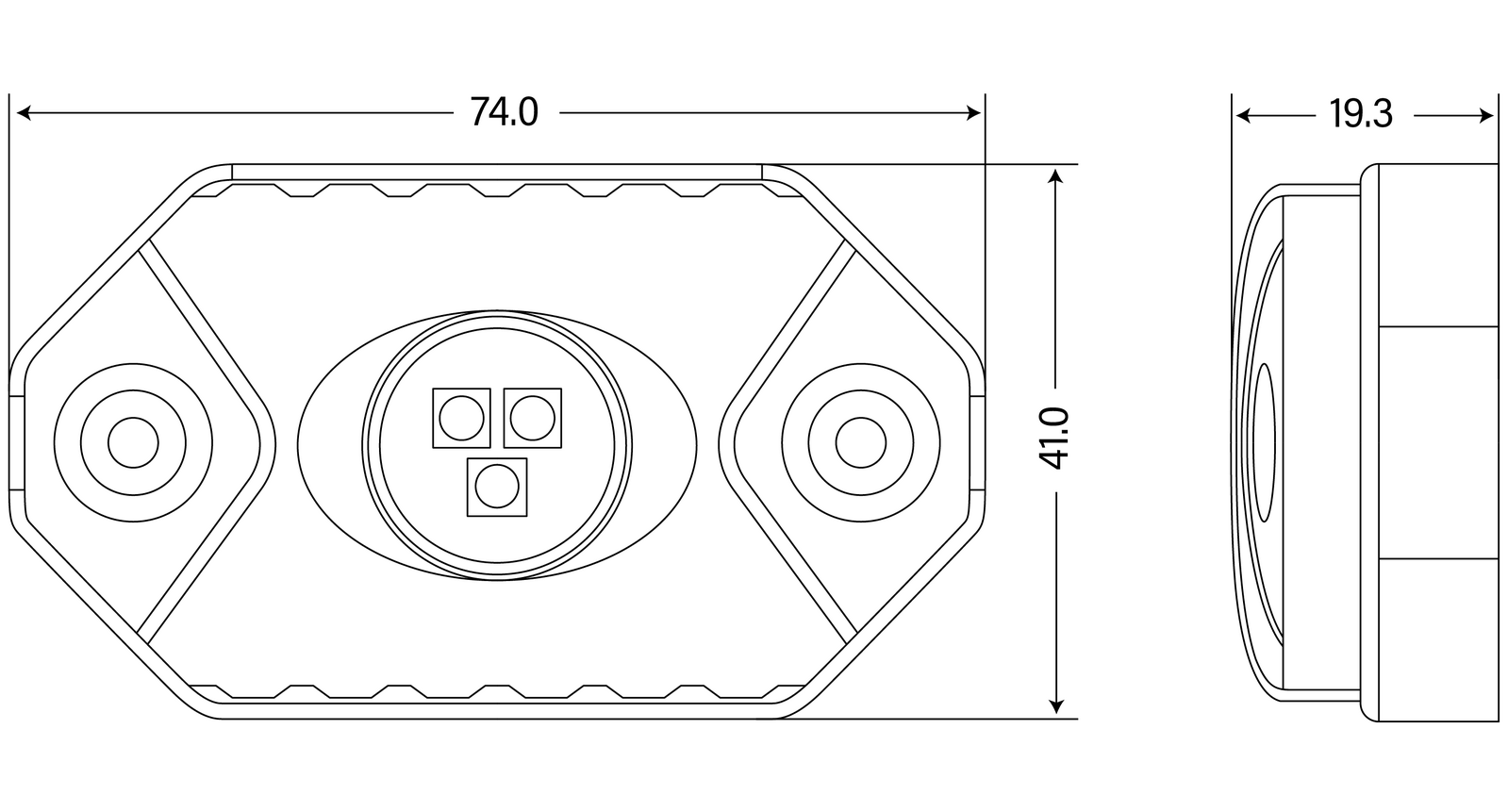

ROK-3 rock light dimension drawing: 74mm long, 41mm wide, 19.3mm deep

The ROK-3 range

Lights, brackets and kits that work together

Every ROK-3 light fits every ROK-3 bracket. Pick your colour, pick your mount, or grab a kit with both.

Lights

ROK-3 White 5700K
ROK-3 White 5700K
966 lumens of daylight-white work and camp light
ROK-3 Amber 1650K
ROK-3 Amber 1650K
Warm amber that draws far fewer bugs
ROK-3 Dual Colour
ROK-3 Dual Colour
White and amber in one pod
You are viewing this

Mounting brackets

Rhino-Rack Pioneer Single Mount (Pair)
Rhino-Rack Pioneer Single Mount (Pair)
One light per bracket on the platform side rail
Rhino-Rack Pioneer Twin Mount (Pair)
Rhino-Rack Pioneer Twin Mount (Pair)
Two lights per bracket, up to four lights
Awning Single Mount (Pair)
Awning Single Mount (Pair)
One light per bracket under the awning
Awning Twin Mount (Pair)
Awning Twin Mount (Pair)
Two lights per bracket, up to four lights

Complete light kits

Awning Single Mount Kit
Awning Single Mount Kit
2 awning brackets + 2 white ROK-3 lights
Awning Twin Mount Kit
Awning Twin Mount Kit
2 twin awning brackets + 2 white and 2 amber ROK-3 lights
Rhino-Rack Pioneer Twin Mount Kit
Rhino-Rack Pioneer Twin Mount Kit
2 twin brackets + 2 white and 2 amber ROK-3 lights

Frequently asked questions

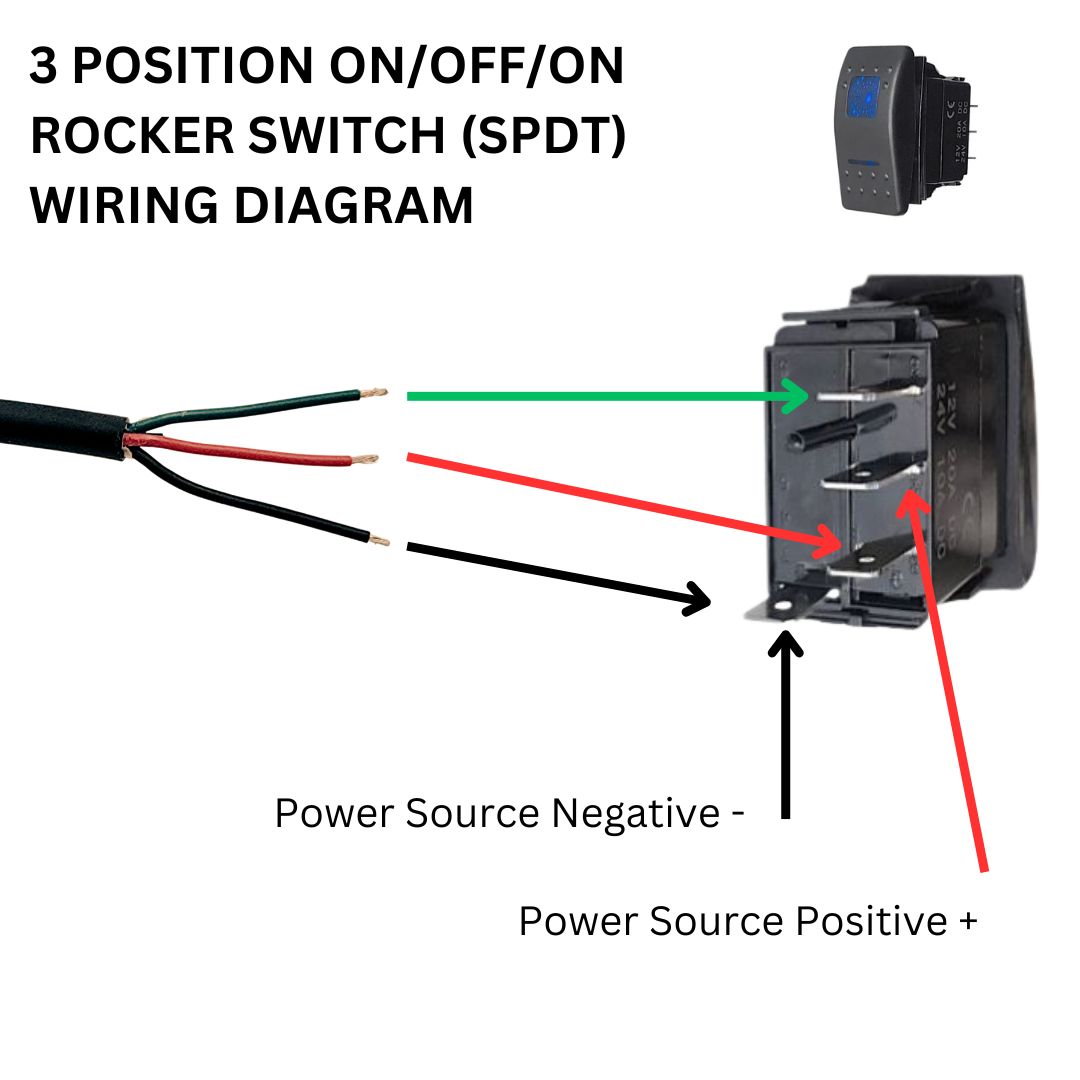

How do I switch between white and amber?

It has three wires: white positive, amber positive and a common earth. Hard-wire each colour to its own switch, or to two outputs on a controller, and turn on the colour you want remotely.

Does the amber light really reduce bugs?

Yes. Insects are attracted mostly to white and blue light, so far fewer gather around the amber setting.

What size is it?

The ROK-3 housing is 74mm long, 41mm wide and 19.3mm deep, with a mounting hole at each end.

Can I use it on a boat?

Yes. It is IP69K sealed, with stainless steel fasteners.

How do I mount it?

Screw it straight onto any flat surface, or use one of our brackets: the 30 degree angled base to tilt the beam, Rhino-Rack Pioneer brackets or awning brackets.

Can I dim it?

Yes. It can be dimmed with a PWM (pulse width modulation) dimmer or controller, and it is compatible with the dimming on Redarc RedVision systems.

Can I use them while driving on the road?

They are made for off-road, camp, canopy and work lighting. Rules for extra lights on vehicles differ between states, so check your state rules before using them while driving on public roads.

Do you supply bulk or fleet orders?

Yes, we supply Perception Lighting in bulk Australia-wide. Please contact our team.

ROK-3 rock lights on amber under a 4WD awning at a beach camp

Features

  • ✓Two colours: 5700K white and bug-reducing amber
  • ✓570 lumens on white, 240 on amber
  • ✓Osram LEDs
  • ✓IP69K sealed against water and dust
  • ✓Multi-volt 9-32V DC
  • ✓Low 6W, 0.5A draw at 12V
  • ✓Three wires (white, amber and common earth), so each colour can be switched remotely
  • ✓Dimmable with a PWM dimmer, compatible with Redarc RedVision dimming
  • ✓Stainless steel bolts and rubber base pad
  • ✓5 year warranty

Specifications

Light

Colours 5700K white and amber
Output 570 lumens white, 240 lumens amber
LEDs 3 x Osram
Beam pattern Super flood

Electrical

Operating voltage 9-32V DC
Power 6W
Current draw 0.5A at 12V
Wiring 3 wires: white positive, amber positive, common earth
Colour change Switched remotely, one switch or output per colour
Dimming PWM dimmable, compatible with Redarc RedVision

Build

Waterproof rating IP69K
Dimensions 74 x 41 x 19.3 mm
Mounting Surface mount, stainless steel bolts, rubber base pad
Warranty 5 years

What's Included

  • 1 x ROK-3 dual colour LED rock light (white / amber)
  • Stainless steel bolts and rubber base pad

Product Details

SKU ROK-3-DC
Barcode # 9359968001712
Brand Perception Lighting
Voltage 9-32V DC
Light colour White 5700K / Amber
Waterproof rating IP69K
Shipping Weight 0.2000kg
Shipping Width 0.089m
Shipping Height 0.056m
Shipping Length 0.100m
Shipping Cubic 0.000498400m3
