Perception Lighting awning light

White to work, orange for the bugs

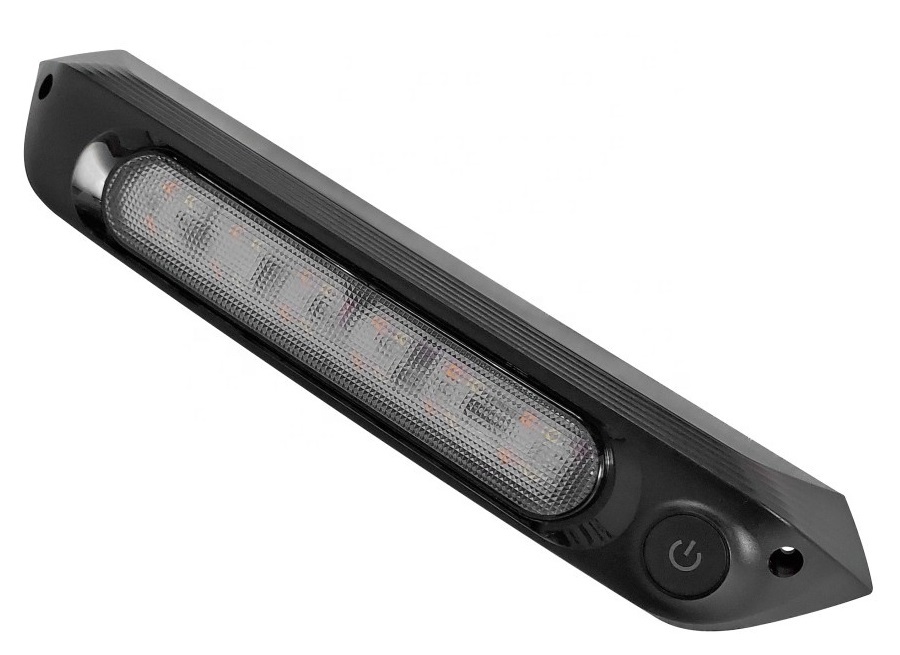

A 290mm dual colour LED awning light for caravans, campers, canopies and trailers. Run bright white when you are setting up or cooking, switch to orange once the bugs come out, or run both together.

A touch switch on the light changes colour and dims it, and it remembers your last setting. At 800 lumens from 8 W it is bright enough to light the camp while drawing only about 0.7 A at 12 V, and it is IP67 waterproof for life outside.

800 lm
Max output
8 W
About 0.7 A at 12 V
IP67
Waterproof
12-28 V
DC input

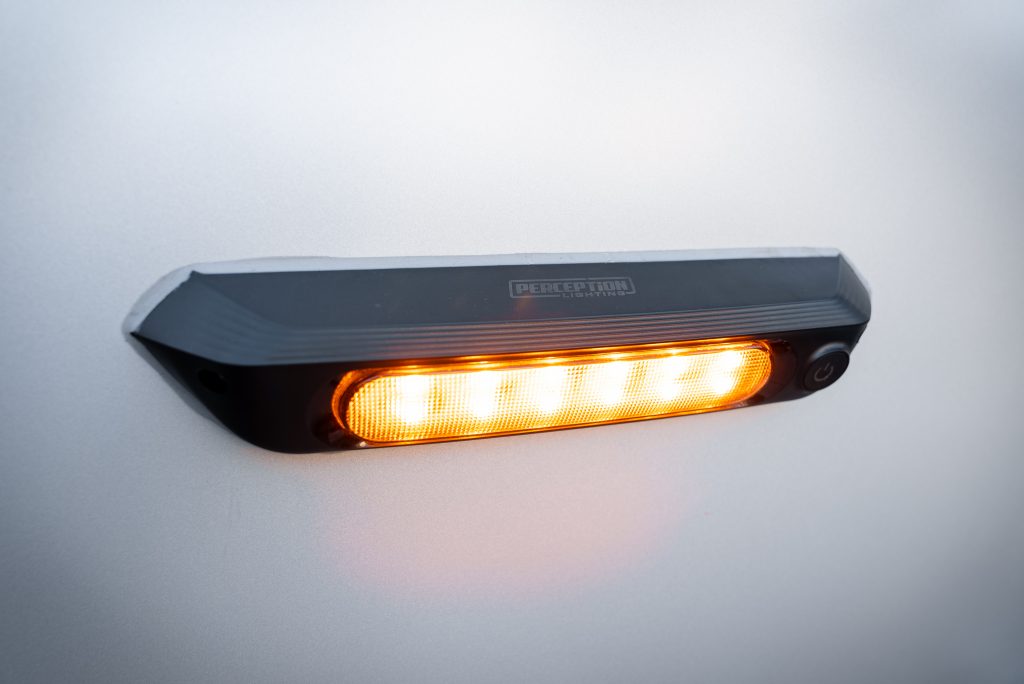

Perception Lighting 290mm dual colour LED awning light, lit orange

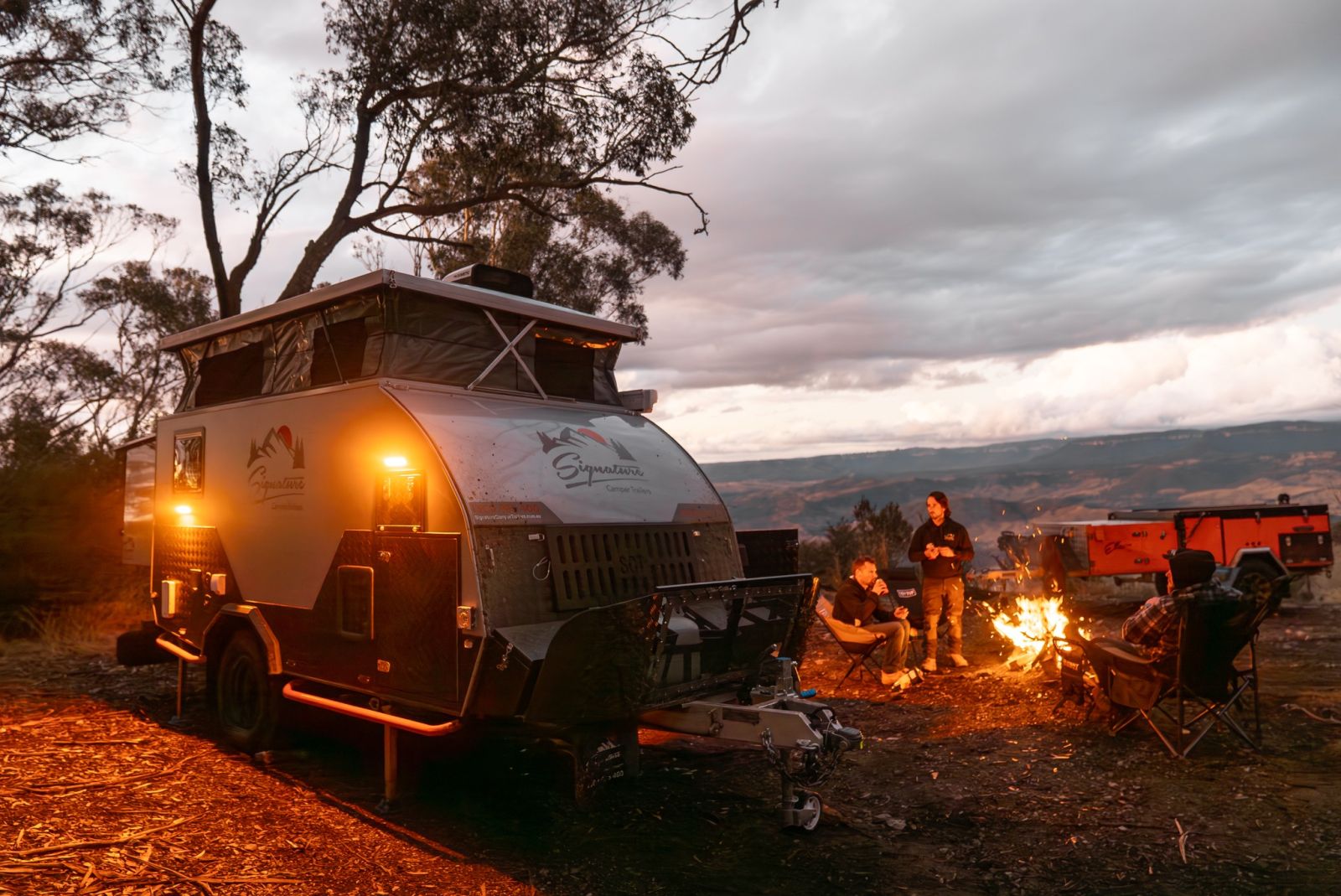

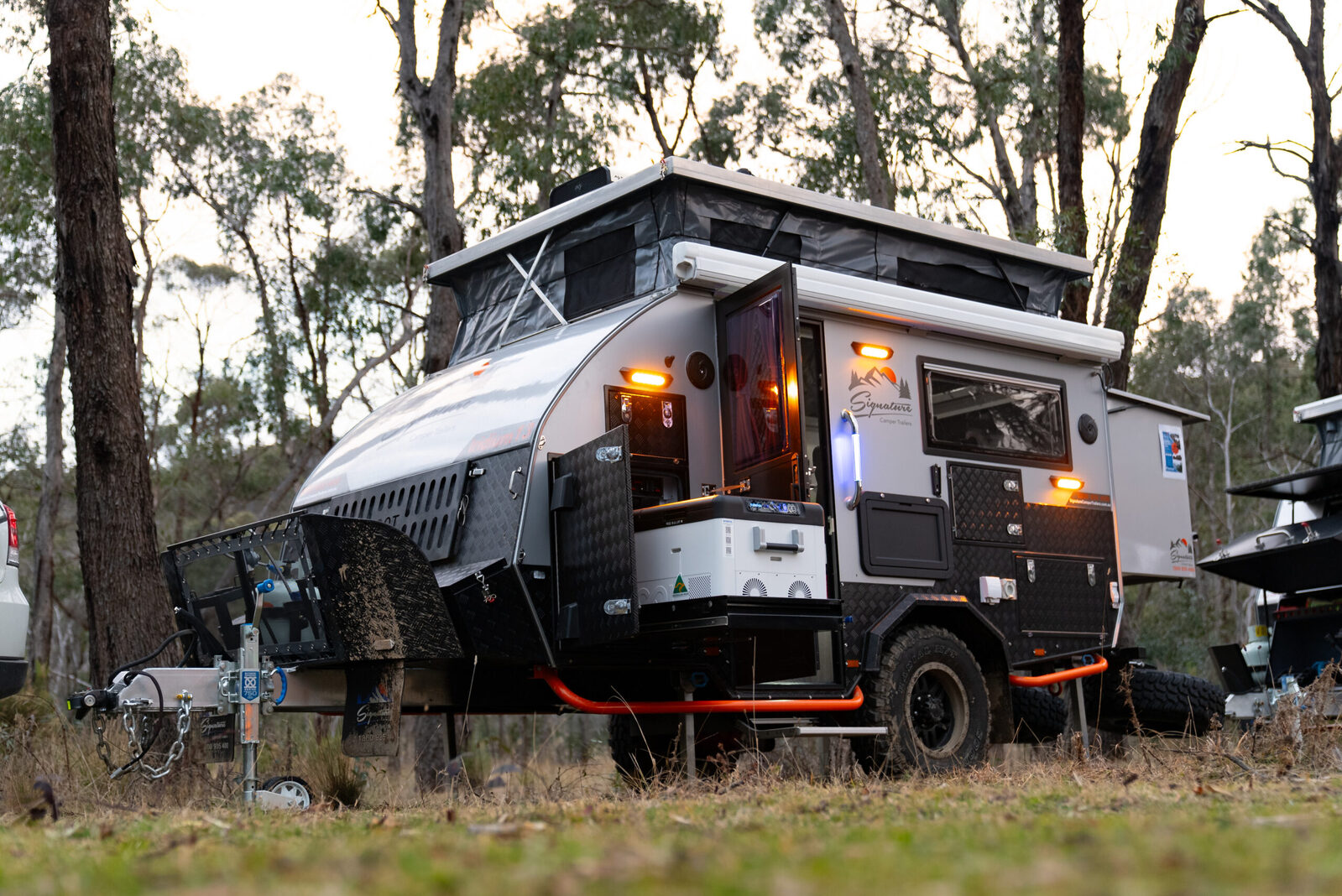

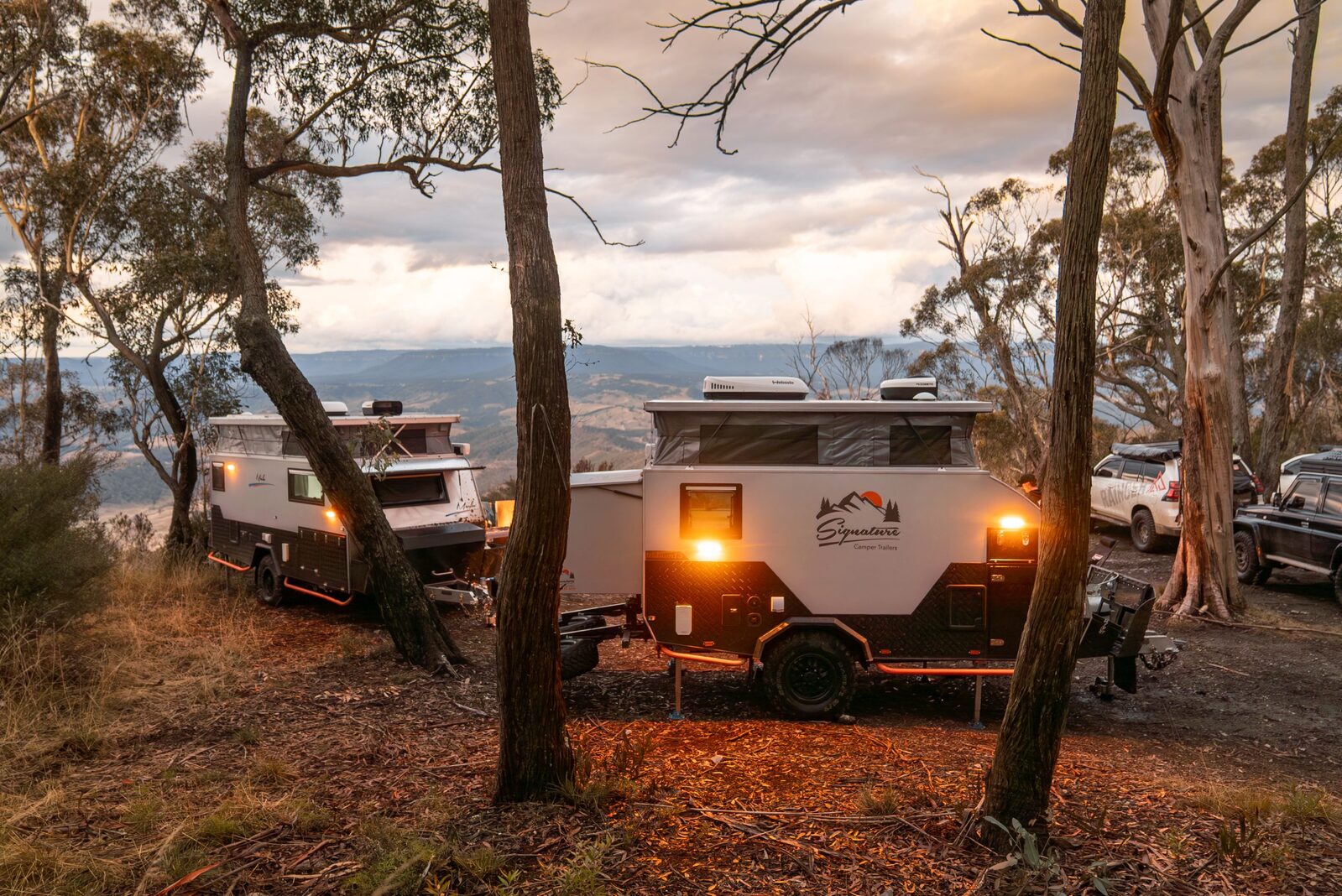

Perception Lighting 290mm dual colour LED awning light fitted to a camper trailer

Easy to run

Touch to switch, hold to dim

Short press the touch switch to step through white, orange and white plus orange. Press and hold to dim the light up or down. If the power drops out, the light comes back on at the colour and brightness you last used.

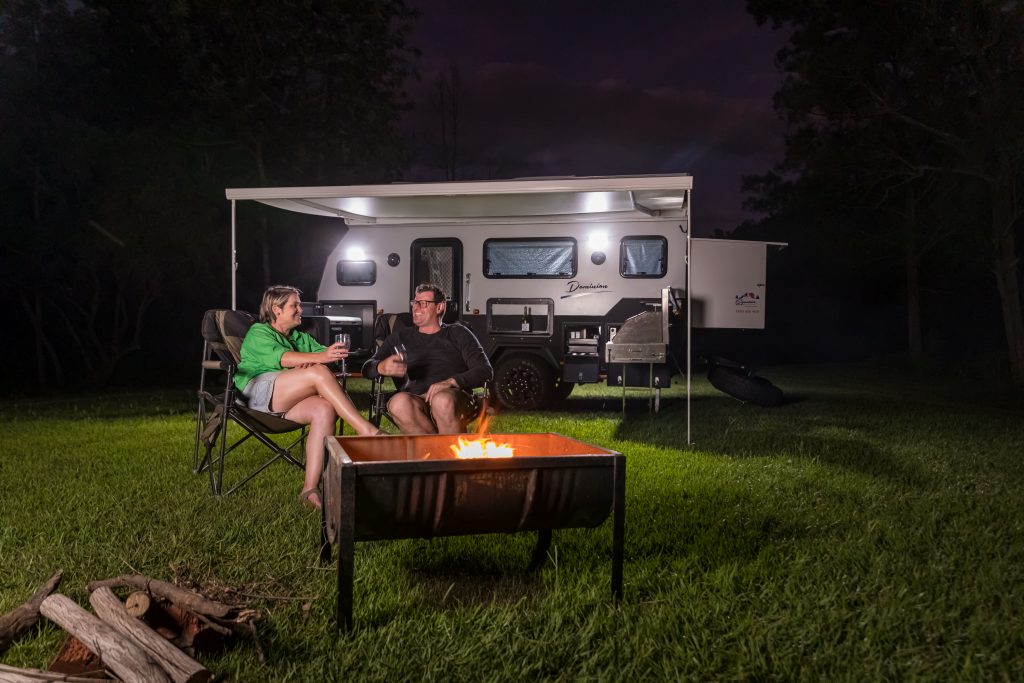

Perception Lighting 290mm dual colour LED awning light lighting a caravan awning at night

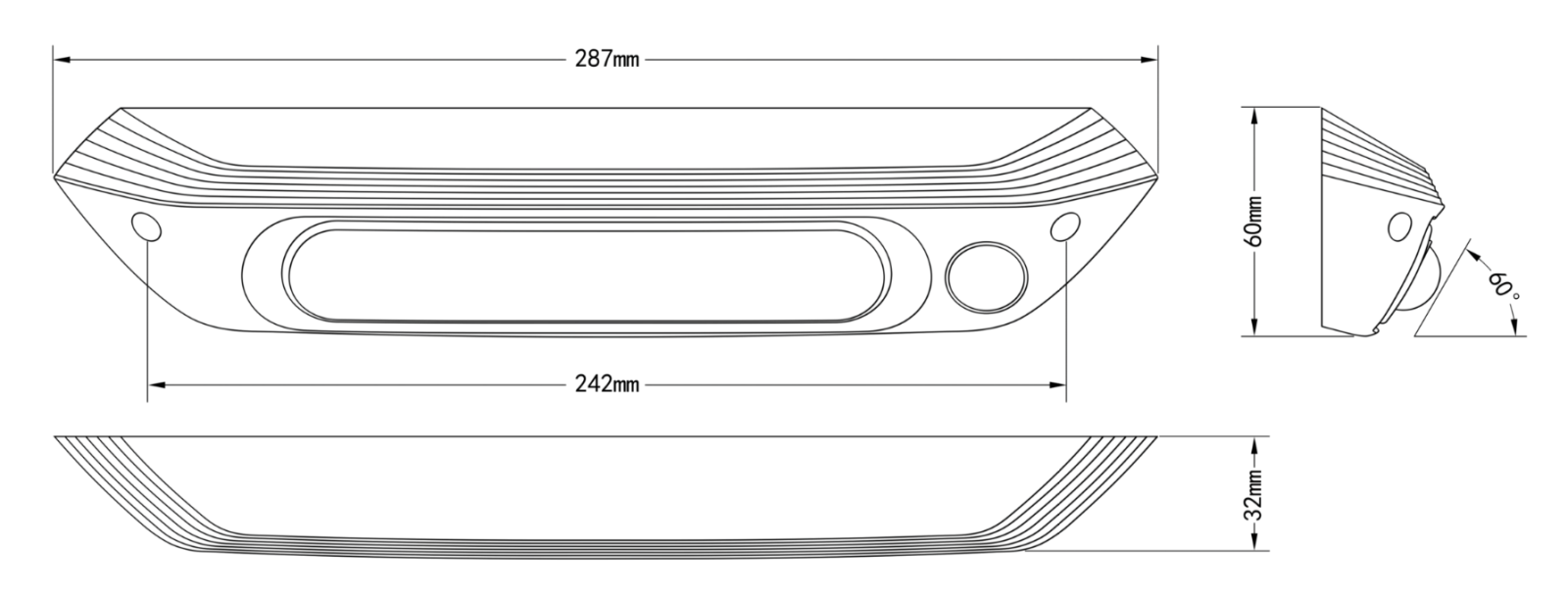

Perception Lighting 290mm dual colour LED awning light dimensions

Frequently asked questions

What colours does it have?

White, orange, or both together. Short press the touch switch to step through them.

Can I dim it?

Yes. Press and hold the touch switch to adjust the brightness. The light remembers your last colour and brightness.

Will it run on 24 V?

Yes. It takes 12 to 28 V DC, so it suits 12 V and 24 V systems. It draws 8 W, about 0.7 A at 12 V.

Is it waterproof?

Yes, it is rated IP67, so it is fine mounted outside under an awning or canopy.

How big is it?

287 x 60 x 32 mm, with mounting holes at 242 mm centres.

Are there other sizes?

Yes, this light also comes in 250mm flat (800 lm), 500mm angled (2,400 lm). Search “dual colour awning light” to see the range.

Do you supply bulk or trade orders?

Yes, we supply caravan builders, fleets and trade. Please contact our team for a quote.

Features

  • ✓290mm dual colour awning light: white, orange, or both at once
  • ✓Orange light attracts fewer insects than white, so the camp stays usable after dark
  • ✓Built-in touch switch to change colour and dim
  • ✓Memory function: comes back on at your last colour and brightness
  • ✓800 lumens of wide, even light from 24 wide-angle LEDs
  • ✓Low draw: 8 W, about 0.7 A at 12 V
  • ✓IP67 waterproof for mounting outside
  • ✓12-28 V DC input suits 12 V and 24 V systems

Specifications

Performance

Max output 800 lumens
Light colours White, orange, white + orange
Dimming Yes, touch switch (press and hold)
Memory Returns to last colour and brightness
LEDs 24 wide-angle LEDs

Electrical

Input voltage 12-28 V DC
Power 8 W (about 0.7 A at 12 V)

General

Length 290mm model
Size (L x H x D) 287 x 60 x 32 mm
Mounting hole centres 242 mm
Body Angled 60° face
Waterproof rating IP67
Warranty 2 years
Brand Perception Lighting

Download the installation & user guide (PDF)

What's Included

  • 1 x Perception Lighting 290mm dual colour LED awning light

Comes with our 2 year warranty against manufacturing defects, on top of your rights under the Australian Consumer Law.

Product Details

SKU LEDAL-290DC
Barcode # 9359968001422
Brand Perception Lighting
Length 290mm
Input Voltage 12-28 V DC
Max output 800 lumens
Light colour Orange & White
Shipping Weight 0.2000kg
Shipping Width 0.305m
Shipping Height 0.045m
Shipping Length 0.070m
Shipping Cubic 0.000961000m3
