Overview

White to work, orange for the bugs

A 500mm dual colour LED awning light for caravans, campers, canopies and trailers. Run bright white when you are setting up or cooking, switch to orange once the bugs come out, or run both together.

A touch switch on the light changes colour and dims it, and it remembers your last setting. At 2,400 lumens from 24 W it is bright enough to light the camp while drawing only about 2 A at 12 V, and it is IP67 waterproof for life outside.

Perception Lighting 500mm Dual Colour LED Awning Light - Orange & White with Touch Dimmer
2,400 lmMax Output
24 WAbout 2 A at 12 V
IP67Waterproof
12-28 VDC Input

Two colours, one light

Keep the bugs down

  • ✓White: clear, bright light for cooking, packing up and finding things in the dark
  • ✓Orange: a warm light that draws fewer moths and mozzies to the awning
  • ✓Both: run the two together for a softer warm-white glow

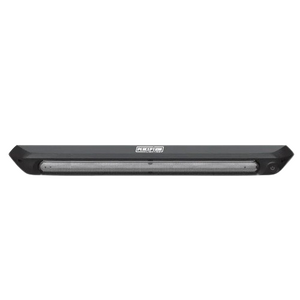

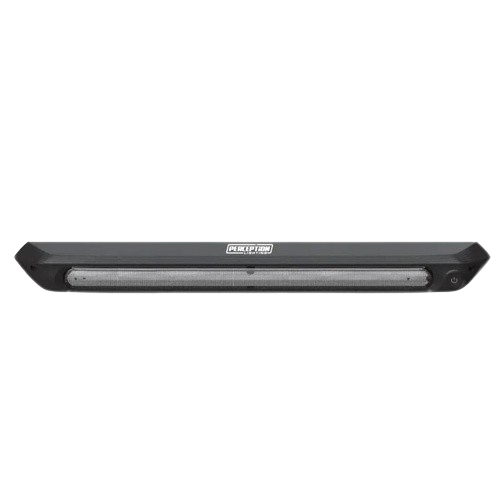

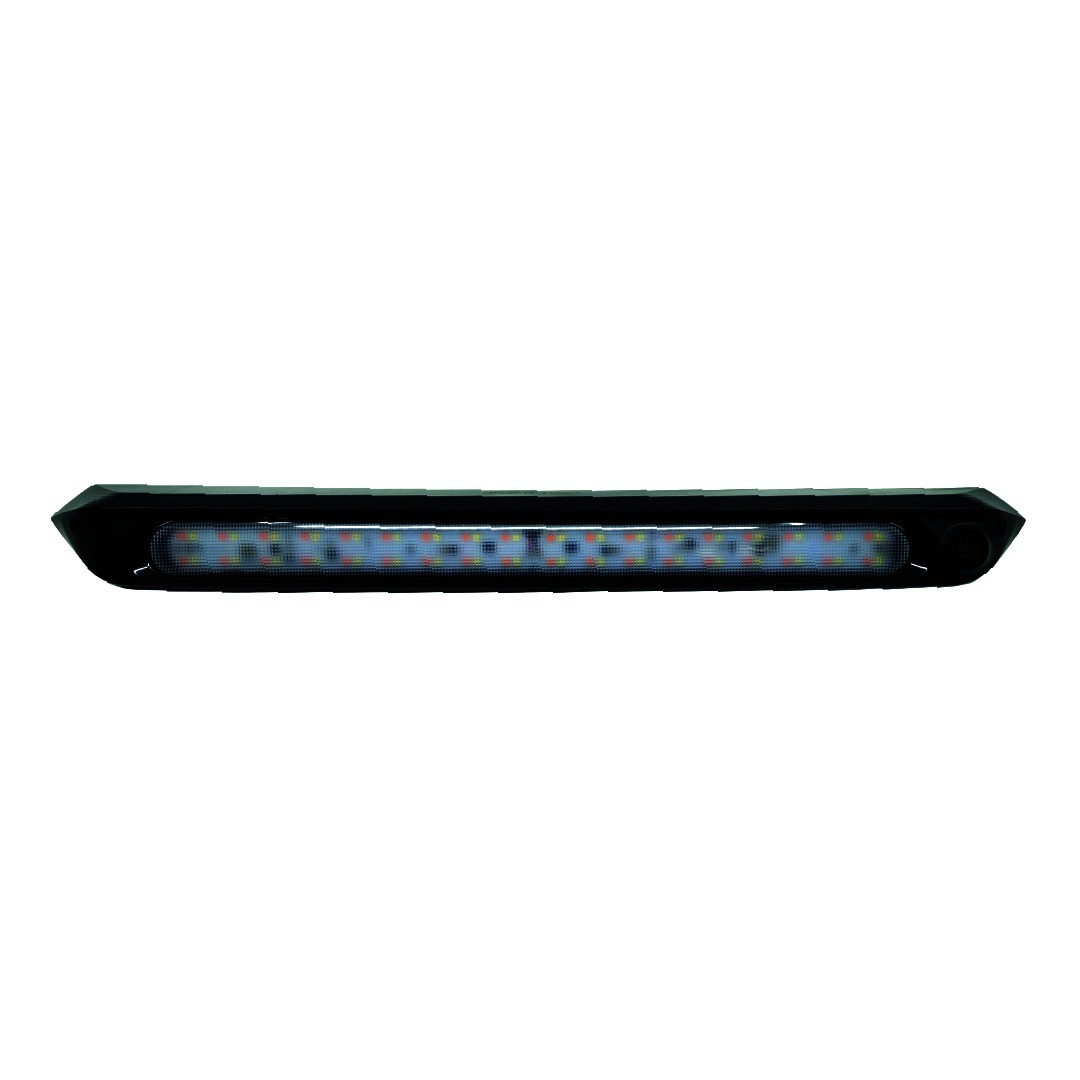

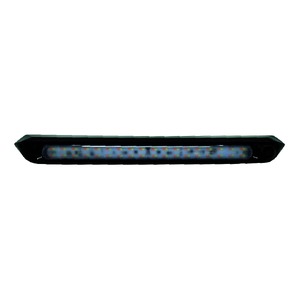

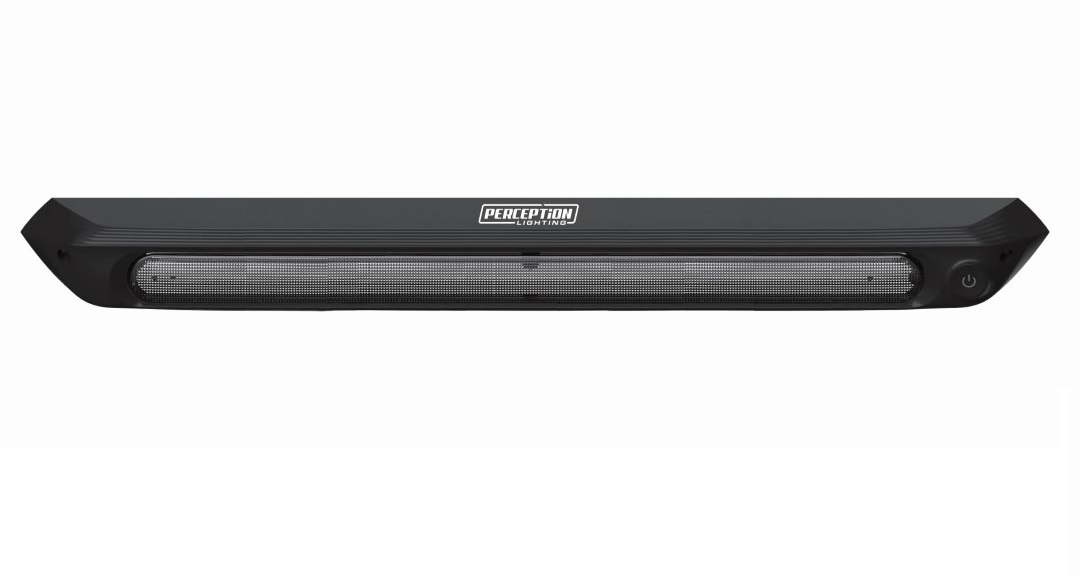

Perception Lighting 500mm dual colour LED awning light

Easy to run

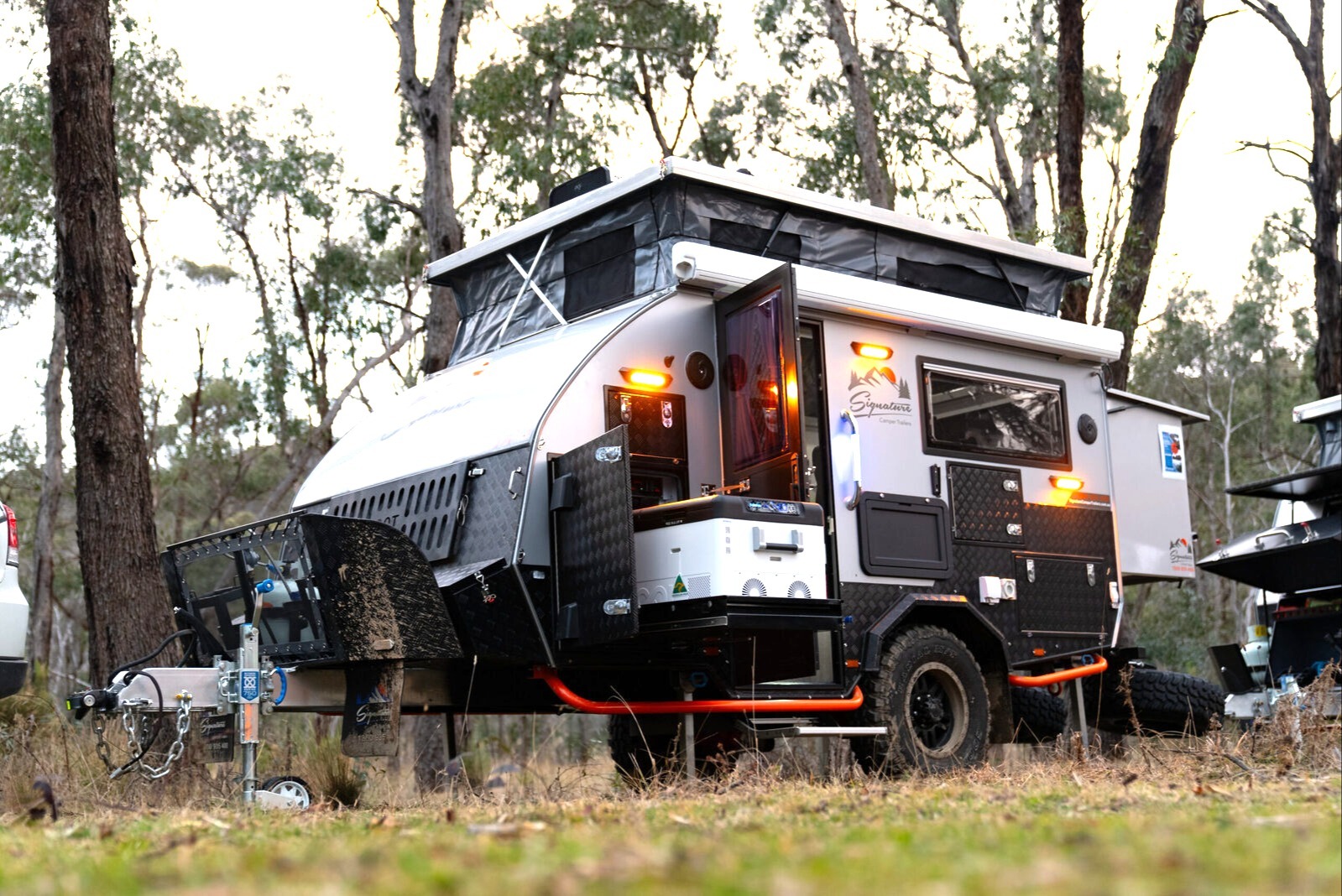

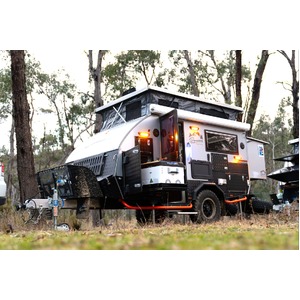

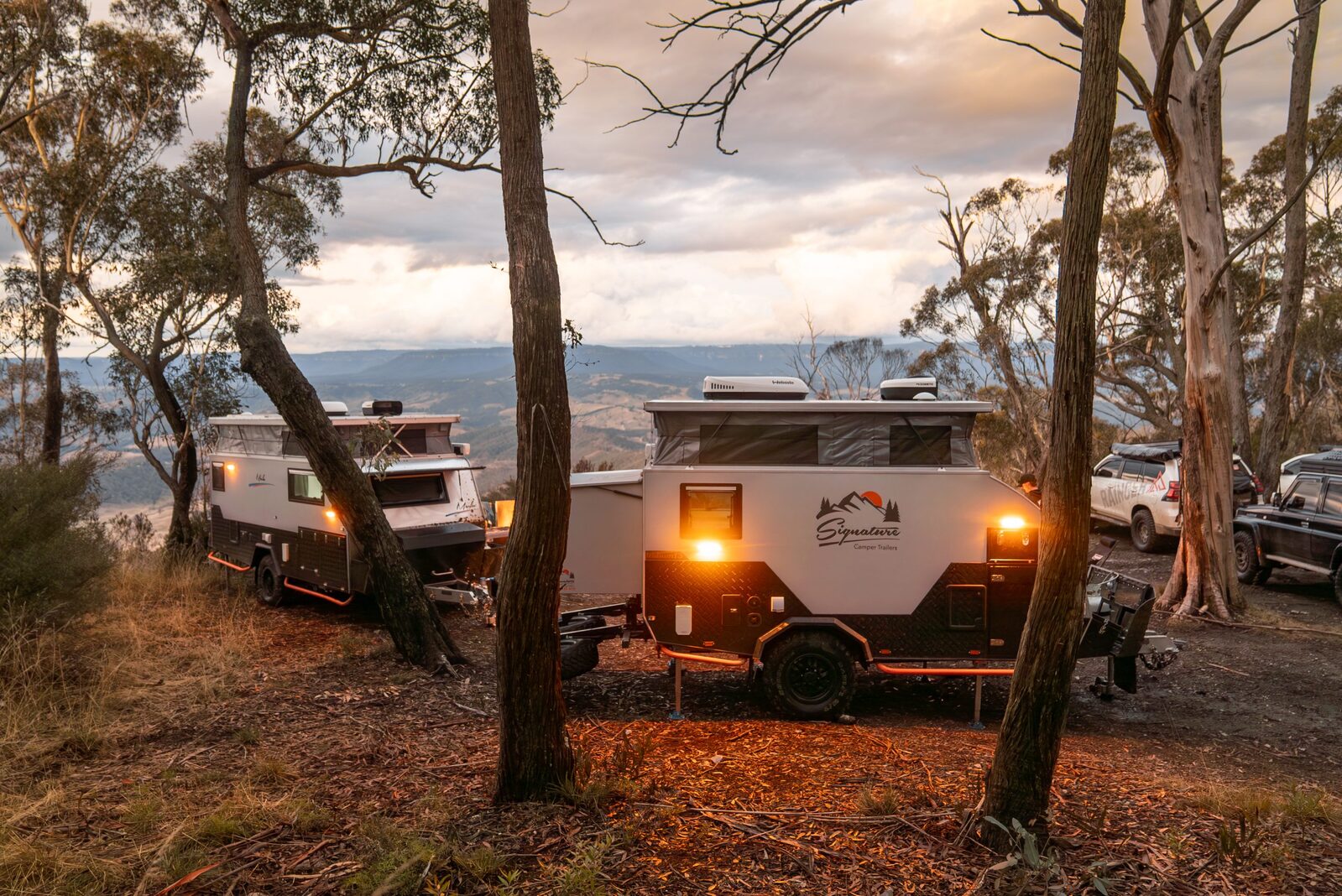

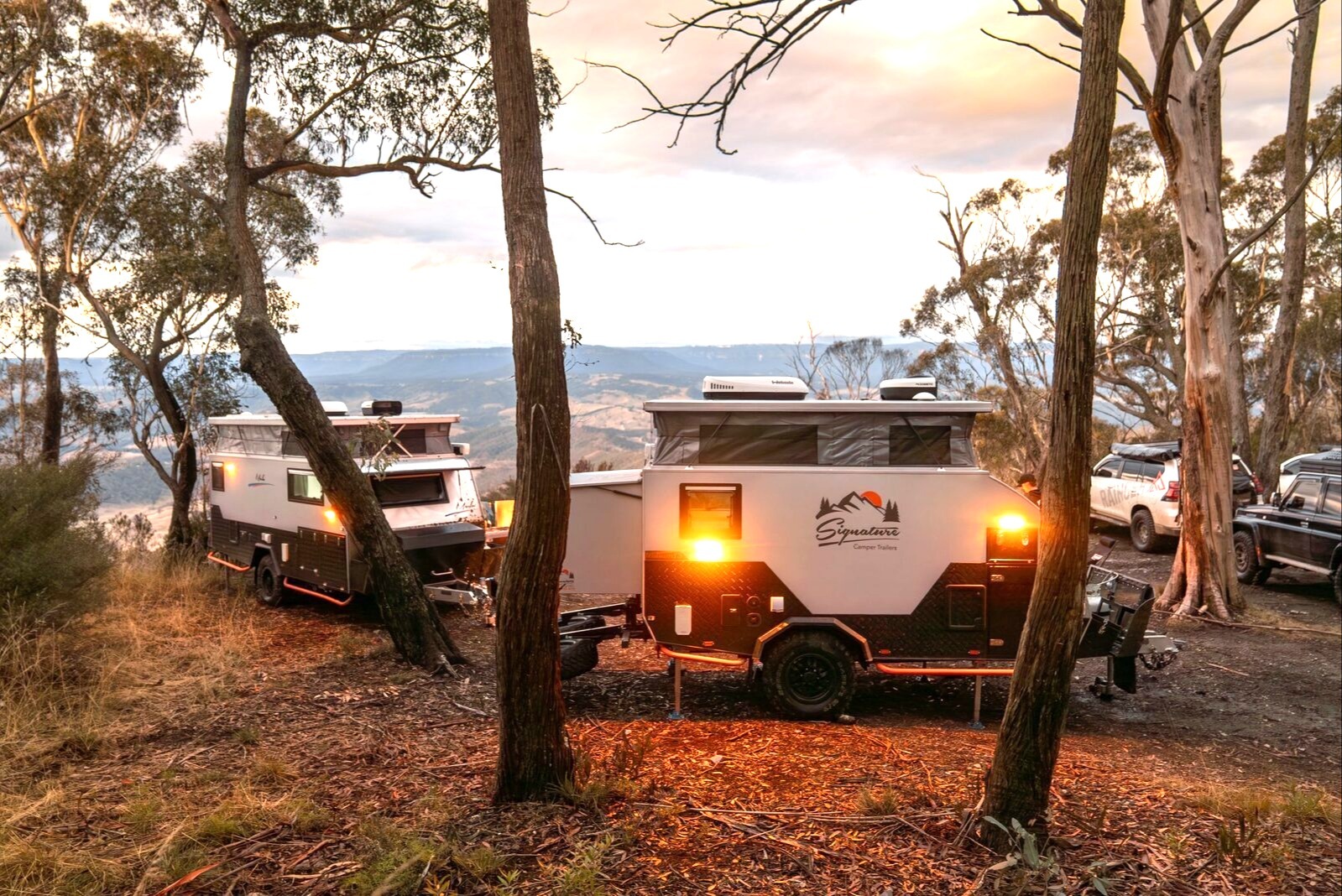

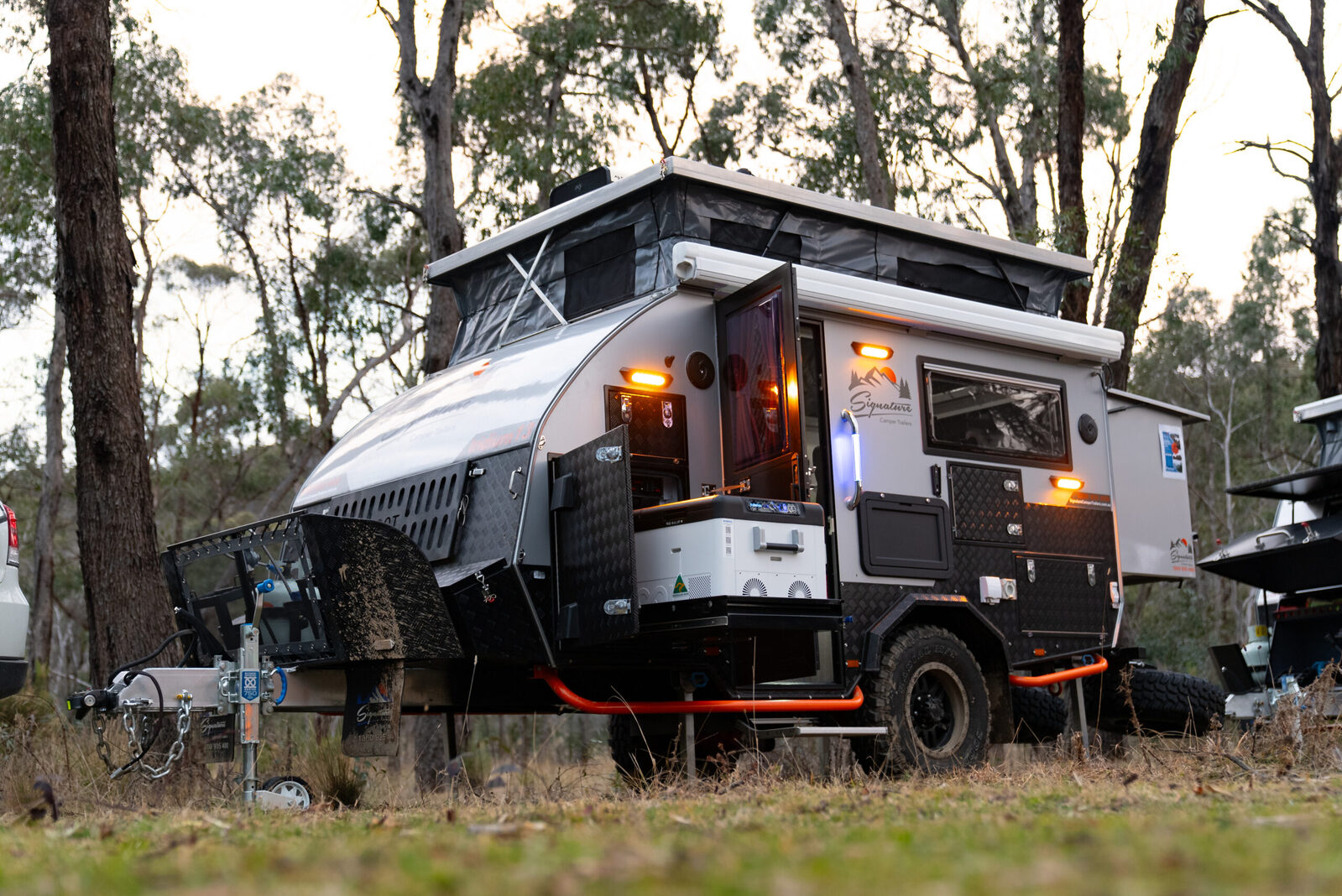

Perception Lighting 500mm dual colour LED awning light fitted to a camper trailer

Touch to switch, hold to dim

Short press the touch switch to step through white, orange and white plus orange. Press and hold to dim the light up or down. If the power drops out, the light comes back on at the colour and brightness you last used.

Made to live outside

Fit it and forget it

The angled 60° face points the light down and out from the wall, so it lights the ground under the awning rather than the sky. The light is sealed to IP67, measures 500 x 60 x 32 mm and screws on through two mounting holes at 452 mm centres.

It runs on anything from 12 to 28 V DC, so it wires straight into a 12 V or 24 V system. Download the installation & user guide (PDF).

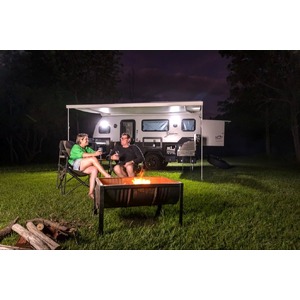

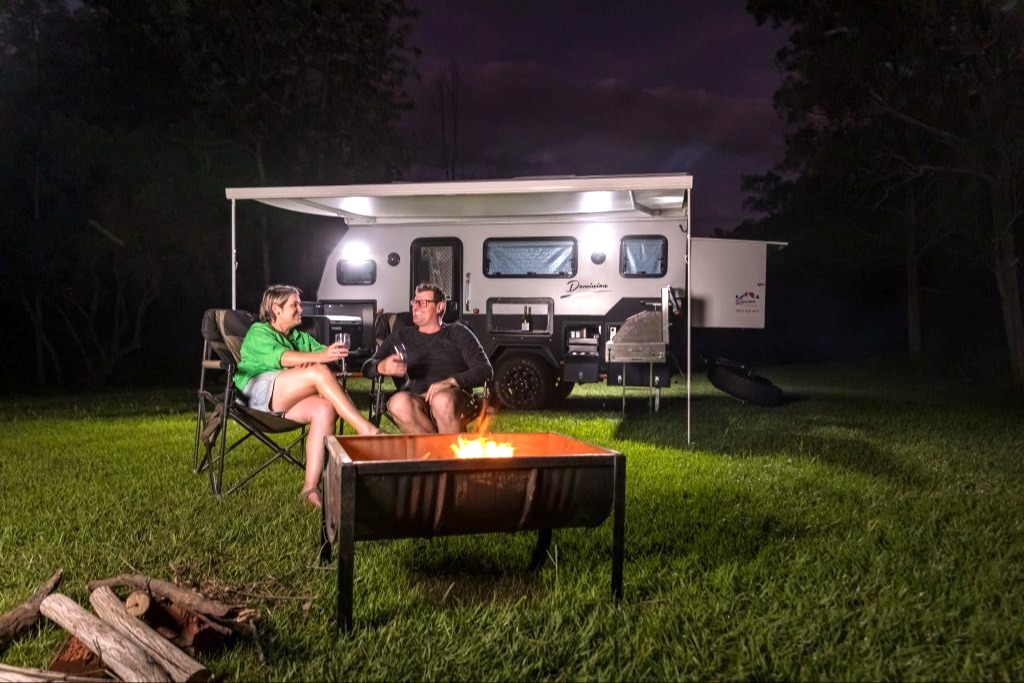

Perception Lighting 500mm dual colour LED awning light lighting a caravan awning at night

Frequently asked questions

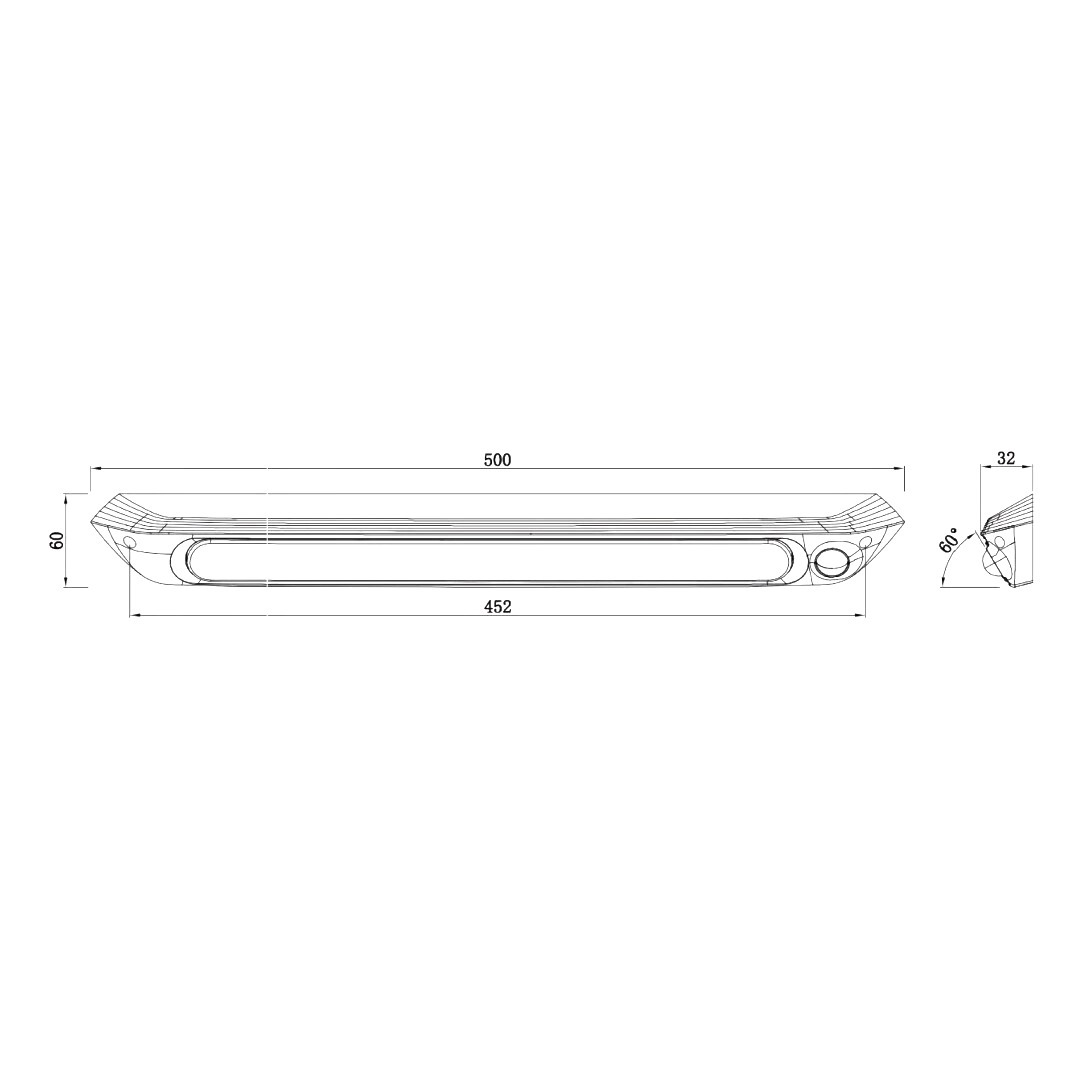

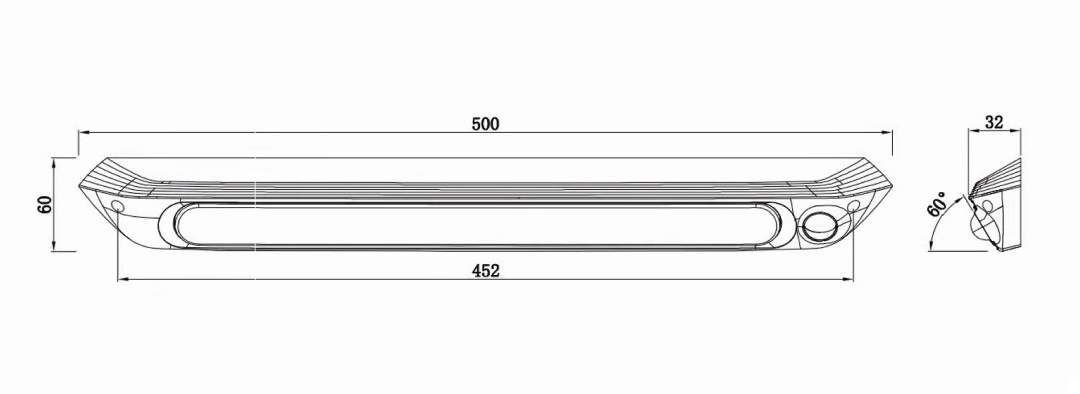

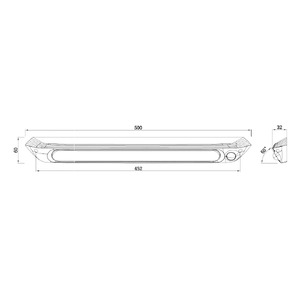

Perception Lighting 500mm dual colour LED awning light dimensions

What colours does it have?

White, orange, or both together. Short press the touch switch to step through them.

Can I dim it?

Yes. Press and hold the touch switch to adjust the brightness. The light remembers your last colour and brightness.

Will it run on 24 V?

Yes. It takes 12 to 28 V DC, so it suits 12 V and 24 V systems. It draws 24 W, about 2 A at 12 V.

Is it waterproof?

Yes, it is rated IP67, so it is fine mounted outside under an awning or canopy.

How big is it?

500 x 60 x 32 mm, with mounting holes at 452 mm centres.

Are there other sizes?

Yes, this light also comes in 250mm flat (800 lm), 290mm angled (800 lm). Search “dual colour awning light” to see the range.

Do you supply bulk or trade orders?

Yes, we supply caravan builders, fleets and trade. Please contact our team for a quote.

Features

  • ✓500mm dual colour awning light: white, orange, or both at once
  • ✓Orange light attracts fewer insects than white, so the camp stays usable after dark
  • ✓Built-in touch switch to change colour and dim
  • ✓Memory function: comes back on at your last colour and brightness
  • ✓2,400 lumens of wide, even light
  • ✓Low draw: 24 W, about 2 A at 12 V
  • ✓IP67 waterproof for mounting outside
  • ✓12-28 V DC input suits 12 V and 24 V systems

Specifications

Performance

Max output2,400 lumens
Light coloursWhite, orange, white + orange
DimmingYes, touch switch (press and hold)
MemoryReturns to last colour and brightness

Electrical

Input voltage12-28 V DC
Power24 W (about 2 A at 12 V)

General

Length500mm model
Size (L x H x D)500 x 60 x 32 mm
Mounting hole centres452 mm
BodyAngled 60° face
Waterproof ratingIP67
Warranty2 years
BrandPerception Lighting

Download the installation & user guide (PDF)

What's Included

  • 1 x Perception Lighting 500mm dual colour LED awning light

Comes with our 2 year warranty against manufacturing defects, on top of your rights under the Australian Consumer Law.

Product Details

SKU LEDAL-500DC
Barcode # 9359968000074
Brand Perception Lighting
Length 500mm
Input Voltage 12-28 V DC
Max output 2,400 lumens
Light colour Orange & White
Shipping Weight 0.4500kg
Shipping Width 0.070m
Shipping Height 0.050m
Shipping Length 0.560m
Shipping Cubic 0.001428000m3
