Uniden ATX890S Heavy Duty Fibreglass Raydome UHF CB Antenna | Black | 3.0 dBi | 612mm
Buy Now, Pay Later.
DETAILS
Overview
Compact heavy duty antenna at 612mm

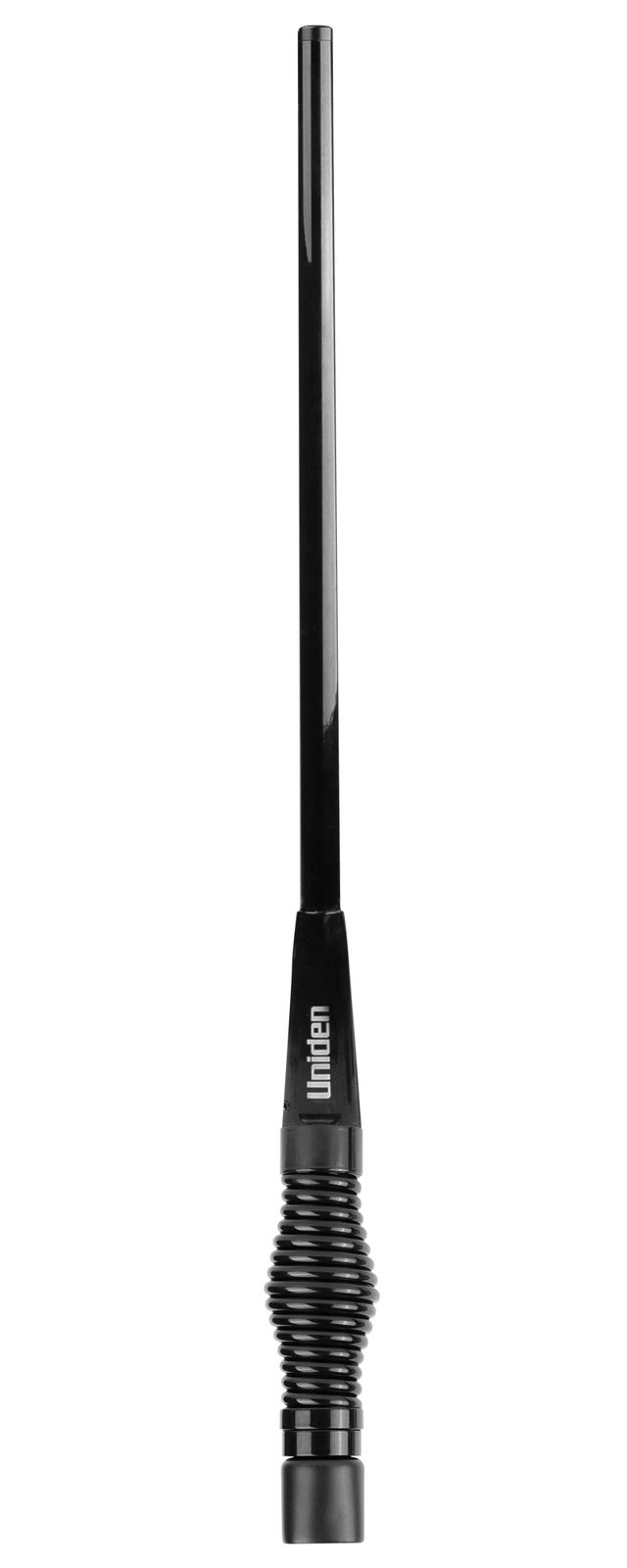

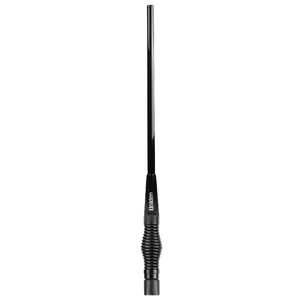

The shortest of Uniden's ATX heavy duty radome antennas, at 612mm mounted with 3.0 dBi gain. It suits vehicles that need to clear car parks, garages and low branches.
It runs on a 30-45-30mm barrel style stainless steel spring with an aluminium ferrule, and it's ground independent. You get 4.5m of low loss coax with an FME female connector, a PL259 adaptor, a locking key and a weather cap. Short enough for a Uniden Z bracket under the bonnet.
3.0 dBiGain
612mmMounted Height
4.5mLow Loss Coax
477MHzUHF CB
Video
Low profile
Just 612mm when mounted

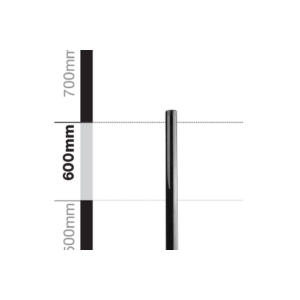

The 504mm whip puts the antenna at 612mm once it's on the vehicle. That's the lowest height in Uniden's ATX heavy duty radome range, handy for garages, car parks and low scrub.
- ✓504mm whip
- ✓612mm mounted height
- ✓3.0 dBi gain
Built tough
Heavy duty spring and ferrule
A 30-45-30mm barrel style stainless steel spring takes the knocks, and the aluminium ferrule holds the fibreglass radome firm on a 6mm thread. Uniden rates it for 4WD and truck use.
- ✓Stainless steel barrel spring
- ✓Aluminium ferrule
- ✓Rated for 4WDs and trucks
Fitting
No ground plane needed
It's ground independent, so it suits bull bars and brackets without a metal ground plane. The 4.5m low loss coax has an FME female connector, and a PL259 adaptor, locking key and weather cap are in the box.
- ✓Ground independent
- ✓4.5m low loss coax
- ✓FME female plus PL259 adaptor
Goes well with
Complete your setup
Uniden MGU-01 Glossy Boot Z Antenna Mount Bracket with Cable Slot
Stainless Z bracket for antennas up to 800mm long, fitted in the guard channel under the bonnet.
Uniden XTRAK 80 Smart UHF CB Radio | 5W | OLED Display
Uniden in-car UHF CB radio to run with the antenna.
Uniden X80 Compact UHF CB Mobile Radio | 5W | Dual/Triple Watch
Compact Uniden UHF CB mobile with dual and triple watch.
Frequently asked questions
How tall is the ATX890S?
The whip is 504mm long and the antenna stands 612mm high when mounted.
Does it need a ground plane?
No. It's ground independent.
What connector does it have?
An FME female connector on 4.5m of low loss coax, with a PL259 adaptor supplied.
Will it fit a Z bracket?
The Uniden MGU-01 Z bracket takes antennas up to 800mm long, so the 612mm ATX890S is within that length.
Is there a higher gain version?
Yes. The ATX890 gives 6.6 dBi at 1000mm mounted height.
Features
- ✓Heavy duty fibreglass radome antenna with aluminium ferrule
- ✓Barrel style stainless steel spring, 30-45-30mm
- ✓Ground independent, so no ground plane is needed
- ✓3.0 dBi gain on 477MHz UHF CB
- ✓504mm whip, 612mm mounted height
- ✓4.5m low loss coax with FME female connector and PL259 adaptor
- ✓Locking key and weather cap included
Specifications
| Type | Heavy duty fibreglass radome UHF CB antenna |
| Frequency | 477MHz |
| Gain | 3.0 dBi |
| Ground plane | Ground independent |
| Whip length | 504mm |
| Mounted height | 612mm |
| Spring | Stainless steel, 30-45-30mm barrel style |
| Thread | 6mm |
| Ferrule | Aluminium |
| Coax cable | 4.5m low loss |
| Connector | FME female, PL259 adaptor supplied |
| Colour | Black |
| Ideal for | 4WDs and trucks |
| Brand | Uniden |
What's Included
- 1 x ATX890S antenna with stainless steel spring
- 1 x low loss coax cable with FME female connector
- 1 x PL259 adaptor
- 1 x locking key
- 1 x weather cap
Product Details
| SKU | ATX890S |
| Model # | ATX890S |
| Barcode # | 9322402015217 |
| Brand | Uniden |
| Type | Antennas & Mounts |
| SKU | ATX890S |
| Shipping Weight | 1.1000kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.090m |
| Shipping Length | 0.680m |
| Shipping Cubic | 0.000150000m3 |
