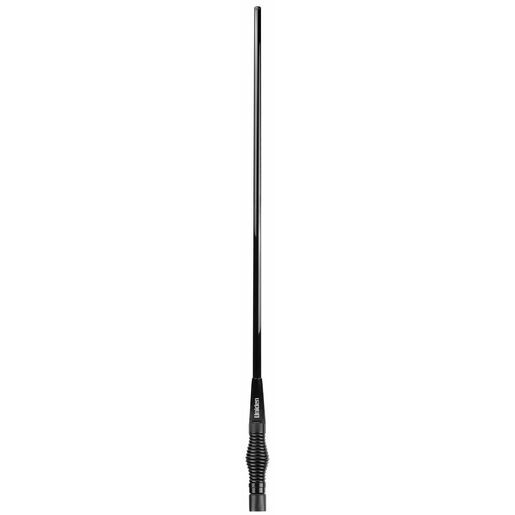

Uniden ATX890 Heavy Duty Fibreglass Raydome UHF CB Antenna | Black | 6.6 dBi | 1000mm
Buy Now, Pay Later.
DETAILS
Overview
6.6 dBi at a manageable 1000mm
A 6.6 dBi heavy duty fibreglass radome UHF CB antenna that stands 1000mm when mounted. It sits between Uniden's short and tall heavy duty options.
The ATX890 runs on a 30-45-30mm barrel style stainless steel spring with an aluminium ferrule, and it's ground independent. In the box you get 4.5m of low loss coax with an FME female connector, a PL259 adaptor, a locking key and a weather cap. Pair it with a radio like the Uniden XTRAK 80.
6.6 dBiGain
1000mmMounted Height
4.5mLow Loss Coax
477MHzUHF CB
Video
Height and gain
1000mm mounted, 6.6 dBi gain
The 884mm whip stands 1000mm once mounted. You get the same 6.6 dBi gain as Uniden's taller heavy duty antenna in a length that's easier to live with day to day.
- ✓884mm whip
- ✓1000mm mounted height
- ✓6.6 dBi gain
Built tough
Stainless spring for 4WD and truck work
A 30-45-30mm barrel style stainless steel spring lets the antenna flex back from branches and soak up corrugations. The aluminium ferrule holds the fibreglass radome firm on its 6mm thread.
- ✓Stainless steel barrel spring
- ✓Aluminium ferrule
- ✓6mm thread
Fitting
Ground independent and ready to wire
No metal ground plane is needed under the mount. Run the 4.5m low loss coax back to the radio and connect with the FME female connector or the supplied PL259 adaptor. A locking key and weather cap are in the box.
- ✓Ground independent
- ✓4.5m low loss coax
- ✓Locking key and weather cap
Goes well with
Complete your setup
Uniden MBU-05BK Heavy Duty Folding Antenna Mount Bracket | Black
Folding bracket that fits a standard bull bar mount so a tall antenna can be laid down.
Uniden XTRAK 80 Smart UHF CB Radio | 5W | OLED Display
Uniden in-car UHF CB radio to run with the antenna.
Uniden X80 Compact UHF CB Mobile Radio | 5W | Dual/Triple Watch
Compact Uniden UHF CB mobile with dual and triple watch.
Frequently asked questions
How tall is the ATX890?
The whip is 884mm and the antenna stands 1000mm high when mounted.
Does it need a ground plane?
No. The ATX890 is ground independent.
What connector does it use?
The 4.5m low loss coax has an FME female connector, and a PL259 adaptor is supplied.
How does it compare with the ATX970?
Both are 6.6 dBi. The ATX970 is taller at 1200mm mounted and uses a larger 44-55-44mm spring.
Is there a shorter ATX890?
Yes. The ATX890S is the 3.0 dBi version at 612mm mounted height.
Features
- ✓Heavy duty fibreglass radome antenna with aluminium ferrule
- ✓Barrel style stainless steel spring, 30-45-30mm
- ✓Ground independent, so no ground plane is needed
- ✓6.6 dBi gain on 477MHz UHF CB
- ✓884mm whip, 1000mm mounted height
- ✓4.5m low loss coax with FME female connector and PL259 adaptor
- ✓Locking key and weather cap included
Specifications
| Type | Heavy duty fibreglass radome UHF CB antenna |
| Frequency | 477MHz |
| Gain | 6.6 dBi |
| Ground plane | Ground independent |
| Whip length | 884mm |
| Mounted height | 1000mm |
| Spring | Stainless steel, 30-45-30mm barrel style |
| Thread | 6mm |
| Ferrule | Aluminium |
| Coax cable | 4.5m low loss |
| Connector | FME female, PL259 adaptor supplied |
| Colour | Black |
| Ideal for | 4WDs and trucks |
| Brand | Uniden |
What's Included
- 1 x ATX890 antenna with stainless steel spring
- 1 x low loss coax cable with FME female connector
- 1 x PL259 adaptor
- 1 x locking key
- 1 x weather cap
Product Details
| SKU | ATX890 |
| Barcode # | 9322402015194 |
| Brand | Uniden |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.090m |
| Shipping Length | 1.080m |
| Shipping Cubic | 0.008748000m3 |
