See the whole track, not just the road ahead

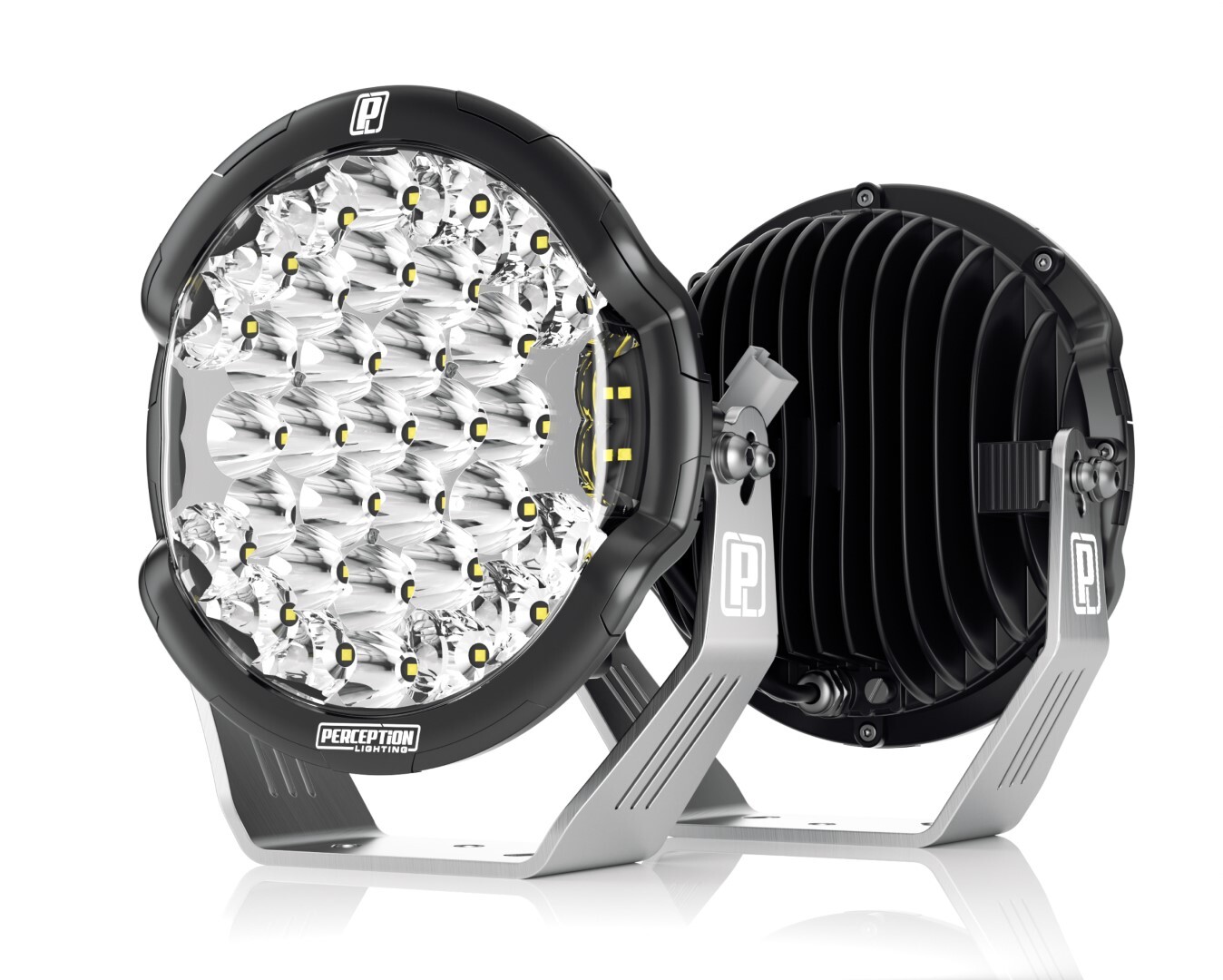

The Apex 180 is a pair of 215 mm round LED driving lights built for width. 41 Osram LEDs per light, a hyper wide reflector and built-in side shooter LEDs spread light across 180°, lighting up the verges, the trees and the next bend, while still reaching 874 m to 1 lux.
It suits tight bush tracks, farm roads, mine sites and anywhere you need to see what is coming from the side.

180° of light
Most driving lights throw a narrow pencil of light down the road. The Apex 180 does the opposite: the hyper wide reflector and built-in side shooter LEDs push light out to both sides, so the edges of the track are as clear as the middle.


Sealed, quiet and tough
IP69K is the highest dust and water rating there is: the Apex 180 is dust tight, waterproof to 3 m and safe to clean with a high-pressure, high-temperature wash. A Gore breather stops condensation, and CISPR Class 3 certification means no hiss on your UHF or radio.
Solid three-point mount

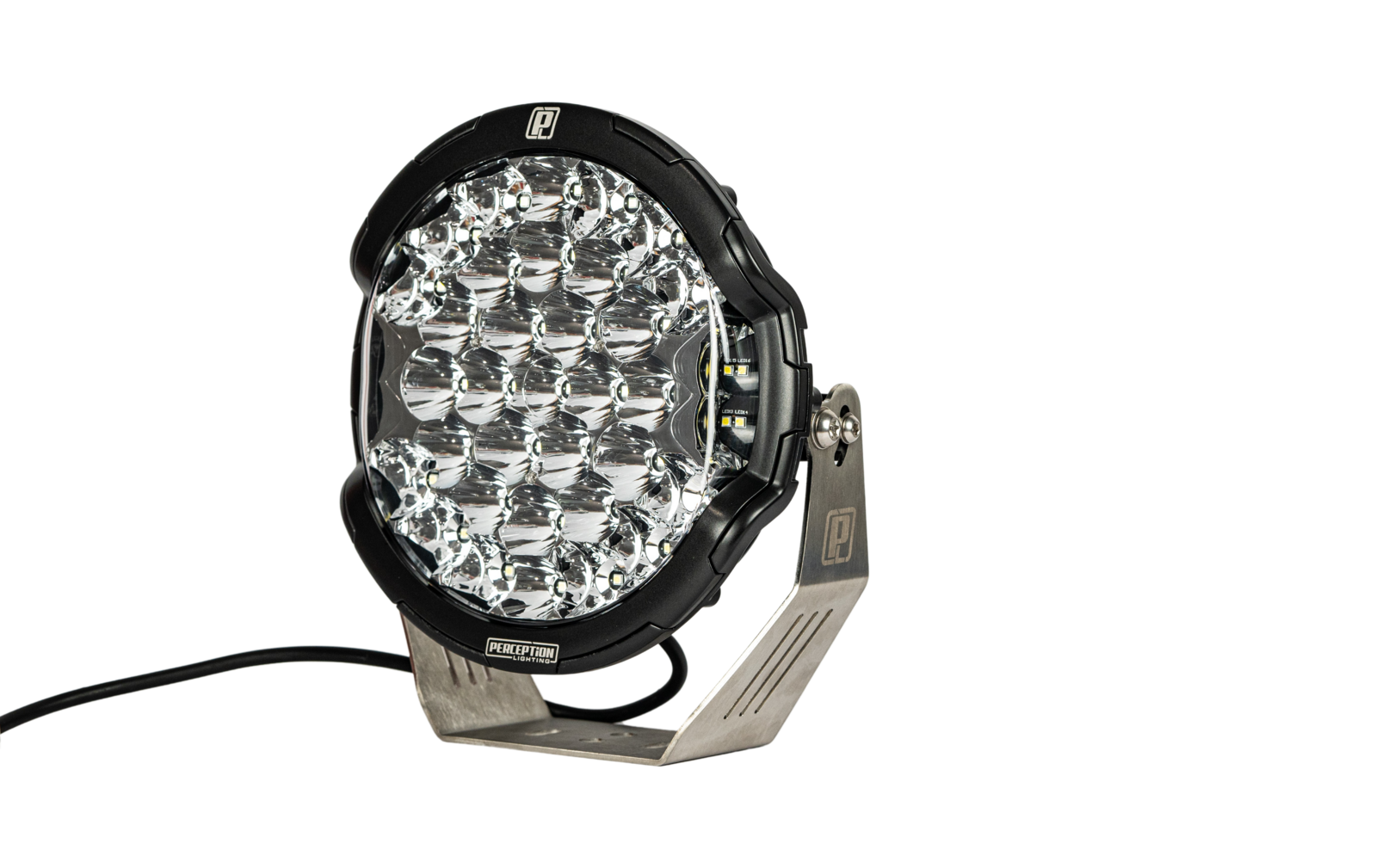

Each light sits on a 5.5 mm 304 stainless steel bracket with a three-point mount, so it holds its aim on rough roads. Torx anti-theft security bolts make them harder to pinch, and Deutsch plugs and stainless hardware are in the box.
Size: 215 mm across and 245 mm tall including the bracket. Bracket base 70 mm deep with 95 mm bolt spacing.


Wide and still long

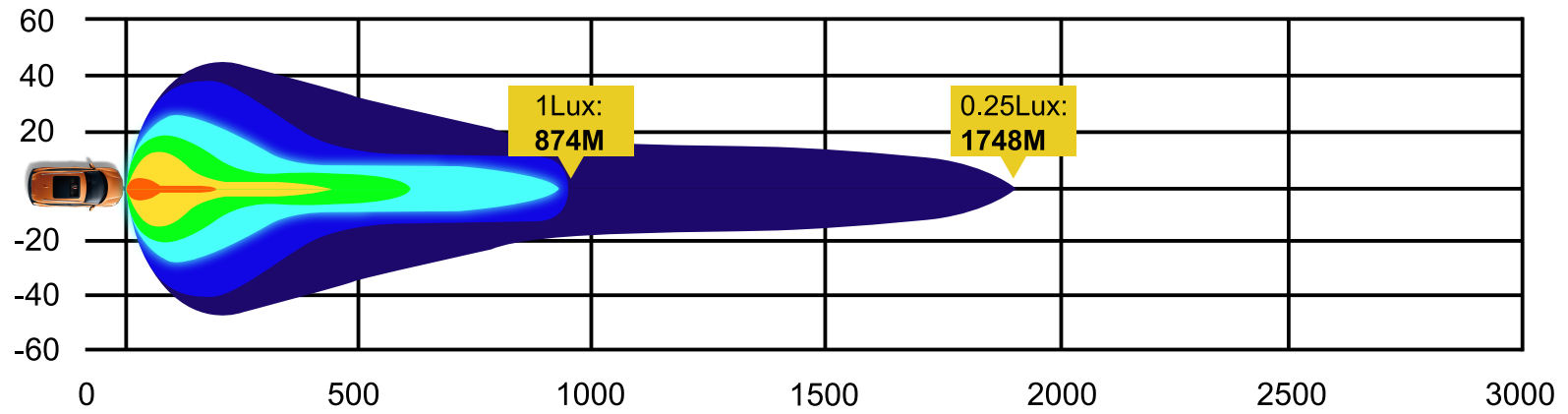

The lux diagram shows the Apex 180 spreading light wide close to the vehicle while still reaching 874 m to 1 lux. Pair it with long-range spot lights such as the Apex 8.5" if you want both width and distance.
Yes. You get two lights, two brackets, Deutsch plugs and the mounting hardware.
The Apex 7" and 8.5" use a spot reflector for maximum distance. The Apex 180 trades some reach for a much wider beam that lights up the sides of the track.
Yes. The 9-32 V DC input suits 12 V and 24 V vehicles, including trucks.
No. It is CISPR Class 3 certified for low radio interference.
Yes, a driving light harness with a relay and switch is needed and is sold separately. If you are unsure what suits your vehicle, please contact our team.
For the longest reach, the round Apex 7" and 8.5" use a spot reflector. For the widest light on tight tracks, the Apex 180 spreads its beam across 180°. For a compact square light with daytime running lights, choose the Apex Quad. Also in the range: the Apex 7" (185 mm, 1,480 m), the Apex 8.5" (220 mm, 1,786 m) and the Apex Quad (188 x 151 mm, DRL built in).
10 years, backed by Perception Lighting in Australia. If you ever have a problem, please contact our team.
Yes. Please contact our team for a quote.

| Light output | 22,000 lumens per pair (11,000 per light) |
| Beam distance | 1 lux at 874 m; 0.25 lux at 1,748 m |
| Beam pattern | 180° wide (hyper wide reflector and side shooter LEDs) |
| LEDs | 41 x genuine Osram high-output LEDs per light |
| Colour temperature | 5700K |
| Current draw | 6.9 A at 13.2 V DC |
| Input voltage | 9-32 V DC (12 V and 24 V vehicles) |
| Diameter | 215 mm |
| Height | 245 mm including bracket |
| Bracket base | 70 mm deep, 95 mm bolt spacing |
| Housing | Aluminium with Dupont powdercoat (no colour fade) |
| Lens | GE Lexan polycarbonate (will not crack or shatter) |
| Bracket | 5.5 mm 304 stainless steel, three-point mount, Torx anti-theft security bolts |
| Waterproof rating | IP69K, waterproof to 3 m |
| Breather | Gore breather against condensation |
| Thermal | Inbuilt thermal management |
| EMC | CISPR Class 3 |
| Connector | Deutsch |
| LED life | 50,000+ hours |
| Sold as | Pair |
| Warranty | 10 years (Perception Lighting Australian warranty) |
| SKU | APEX-180 |
| Model # | APEX-180 |
| Barcode # | 9359968000104 |
| Brand | Perception Lighting |
| Type | Driving Lights |
| Shipping Weight | 7.7800kg |
| Shipping Width | 0.390m |
| Shipping Height | 0.140m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.031122000m3 |
