Perception Lighting Apex Quad 5x7" LED Driving Lights Pair with DRL

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

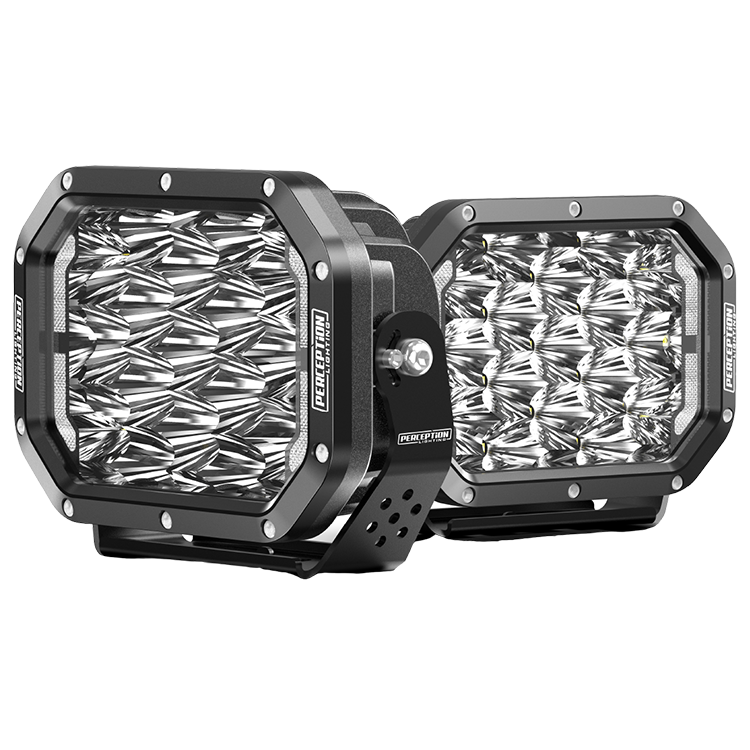

Perception Lighting Apex Quad

Square driving lights with DRL built in

The Apex Quad is a pair of compact 188 x 137 mm LED driving lights that do two jobs. At night, 17 genuine Osram LEDs per light and a precision-engineered driving reflector put 1 lux of light 977 m down the road. By day, built-in white daytime running lights make your vehicle easier for other road users to see.

Multi-volt 9-32 V input suits cars, 4WDs and trucks, and IP68 sealing keeps them working when submerged to 3 m.

19,000

lumens per pair

977 m

to 1 lux

9-32 V

cars and trucks

IP68

waterproof to 3 m

Performance driving lights

977 m of usable light

Each Apex Quad runs 17 genuine Osram high-output LEDs behind a precision-engineered driving reflector. The pair puts out 19,000 lumens, reaching 1 lux at 977 m and 0.25 lux at 1,954 m.

✓Reach: see roos, cattle and road signs early at highway speed
✓Colour: 5700K daylight white reduces eye fatigue on long night drives
✓Cool running: inbuilt thermal management protects the LEDs

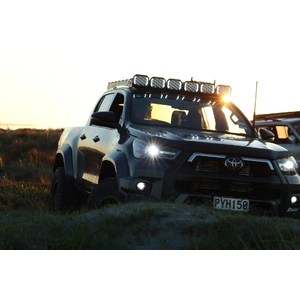

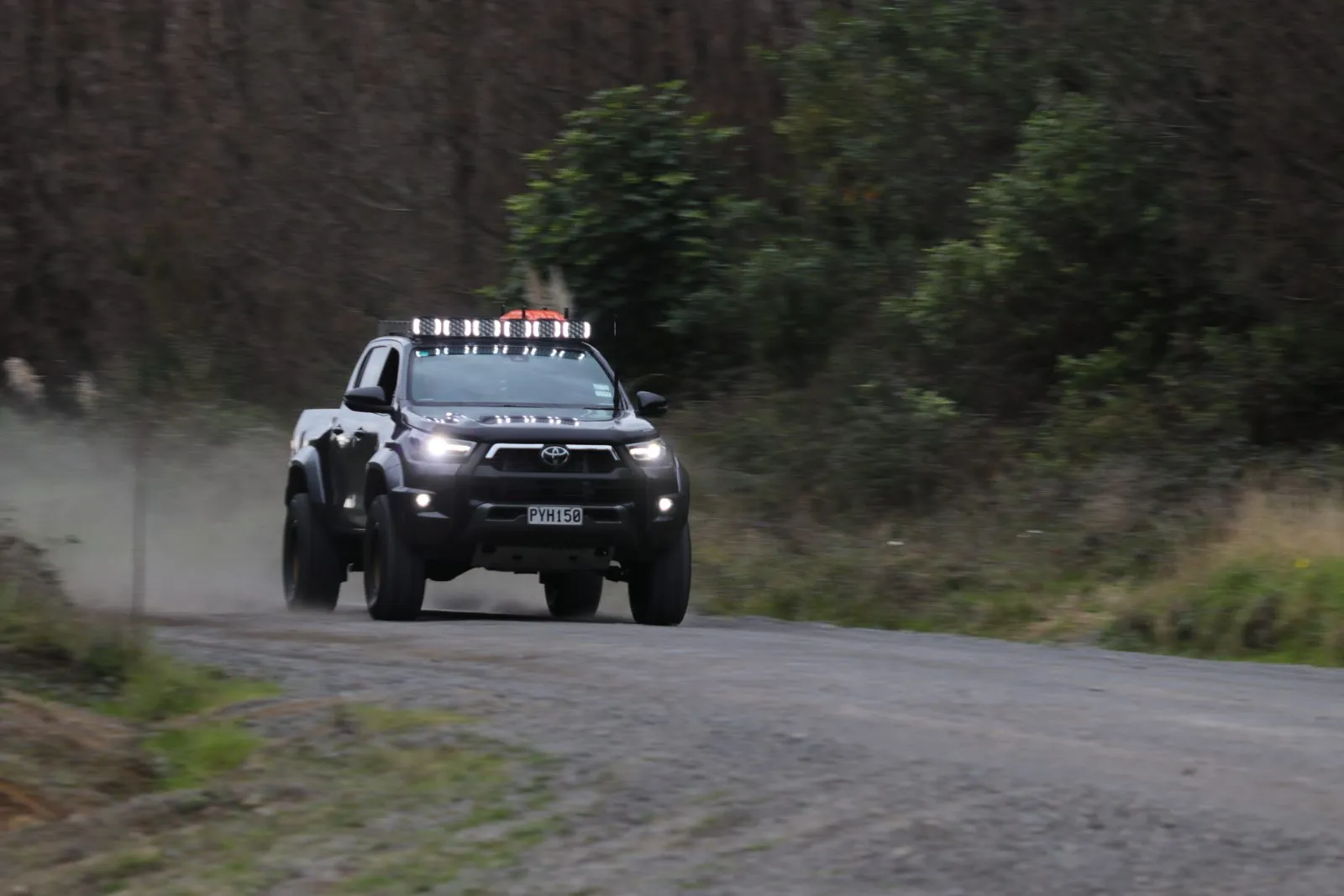

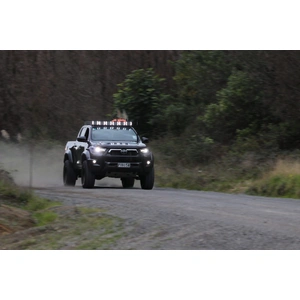

Toyota Hilux with Apex Quad driving lights on at dusk on a gravel road

Performance driving lights

977 m of usable light

Each Apex Quad runs 17 genuine Osram high-output LEDs behind a precision-engineered driving reflector. The pair puts out 19,000 lumens, reaching 1 lux at 977 m and 0.25 lux at 1,954 m.

✓Reach: see roos, cattle and road signs early at highway speed
✓Colour: 5700K daylight white reduces eye fatigue on long night drives
✓Cool running: inbuilt thermal management protects the LEDs

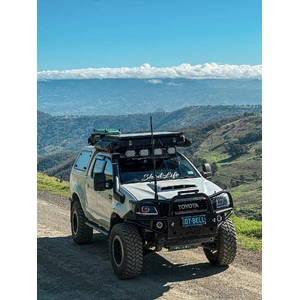

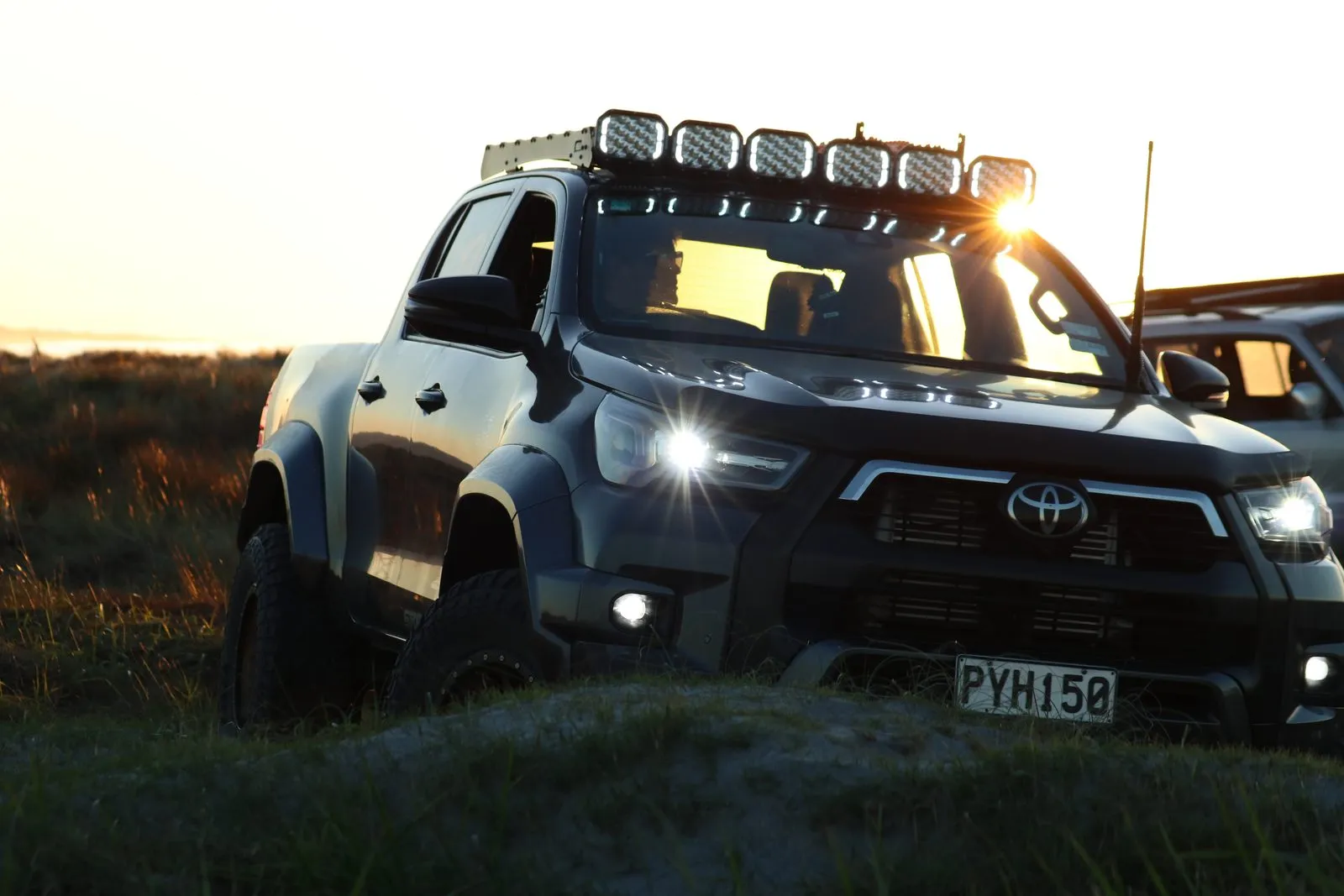

Six Apex Quad lights on a Hilux roof rack with their white DRL strips glowing

Daytime running lights

Be seen by day, see by night

White DRL strips on each side of the lens stay on while you drive. They are not bright enough to light the road, but they make your vehicle much easier for other drivers, riders and pedestrians to spot.

NRMA research found four out of five daytime intersection crashes involve one road user not seeing another in time, and overseas studies credit DRLs with preventing between 7% and 25% of fatal daytime crashes.

Built tough

Sealed for river crossings

IP68 sealing keeps out dust and water to a depth of 3 m, and a breather valve stops condensation forming inside the lens. Deutsch waterproof plugs keep the wiring sealed too.

✓Lens: polycarbonate that will not crack or shatter
✓Finish: heavy-duty powdercoat so the colour won’t fade
✓Mount: extra heavy-duty brackets with stainless hardware

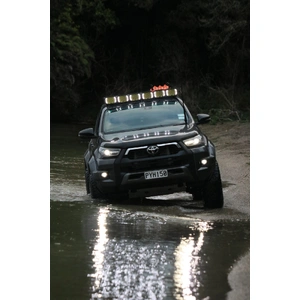

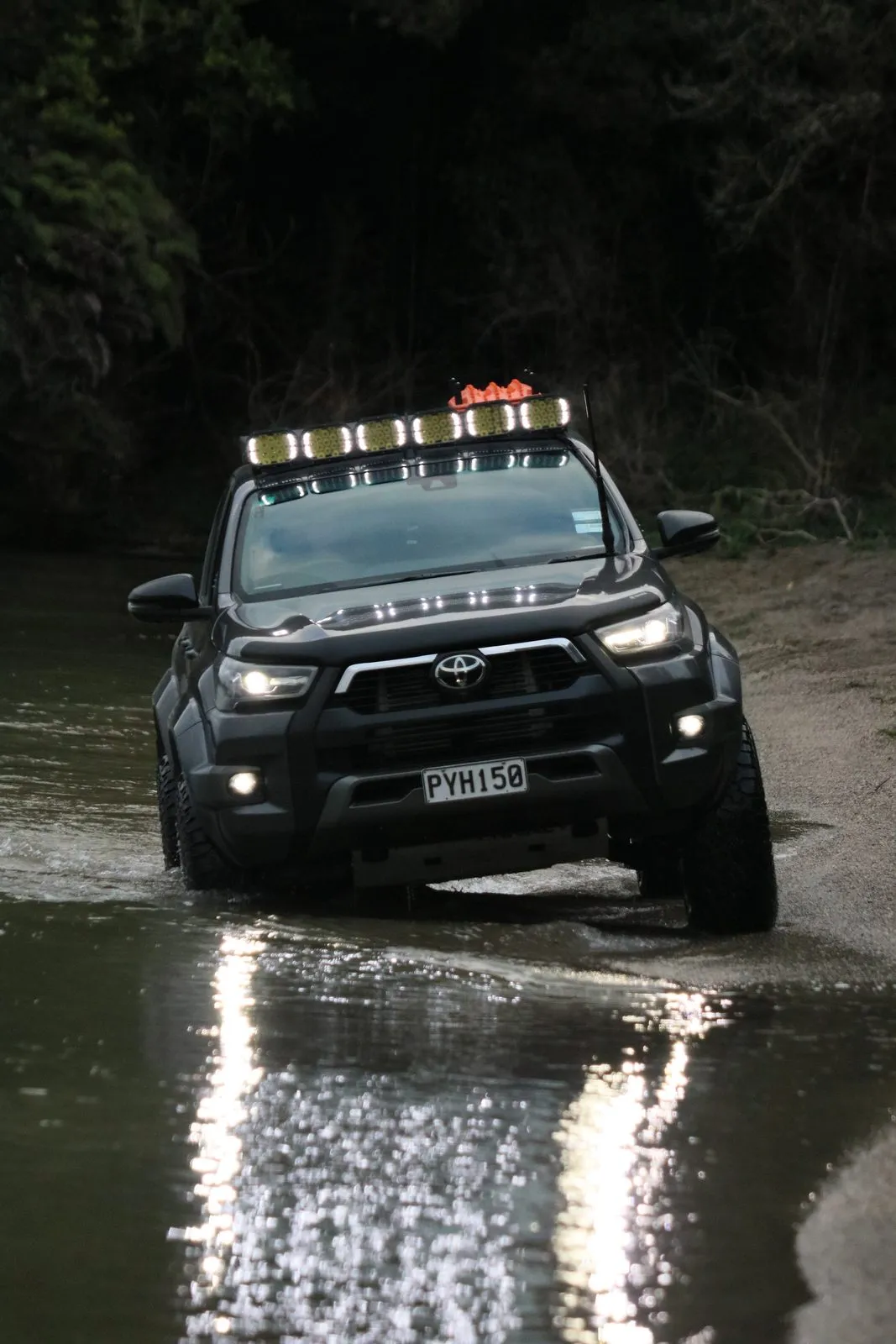

Hilux with Apex Quad lights driving through a river crossing

Built tough

Sealed for river crossings

IP68 sealing keeps out dust and water to a depth of 3 m, and a breather valve stops condensation forming inside the lens. Deutsch waterproof plugs keep the wiring sealed too.

✓Lens: polycarbonate that will not crack or shatter
✓Finish: heavy-duty powdercoat so the colour won’t fade
✓Mount: extra heavy-duty brackets with stainless hardware

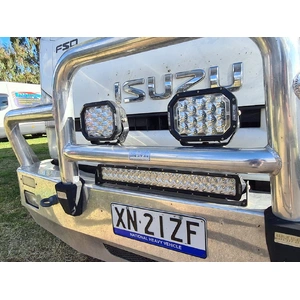

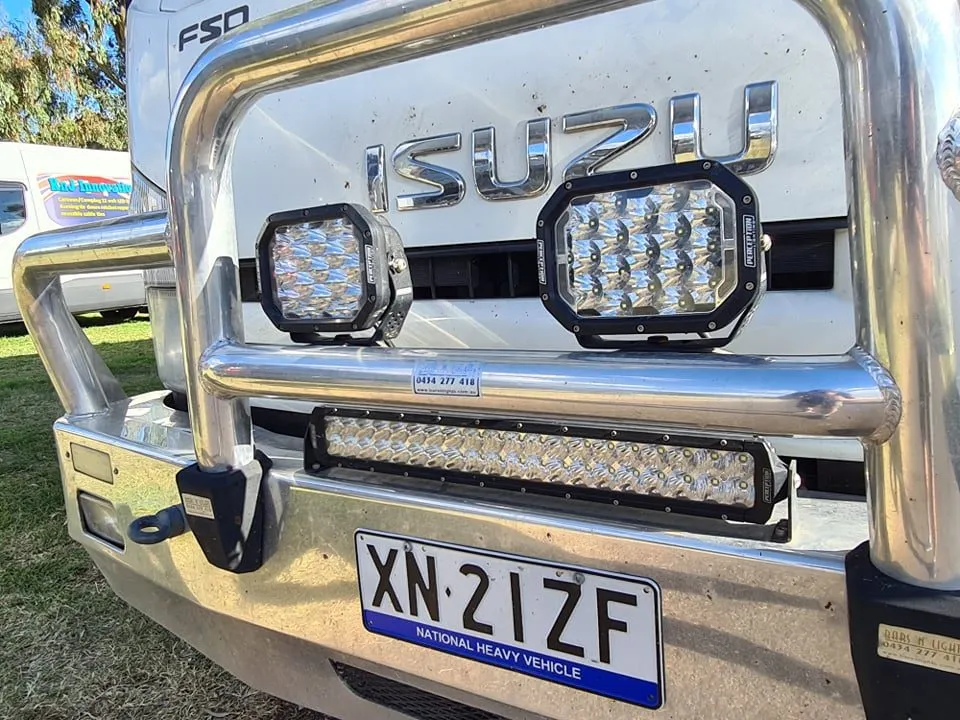

Pair of Apex Quad driving lights on the bull bar of an Isuzu truck

Fits where you need it

Roof racks, bull bars and trucks

At 188 mm wide and 69 mm deep, the Apex Quad fits where a big round light won’t: in a row across a roof rack, between the uprights of a bull bar, or above a light bar.

✓12 V or 24 V: 9-32 V DC input suits utes, 4WDs and trucks
✓Stack them: run two on the bar or four to six across the roof
✓Adjustable: tilt the brackets to aim the beam

Size

Check the fit

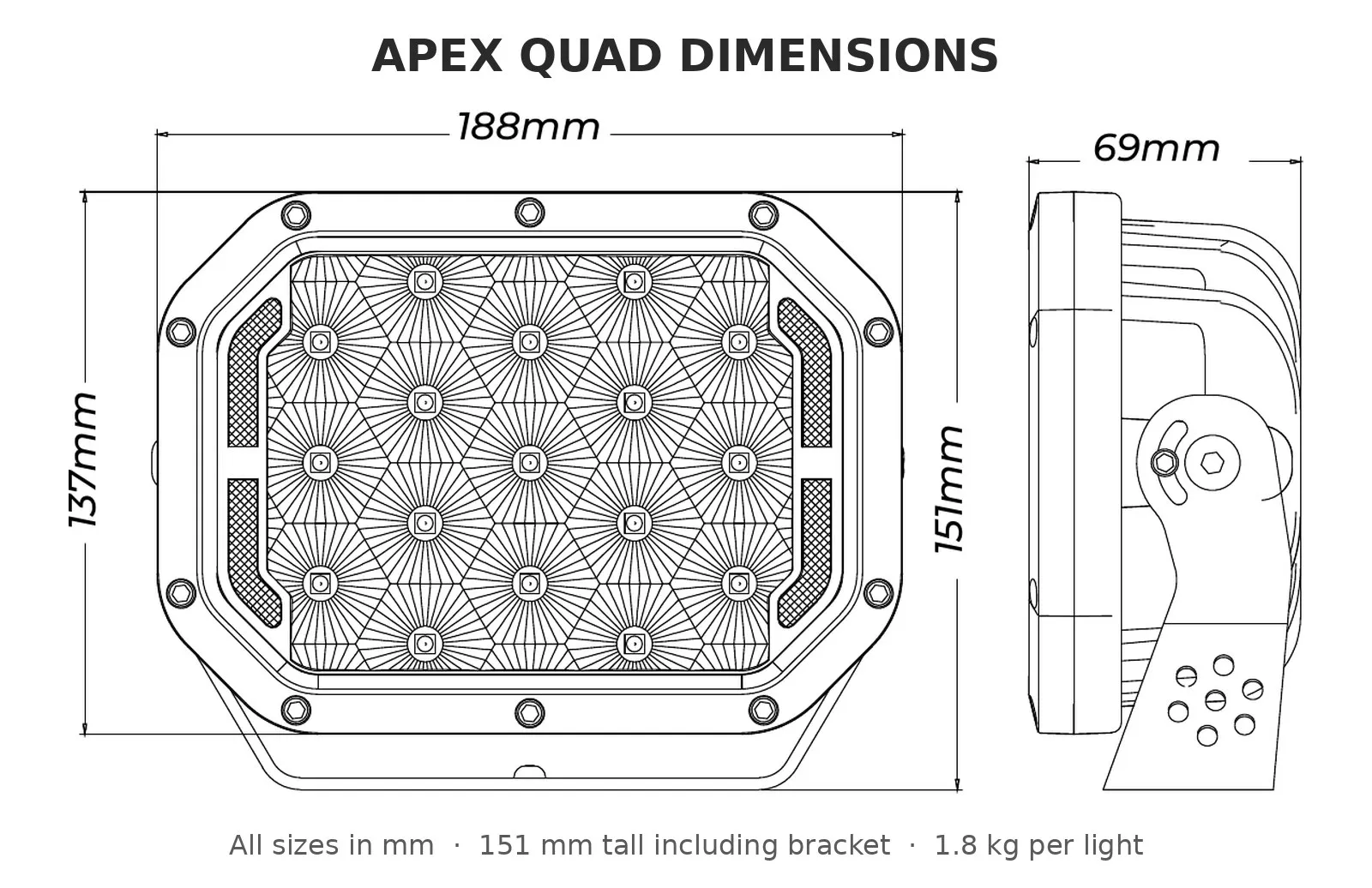

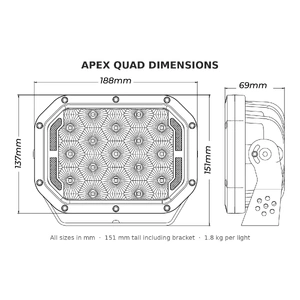

Each light measures 188 mm wide, 137 mm tall and 69 mm deep. With the bracket fitted it stands 151 mm tall. Each light weighs 1.8 kg.

Measure the space on your bar or rack before you order, leaving room to reach the bracket bolts.

Apex Quad dimensions: 188 mm wide, 137 mm tall, 151 mm with bracket, 69 mm deep

Size

Check the fit

Each light measures 188 mm wide, 137 mm tall and 69 mm deep. With the bracket fitted it stands 151 mm tall. Each light weighs 1.8 kg.

Measure the space on your bar or rack before you order, leaving room to reach the bracket bolts.

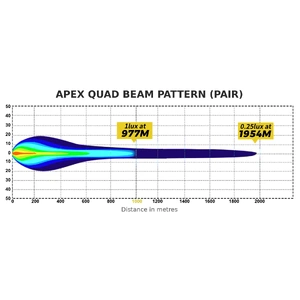

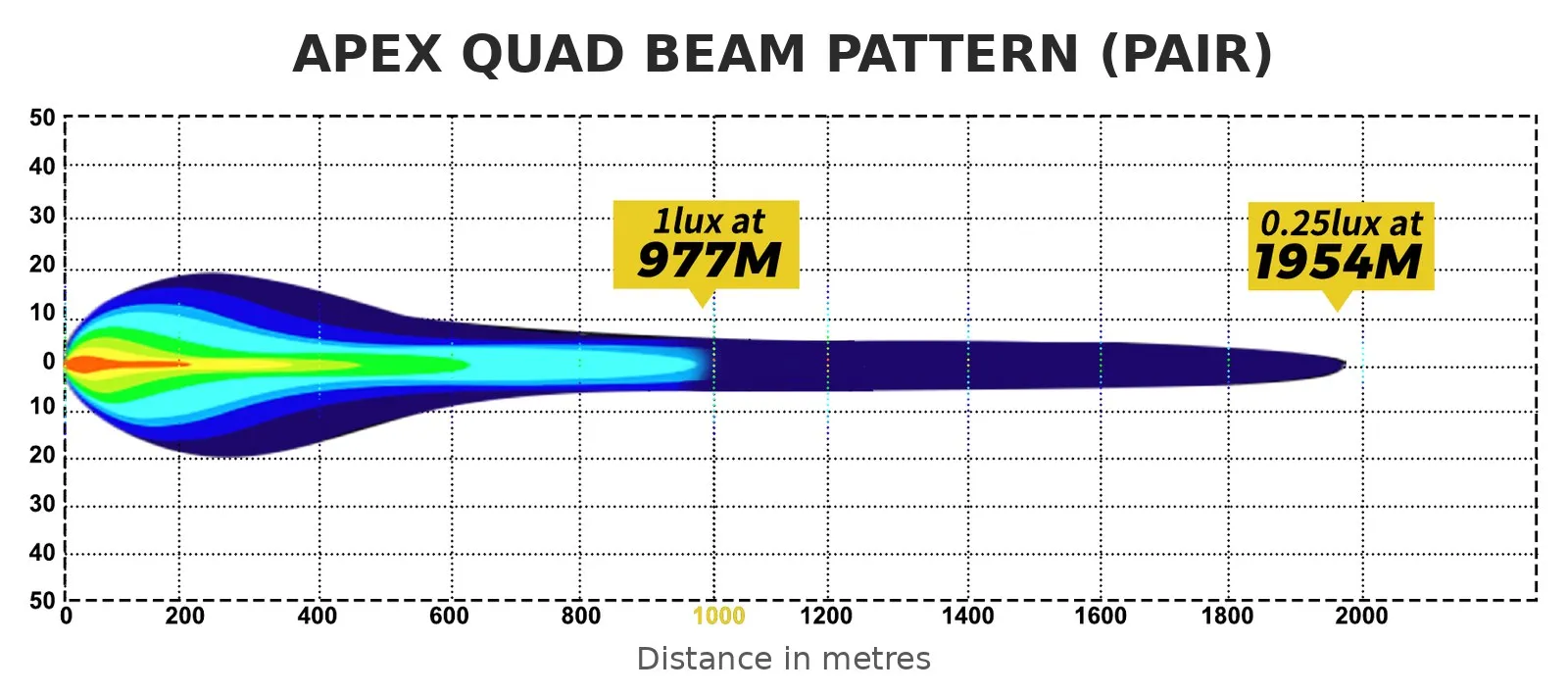

Apex Quad lux diagram: 1 lux at 977 m and 0.25 lux at 1954 m

Beam pattern

Long reach with useful spread

The lux diagram shows the pair’s driving beam: wide light close to the vehicle for bends and verges, narrowing into a long beam that still reaches 0.25 lux at 1,954 m.

For more spread, pair the Apex Quad with a light bar or the wide-beam Apex 180.

Frequently asked questions

Is the Apex Quad sold as a pair?

Yes. You get two lights, two heavy-duty brackets, stainless mounting hardware and two sets of Deutsch plugs.

Will it run on 24 V?

Yes. The 9-32 V DC input suits 12 V and 24 V vehicles, including trucks.

Can I wire the DRLs separately?

The DRL is built into each light. For wiring advice for your vehicle, please contact our team.

Do I need a wiring harness?

Yes, a driving light harness with a relay and switch is needed and is sold separately.

Will they fog up inside?

A breather valve in each light equalises pressure to stop condensation forming behind the lens.

Which Apex should I choose?

For the longest reach, the round Apex 7" and 8.5" use a spot reflector. For the widest light on tight tracks, the Apex 180 spreads its beam across 180°. For a compact square light with daytime running lights, choose the Apex Quad. Also in the range: the Apex 7" (185 mm, 1,480 m), the Apex 8.5" (220 mm, 1,786 m) and the Apex 180 (215 mm, 180° spread).

What warranty do they have?

5 years, backed by Perception Lighting in Australia. If you ever have a problem, please contact our team.

Do you supply fleet or bulk orders?

Yes. Please contact our team for a quote.

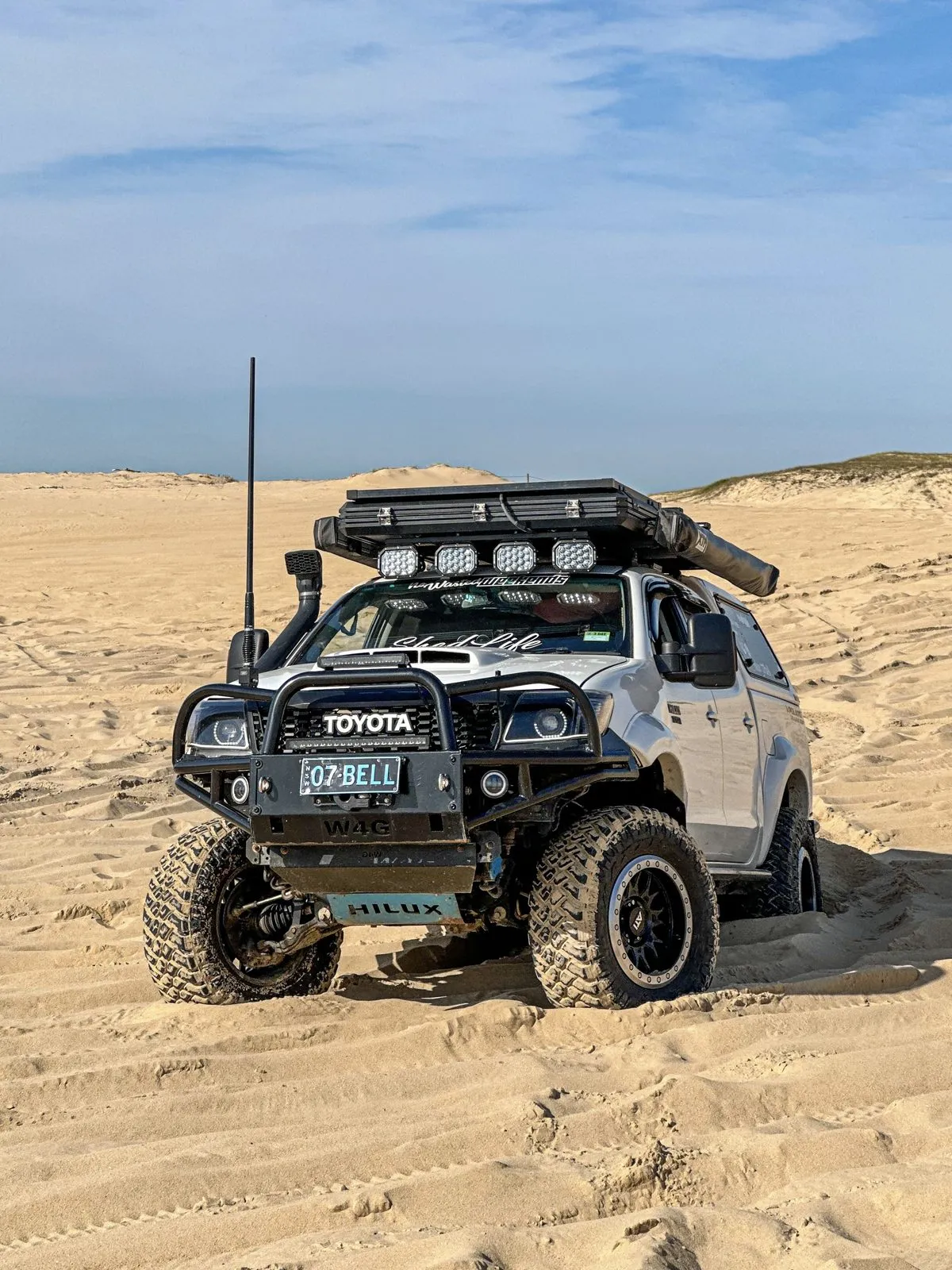

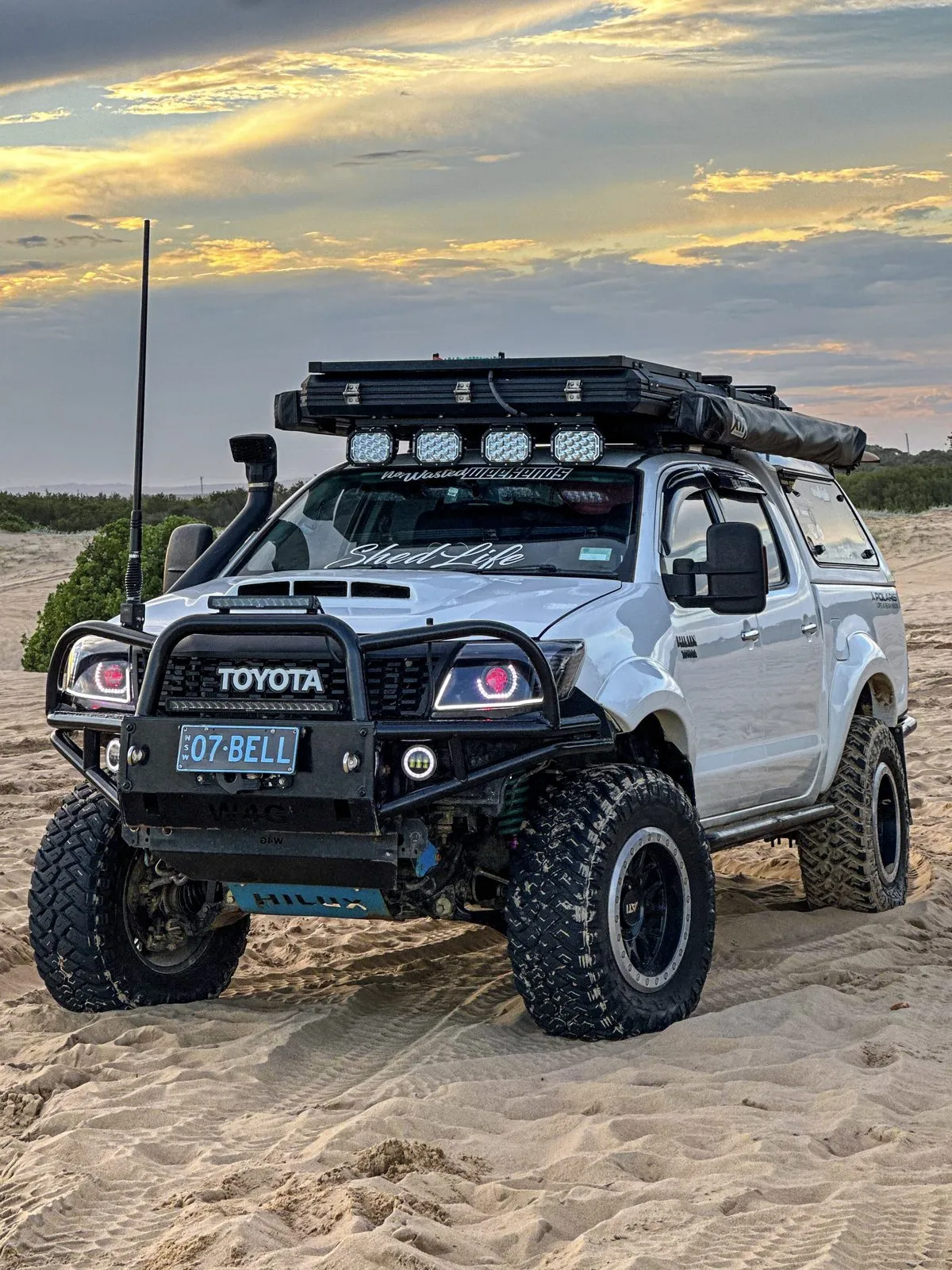

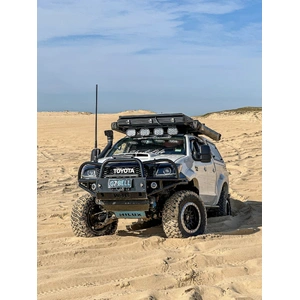

Hilux on a sand dune with four Apex Quad lights under the roof rack
