Uniden ATX970XSM Heavy Duty Fibreglass Raydome Low Profile UHF Antenna | Matt Black | 3.0 dBi
Buy Now, Pay Later.
DETAILS
Overview

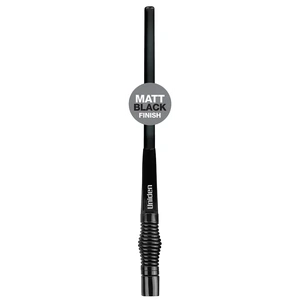

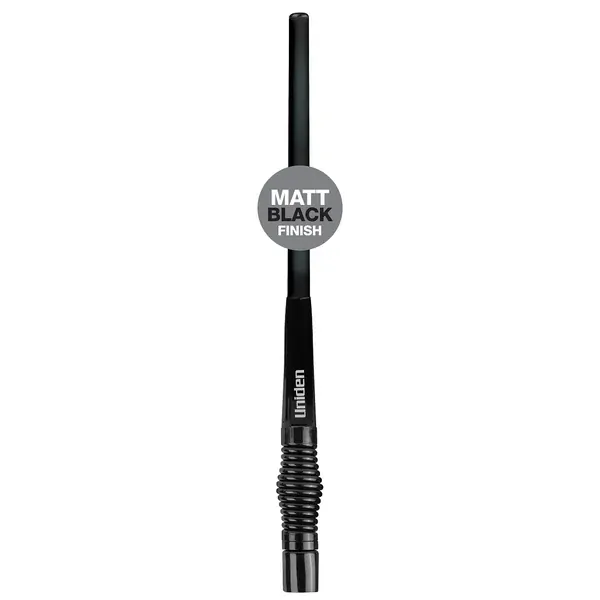

Low profile antenna in matt black
A low profile fibreglass radome UHF antenna, 560mm tall when mounted, finished in matt black. It has 3.0 dBi gain and a heavy duty stainless steel spring.
It's ground independent and comes with 4.5m of low loss coax, an FME female connector and a PL259 adaptor. The 44-55-44mm barrel spring uses an 8mm thread. Prefer a gloss look? Try the gloss black ATX970XS.
3.0 dBiGain
560mmMounted Height
4.5mLow Loss Coax
MattBlack Finish
Low profile
Only 560mm on the vehicle
At 560mm mounted it's the shortest heavy duty radome antenna we stock from Uniden. It sits neatly on a bull bar or bracket and is easier to live with in garages and car parks.
- ✓560mm mounted height
- ✓3.0 dBi gain
- ✓Ground independent
Finish
Matt black cuts the glare
The matt black non-glare finish keeps reflections down on the bonnet line and suits blacked-out bars and accessories. Underneath it's the same heavy duty build as the gloss black ATX970XS.
- ✓Matt Black finish
- ✓Fibreglass radome
- ✓Stainless steel spring
Fitting
Heavy duty spring, simple hook-up
A 44-55-44mm barrel style stainless steel spring with an 8mm thread takes the knocks of rough tracks. It's ground independent, and the 4.5m low loss coax ends in an FME female connector with a PL259 adaptor supplied.
- ✓44-55-44mm barrel spring
- ✓4.5m low loss coax
- ✓FME female plus PL259 adaptor
Goes well with
Complete your setup
Uniden MGU-01 Glossy Boot Z Antenna Mount Bracket with Cable Slot
Stainless Z bracket for antennas up to 800mm long, fitted in the guard channel under the bonnet.
Uniden XTRAK 80 Smart UHF CB Radio | 5W | OLED Display
Uniden in-car UHF CB radio to run with the antenna.
Uniden X80 Compact UHF CB Mobile Radio | 5W | Dual/Triple Watch
Compact Uniden UHF CB mobile with dual and triple watch.
Frequently asked questions
How tall is it?
It stands 560mm high when mounted.
Does it need a ground plane?
No. It's ground independent.
What connector does it have?
The 4.5m low loss coax is terminated with an FME female connector, and a PL259 adaptor is supplied.
Will it fit a Z bracket?
The Uniden MGU-01 Z bracket takes antennas up to 800mm long, so the 560mm ATX970XSM is within that length.
What's the difference between the ATX970XSM and the ATX970XS?
Only the finish. The ATX970XSM is matt black; the ATX970XS is gloss black.
Features
- ✓Low profile fibreglass radome UHF antenna
- ✓560mm mounted height
- ✓Matt black finish, cuts glare
- ✓Heavy duty stainless steel spring, 44-55-44mm barrel
- ✓ABS ferrule, 8mm thread
- ✓Ground independent with 3.0 dBi gain
- ✓4.5m low loss coax with FME female connector and PL259 adaptor
Specifications
| Type | Low profile fibreglass radome UHF antenna |
| Gain | 3.0 dBi |
| Ground plane | Ground independent |
| Mounted height | 560mm |
| Spring | Stainless steel, 44-55-44mm barrel style |
| Thread | 8mm |
| Ferrule | ABS |
| Coax cable | 4.5m low loss |
| Connector | FME female, PL259 adaptor supplied |
| Colour | Matt Black |
| Brand | Uniden |
What's Included
- 1 x ATX970XSM antenna
Product Details
| SKU | ATX970XSM |
| Model # | ATX970XSM |
| Barcode # | 9322402017730 |
| Brand | Uniden |
