Overview

UHF CB and antenna for touring

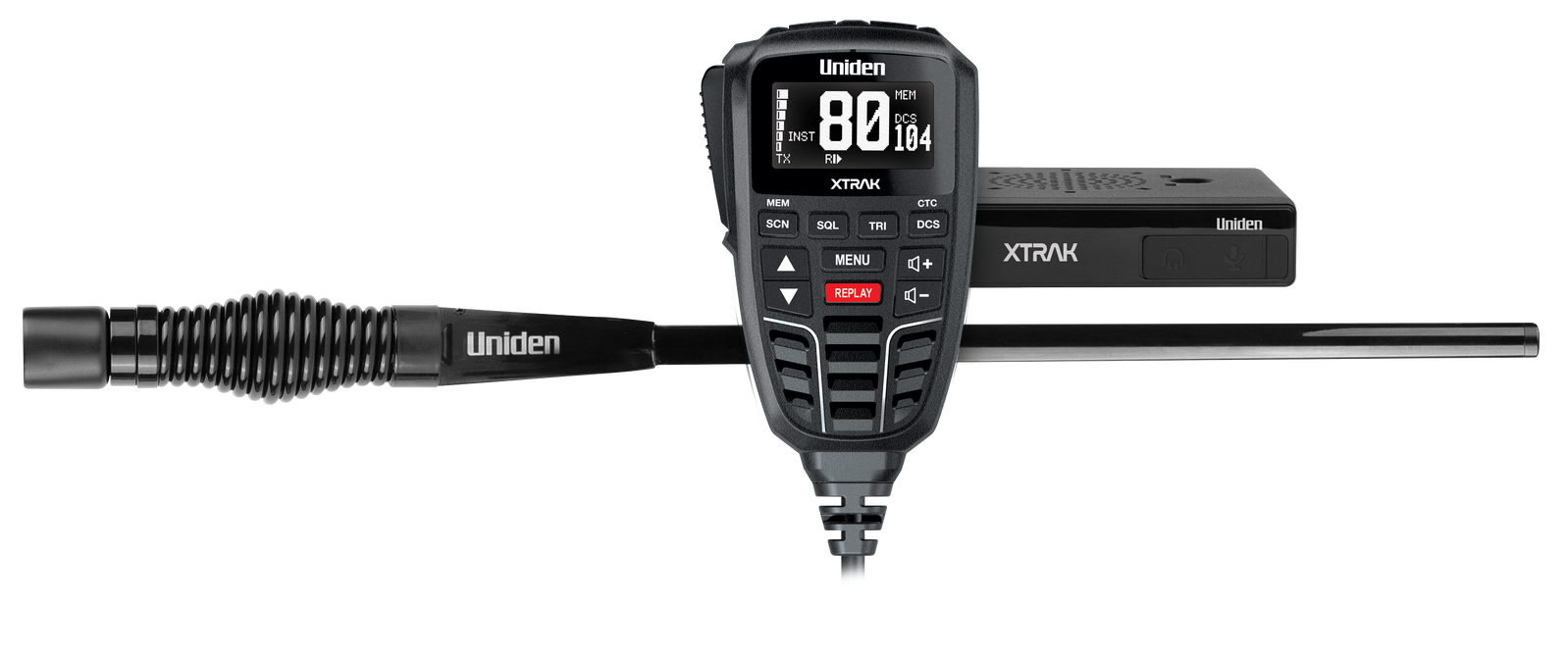

The XTRAK 80 in-vehicle UHF CB with an ATX890S 3.0 dBi heavy duty antenna. One pack gets your 4WD on air for the next trip.

The OLED display and controls sit on the remote speaker mic, so the compact base unit can tuck out of sight. The ATX890S is a ground independent fibreglass radome with a stainless steel spring and 612mm mounted height. Want Bluetooth location sharing? Look at the XTRAK 80 Pro 4X4 Pack.

Uniden XTRAK 80 Adventure Pack | Smart UHF CB Radio | OLED Display | ATX890S Antenna
80UHF Channels
5WTransmit Power
6 minInstant Replay
3.0 dBiATX890S Antenna

In the cab

The whole radio sits in your hand

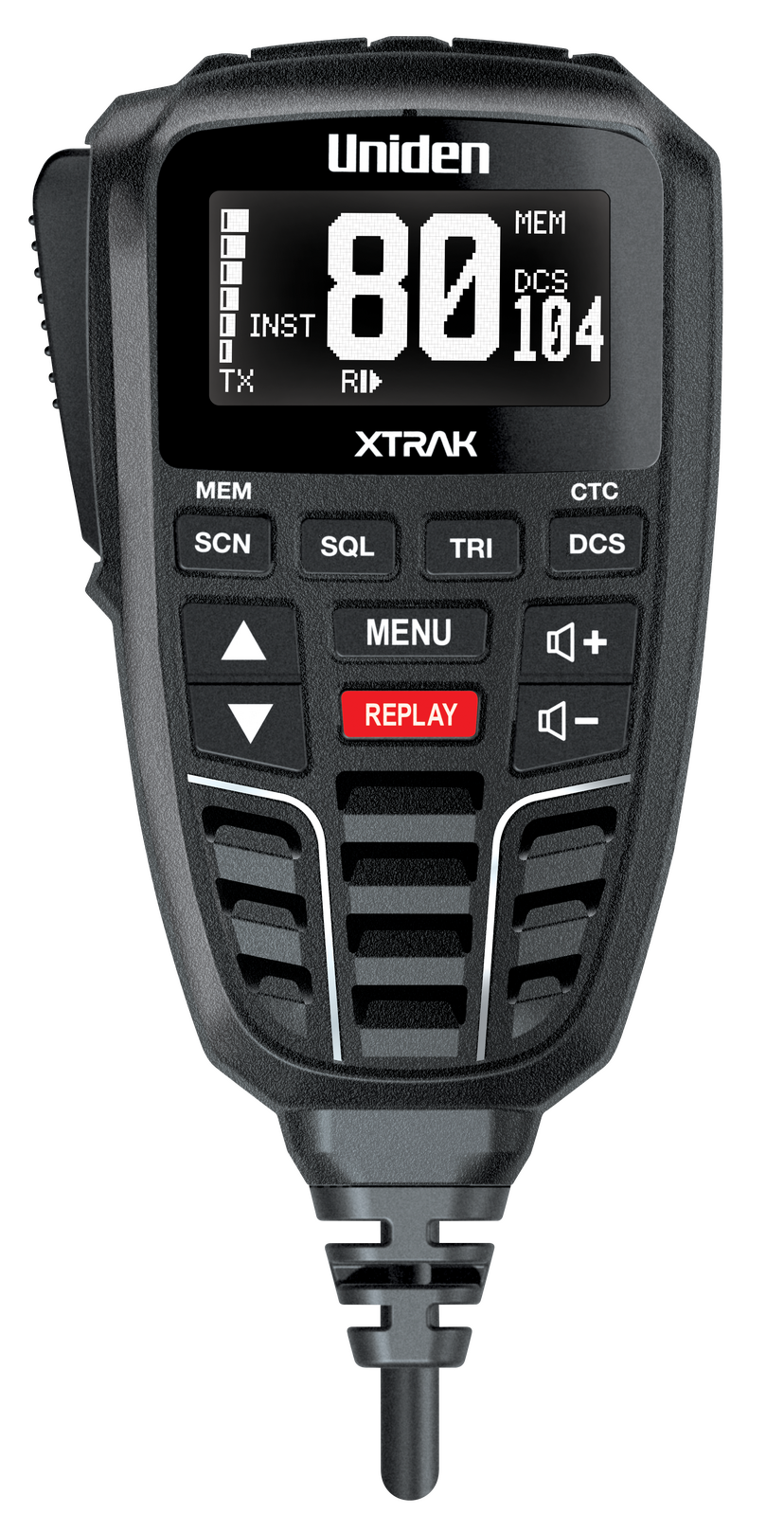

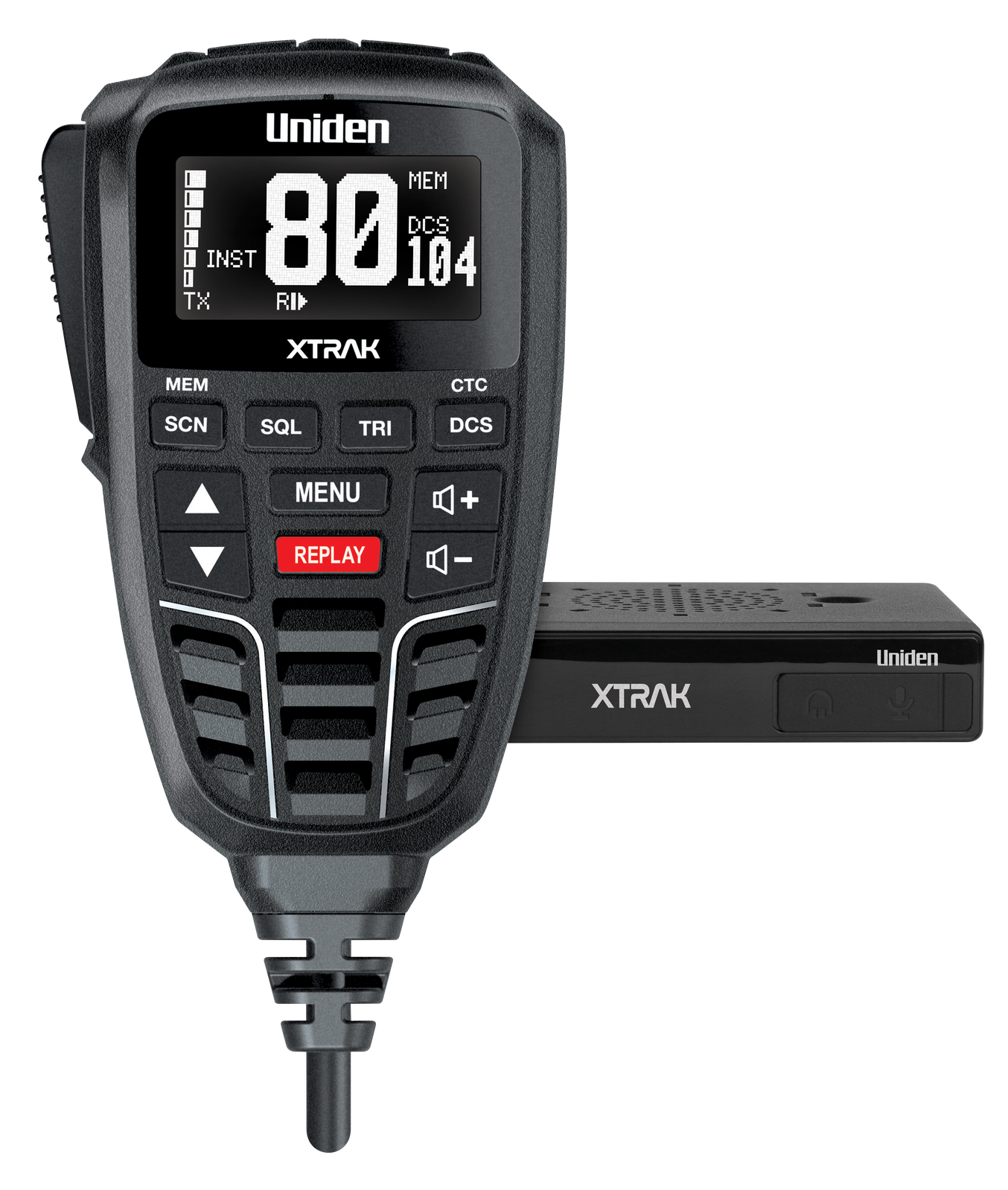

The XTRAK 80 puts the screen and controls on the remote speaker mic, so the compact base unit can hide under a seat or behind the dash. The large anti-glare OLED display has a dimmer for night driving, and the 2W speaker in the mic keeps voices clear over road noise.

  • ✓Anti-glare OLED display with dimmer
  • ✓2W speaker in the mic
  • ✓Base unit only 24.8mm high

Uniden XTRAK 80 Adventure Pack | Smart UHF CB Radio | OLED Display | ATX890S Antenna

Antenna included

Uniden XTRAK 80 Adventure Pack | Smart UHF CB Radio | OLED Display | ATX890S Antenna

ATX890S heavy duty antenna

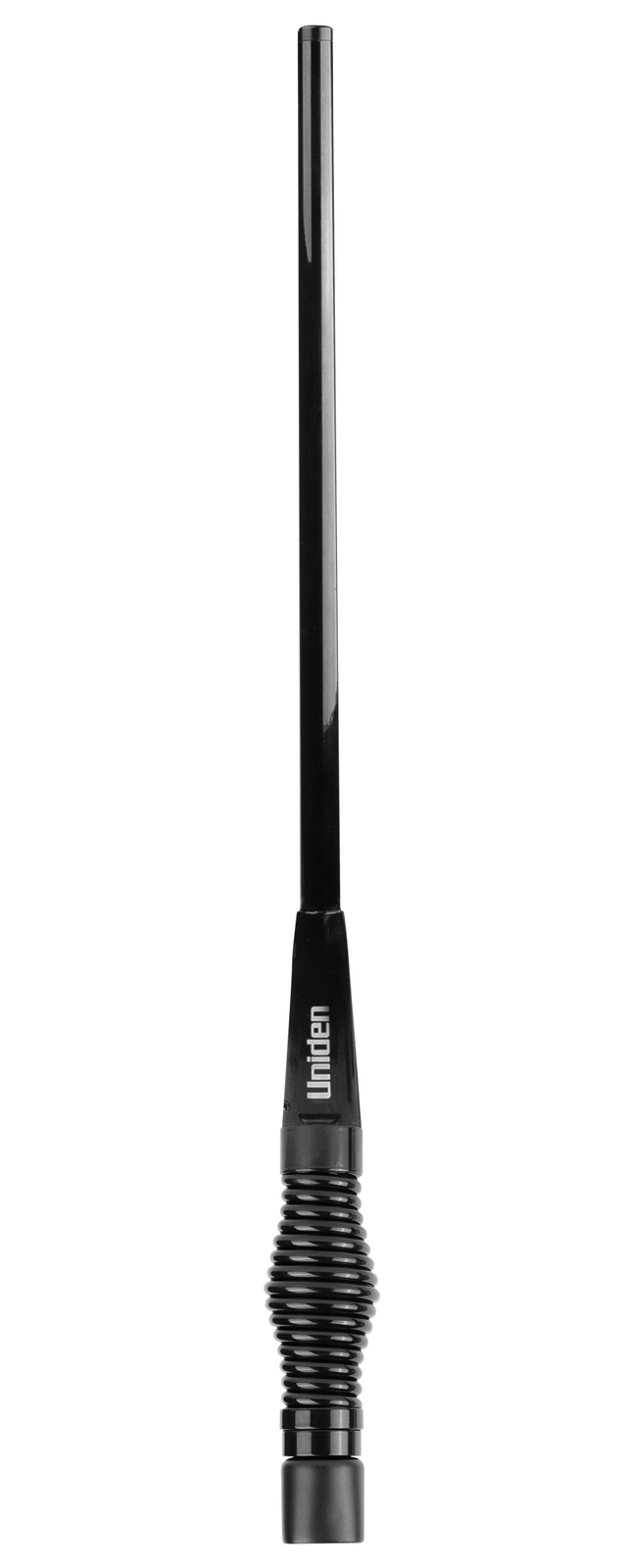

The ATX890S is a 3.0 dBi ground independent fibreglass radome antenna with a heavy duty barrel style stainless steel spring, built for heavy use and off road conditions. At 612mm mounted it sits lower than a long whip. It comes with 4.5m of low loss coax and an FME connector with PL259 adaptor.

  • ✓3.0 dBi, 612mm mounted height
  • ✓Stainless steel spring, 6mm thread
  • ✓4.5m coax with PL259 adaptor

Instant Replay

Missed a call? Play it back

The radio records what it receives, in normal channel mode and while scanning. Press the red REPLAY key to hear the last message again, and skip back through up to 6 minutes of recent transmissions. Three Smart Keys give one-touch access to instant channels, Triple Watch, squelch, call tone, monitor or the equaliser.

  • ✓Up to 6 minutes of replay
  • ✓Records while scanning
  • ✓3 programmable Smart Keys

Uniden XTRAK 80 Adventure Pack | Smart UHF CB Radio | OLED Display | ATX890S Antenna

Goes well with

Uniden XTRAK 50 Smart UHF Waterproof Handheld Radio

Complete your setup

Uniden XTRAK50 XTRAK 50 Smart UHF Waterproof Handheld Radio | 5W | OLED Display
Uniden XTRAK50 XTRAK 50 Smart UHF Waterproof Handheld Radio | 5W | OLED Display

5W waterproof handheld with the same OLED display and Instant Replay, for use away from the vehicle.

View product

Uniden MBU-05BK Heavy Duty Folding Antenna Mount Bracket | Black
Uniden MBU-05BK Heavy Duty Folding Antenna Mount Bracket | Black

Heavy duty folding bracket to mount your UHF antenna on the vehicle.

View product

Frequently asked questions

Do I need a ground plane for the antenna?

No. The ATX890S is ground independent, so it works on a bull bar or bracket mount without a metal ground plane. It comes with 4.5m of coax already fitted with an FME connector and PL259 adaptor.

Do I need a licence to use it?

UHF CB in Australia is covered by the ACMA Citizen Band Radio Stations Class Licence, and you must follow the conditions in that licence. Uniden notes the radio must only be used in the country of purchase.

Can I talk on all 80 channels?

Most of them. Channels 22 and 23 are for data only, so voice transmission is blocked, and channels 61, 62 and 63 are reserved for future use and are receive only. Channels 5 and 35 are emergency channels.

Will it work in my truck?

Yes. It runs on 12V or 24V DC and accepts 10.2V to 28.8V, so it suits cars, 4WDs, caravans and trucks. It alerts you if the supply goes too high or too low.

What's the difference between the XTRAK 80 and XTRAK 80 Pro?

They share the same radio features. The Pro adds Bluetooth: the XTRAK Pro App for location sharing, settings and text messages, and Bluetooth audio to compatible headsets and vehicle speakers.

Uniden XTRAK 80 Adventure Pack | Smart UHF CB Radio | OLED Display | ATX890S Antenna

Features

  • ✓XTRAK 80 in-vehicle UHF CB, 80 channels, 5W
  • ✓ATX890S 3.0 dBi heavy duty radome antenna, 612mm mounted
  • ✓Large anti-glare OLED display with dimmer on the mic
  • ✓Instant Replay of up to 6 minutes of received calls
  • ✓Master Scan, Triple Watch and 3 programmable Smart Keys
  • ✓Magnetic mic mount, 12V or 24V power

Specifications

Channels 80 UHF CB, narrowband
Channel notes CH 22 and 23 data only (voice TX inhibited); CH 61 to 63 reserved, receive only
Transmit power 5W maximum
Display Anti-glare OLED with dimmer
Speaker 2W in the remote speaker microphone
Instant Replay Up to 6 minutes of received transmissions
Smart keys 3 programmable
Scan Open and Group Scan with Priority Channel Watch, Triple Watch, Master Scan
Squelch 10 level
Quiet codes 50 CTCSS and 104 DCS
Extra receive channels 100 user programmable, 400 to 520MHz in 12.5kHz steps
Selcall Yes, with Alpha Tag
Voice scramble Yes
External speaker jack Yes
Power 12V or 24V DC (10.2V to 28.8V)
Mic extension cable 2m
Base unit size 126.5mm W x 99.8mm D x 24.8mm H
Antenna ATX890S heavy duty radome, black
Antenna gain 3.0 dBi, ground independent, 477MHz
Antenna height 612mm mounted, 504mm whip
Antenna spring Stainless steel, 30-45-30mm barrel, 6mm thread, aluminium ferrule
Antenna cable 4.5m low loss coax, FME female with PL259 adaptor
Antenna extras Locking key and weather cap
Designed in Japan
Warranty 5 years radio, 1 year included accessories
Brand Uniden

What's Included

  • 1 x XTRAK 80 base unit
  • 1 x XTRAK 80 remote speaker microphone
  • 1 x ATX890S 3.0 dBi antenna
  • 1 x quick release bracket kit
  • 1 x gimbal mounting bracket
  • 1 x magnetic mic mount
  • 1 x 2m mic extension cable
  • 1 x DC power lead with fuse
