BLUETTI PV60F 60W Foldable Solar Panel

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

BLUETTI PV60F

60W of solar that weighs 1.4 kg

The PV60F is BLUETTI’s small folding panel for hikes, day trips and light camping. It folds to 226 x 210 x 70 mm, about the size of a laptop, and weighs 1.4 kg.

Monocrystalline cells with up to 24.7% efficiency sit under a durable ETFE surface, and it’s IP65 splash resistant. A hanging strap and two carabiners let you hang it off a pack, tent or awning.

Three outputs on the junction box charge gear direct from the sun: a 60W DC5521 port, 30W USB-C and 18W USB-A. The included DC5521 to XT60 cable plugs it into a small power station.

60W

Rated power

24.7%

Cell efficiency

1.4 kg

Weight

Outputs: DC, USB-C, USB-A

IP65

Splash resistant

Why buy BLUETTI from us

Your local BLUETTI specialists

Get your panel and power station working together from day one, with advice from a local team.

✓A real shop in Sydney

We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.

✓Talk to a real person in Australia

Call or message our Sydney team (details on our contact page). You’ll speak to someone local who knows BLUETTI, not an overseas call centre.

✓Shipped Australia-wide

We send BLUETTI orders to every state and territory, from the city to the bush.

✓Matched to your power station

We’ll check the BLUETTI PV60F suits your power station’s solar input (voltage, watts and plugs) before you buy.

✓Local support after you buy

Questions about setting it up, charging or getting the most from your BLUETTI? Our team here in Australia is happy to help.

✓The whole setup in one place

We stock the BLUETTI power stations, panels, chargers, cables and mounting trays that work together, so you can get everything from one store.

Ask us a questionMake us your first stop for BLUETTI.

Charge direct from the sun

Three outputs on the panel

No power station needed for small gear. The junction box has its own outputs, so you can charge a phone, camera or drone battery straight off the panel.

✓DC5521: 60W max, for a power station via the included XT60 cable
✓USB-C: 30W max
✓USB-A: 18W max

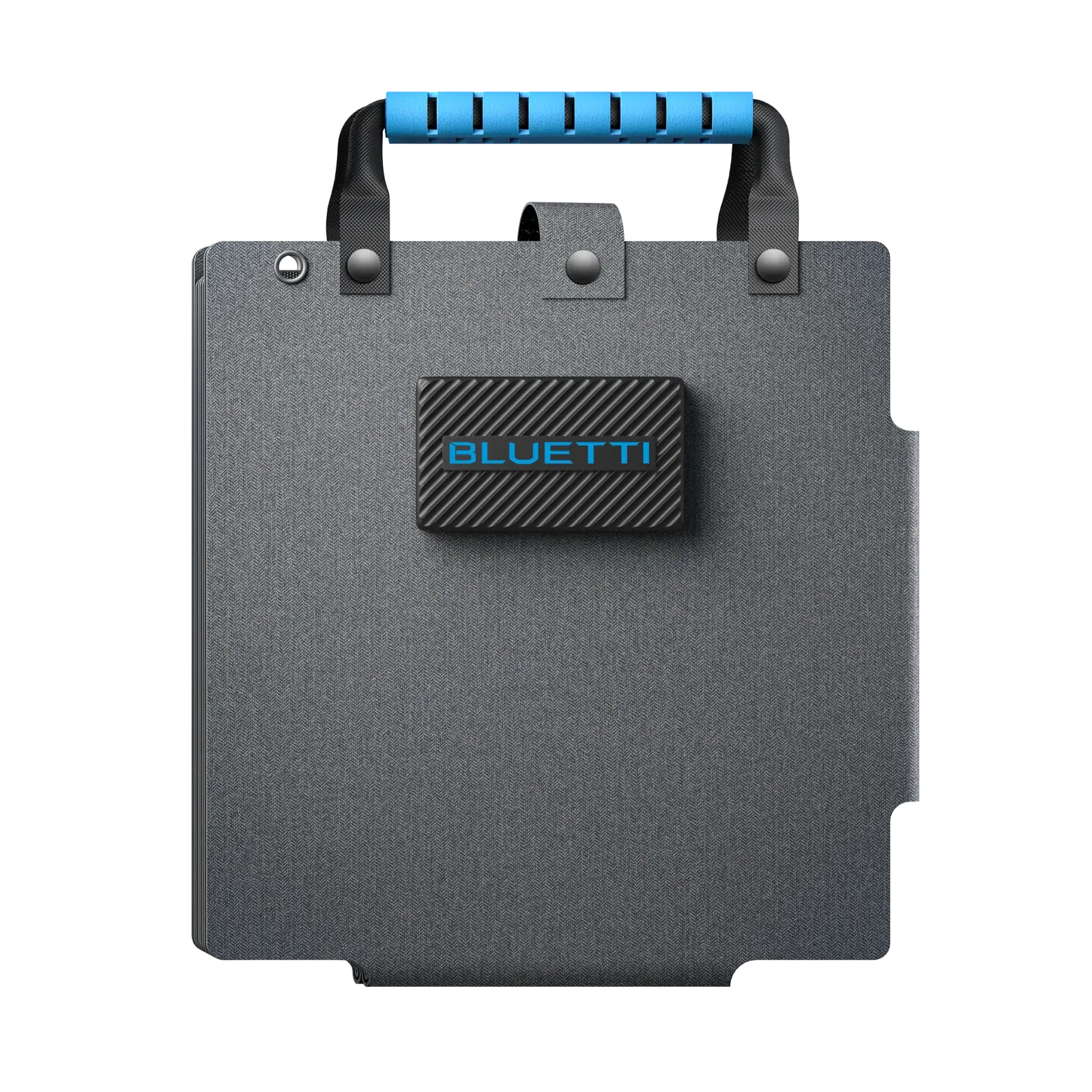

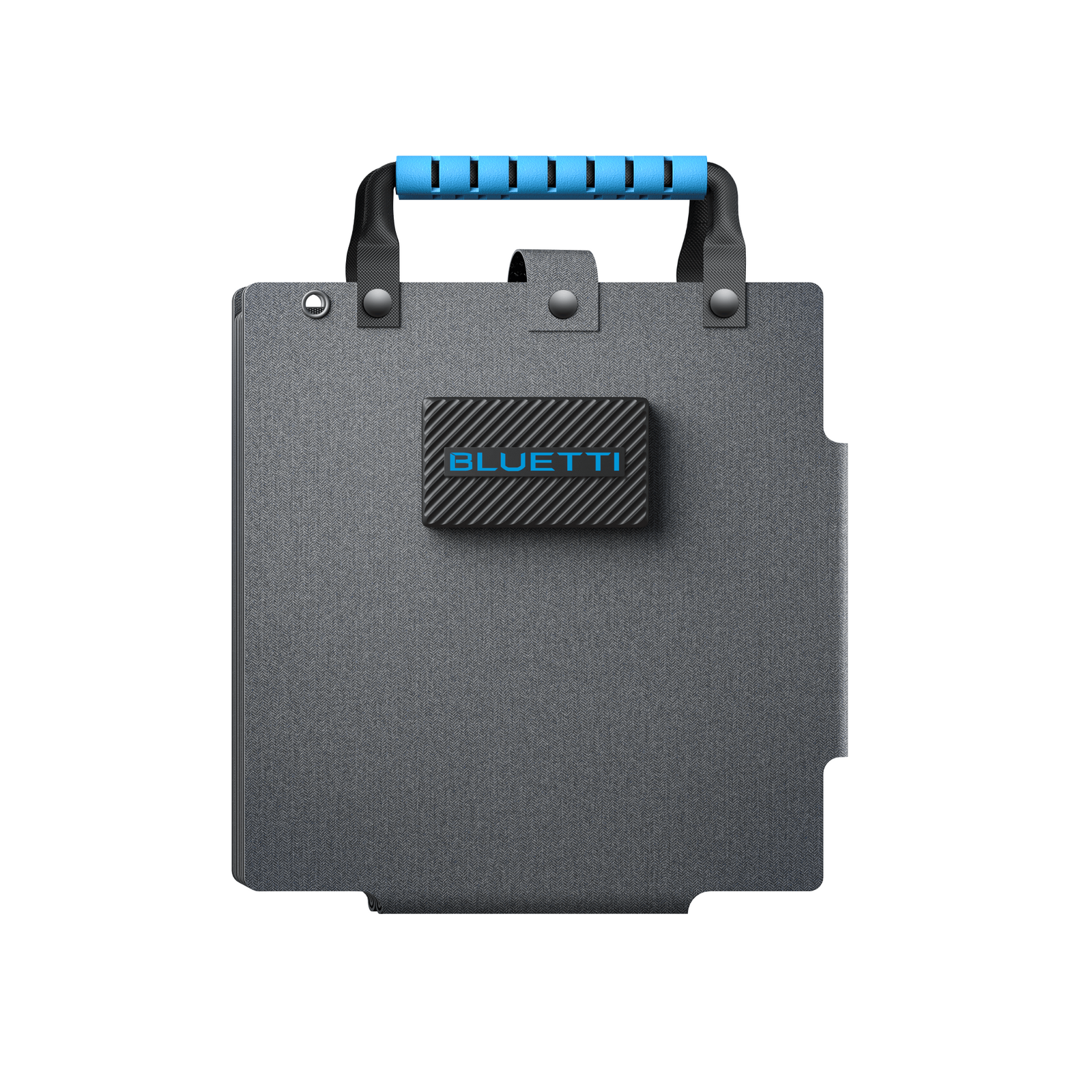

BLUETTI PV60F junction box with DC5521 60W, USB-C 30W and USB-A 18W outputs

Charge direct from the sun

Three outputs on the panel

No power station needed for small gear. The junction box has its own outputs, so you can charge a phone, camera or drone battery straight off the panel.

✓DC5521: 60W max, for a power station via the included XT60 cable
✓USB-C: 30W max
✓USB-A: 18W max

Hiker carrying the BLUETTI PV60F 60W solar panel on a backpack

Light enough for the pack

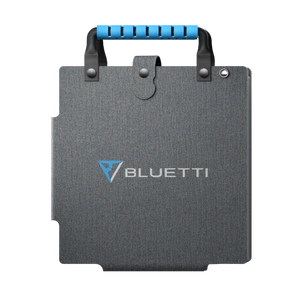

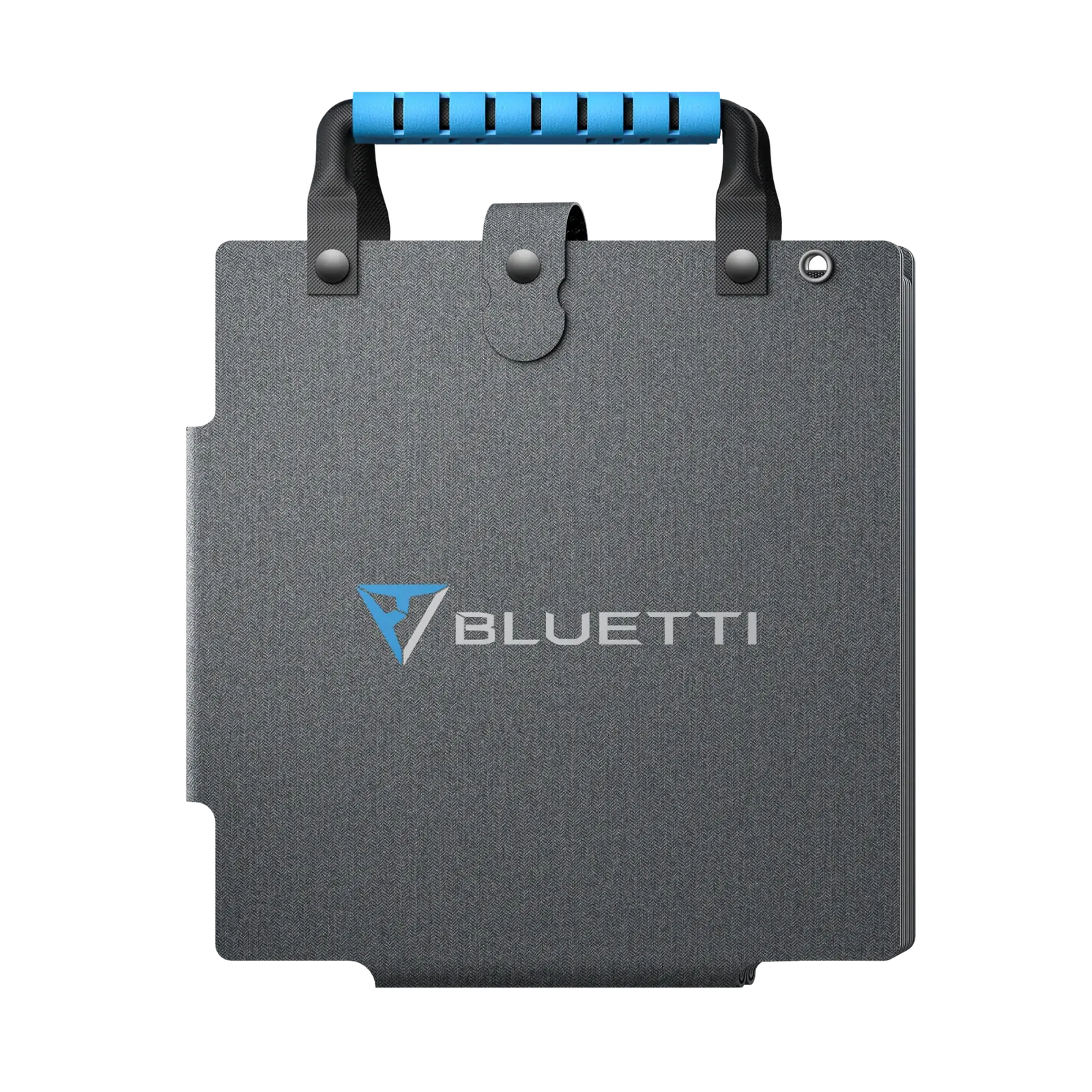

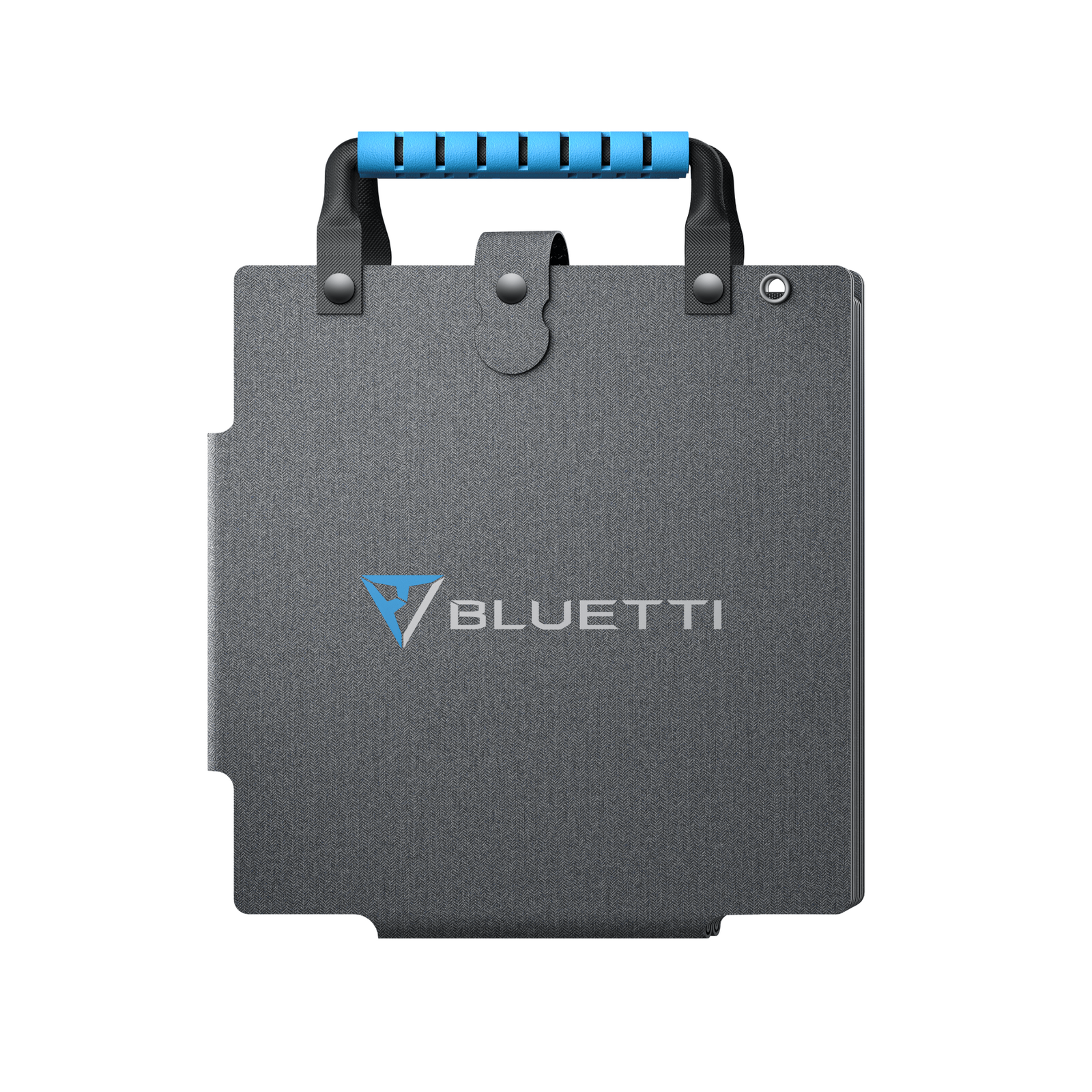

Folds to laptop size

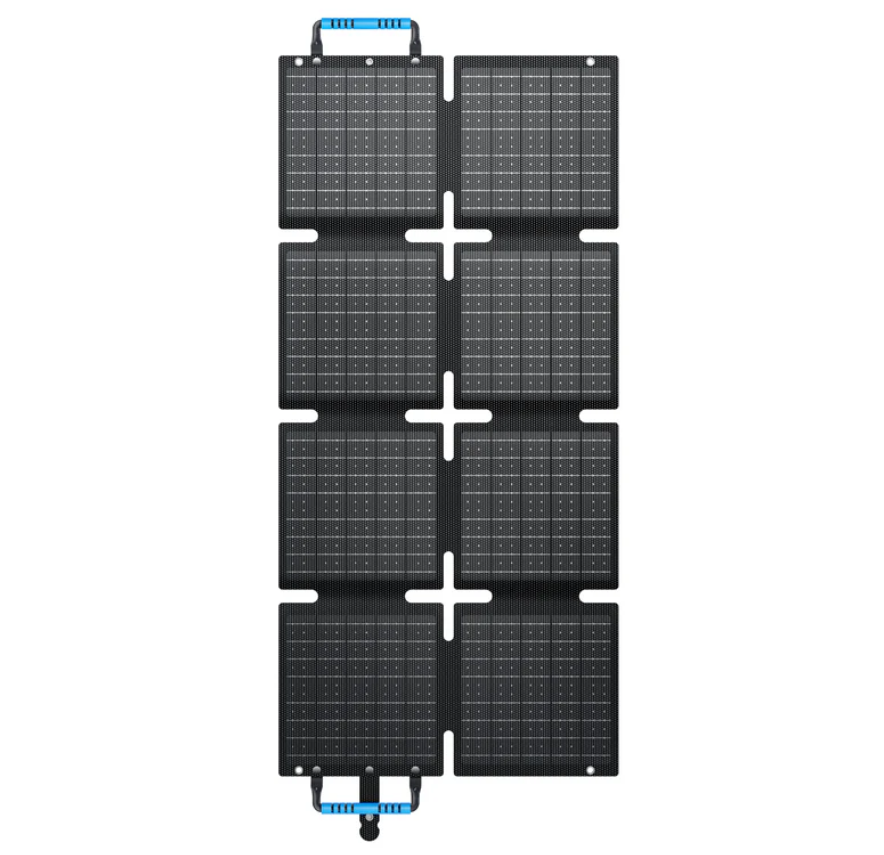

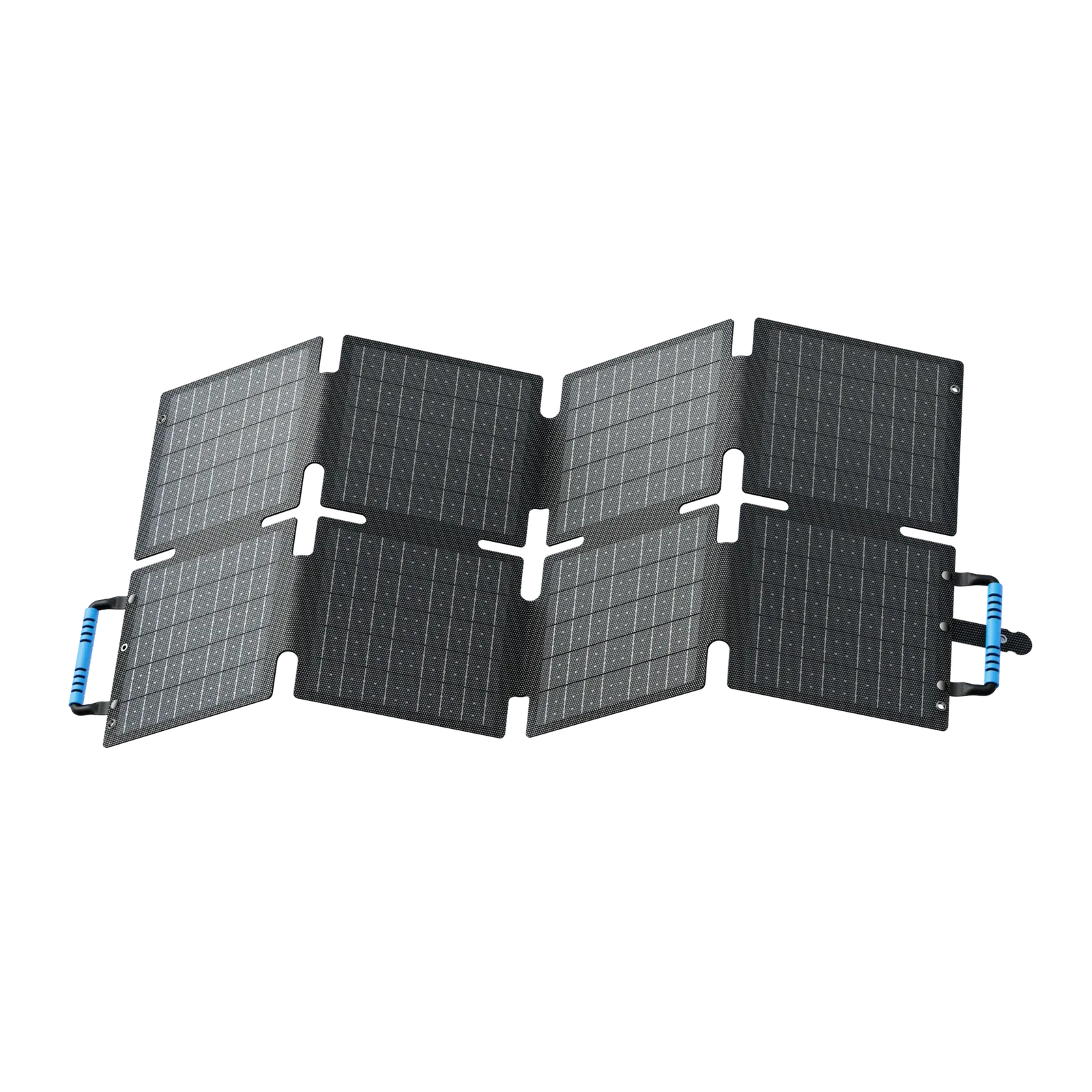

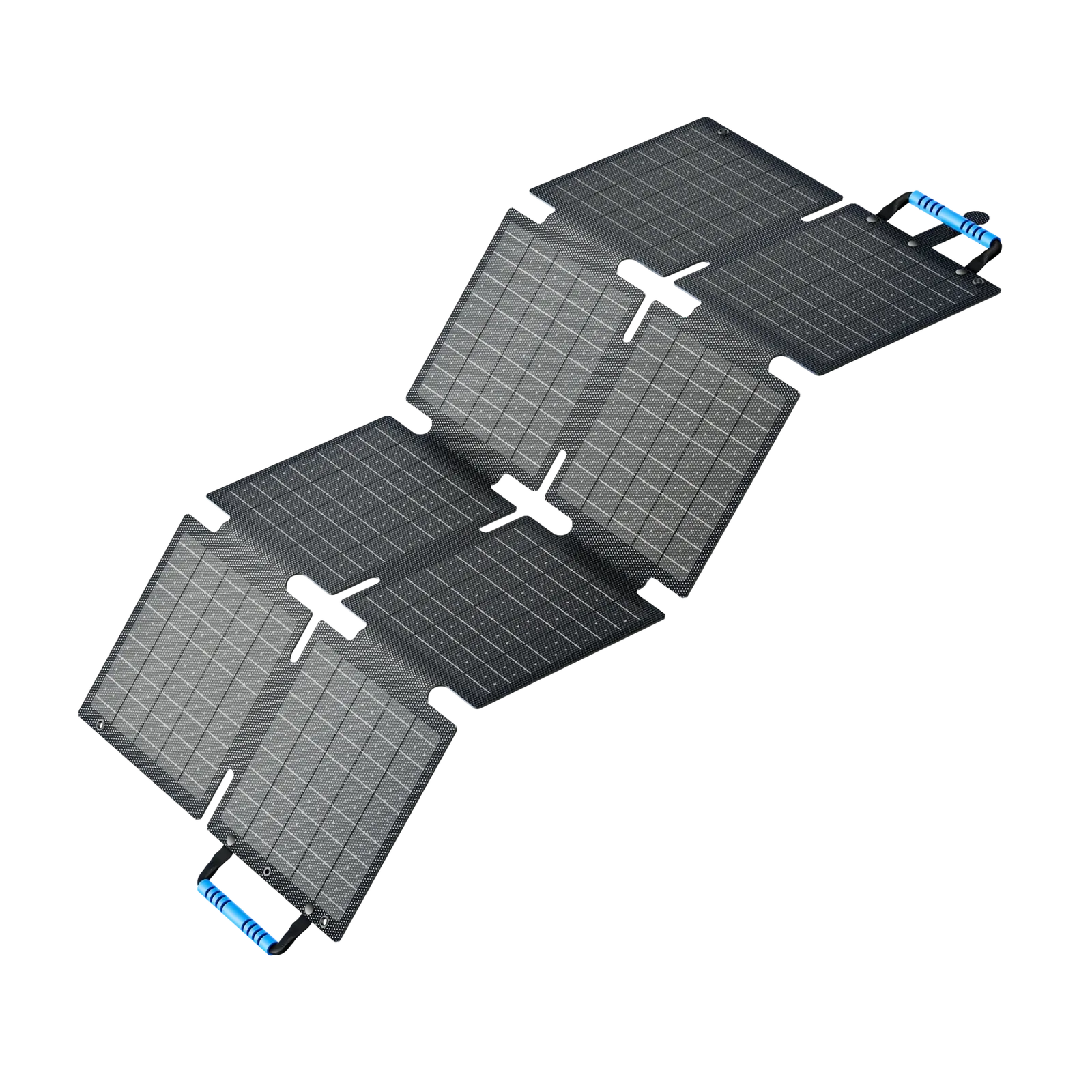

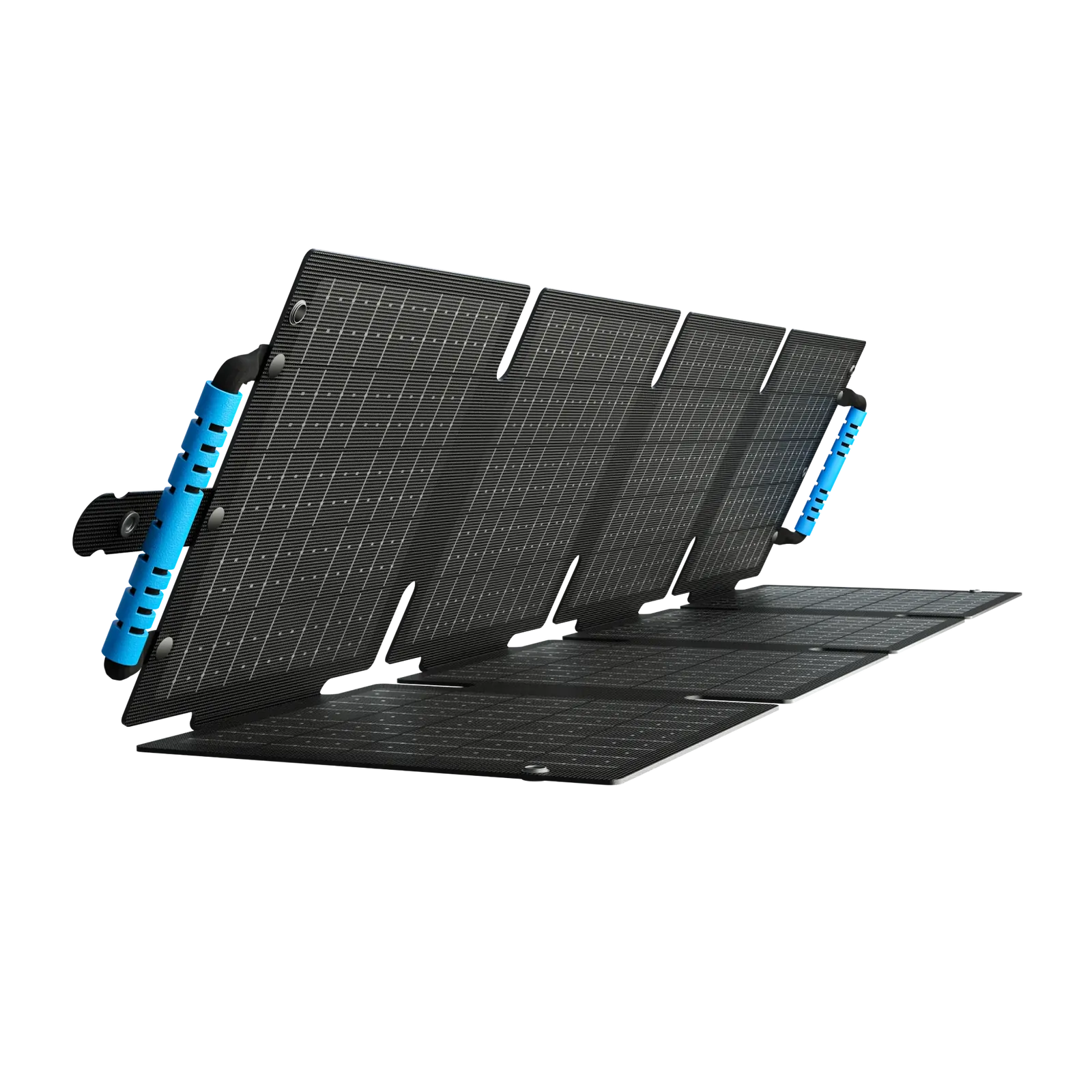

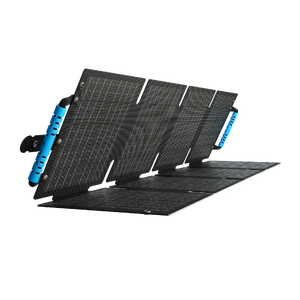

At 1.4 kg and 226 x 210 x 70 mm folded, it rides on a backpack or slips behind the seat of the 4WD. Unfolded it’s 900 x 424 mm.

✓Hanging strap and hook
✓2 carabiners included
✓Carry handle on each end

Small power stations

Top up a Handsfree, AC2P or AC50P

With 27.5V open circuit voltage, the PV60F suits power stations with a 12-28V solar input. BLUETTI pairs it with the Handsfree 1 backpack power station, which it charges to full in about 6 hours.

It’s a 60W panel, so on a bigger power station expect slow top-ups rather than a full recharge in a day.

BLUETTI PV60F charging gear on a rocky lookout

Small power stations

Top up a Handsfree, AC2P or AC50P

With 27.5V open circuit voltage, the PV60F suits power stations with a 12-28V solar input. BLUETTI pairs it with the Handsfree 1 backpack power station, which it charges to full in about 6 hours.

It’s a 60W panel, so on a bigger power station expect slow top-ups rather than a full recharge in a day.

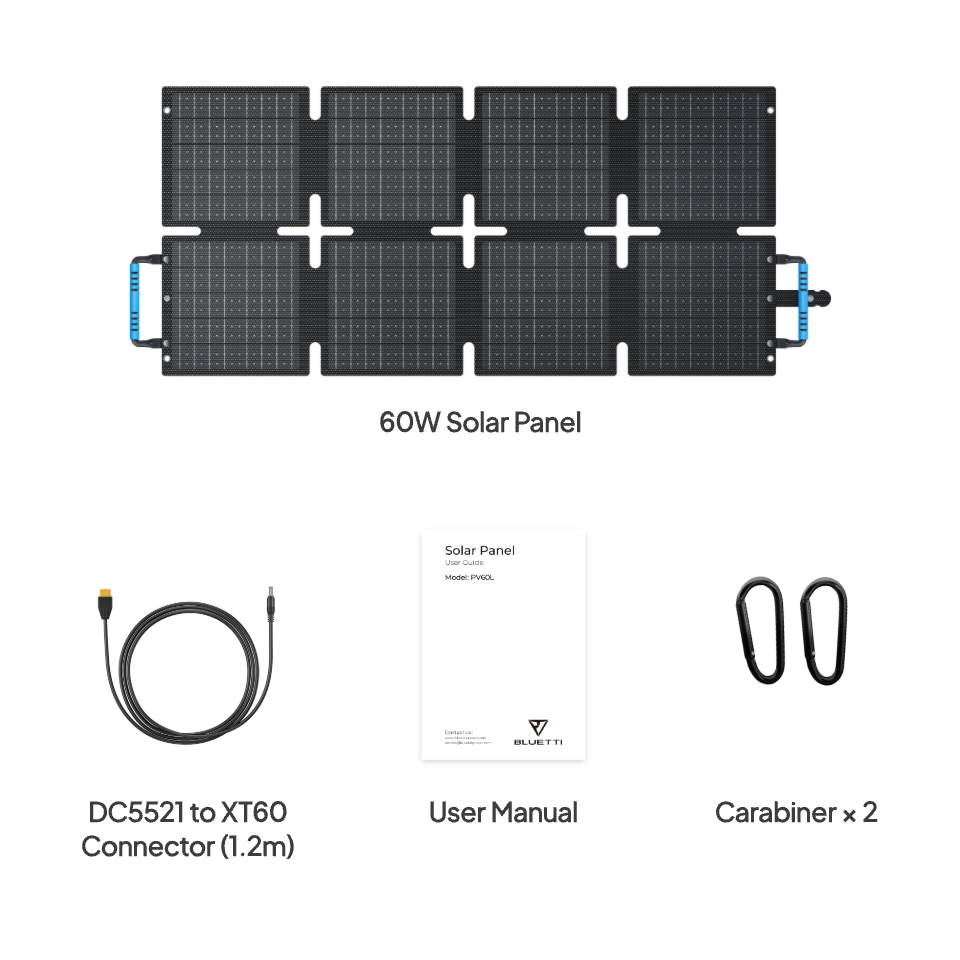

BLUETTI 60W solar panel with DC5521 to XT60 cable, user manual and two carabiners

Frequently asked questions

What can I charge with it?

Phones, tablets, cameras and other USB gear straight from the USB-C (30W max) and USB-A (18W max) ports, or a small power station from the DC5521 port (60W max) using the included DC5521 to XT60 cable.

Which power stations does it suit?

Units with a solar input that accepts its 27.5V open circuit voltage, such as the Handsfree 1 and the 12-28V input on the AC2P and AC50P. BLUETTI recommends it for the Elite 10, Elite 30 V2, AC2A, AC50B and Handsfree 1 and 2. contact our team if you want to check your unit.

How long does it take to charge a Handsfree 1?

BLUETTI says about 6 hours to full from the 60W panel in good sun. Cloud, shade, angle and temperature all affect real output.

Is it waterproof?

No. It’s IP65 splash resistant. Don’t leave it out in the rain or sitting in water for long.

Does it have an MC4 connector?

No. The PV60F uses a DC5521 port (plus USB-C and USB-A). It comes with a 1.2 m DC5521 to XT60 cable for power stations.

Still got a question? Our Sydney team is happy to help. Get in touch and you’ll talk to a real person in Australia.

Features

✓60W rated power
✓Monocrystalline cells, up to 24.7% efficiency
✓ETFE surface
✓IP65 splash resistant
✓DC5521 output, 60W max
✓USB-C 30W max and USB-A 18W max

✓27.5V open circuit voltage
✓Folds to 226 x 210 x 70 mm
✓1.4 kg
✓Hanging strap, hook and 2 carabiners
✓DC5521 to XT60 cable (1.2 m) included

Make it a complete setup

Pairs well with

BLUETTI Handsfree 1 Backpack Power Station

BLUETTI’s own pairing: the 60W panel charges the Handsfree 1 to full in about 6 hours.

View product

Bluetti AC50P Portable Power Station

27.5V open circuit sits inside the AC50P’s 12-28V solar input for slow top-ups at camp.

View product

BLUETTI AC2P Portable Power Station | 300W 230.4Wh

Fits the AC2P’s 12-28V solar input: a light panel for a light power station.

View product

Specifications

Power

Rated power	60W
Cell type	Monocrystalline silicon
Cell efficiency	Up to 24.7%
Lamination	ETFE (ethylene tetrafluoroethylene)
Open circuit voltage (Voc)	27.5V
Short circuit current (Isc)	2.76A

Outputs

DC5521	60W max
USB-C	30W max
USB-A	18W max

General

Connector	DC5521 port
Water resistance	IP65
Weight	1.4 kg

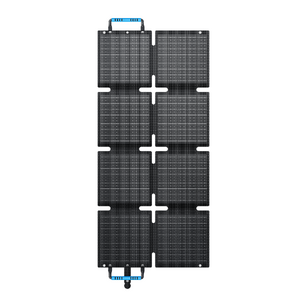

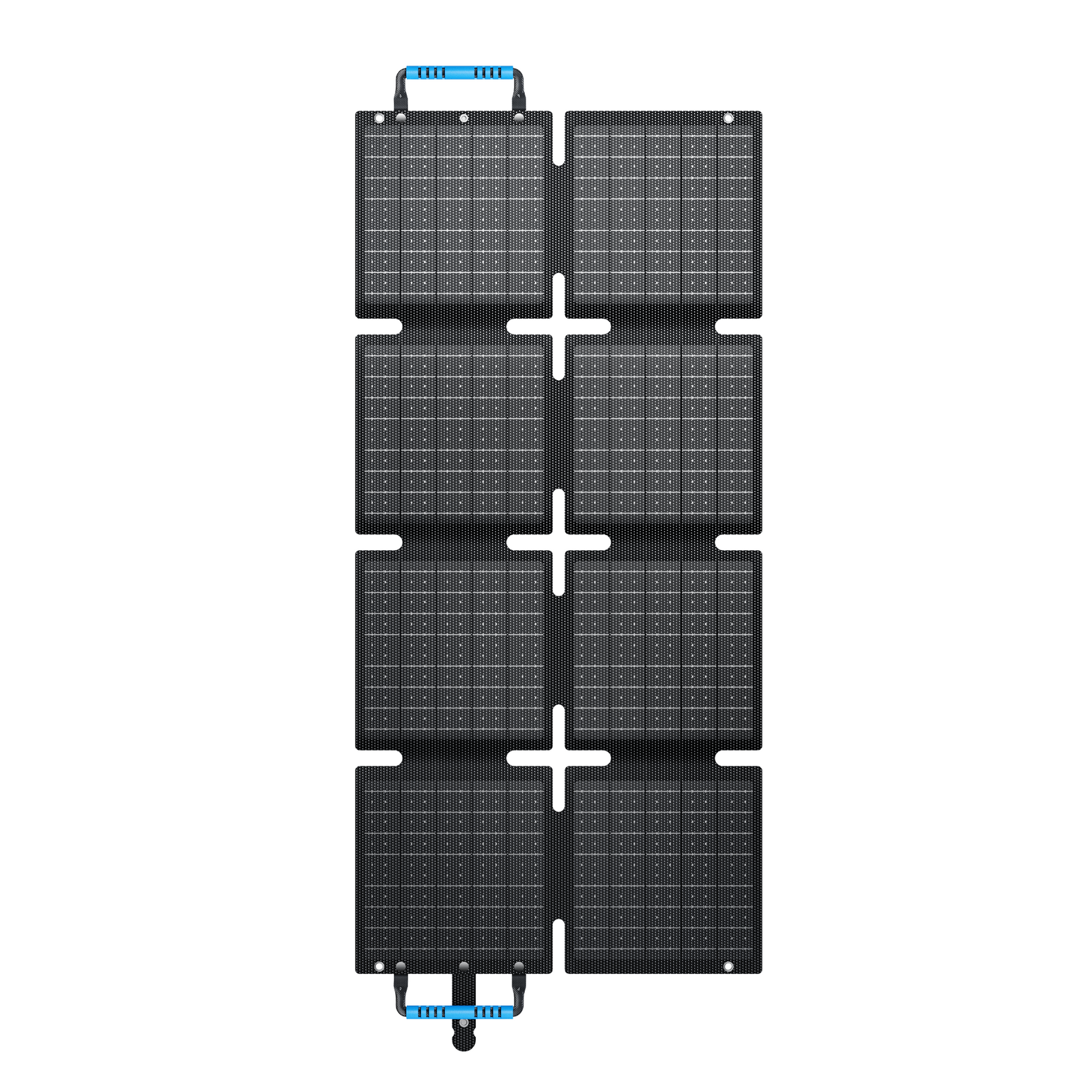

Dimensions (unfolded)	900 x 424 mm

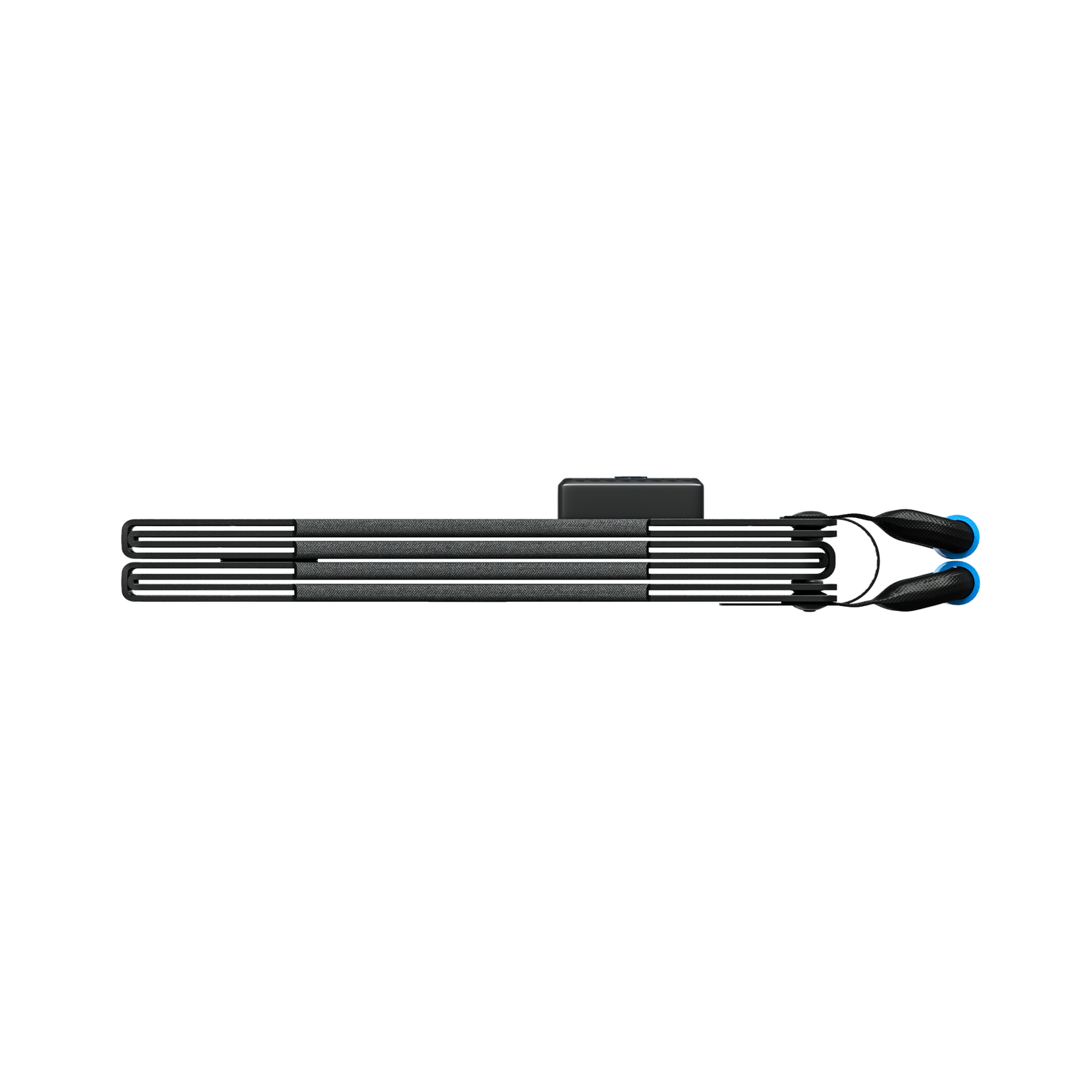

Dimensions (folded)	226 x 210 x 70 mm
Operating temperature	-25°C to 65°C
Best working temperature	25°C
Warranty	12 months

What's Included

1 x BLUETTI 60W solar panel (PV60F)
1 x DC5521 to XT60 cable (1.2 m)
2 x Carabiners
1 x User manual

Contents as shown in BLUETTI’s in-the-box image.
