DETAILS


ELECTRICAL SPECIFICATIONS
  • Frequency Range 690-890 MHz
  • Input Impedance 50 Ω
  • Peak Gain 14 dBi
  • VSWR ≤2.0:1
  • Polarisation Vertical, linear
  • Horizontal Beamwidth 27°
  • Vertical Beamwidth 26°
  • Front-to-Back Ratio >25 dB
  • Maximum Input Power 100 W

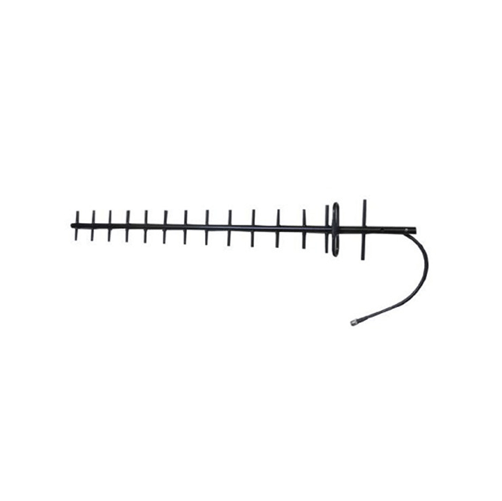

The Blackhawk Yagi antennas provide the perfect solution for voice and data applications where high gain antennas are required. Perfect for fixed wireless terminals, mobile broadband internet and smart repeater applications. This fully welded 14 element antenna has been designed for ruggedised locations. The premium-grade cellular antenna will satisfy 3G and 4G capabilities in Australia.

FEATURES:
  • Ruggedised fully welded construction for extreme conditions
  • Powder-coated finish
  • Mounting clamp included
  • 30cm pigtail terminated N Female
  • The perfect solution for voice and data applications where high gain antennas are required
  • Ideal for fixed wireless terminals, mobile broadband Internet and smart repeater applications
  • Input Connector N Female
  • Cable Short 30 cm tail
  • Lightning Protection DC Ground
  • Radiator Material Fully welded aluminium, black powder coat
  • Mounting Galvanised, pole mount Ø30-50 mm
  • Dimensions 1290 x 210 x 70 mm
  • Packing Dimensions 1330 x 220 x 75 mm
  • Weight 1.05 kg
  • Rated Wind Velocity 216 km/h
  • Operating Temperature -40 to +70°C
