DETAILS

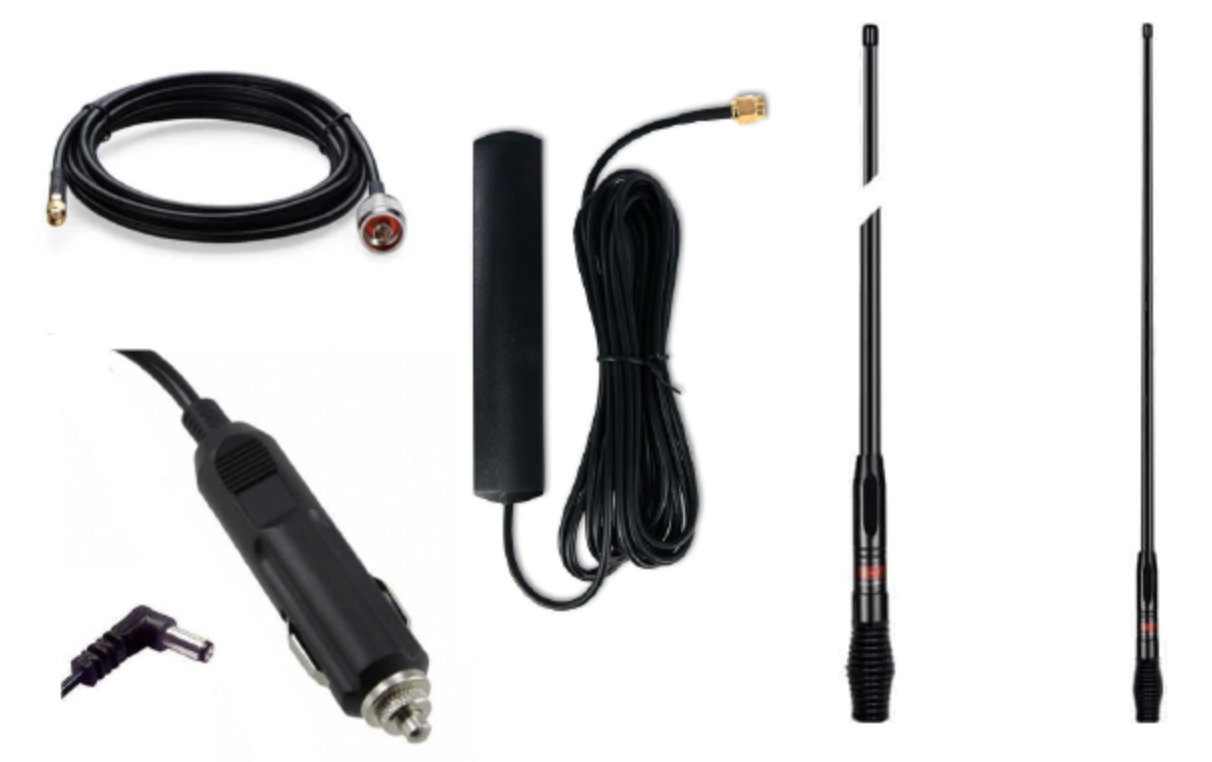

This pack includes:

1 x GME AT4705BA 4G Cellular Mobile Antenna – 698-2100MHz

1 x Cel-Fi GO Adhesive Mount Antenna - 698-2700MHz

1 x 6m PT240 Coax Cable for Cel-Fi Antennas SMA Male - N Male

1 x Cel-Fi GO Mobile 12v Cigarette Lighter Power Supply

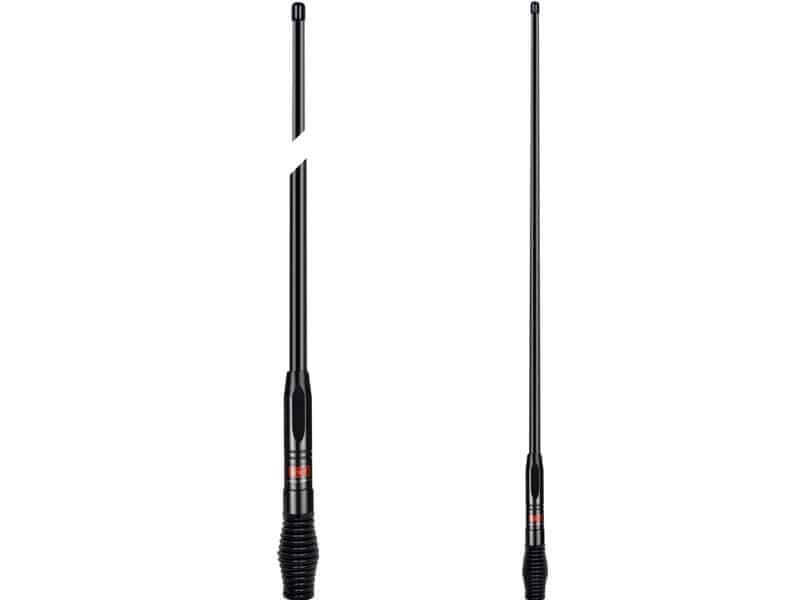

GME AT4705BA

Rugged, high-performance Antennas to suit Australia's harsh conditions
Utilising the proven, rugged, mechanical design of the AE4700 series of UHF antennas in conjunction with an innovative PCB electrical circuit, the AT4705B sets a new benchmark for Multi-band cellular antennas in the Australian market.

Covering the 700MHz, 850MHz, 900Mhz and 1800-2100MHz bands, the AT4705B is a true Multi-band cellular antenna.

The AT4705B delivers excellent LTE coverage across existing mobile phone networks ensuring you always remain connected, even in areas with limited or poor cellular network coverage.

Product Details
Covers 700, 850, 900, 1800-2100MHz bands
2.5 - 7dBi Gain
1200mm Removable Whip
Heavy Duty, Rugged design
Pre-terminated FME connector + SMA Adapter

Product Specifications

Frequency Band 700, 850, 900, 1800-2100Mhz
dBi (Gain) 2.5 - 7dBi
Ground Dependence Ground Independent
Construction Type Mobile phone antenna, black fiberglass radome, heavy-duty spring
Height / Length 1200 mm
Cable and Connector 4.8m low-loss, aluminium-shielded coaxial cable

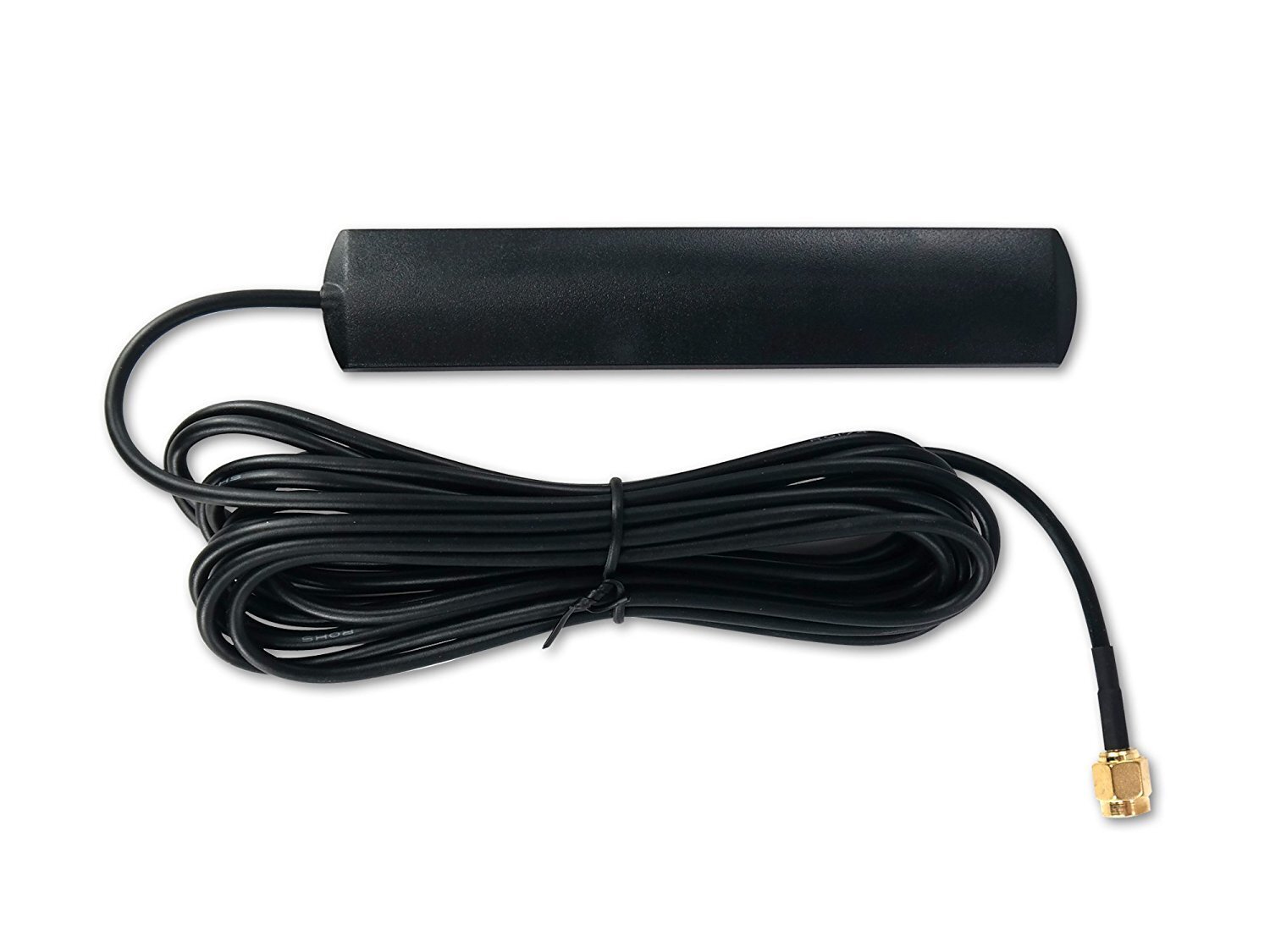

Cel-Fi GO Adhesive Mount Antenna

Ideal for boosting 3G and 4G LTE signals where mounting access is a problem. Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G.

FEATURES:

  • 3.5 dBi gain across lower bands 698-960 MHz
  • 3.5 dBi gain across upper bands 1710-2700 MHz
  • Mounting by 3M sticker
  • Connector Type SMA Male
  • Cable length 3 metres

ELECTRICAL SPECIFICATIONS

Frequency Range (MHz) 698-960/1710-2700 MHz
Input Impedance 50
VSWR ≤3.0
Gain (dBi) 3.5
Polarisation Type Vertical
Radiation Direction Omni Directional
Maximum Input Power 50 W

MECHANICAL SPECIFICATIONS

Antenna Length 115x21x3mm
Cable 3000mm
Connect Type SMA Male
Mounting 3M Sticker
Radome Color Black
Cable RG174
Suction 0.7 kg
Attachment Welding

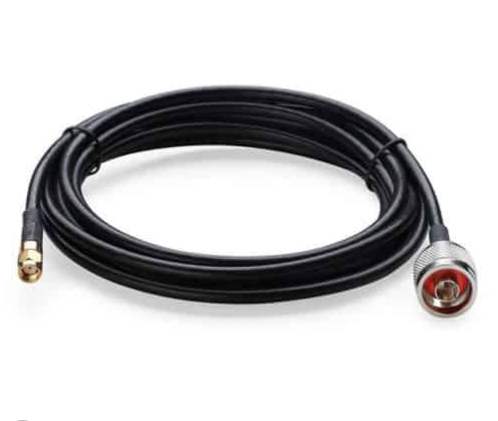

PT240 Coax Cable for Cel-Fi Antennas SMA Male - N Male

This cable is low smoke halogen, to reduce the amount of toxic and corrosive gas emitted during combustion or fire.

Ideal for connecting antennas to any Cel-Fi units.

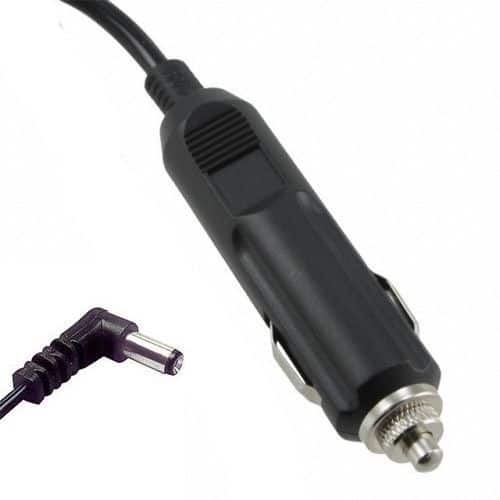

Mobile 12v Cigarette Lighter Power Supply

A cable for powering a Cel-Fi from a 12v power source.
Suitable for both the Cel-Fi Go and PRO Series.

Input: Fused Cigarette Plug

Output: 5.5mm jack

Cable Length: 1.8m
