DETAILS


TECHNICAL SPECIFICATIONS

Frequency Range (MHz): 600 – 6500
Polarization: Vertical or Horizontal
Gain (dBi) 15 Low/ 20 Mid/ 25 High
Half-power Beam Width (°) Low Band: 20H, 23V Mid Band: 12H, 15V High Band: 7H, 9V
H Front-to-back Ratio (dB) 20 AVG
Impedance (W) 50
VSWR 1.6:1 / 1.4:1 AVG
Lightening Protection DC Ground
Connector N- Female
Dimensions (mm) 60x99x40
Antenna Weight (kg)

2.4 with bracket

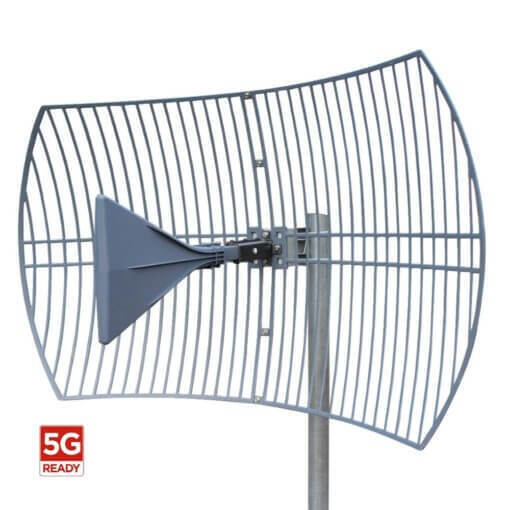

The Blackhawk Ultra-Wide Band Parabolic Grid Antenna is designed to provide maximum gain across the entire 3G, 4G and 5G bands. Supporting all mobile operators this antenna is the first of its kind to provide such a high gain across all bands.

Ideal for areas with very low or noisy signal to maximise the input signal for cellular modems or Cel-Fi repeaters. Due to the narrow beamwidth, this antenna can also be used in areas where multiple cell sites are present and isolating a single tower is required. Two antennas can be pole mounted on the appropriate angles in a MIMO configuration to support high-speed data throughput.

  • Cable sold separately
