DETAILS


All our products are manufactured using the highest quality materials. At Perception Lighting we are so confident that our products will perform that we provide a comprehensive 2 Year Australian Warranty.

 KEY FEATURES

  • Adjustable side mounts for versatility
  • Oversized heatsink ensured LEDs run cooler and brighter
  • IP68 Rating ensures 100% waterproofness
  • Long lifespan: OSRAM LEDs have a 50,000 + Hrs lifespan
  • Unbreakable Lens: Polycarbonate Lens is unbreakable
  • Latest reflector technology achieves 97% efficiency

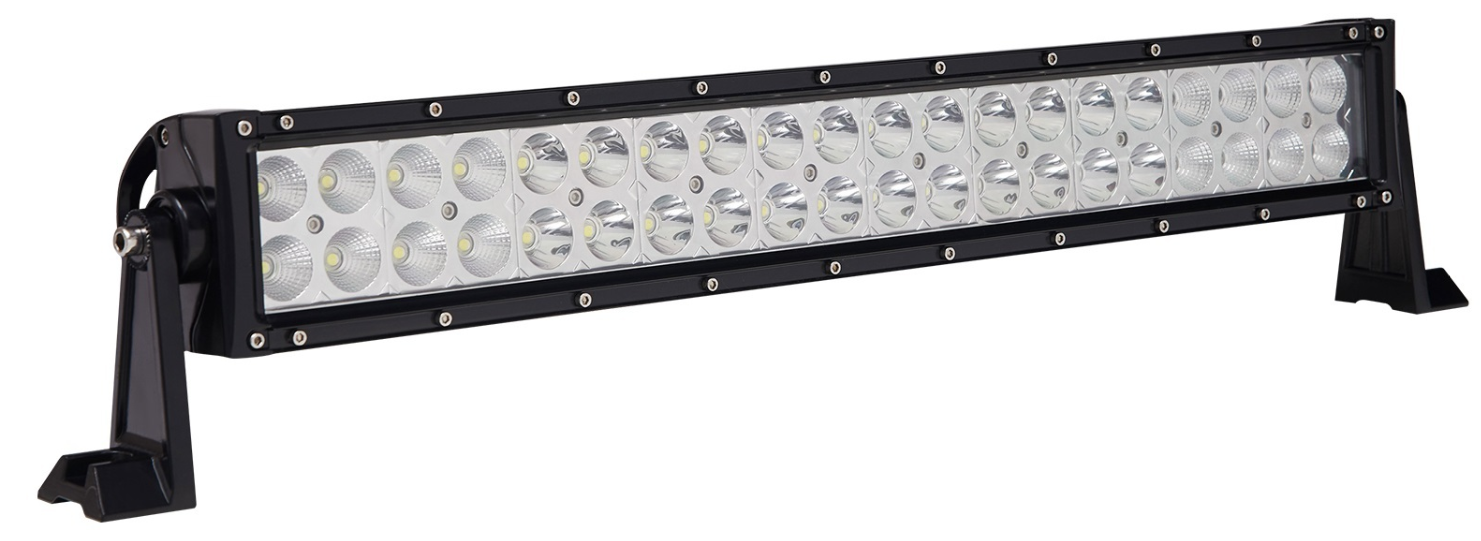

The DRF series lightbars utilize a 3-watt OSRAM LEDs. The result is impressive distance and flood performance.

Contents:

  • 1 x 22" DRF Series Lightbar
  • 2 x side mount legs
  • 1 x Male and Female deutch connectors

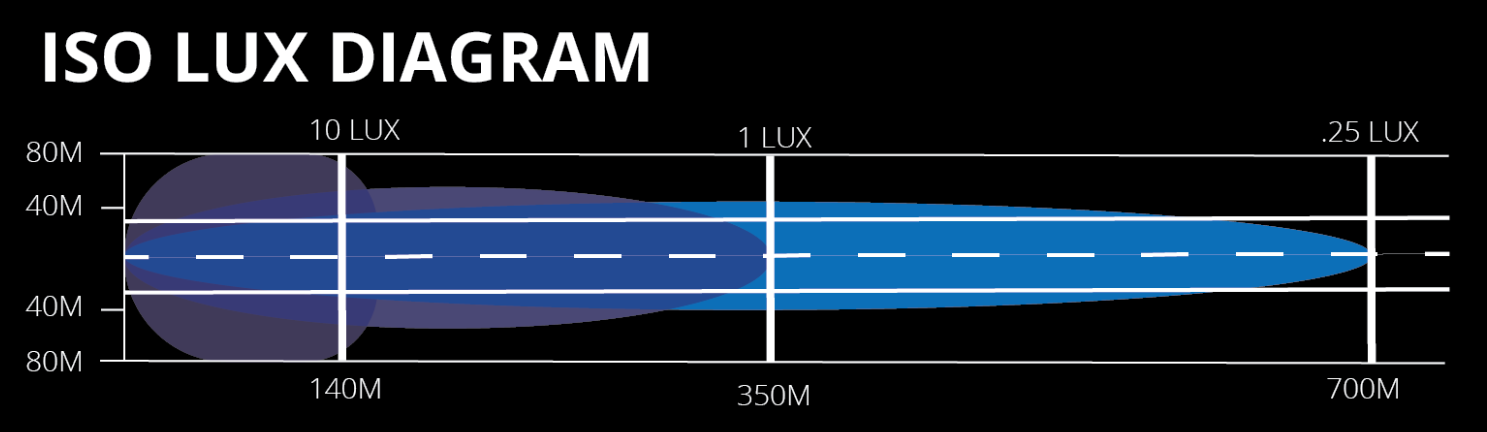

LUX DIAGRAM

SPECIFICATIONS

LED POWER     120W (40 x 3W)
LED MANUFACTURER   Genuine OSRAM®
LUX (PAIR)   1 LUX @ 350m
BEAM DISTANCE   0.25 LUX @ 700m
WATERPROOF RATING   IP68
CURRENT DRAW   6.6A @13.2V
BEAM PATTERN   Combination Spot & Flood
OUTPUT   8,400 Lumens
HOUSING MATERIAL   Diecast Aluminium
LENS MATERIAL   PMMA Polycarbonate
MOUNTING BRACKET   Side
OPERATING VOLTAGE   10-30V DC
LED LIFESPAN   50,000 Hours
