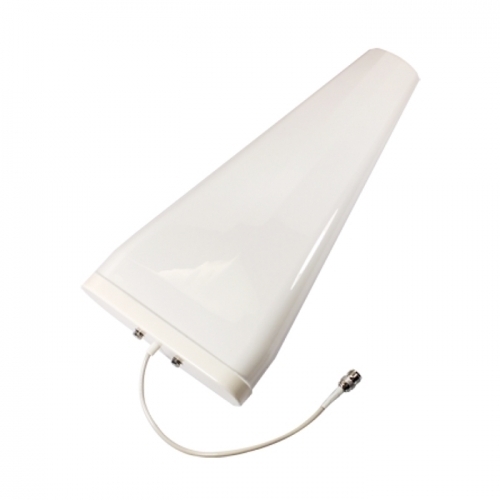

Xtreme Antennas LPDA Yagi Antenna for Cel Fi Go

In Stock - Ready for immediate dispatch or pickup
Order in for Dispatch Today
Pickup Available from Punchbowl, NSW

DETAILS

The Xtreme wideband antenna is a fantastic little antenna providing good performance with a lightweight, low cost design. There’s plenty of situations where a big, solid metal antenna is necessary, but also plenty where something quick and small can be just as useful. This antenna is great for areas where indoor signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement.

FEATURES

10 dBi gain across lower bands 698-960 MHz
11 dBi gain across upper bands 1710-2700 MHz
Lightweight, compact design
Mounting clamp included
30 cm tail with pre-terminated N Female connector
Great cost effective antenna.

The antenna is simple and effective, it might not last as long as a fully welded yagi, or LPDA, but it’s a great antenna for temporary installations or those travelling who need something compact.

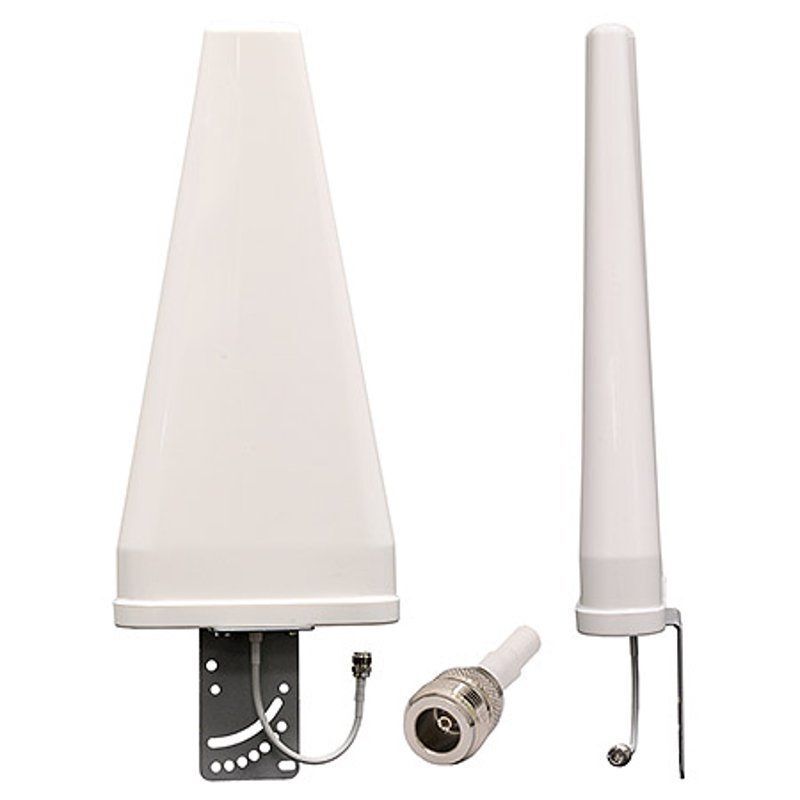

Mounting is made simple with a mast down-tilt bracket and U-Bolts. This enables you to mount the antenna on a flat surface or a pole.

ELECTRICAL SPECIFICATIONS

Frequency Range	698-960 MHz / 1710-2700 MHz
Input Impedance	50 Ω
Gain	10 / 11 dB
VSWR	≤ 2.0 / ≤ 1
Polarisation	Vertical
Horizontal Beamwidth	70°
Vertical Beamwidth	50°
Maximum Input Power	50 W
Lightning Protection	DC Ground

MECHANICAL SPECIFICATIONS

Dimensions	450 x 210 x 65 mm
Weight	1.1kg
Operating Temperature	-40°C – +65°
Connector	1 x N-Female
Material	Aluminum and ABS
Dimensions	442 x 205 x 37 mm
Antenna Colour	White
Mounting Pole	38 – 52 mm
Rated Wind Velocity	210km/h
