Uniden X76 Compact UHF CB Radio | 5W | Remote Speaker Mic wi
Make 4 payments of $57.25 over 8 weeks with

In Stock - Typically ships in 2-5 business days.
Need it fast? Contact us to confirm lead times.
Pickup currently unavailable.
Radio and antenna, ready to fit

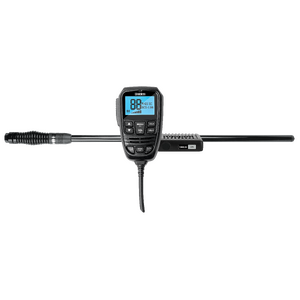

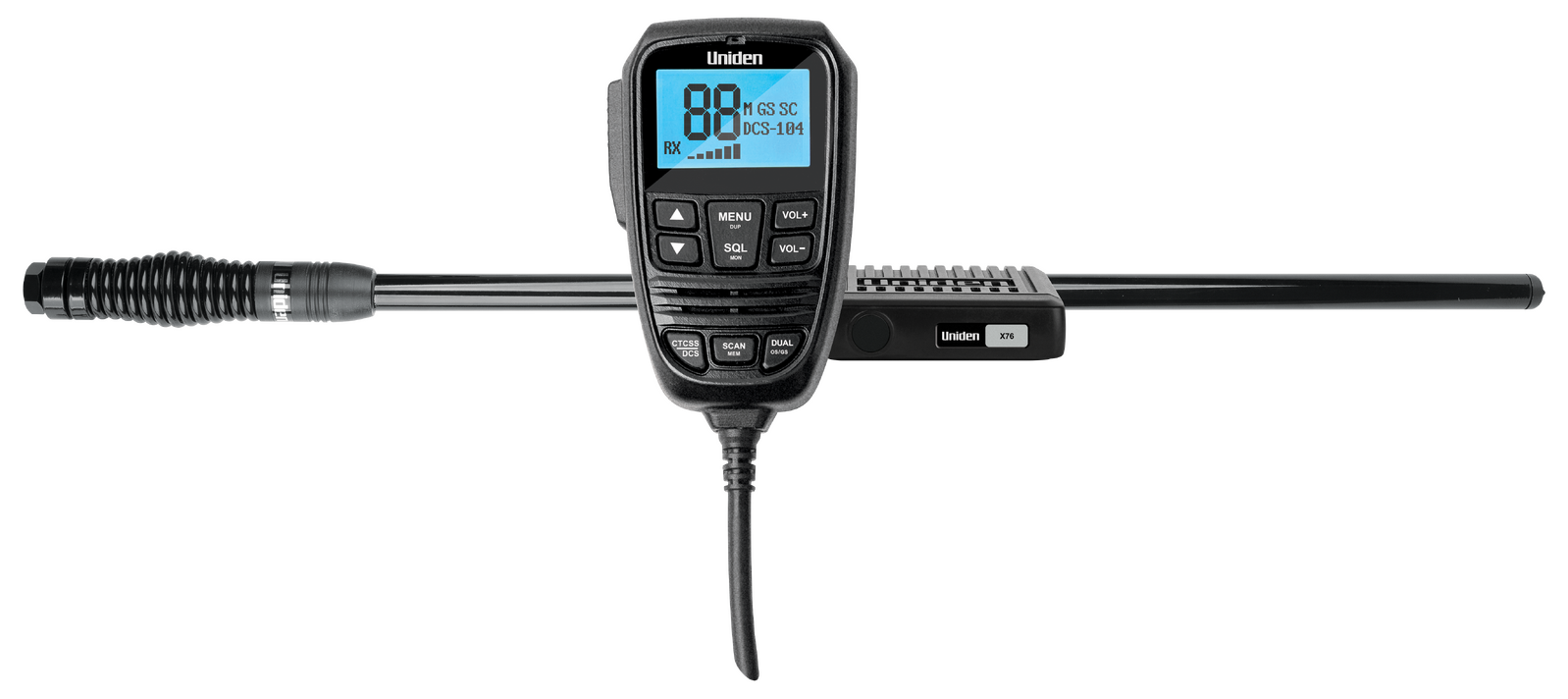

The X76 compact 5W UHF CB packed with an AT500BK 5.5 dBi fibreglass antenna. Everything you need to get a car, 4WD or truck on air in one box.

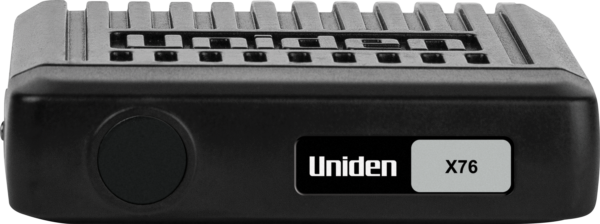

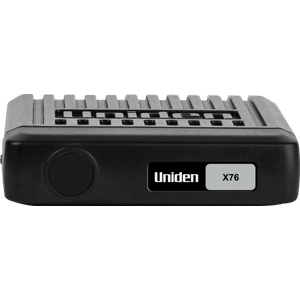

The X76 puts a large backlit LCD and one-touch keys on the speaker microphone, so the small base can sit out of the way. The AT500BK is a 730mm ground independent raydome antenna on a stainless steel spring, with 4.5m of low loss coax already fitted. Want a handheld for outside the vehicle? Add a Uniden UH825.

Talk to the convoy from the cab

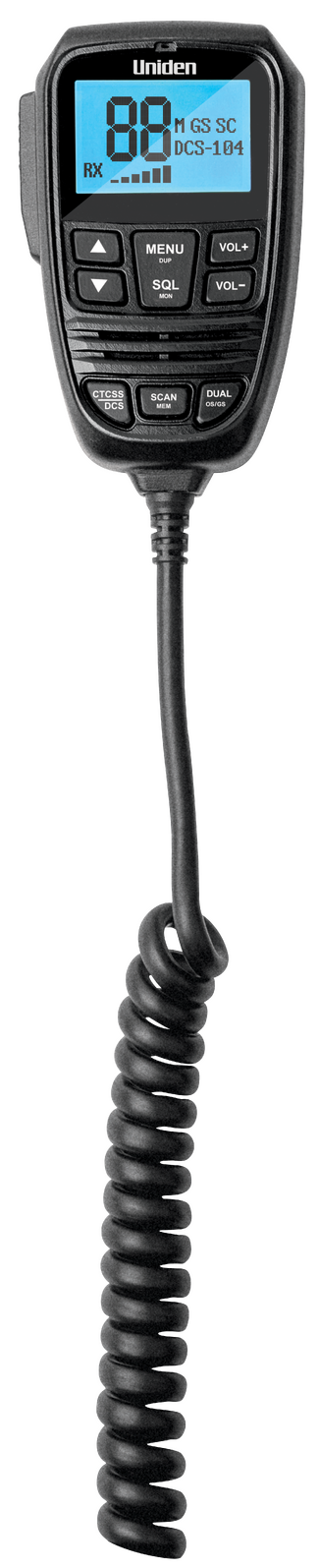

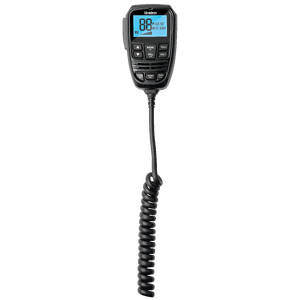

The X76's speaker mic carries the screen and the main controls, so you can check the channel and make a call from your hand. Speakers in both the base and the mic keep voices clear over road and engine noise.


Seven backlight colours
Set the LCD and key backlight to one of 7 colours to match your dash lighting, then dim it for night driving. One-touch Instant, Call, Mon and EMG keys on the mic give quick access to the functions you use most.
Bracket, cable and antenna sorted

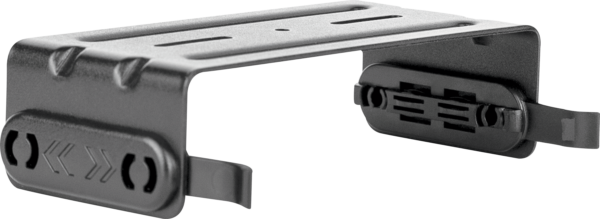

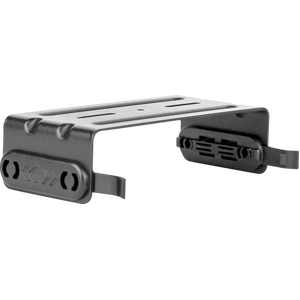

The radio comes with a mounting bracket, mic hanger, fused DC power cord and hardware. The AT500BK antenna is ground independent and has 4.5m of low loss coax terminated with an FME female connector and a PL259 adaptor, so it's ready to plug into the radio.


Complete your setup
Heavy duty folding bracket to mount the AT500BK antenna.
2W, 80 channel handheld for when you're out of the vehicle.
The AT500BK: a 730mm black fibreglass raydome antenna with 5.5 dBi gain, a parallel style stainless steel spring and 4.5m of low loss coax.
No. The AT500BK is ground independent, and Uniden lists it as suitable for sedans, trucks and 4WDs.
A bracket for the antenna isn't listed. A Uniden MBU-05BK folding mount is a sturdy option.
On the speaker microphone. The large backlit LCD and one-touch keys are in your hand, and the compact base can be mounted out of the way.
Channels 22 and 23 are for telemetry and telecommand, so voice transmission is blocked. Channels 61, 62 and 63 are reserved for future use and are receive only.

| Channels | 80 narrowband UHF CB |
| Transmit power | 5W |
| Radio base dimensions | 110mm W x 112mm D x 28mm H |
| Microphone | Remote speaker mic with built-in dot matrix LCD |
| Speakers | Base and mic, synchronised volume |
| Backlight | 7 colours with brightness control |
| One-touch keys | Instant channel, call tone, monitor, emergency (CH5/CH35) |
| Watch and scan | Dual watch, open/group scan with priority watch |
| Radio features | Duplex, CTCSS/DCS codes, S/RF meter, busy channel lock-out, roger and key beep on/off, high/low voltage alert, external speaker jack |
| Antenna | AT500BK fibreglass raydome, black |
| Antenna gain | 5.5 dBi |
| Antenna length | 730mm |
| Antenna spring | Parallel style stainless steel |
| Antenna type | Ground independent |
| Coax | 4.5m low loss, terminated FME female with PL259 adaptor |
| Warranty | 5 years on the radio (1 year on included accessories) |
| Brand | Uniden |
| SKU | X76VP |
| Barcode # | 9322402016955 |
| Brand | Uniden |
| Shipping Weight | 2.1000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.080m |
| Shipping Length | 0.810m |
