DETAILS


RedVision allows you to control multiple on-board devices, such as turning lights, inverter, water pumps and other loads such as televisions, electric steps and fridges on or off. It also provides you with the ability to monitor water levels, temperatures, energy (battery power) consumption and storage, with the battery information available when used with a REDARC 'Manager' battery management system.

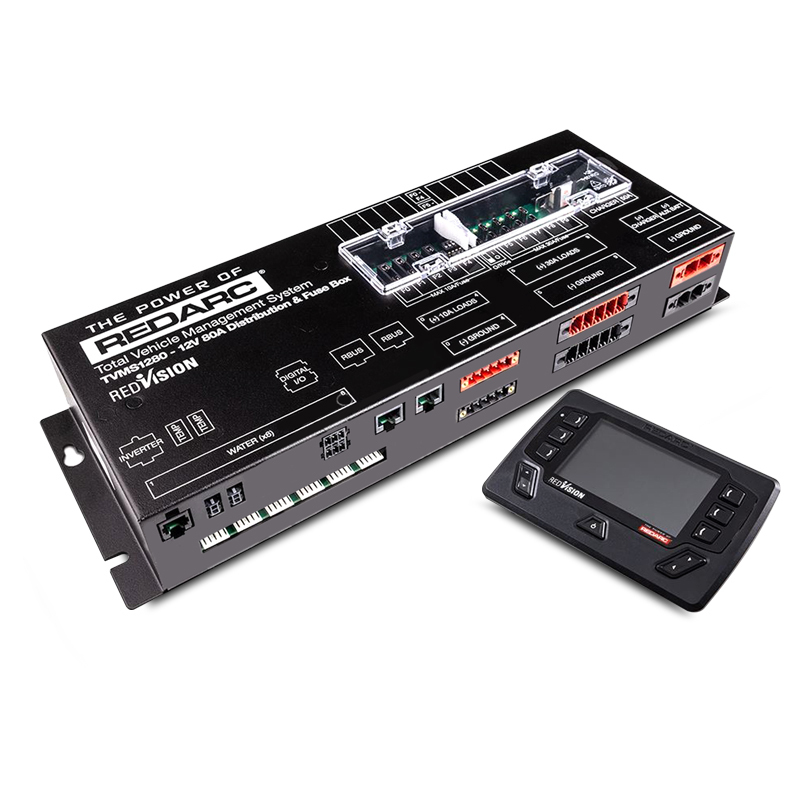

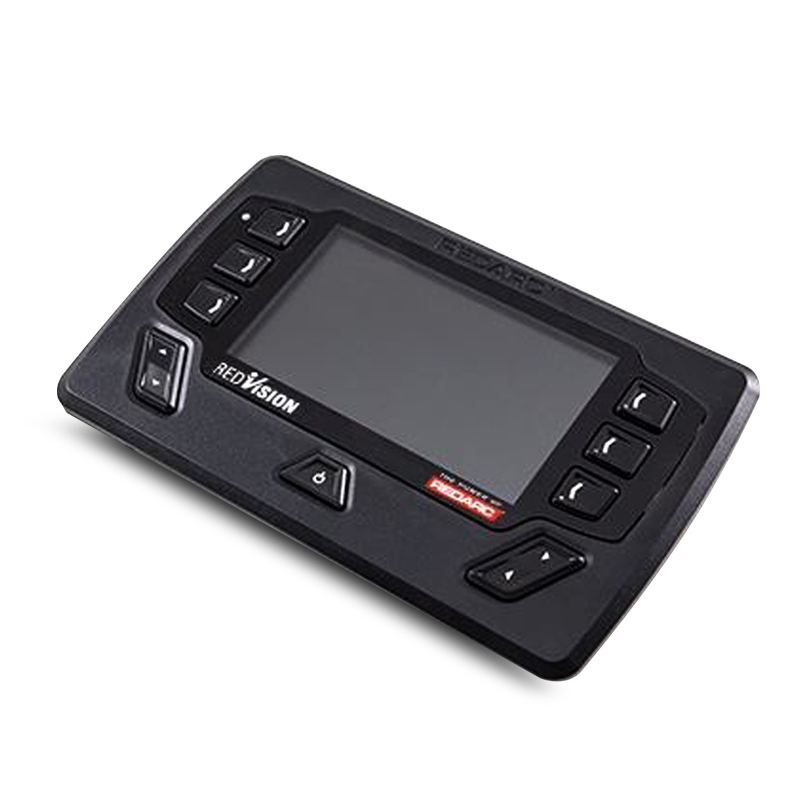

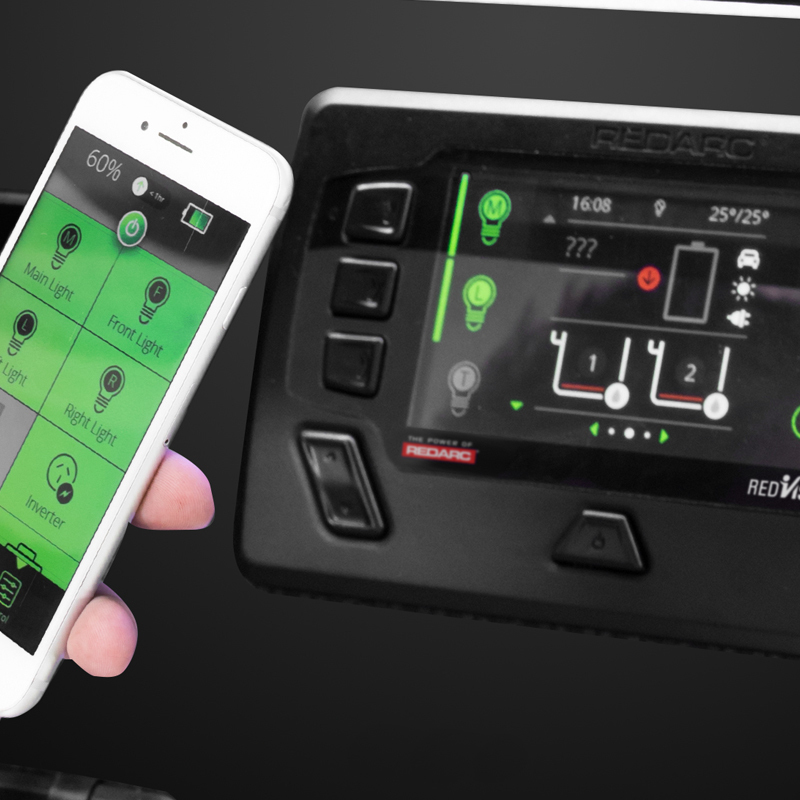

RedVision comes equipped with an In-vehicle mounted display and Bring Your Own Device ‘BYOD’ Smartphone iOS or Android app that features the control and monitoring of many functions in a 4x4, camper, caravan, or motorhome in one place.

The display and app uses a modern, user-friendly interface, by incorporating an easy to understand system layout. The robust display has been built and tested to withstand Australia’s tough and varied environmental conditions, whilst the app brings together REDARC’s expertise on innovation and continual investment into R & D and manufacturing quality products in Australia.

RedVision is available for fitment into 4WD vehicles and from selected manufacturers of campers, caravans and motorhomes.

Features

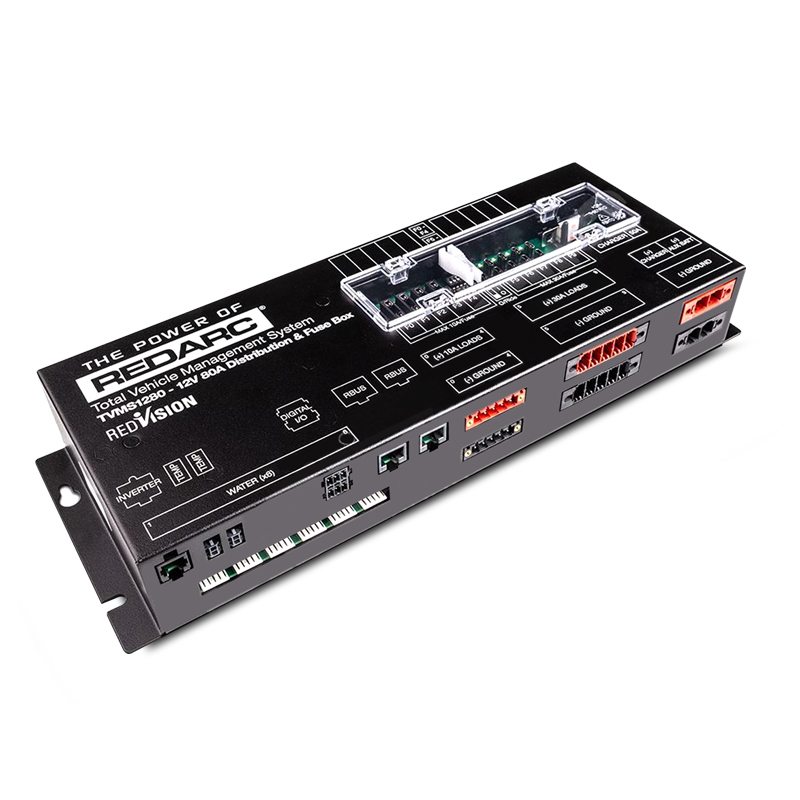

  • Combines power protection, distribution, and control in one unit
  • Distribution Box accepts inputs from a range of battery management components (eg. Manager 30/15, BCDC, SBI) and monitors all battery usage and charging information when paired with a Manager30 or Manager15
  • Accepts inputs for monitoring water levels and temperatures
  • Capable of switching devices on/off like lights, TV, electric steps etc
  • Bluetooth connectivity to BYOD iOS and Android to the upgradeable & exclusive REDARC APP called RedVision

Specifications

  • Operating Temperature (Distribution box): -20°C to + 60°
  • Operating Temperature (Display): -20°C to + 70°C
  • Storage Temperature (Display): -20°C to + 85°C
  • Maximum Charger Current; 40A
  • Maximum Battery Current: 80A
  • Temperature Sensors: 2
  • Output Circuits (Max): 5 x 10A
  • Output Circuits (Max): 5 x 30A
  • Main Unit Dimensions: 385 x 138 x 58mm
  • Display Dimensions: 178 x 108 x 26mm
