DETAILS






SPECIFICATIONS

Maximum Voltage     42V DC
Interrupt rating   3000A @ 30V DC
Operating Temperature   -32°C to 82°C
Testing   SAE J1625, SAE J1171 (ignition protected)
Material   UL94V-0
IP Rating   IP67
RoHS   Approved
UL   Approved 50A @ 32V DC
External Dimensions   70 x 50 x 35mm



*Specifications are subject to change without notice.

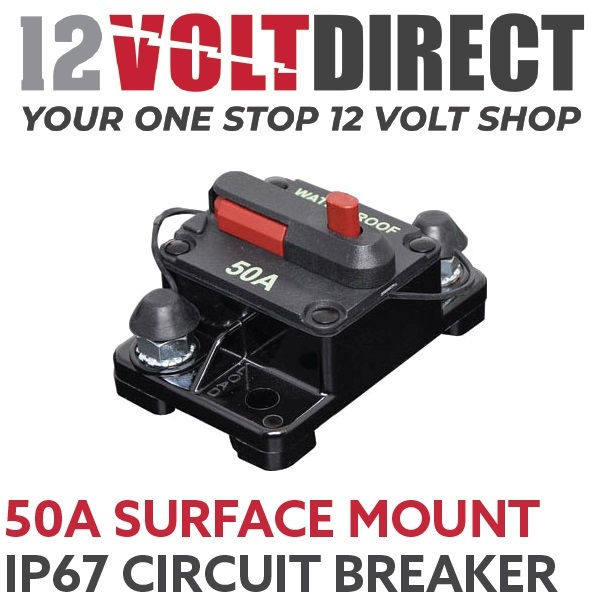

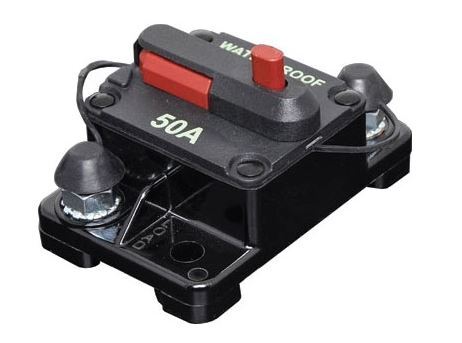

Surface Mount IP67 Waterproof Circuit Breaker

This high current surface mount circuit breaker is ideal for use in 12V or 24V DC power systems. It features an IP67 weatherproof casing with M6 terminal bolts for connection to power cabling. The breaker can be easily reset using the red lever switch. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J1625 & SAE J1171 (ignition protected).
