Poynting XPOL 3G/4G/5G MIMO LTE Antenna to suit Telstra 5G Nighthawk M5 M6 698-3800 Mhz 11dBi 10M Cable SMA/M
Buy Now, Pay Later.
DETAILS
Improve your cellular signal strength for Voice Calls, SMS, and Data by connecting an external antenna to your modem.

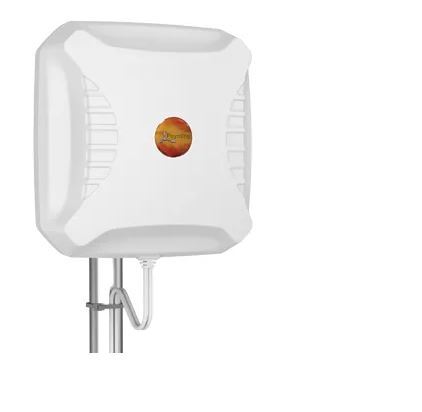

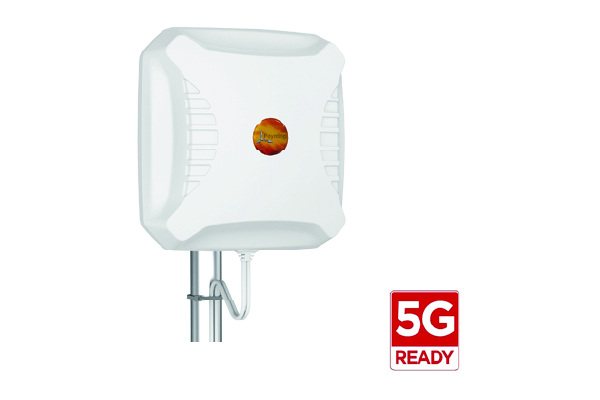

The Poynting ANT-PY-00004 XPOL-2-5G is third-generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna and includes the newer 3400 – 3800MHz bands making it suitable for 2G, 3G, 4G & 5G. Making use of Artificial Magnetic Conductors (AMC) and a new registered/patent-pending radiator configuration has yielded exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well-controlled, further adding to the performance of the antenna.
CONDITION
Brand new - A brand new, unused, unopened, undamaged item in it's original packaging.
FEATURES
- New advanced metamaterial technology
- Exceptional performance over the main 4G/5G bands
- High Gain for the antenna size
- Wideband 2×2 MIMO 4G/5G antenna
- Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
- Two cross polarised antennas in one enclosure for optimal LTE performance
- IP65 weather/dust and vandal-resistant enclosure
.jpg)
.jpg)
MECHANICAL SPECIFICATIONS
| Product Dimentions | 698-960 | 1710-2700 | 3400-3800 | ||
| Gain (max) Port 1 & 2 | 9 dBi | 10 dBi | 11 dBi | ||
| VSWR Port 1 & 2 | <1.5:1 over 95% of the band | ||||
| Feed power handling | 20W | ||||
| Input impendance | 50 Ohm | ||||
| Polarisation | ±45° | ||||
ELECTRICAL SPECIFICATIONS
| Frequency Bands | 290mm x 265mm x 155mm | |
| Dimentions | 375mm x 270mm x 100mm | |
| Radome | UV Stable ASA | |
| Radome | Brilliant white | |
| Mounting | Wall and pole mount |
-
QUICK SPECIFICATIONS
-
Product Type: Antenna
-
Frequency Bands: 698-960 / 1710-2700 / 3400-3800
-
Gain (max): 9 dBi / 10 dBi / 11 dBi
-
VSWR: <1.5:1 across 95% of the bands
-
Feed power handling: 20 W
-
Input Impedance: 50 Ohm
-
Polarisation: ±45°
WHAT'S INCLUDED
-
Poynting XPOL-2-5G MIMO LTE Antenna
-
10m HDF-195 coaxial cable SMA(m)
-

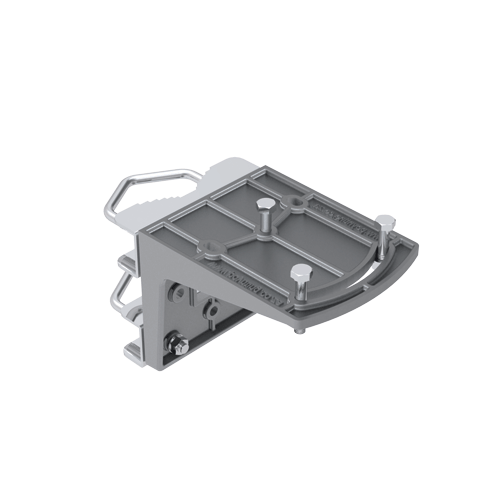

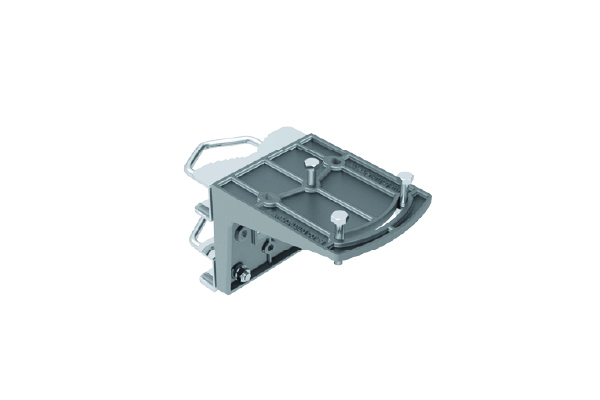

Bracket
-
U-bolts
-
Fasteners
-
User Guide
.jpg)
FEATURES
Poynting XPOL 3G/4G/5G MIMO LTE Antenna to suit Telstra 5G Nighthawk M5 M6 698-3800 Mhz 11dBi 10M Cable SMA/M Brand: Poynting SKU: ANT-PY-00004
