DETAILS

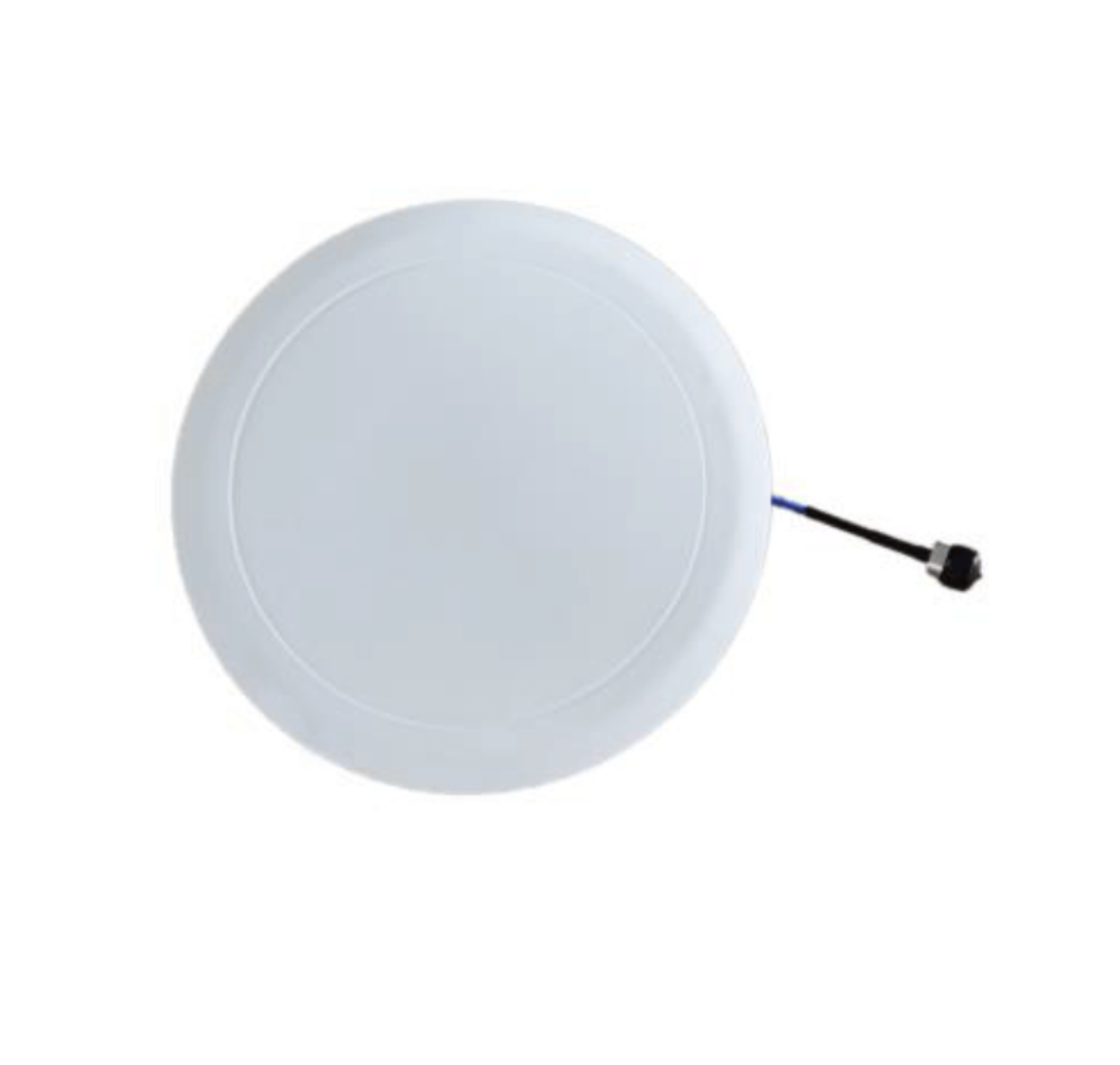

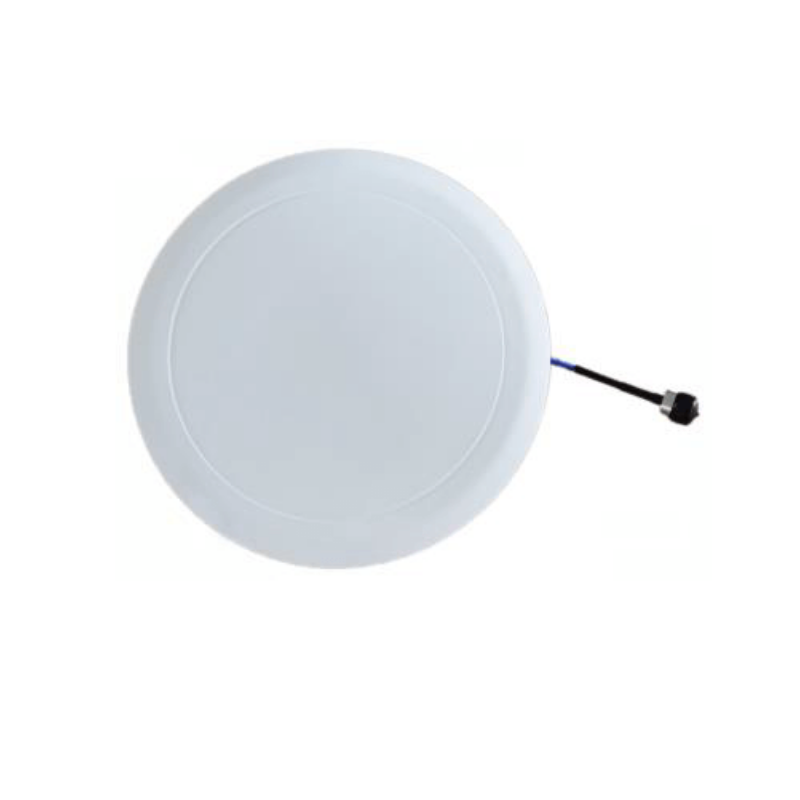

The Blackhawk Large Ceiling antenna is part of the slim series range measuring only 19mm thick. The thin and compact white design is only 28cm in diameter allowing the install to be visually unobtrusive making it ideal for deployment in hotels, convention centres and other venues where aesthetics are of primary importance.

This indoor ceiling antenna is designed to operate with all mobile carriers, regardless of what frequency they operate on and are perfect for applications that require a 360° beamwidth for complete internal coverage. Perfect for indoor mobile repeater applications.

  • Connector: N / 4.3-10 Female
  • Dimensions: ᴓ 280 x 19.0mm
  • Weight: 0.55 kg
  • Colour: White
  • Reflector Material: PCB
  • Radome Material: ABS (UV-stabilised)
  • Operating Temperature: -40°C to +65°C



ELECTRICAL SPECIFICATIONS

Frequency Range,MHz 380-520 698-960 1710-2700 3300-4000
Gain, dBi 2.0±1 2.0±1 4.0±1 4.5±1
VSWR ≤ 2.0 ≤ 1.8 ≤ 1.8 ≤ 1.8
Polarization Horizontal
PIM, 3rd Order, 2x20W ≤-140 dBc
Horizontal Beam-width 360°
Vertical Beam-width 120° 85° 76° 58°
Input Impedance 50 Ω
Max. Input Power 50 W
Lightning Protection DC Ground
