DETAILS


SPECIFICATIONS

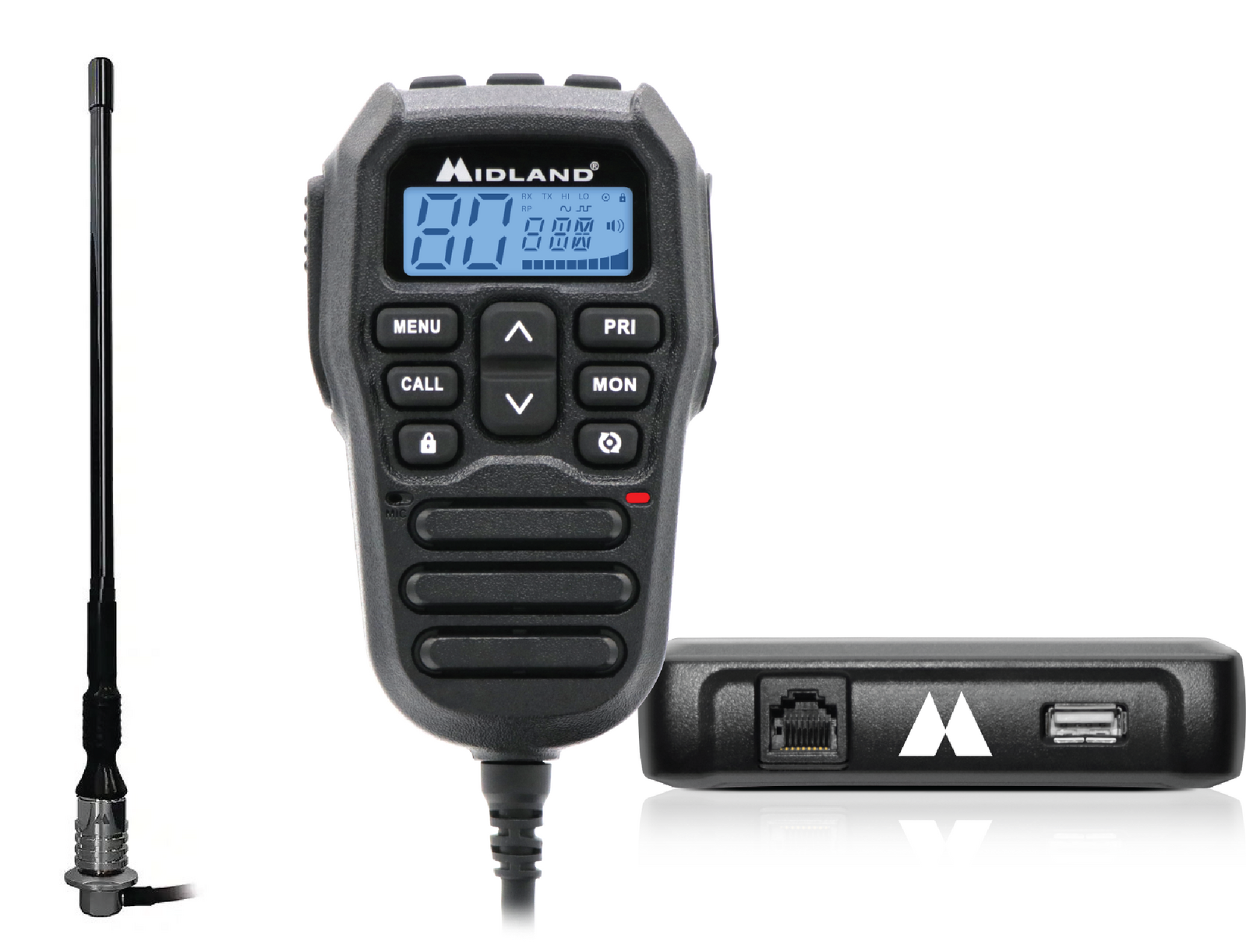

RADIO

  • Output Power: 5 Watts (CB), 15 Watt (LMR)

  • CB Channels: 2 Banks: 80(CB), 19 (LMR - Dealer Programmable)

  • CB Frequency Range: 476.425 ~ 477.4125MHz

  • LMR Frequency Range: 450 ~ 520MHz

  • Channel Width: 12.5kHz (Narrowband + Wideband))

  • Power Source (Nominal): 13.8V

  • Max Absorption Current in TX: 1.3A (5W), <3.2A (15W)

  • Operation Mode: Simplex & Duplex

  • Audio Output Power: 4 Watt (Base & Microphone)

  • Digital Coded Squelch (DCS): 104

  • Interference Eliminator (CTCSS): 50

  • Duplex Capability: Yes

  • Channel Memory Scan: Yes

  • Scan/Priority Scan: Yes

  • Backlit LCD Display: Yes, 7 Colour (Selectable)

  • External Speaker Jack: Yes

  • TX/RX Indicator: Yes

  • Scanning Receive Functions: Yes

  • Key Lock: Yes

  • Key Beep On/Off: Yes

  • Auto Squelch: Yes

  • Speaker: Dual (Base & Microphone)

  • USB Charging Port: Yes

  • Typical Range: 18km Line of Sight

  • Slide-In Mounting Cradle: Yes

  • Dimensions: (excl bracket) 110H x 120W x 25D mm



ANTENNA

  • UHF FLEXI-DIPOLE ANTENNA KIT

  • 3.1dBi

  • Flexable Whip

  • 477MHz Pre-tuned

  • 330m High

  • Ground Independent

  • SO239 Base

  • RG56 Coax (4.5m)

  • Includes: FME to PL259

  • Perfect Application for Machinery
