DETAILS


MIDLAND – PRO5X-4 5-WATT QUAD PACK HANDHELD UHF

Switchable Output Power: 1/2/5w
Channels: 80CB/128LMR
Frequency Range: CB 476.425-477.4125MHz LMR 450-520MHZ
Ingress Protection: IP54
Chassis: Aluminium
Battery Capacity: 2600mAh Li-Ion
Battery Save: Yes
CTCSS Tones: 50
DCS Codes: 108
Function Keys: 2
Keypad: Simple
Display: Backlit LCD
Monitor: Yes
Dual Watch: Yes
CH Scan: Yes
Key Lock: Yes
Roger Beep: Yes
Squelch: Yes
VOX: Yes
Channel Width: 12.5KHz (narrowband + wideband) Simplex/Duplex
Operation Mode: Simplex/Duplex
Operating Voltage: 7.4V
Input Power: DC 7.4V
Antenna: 50Ω
Accessories Port: 2-Pin Kenwood Type
Operating Temperature: -20°~+55°C
Dimensions (incl. Ant): 234H x 60.5W x 43D mm
Weight (including Belt Clip): 261g
Typical Range (@5W): 15km Line of Sight

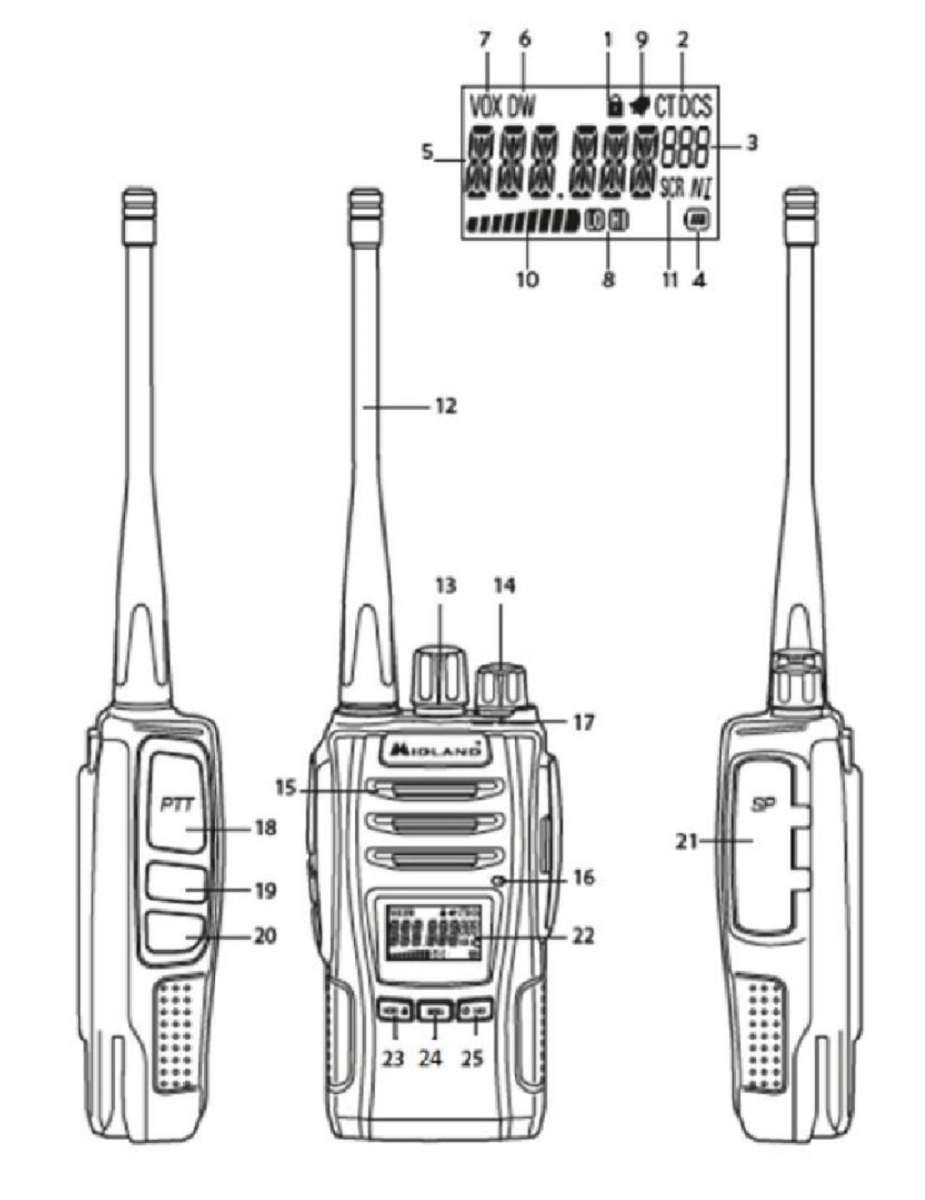

LCD Display

1. Keypad Lock On Icon
2. Selected CTCSS Tone or DCS Code
3. Menu Number in Menu Mode or CH Scanning Active
4. Battery Level
5. Channel In Use
6. Dual Watch Activated
7. VOX Function On
8. Power Level Setting
9. Roger Beep On
10. TX and RX Signal Strength
11. Scrambler Feature On (Through Programming Software)

Radio

12. Antenna
13. CH +/- or Menu Scroll Up/Down
14. Power On/Off & Volume +/-
15. Speaker
16. Microphone
17. LED: Red TX, Green: RX
18. PTT: Press To Transmit Or Release To Receive
19. Short Press: Squelch Off (Monitor)
Long Press: VOX On/Off
20. Short Press: Low/Mid/High Power Select
Long Press: Simplex/Duplex Mode
21. External Speaker/Mic Jack (Kenwood Type)
22. LCD Display
23. Short Press: Menu
Long Press: Keypad lock
24. Enter in Menu Mode
25. Short Press: Function "Back" in Menu Mode
Long Press:
 CH Scan
