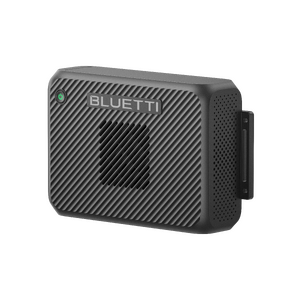

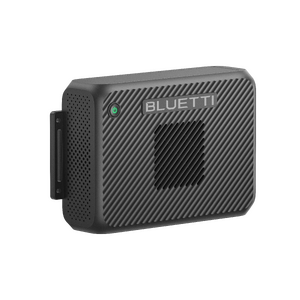

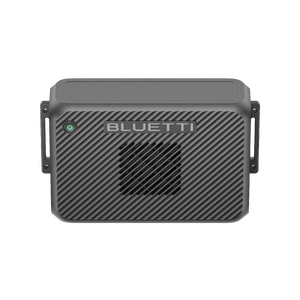

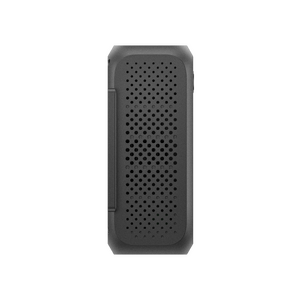

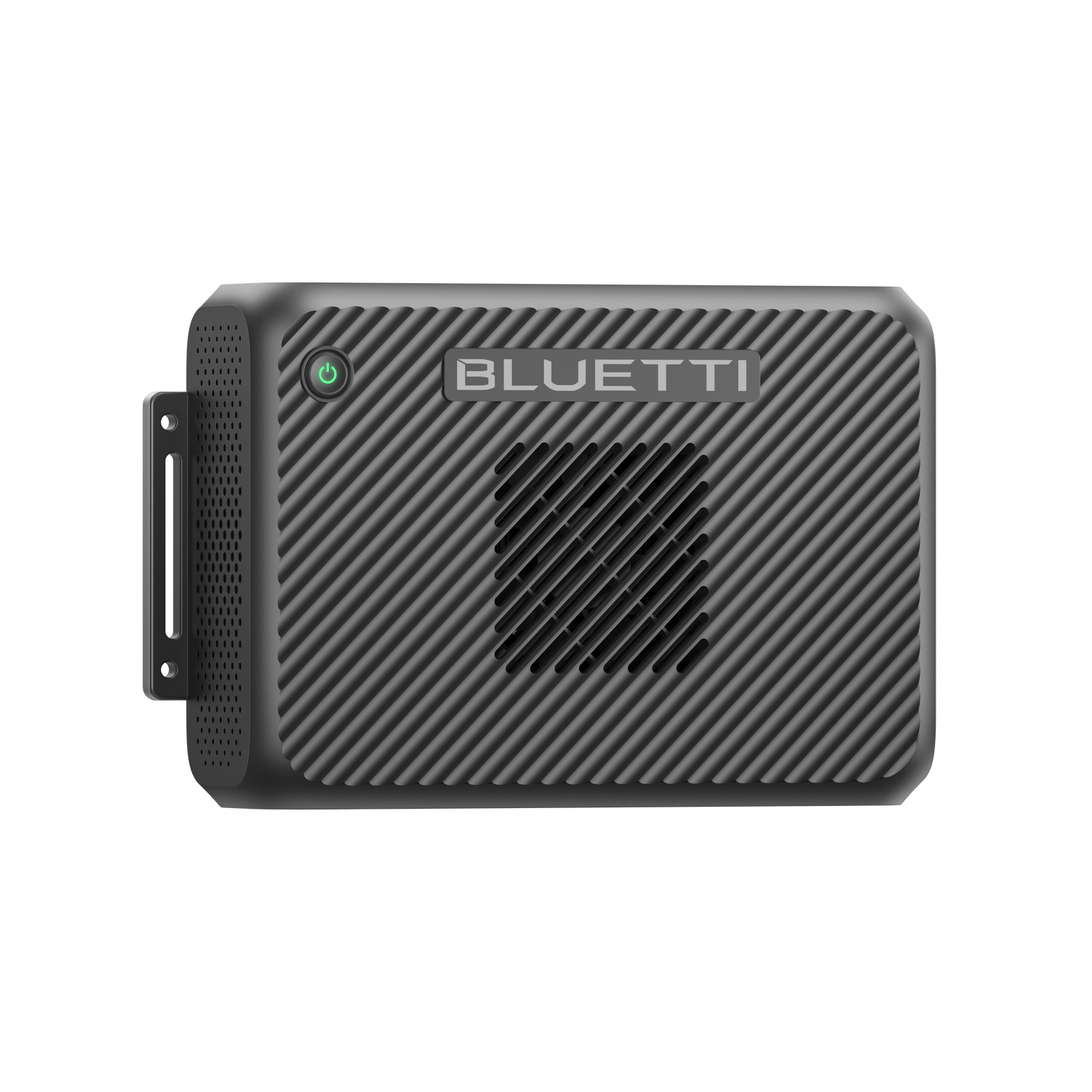

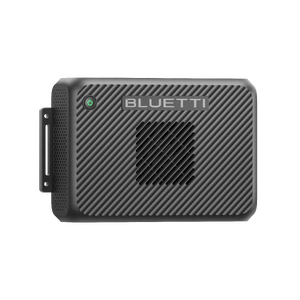

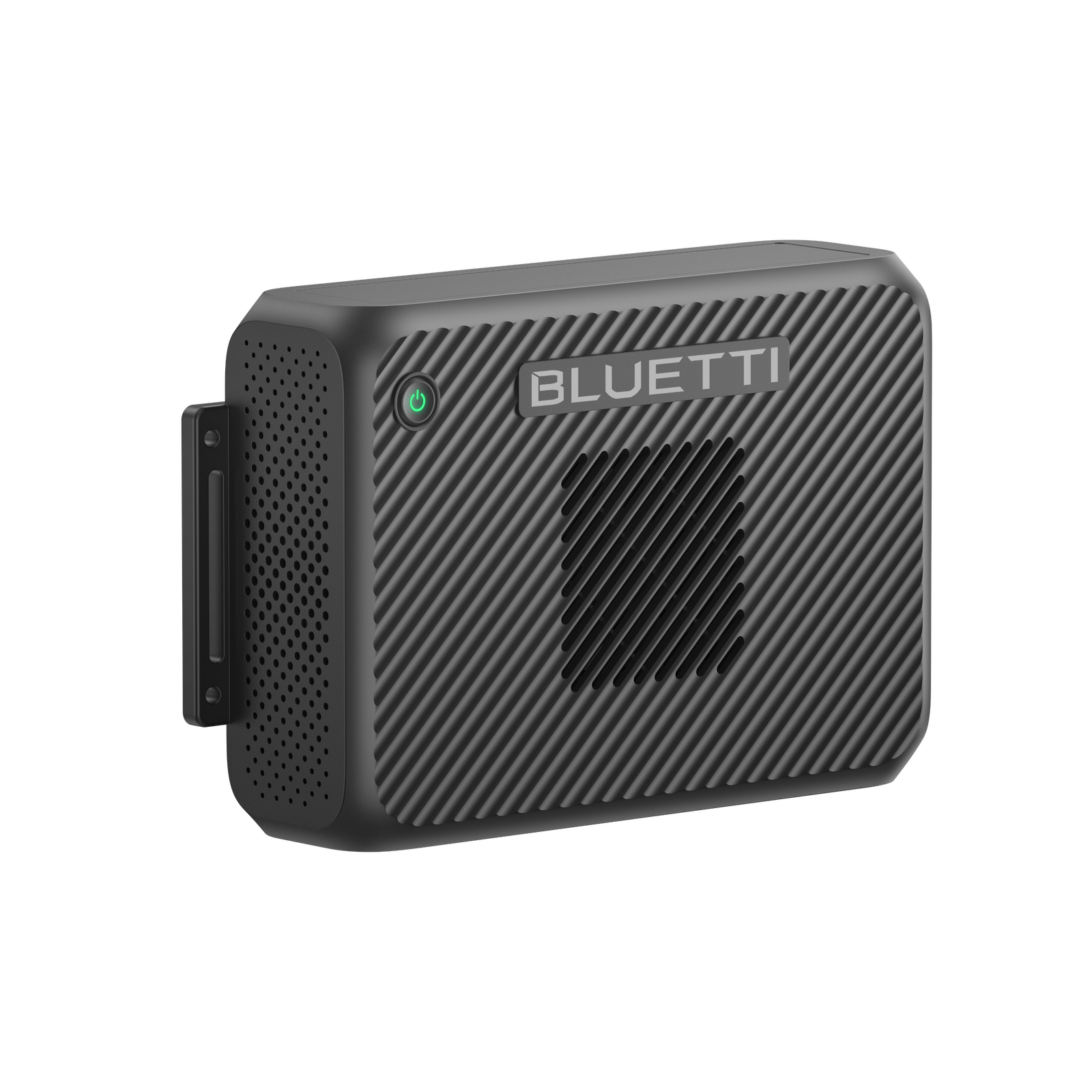

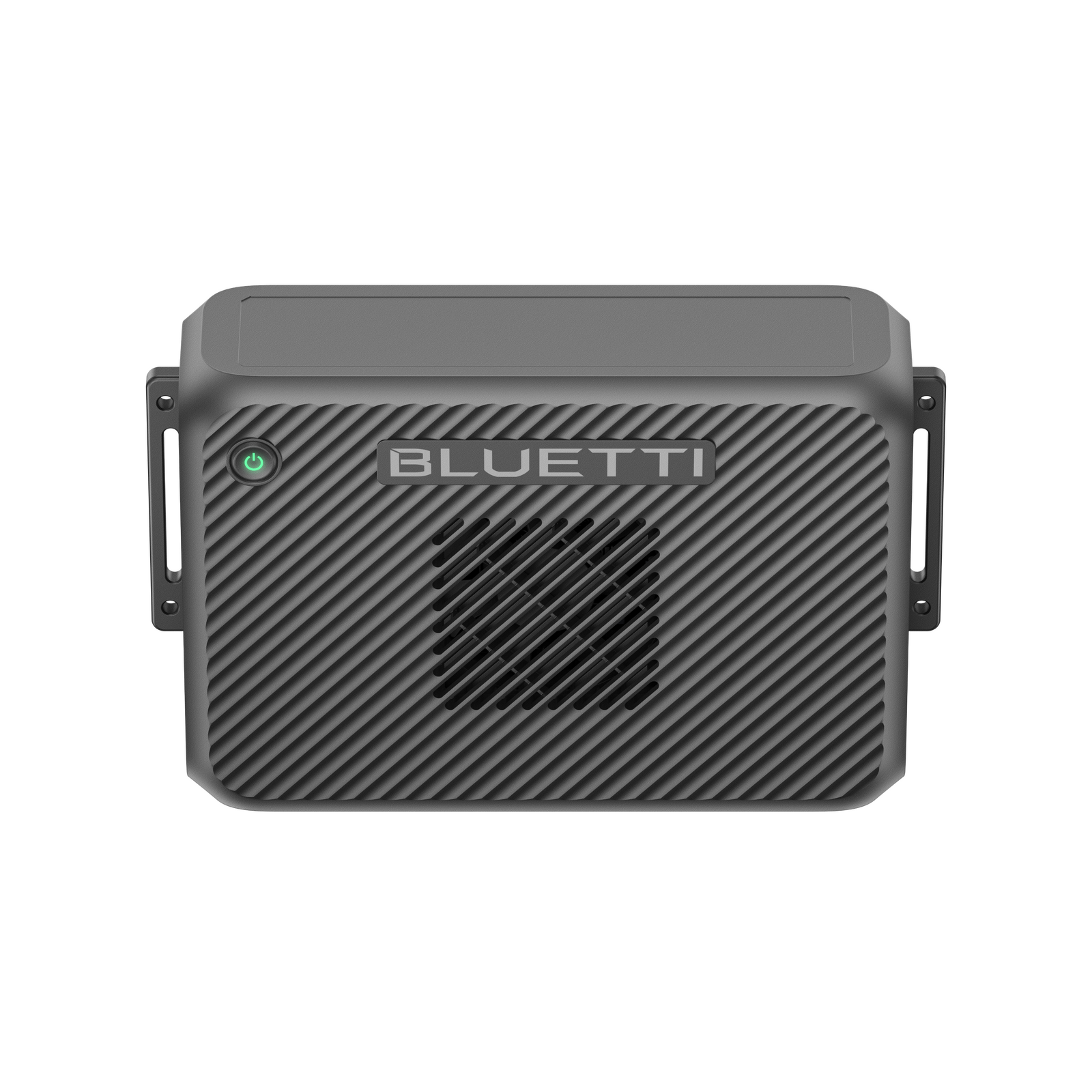

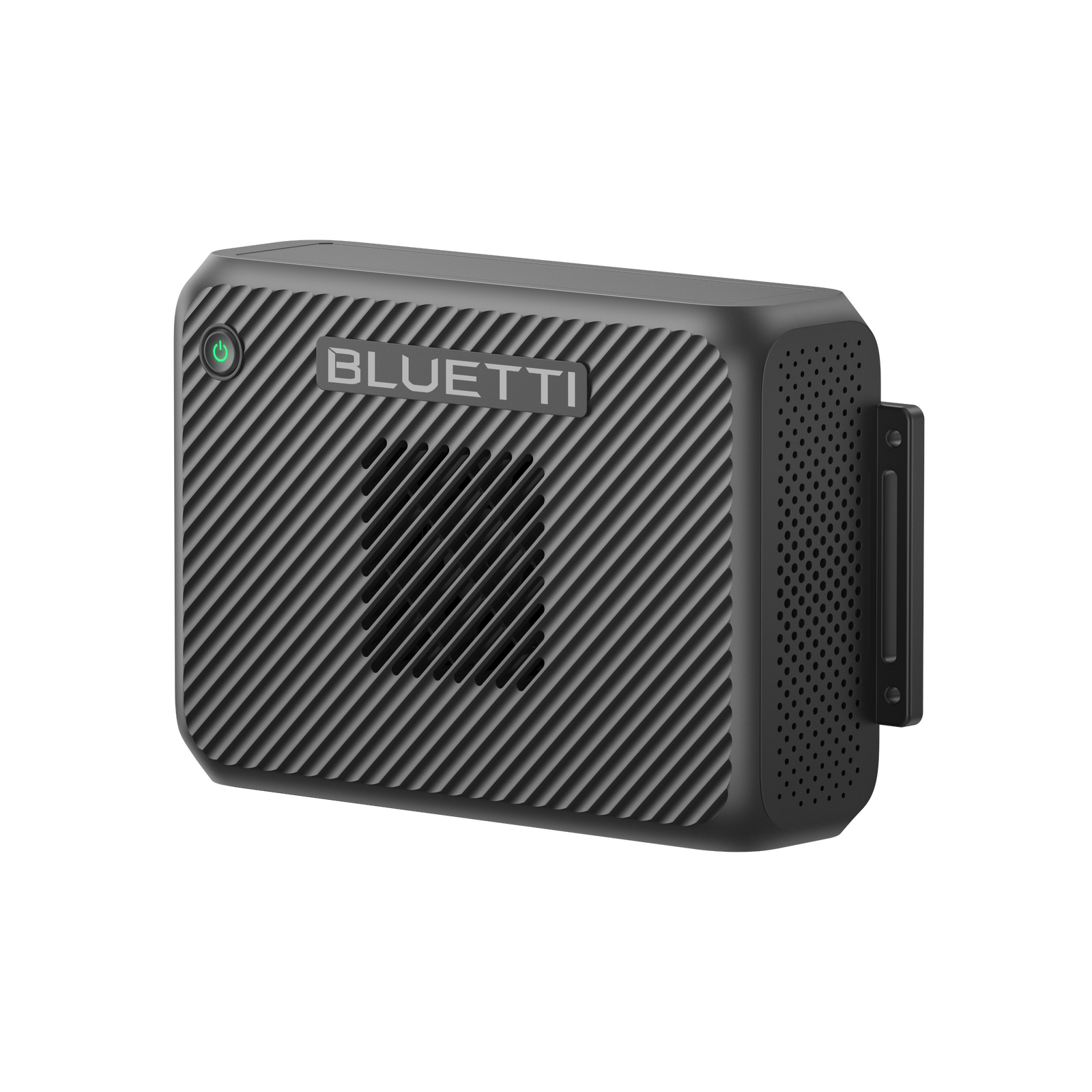

BLUETTI Charger 2

Alternator and solar into one charger

Charger 2 charges your power station from the vehicle alternator and solar panels at the same time, up to 1,200W combined. No switching leads over.

It takes up to 800W from a 12V or 24V starter battery and up to 600W from solar (13–50V). Bluetti rates it 13x faster than a standard car socket and twice as fast as Charger 1.

BLUETTI says Charger 2 works with all BLUETTI power stations, including the Apex 300, Elite 400, Elite 300, Elite 200 V2, Elite 100 V2 and AC200L it sells it with, plus the AC2A, AC50B, AC60, AC70, AC180, AC180T, AC200MAX, AC240, AC300, AC500, EB3A, EB55 and EB70S named in its setup guide. It also suits most third-party power stations that charge from solar through MC4 (some may charge unevenly).

1,200W
Max charging power
800W
From the alternator
600W
From solar
12V / 24V
Vehicles
1.59 kg
Weight

Why buy BLUETTI from us

Your local BLUETTI specialists

Charging on the move only works if the setup is right. Buy from a local team that can help you get it right.

✓A real shop in Sydney

We’re a bricks and mortar store, not a faceless online warehouse. You can visit us, or pick up your order from our Sydney shop.

✓Talk to a real person in Australia

Call or message our Sydney team (details on our contact page). You’ll speak to someone local who knows BLUETTI, not an overseas call centre.

✓Shipped Australia-wide

We send BLUETTI orders to every state and territory, from the city to the bush.

✓Wired right for your vehicle

We’ll help you work out the cables, fuses and connections the BLUETTI Charger 2 1200W Alternator & Solar Dual DC Charger for Power Stations needs for your vehicle and your BLUETTI.

✓Local support after you buy

Questions about setting it up, charging or getting the most from your BLUETTI? Our team here in Australia is happy to help.

✓The whole setup in one place

We stock the BLUETTI power stations, panels, chargers, cables and mounting trays that work together, so you can get everything from one store.

Ask us a questionMake us your first stop for BLUETTI.

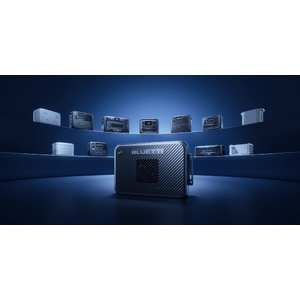

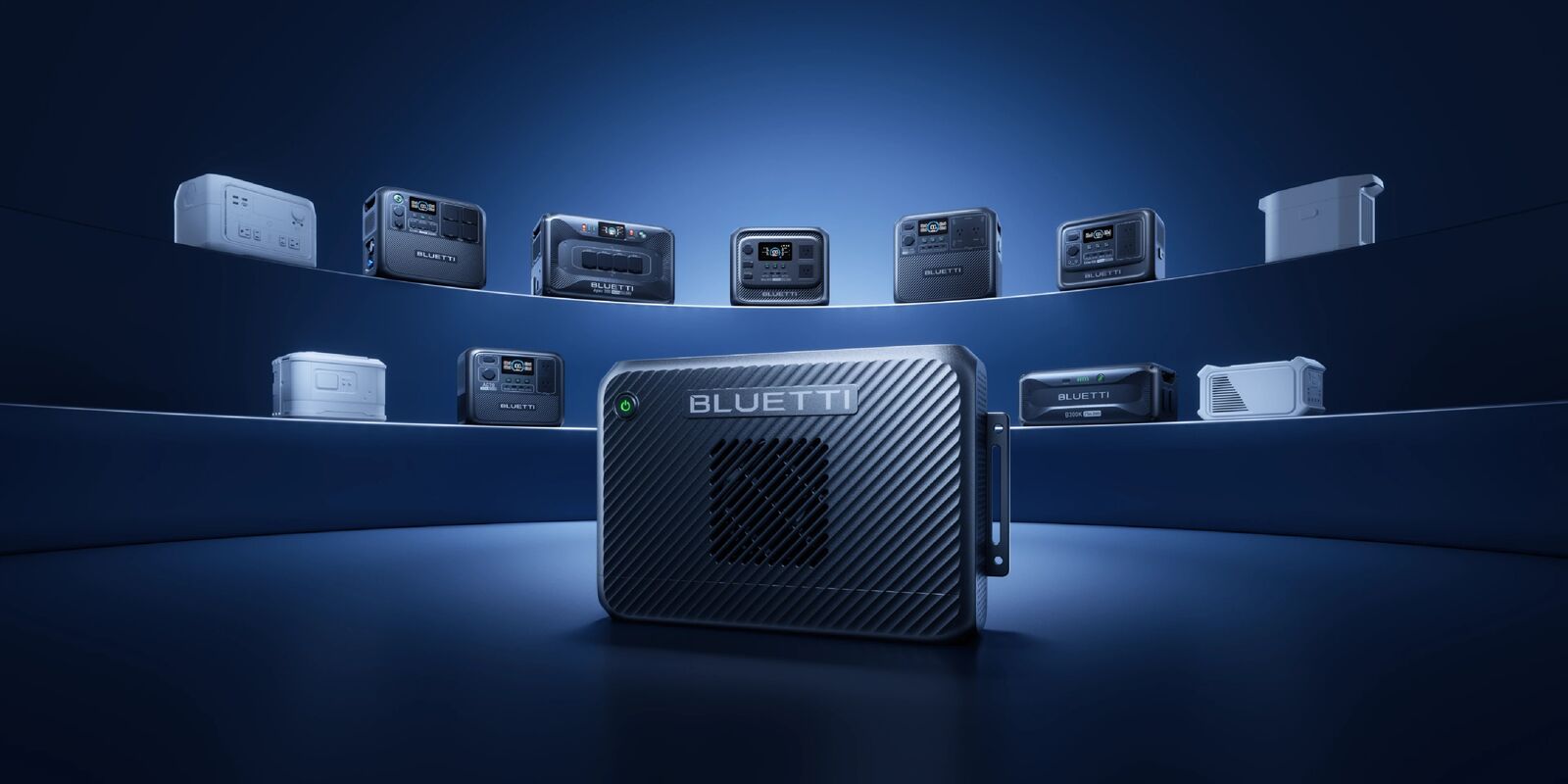

BLUETTI Charger 2 works with BLUETTI power stations and most other brands

BLUETTI Charger 2 and DC Hub running a fridge in the back of an SUV

More than a charger

12V and 24V power, engine on or off

Add the BLUETTI DC Hub for Charger 2 to run fridges, lights, fans and other 12V or 24V gear, up to 600W shared across its ports. Put a BLUETTI battery on the BAT port and the hub keeps running with the engine off.

  • ✓BAT port: up to 1,000W in or out to an auxiliary battery
  • ✓Reverse charging (100W): emergency jump-start, trickle charge and pulse maintenance for the starter battery
  • ✓Smart alternator compatible with the optional D+ signal wire
  • ✓Fused at 75A

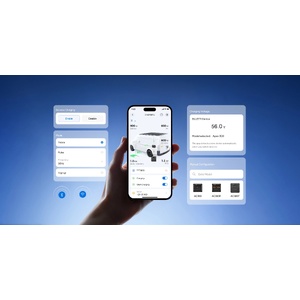

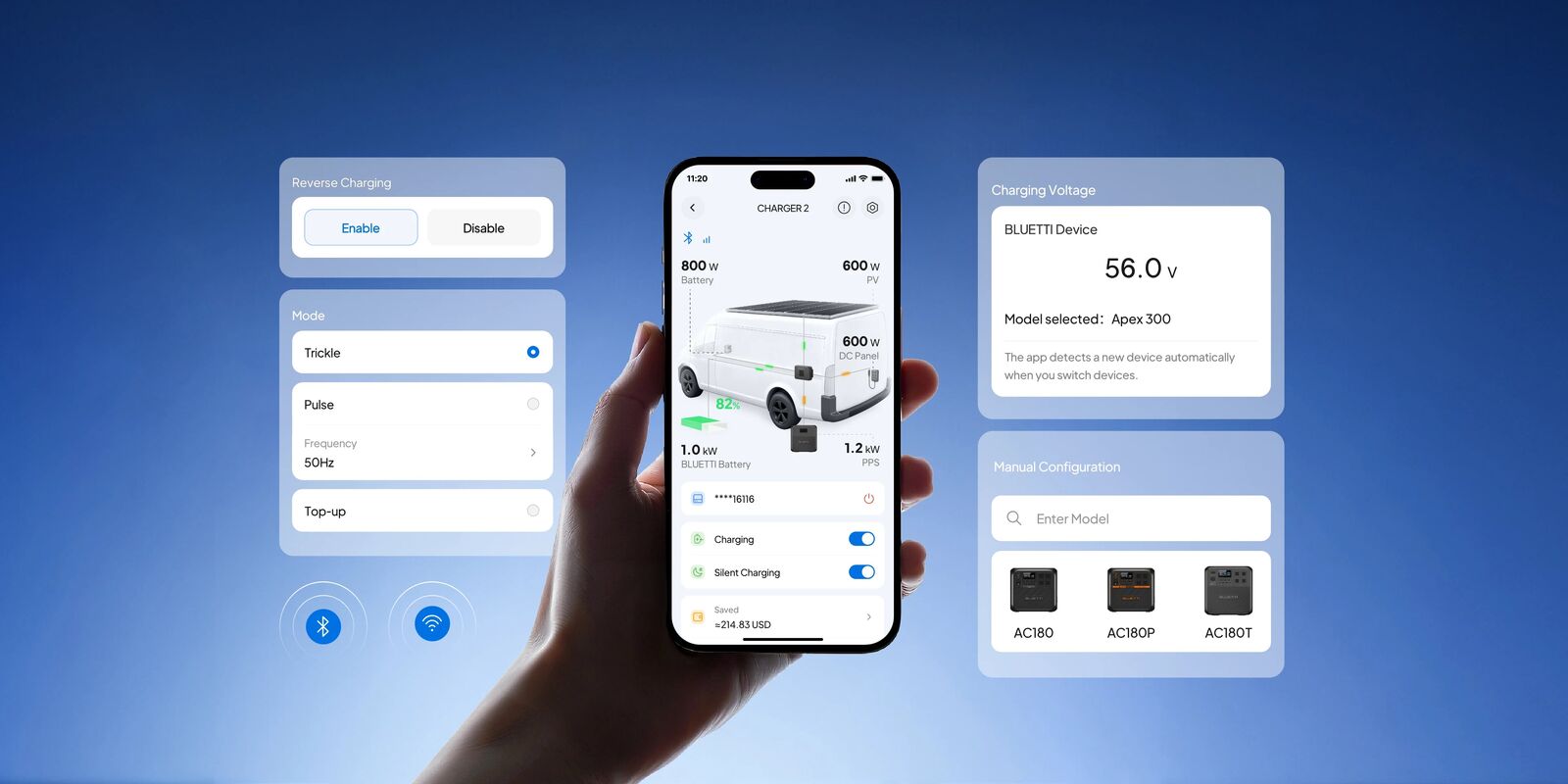

BLUETTI Charger 2 status and settings in the BLUETTI app

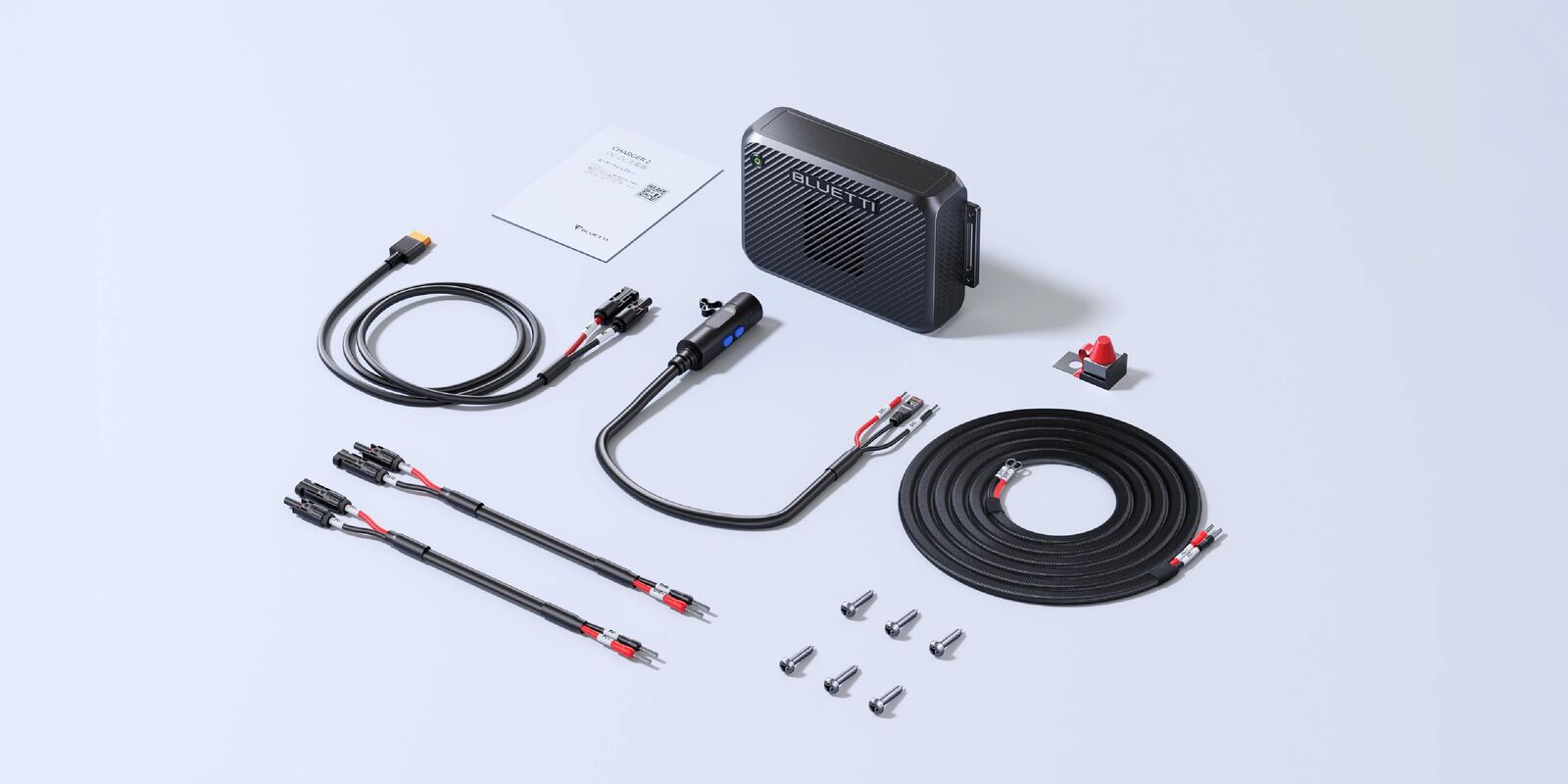

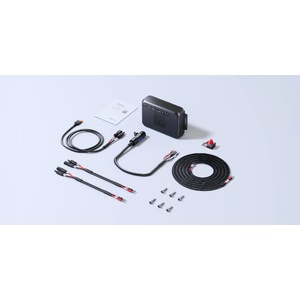

BLUETTI Charger 2 with the cables and parts supplied in the box

Frequently asked questions

Which power stations does Charger 2 work with?

BLUETTI says Charger 2 works with all BLUETTI power stations, including the Apex 300, Elite 400, Elite 300, Elite 200 V2, Elite 100 V2 and AC200L it sells it with, plus the AC2A, AC50B, AC60, AC70, AC180, AC180T, AC200MAX, AC240, AC300, AC500, EB3A, EB55 and EB70S named in its setup guide. It also suits most third-party power stations that charge from solar through MC4 (some may charge unevenly).

What vehicle battery does it need?

A standard 12V or 24V starter battery, or two 12V batteries in series. It suits hybrids with an alternator and starter battery, but not EVs.

How does it reach 1,200W?

Total charging is capped at 1,200W. Solar comes first (up to 600W), the starter battery supplies up to 800W, and an auxiliary battery on the BAT port can make up the rest.

Will it drain my car battery?

No. It stops drawing power 3 to 6 seconds after the engine shuts off and stops charging if the starter battery falls too low (12V / 26V). The optional D+ signal wire helps with smart alternators.

Can I use my Hub D1 with Charger 2?

Not directly. Hub D1 (the Apex 300 hub) does not connect to Charger 2. Use the DC Hub for Charger 2 instead, or connect Hub D1 to an Apex 300 or B300K/B500K that Charger 2 charges.

Can it jump-start my vehicle?

Reverse charging can recharge a low starter battery to help start the engine. Emergency jump-start only works when the starter battery is below 12.6V.

Still got a question? Our Sydney team is happy to help. Get in touch and you’ll talk to a real person in Australia.

Features

  • ✓Up to 1,200W combined alternator and solar charging
  • ✓Up to 800W from 12V or 24V starter batteries
  • ✓Up to 600W solar input, 13–50V, 20A
  • ✓Charges power stations at 12–56V, up to 24A
  • ✓BAT port for an auxiliary battery, up to 1,000W
  • ✓600W of 12V/24V DC power with the DC Hub (sold separately)
  • ✓Reverse charging: jump-start, trickle and pulse maintenance
  • ✓Auto-Connect matches most BLUETTI power stations
  • ✓Over/under voltage, overcurrent, short circuit and reverse polarity protection
  • ✓Bluetooth and Wi-Fi app control
  • ✓IP20, 50dB max, 265 x 169 x 69.7 mm, 1.59 kg
  • ✓2-year Bluetti warranty

Make it a complete setup

Pairs well with

Hub D1 for Bluetti Charger 2
Hub D1 for Bluetti Charger 2

The DC Hub made for Charger 2: 12V/24V Anderson, lighter, DC5521 and USB outputs.

View product

BLUETTI Apex 300 Versatile Power Station | 3,840W 2,764.8Wh
BLUETTI Apex 300 Versatile Power Station | 3,840W 2,764.8Wh

Apex 300: Bluetti sells it with Charger 2 and the DC Hub for RV builds.

View product

BLUETTI Elite 400 Portable Power Station | 2,600W 3,840Wh
BLUETTI Elite 400 Portable Power Station | 2,600W 3,840Wh

Elite 400: 3,840Wh unit Bluetti pairs with Charger 2.

View product

BLUETTI AC180P Portable Power Station | 1,800W 1,440Wh
BLUETTI AC180P Portable Power Station | 1,800W 1,440Wh

AC180P: set Charger 2 to a higher voltage for fast road charging.

View product

Bluetti Pv350 Solar Panel | 350W
Bluetti Pv350 Solar Panel | 350W

PV350 panel (44V open circuit) sits inside Charger 2’s 13–50V solar range.

View product

Specifications

Output

CHG port (power station charging) 12–56V, 24A, 1,200W max
DC PANEL port (48V DC output) 40–58.5V, 2.5A; bypass 600W max (12V output needs the DC Hub; 600W shared across its ports)
BAT port (aux battery in/out) 19.2V 52A / 25.6V 39A / 51.2V 19.5A, 1,000W max
Reverse charging 100W

Input

ALT port (alternator) 12.8V 62.5A / 25.6V 31.3A, 800W max
PV input 13–50V, 20A, 600W max

General

Compatibility All BLUETTI and about 95% of third-party portable power stations
Protections Short circuit, reverse polarity, overcurrent, over/under voltage
Fuse 75A
Operating temperature -20°C to 60°C (derated above 40°C)
Storage temperature -20°C to 60°C
Protection grade IP20
Noise 50dB or less
Weight 1.59 kg
Dimensions (L x W x D) 265 x 169 x 69.7 mm
Operating altitude Below 2,000 m
Operating humidity 10% to 90%
App connection Bluetooth and Wi-Fi
Warranty 2 years

What's Included

  • Charger 2 x 1
  • Car battery cables x 1
  • 75A fuse x 1
  • MC4 input cable x 1
  • MC4 output cable x 1
  • MC4 to XT60 cable x 1
  • Bidirectional power cable x 1
  • Self-tapping screws x 6
  • User manual x 1

D+ signal wire, DC Hub and model-specific bidirectional cables are sold separately.

Product Details

SKU CHARGER2
Model # CHARGER2
Barcode # 6978341871891
Brand Bluetti
Compatible with All BLUETTI power stations
Solar input 13-50V, 20A, 600W max
Max charging power 1,200W (alternator + solar)
Alternator input 800W max, 12V/24V
Shipping Weight 4.6000kg
Shipping Width 0.230m
Shipping Height 0.220m
Shipping Length 0.320m
Shipping Cubic 0.000150000m3
