DETAILS

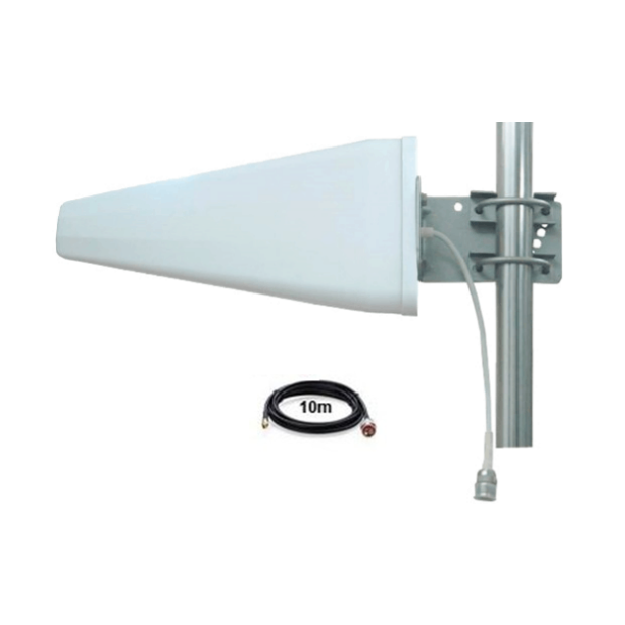

The Blackhawk wideband antenna is a fantastic little antenna providing good performance with a lightweight, low cost design. There’s plenty of situations where a big, solid metal antenna is necessary, but also plenty where something quick and small can be just as useful. This antenna is great for areas where indoor signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement.

FEATURES

  • 10 dBi gain across lower bands 698-960 MHz

  • 11 dBi gain across upper bands 1710-2700 MHz

  • Lightweight, compact design

  • Mounting clamp included

  • 30 cm tail with pre-terminated N Female connector

  • Supplied with 10 m of RG58 cable with SMA Male connectors

  • Great cost effective antenna.

The antenna is simple and effective, it might not last as long as a fully welded yagi, or our Backhawk LPDA, but it’s a great antenna for temporary installations or those travelling who need something compact.

Mounting is made simple with a mast down-tilt bracket and U-Bolts. This enables you to mount the antenna on a flat surface or a pole.

All Blackhawk Antennas come with a 5 year warranty.



ELECTRICAL SPECIFICATIONS

Frequency Range 698-960 MHz / 1710-2700 MHz
Input Impedance 50 Ω
Gain 10 / 11 dB
VSWR ≤ 2.0 / ≤ 1
Polarisation Vertical
Horizontal Beamwidth 70°
Vertical Beamwidth 50°
Maximum Input Power 50 W
Lightning Protection DC Ground

MECHANICAL SPECIFICATIONS

Dimensions 450 x 210 x 65 mm
Weight 1.1kg
Operating Temperature -40°C – +65°
Connector 1 x N-Female
Material Aluminum and ABS
Dimensions 442 x 205 x 37 mm
Antenna Colour White
Mounting Pole 38 – 52 mm
Rated Wind Velocity 210km/h
