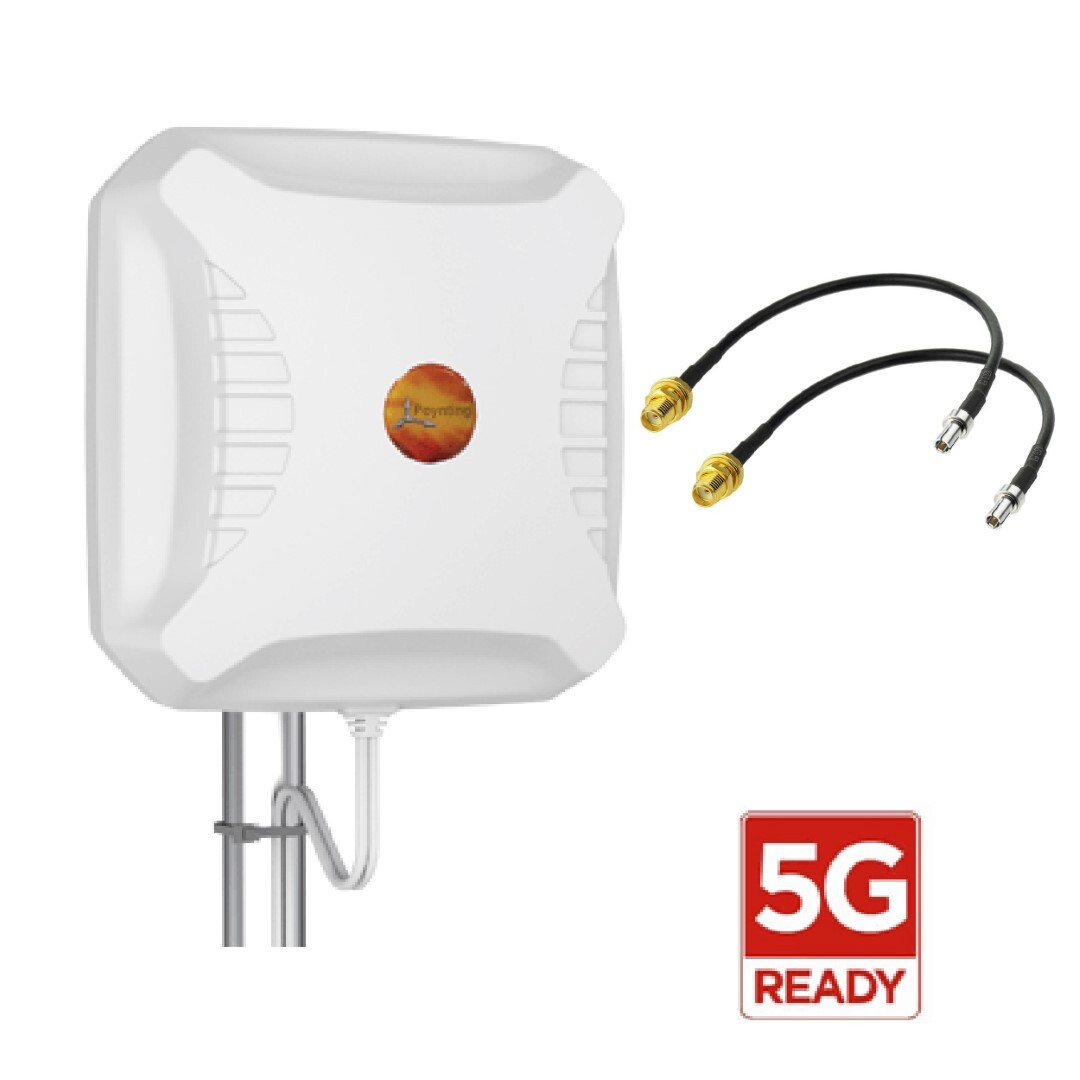

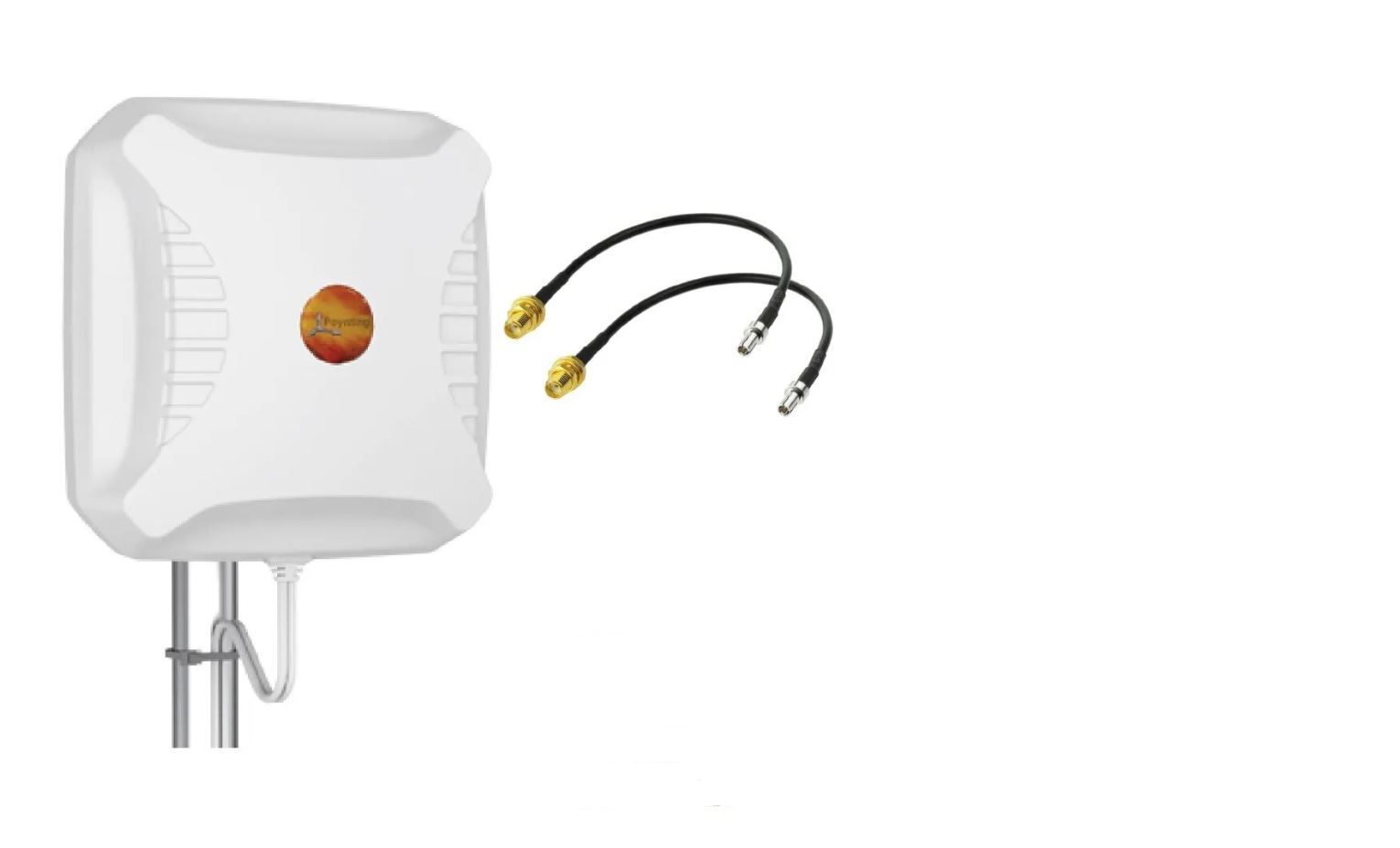

Antenna kit for Telstra 5G Netgear Nighthawk M5 & M6 Wi-Fi PRO with Poynting XPOL 3G/4G/5G MIMO LTE 698-3800 Mhz 11dBi 10M Cable SMA/M
DETAILS
Improve your cellular signal strength for Voice Calls, SMS, and Data by connecting an external antenna to your modem.
Pack is suitable for: (** Modem is not included **)
-
Telstra 4G Netgear Nighthawk M2 and 4GX Hotspot
-
Telstra 5G Netgear Nighthawk M5 and 5G Wi-Fi PRO
-
Optus 4G Huawei B818
-
Vodafone 4G Huawei WiFi Cube
* Optus and Vodafone use the same modem
The Antenna kit for Telstra 5G Netgear Nighthawk M5 & M6 Wi-Fi PRO with Poynting XPOL 3G - 5G is third-generation “V3” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna and includes the newer 3400 – 3800MHz bands making it suitable for 2G, 3G, 4G & 5G. Making use of Artificial Magnetic Conductors (AMC) and a new registered/patent-pending radiator configuration has yielded exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well-controlled, further adding to the performance of the antenna.


CONDITION
Brand new - A brand new, unused, unopened, undamaged item in it's original packaging.
FEATURES
-
New advanced metamaterial technology
-
Exceptional performance over the main 4G/5G bands
-
High Gain for the antenna size
-
Wideband 2×2 MIMO 4G/5G antenna
-
Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
-
Two cross polarised antennas in one enclosure for optimal LTE performance
-
IP65 weather/dust and vandal-resistant enclosure
MECHANICAL SPECIFICATIONS
| Product Dimentions | 680-960 | 1710-2700 | 3400-3800 | ||
| Gain (max) Port 1 & 2 | 9 dBi | 10 dBi | 11 dBi | ||
| VSWR Port 1 & 2 | <1.5:1 over 95% of the band | ||||
| Feed power handling | 20W | ||||
| Input impendance | 50 Ohm | ||||
| Polarisation | ±45° | ||||
ELECTRICAL SPECIFICATIONS
| Frequency Bands | 290mm x 265mm x 155mm | |
| Dimentions | 375mm x 270mm x 100mm | |
| Radome | UV Stable ASA | |
| Radome | Brilliant white | |

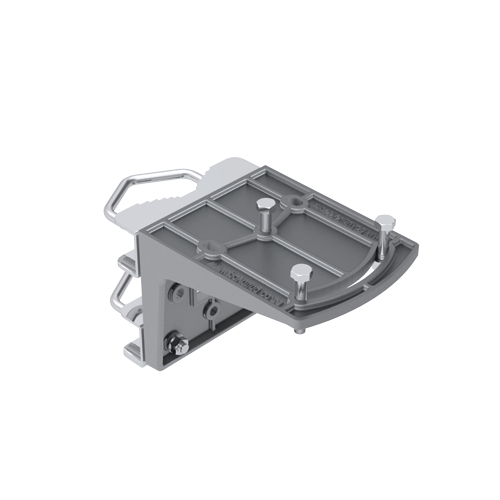

| Mounting | Wall and pole mount |
(1).jpg)
FEATURES
Antenna kit for Telstra 5G Netgear Nighthawk M5 & M6 Wi-Fi PRO with Poynting XPOL 3G/4G/5G MIMO LTE 698-3800 Mhz 11dBi 10M Cable SMA/M Brand: Poynting SKU: ANT-BH-00074
