DETAILS

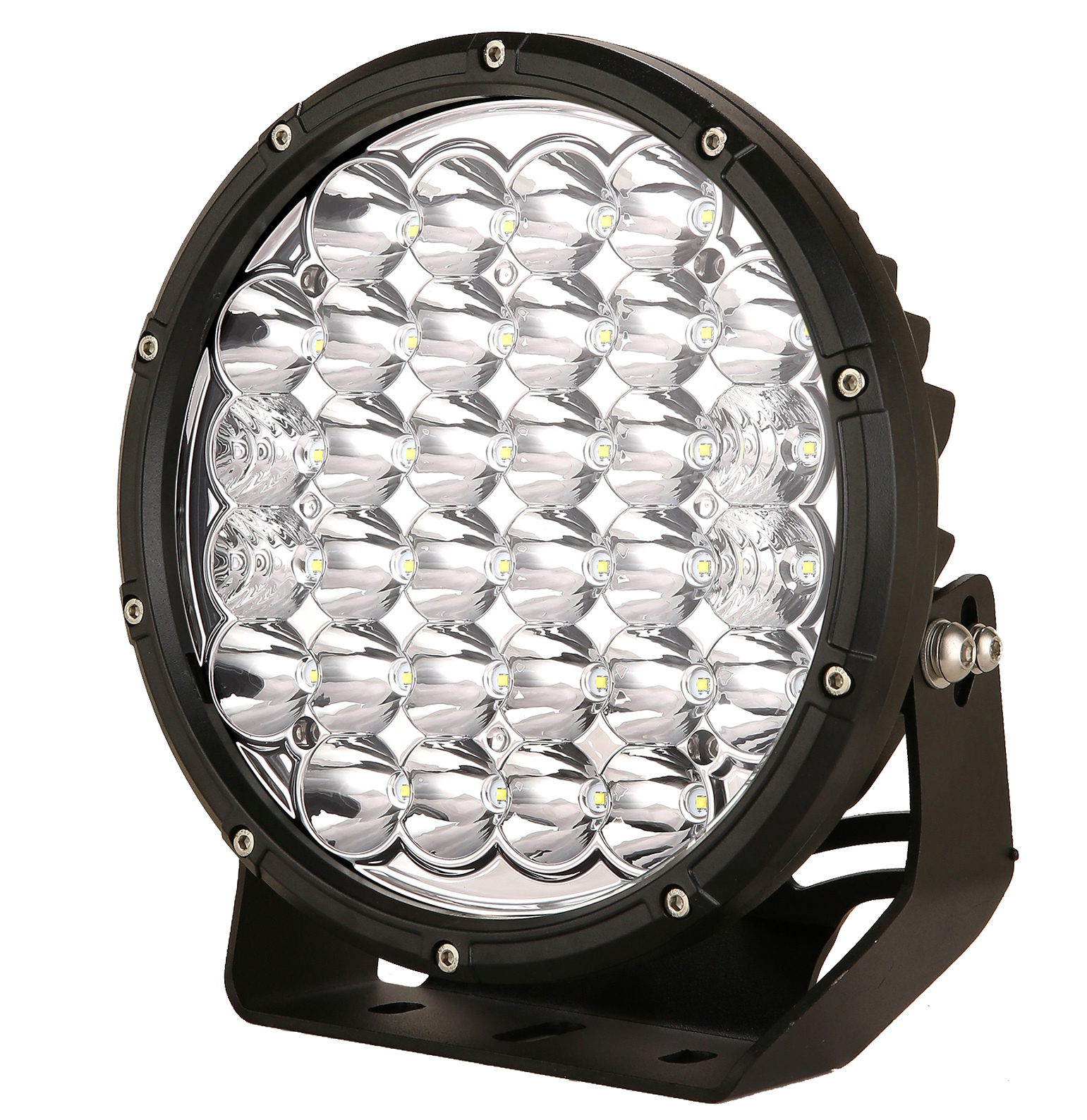

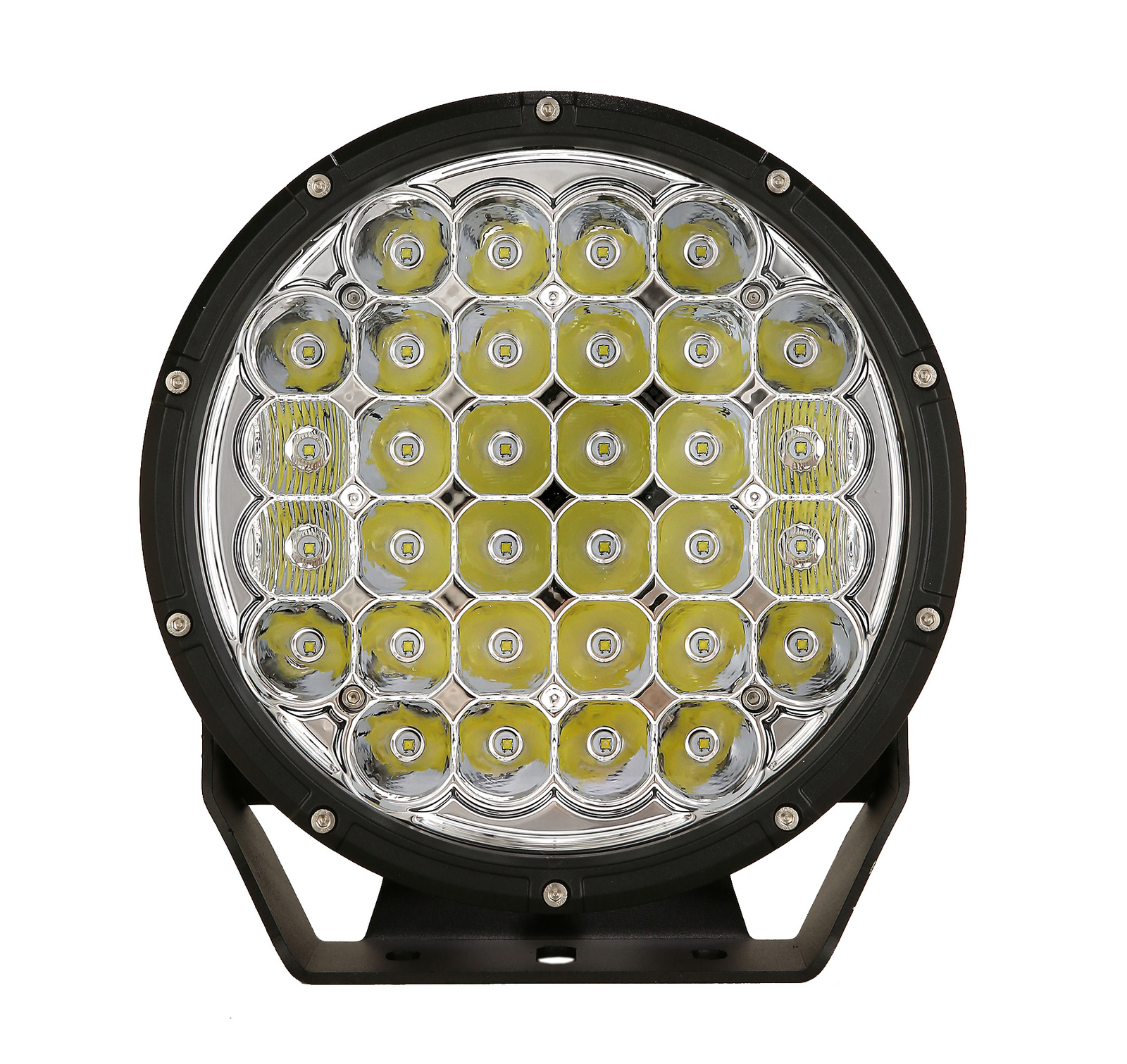

9" Adventure Series LED Driving Lights






SLEEK. ELEGANT. POWERFUL.

Three keywords we kept in mind when designing our latest release for our entry level offering. Our Adventure Series LED Driving Lights to use the very best quality electronic componentry to ensure performance. This combined with the latest high performance 5W LED chips and custom designed reflector provides an unrivaled combination driving beam. Ensuring not only incredible distance also impressive flood performance where it matters.

KEY FEATURES

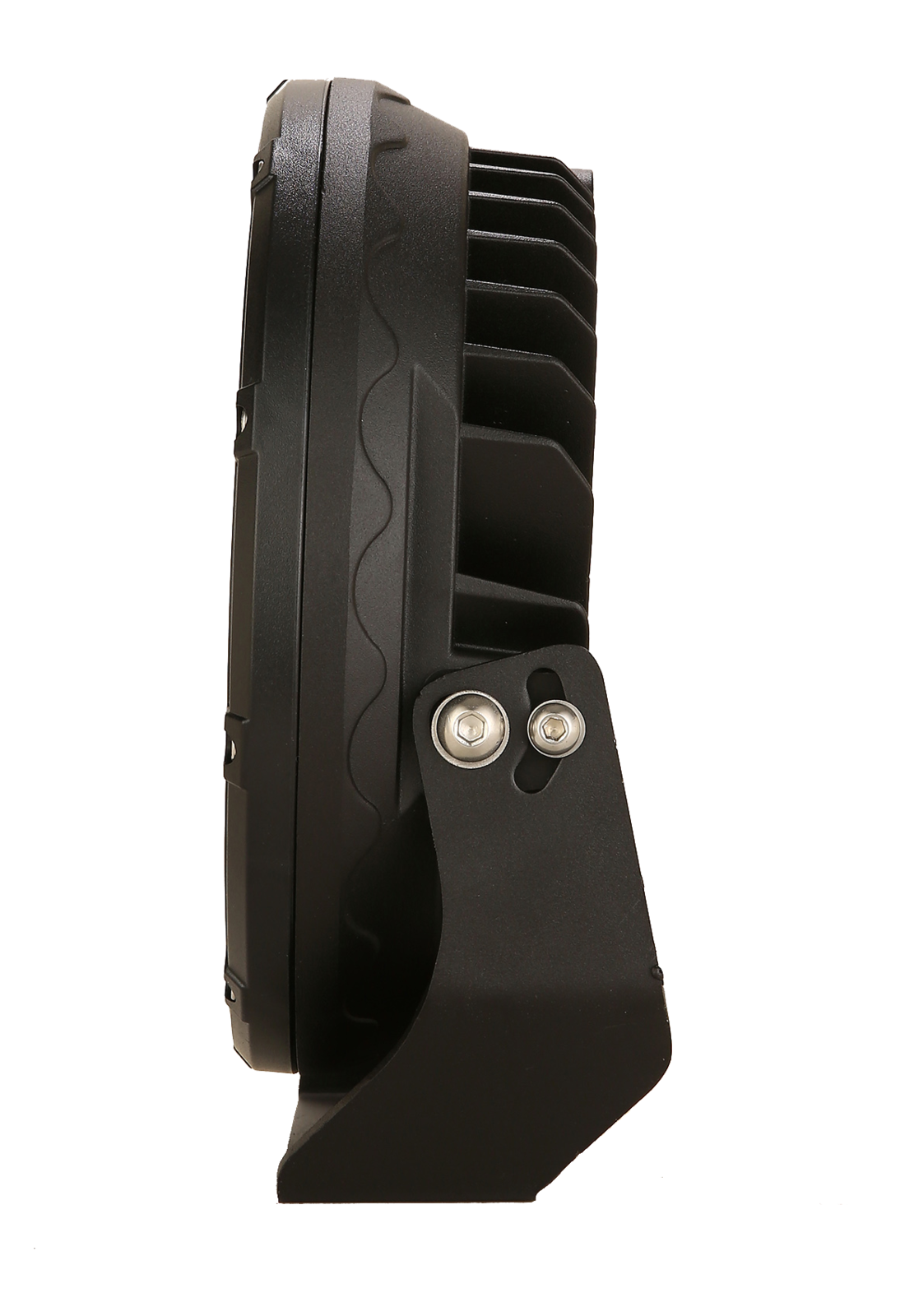

  • Adjustable bottom mount for versatility

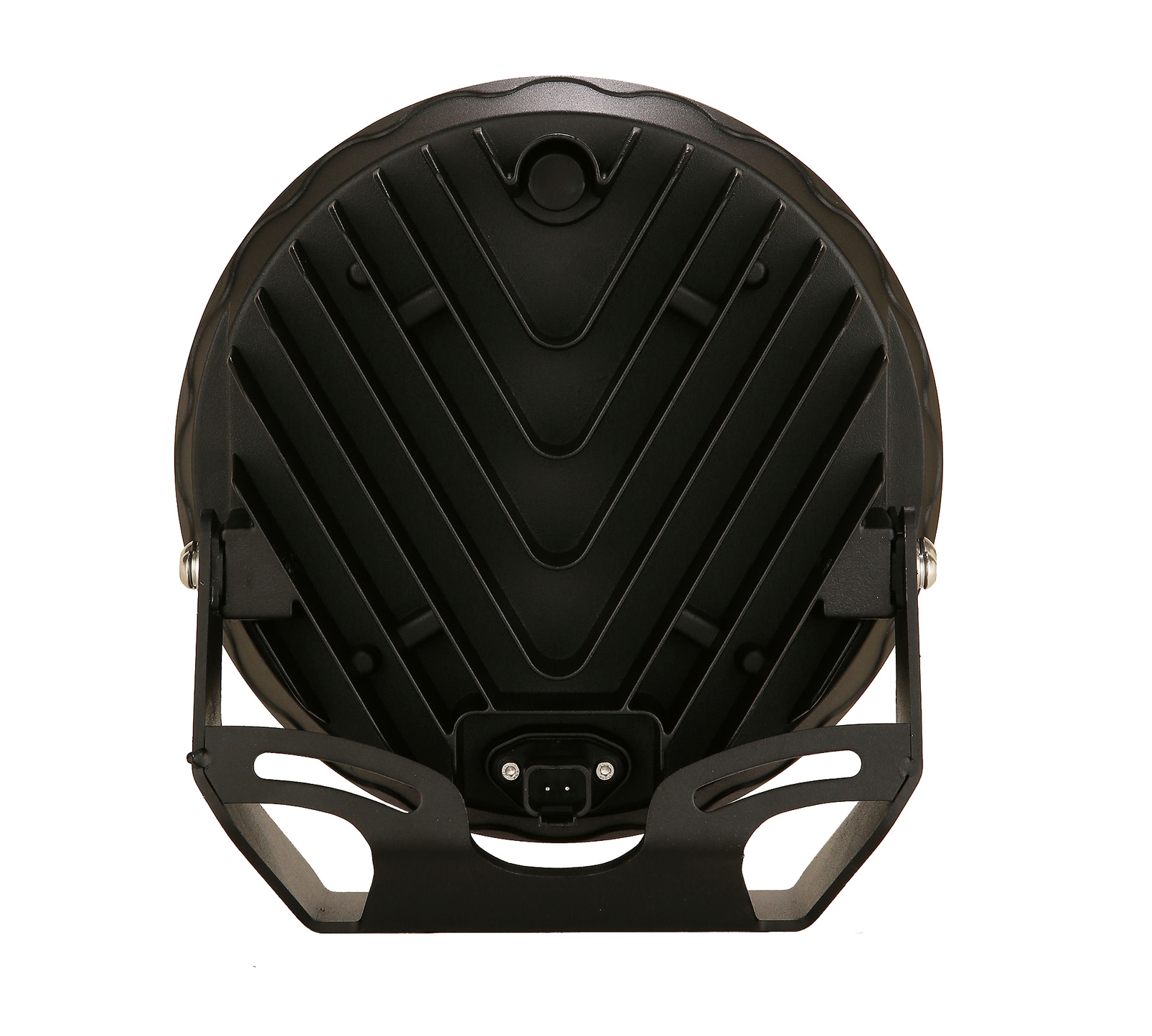

  • Oversized heatsink ensured LEDs run cooler
  • IP68 Rating ensures the lights are 100% waterproof
  • Unbreakable lens: polycarbonate lens is unbreakable
  • Latest reflector technology achieves 97% efficiency


LUX DIAGRAM

WHAT’S INCLUDED

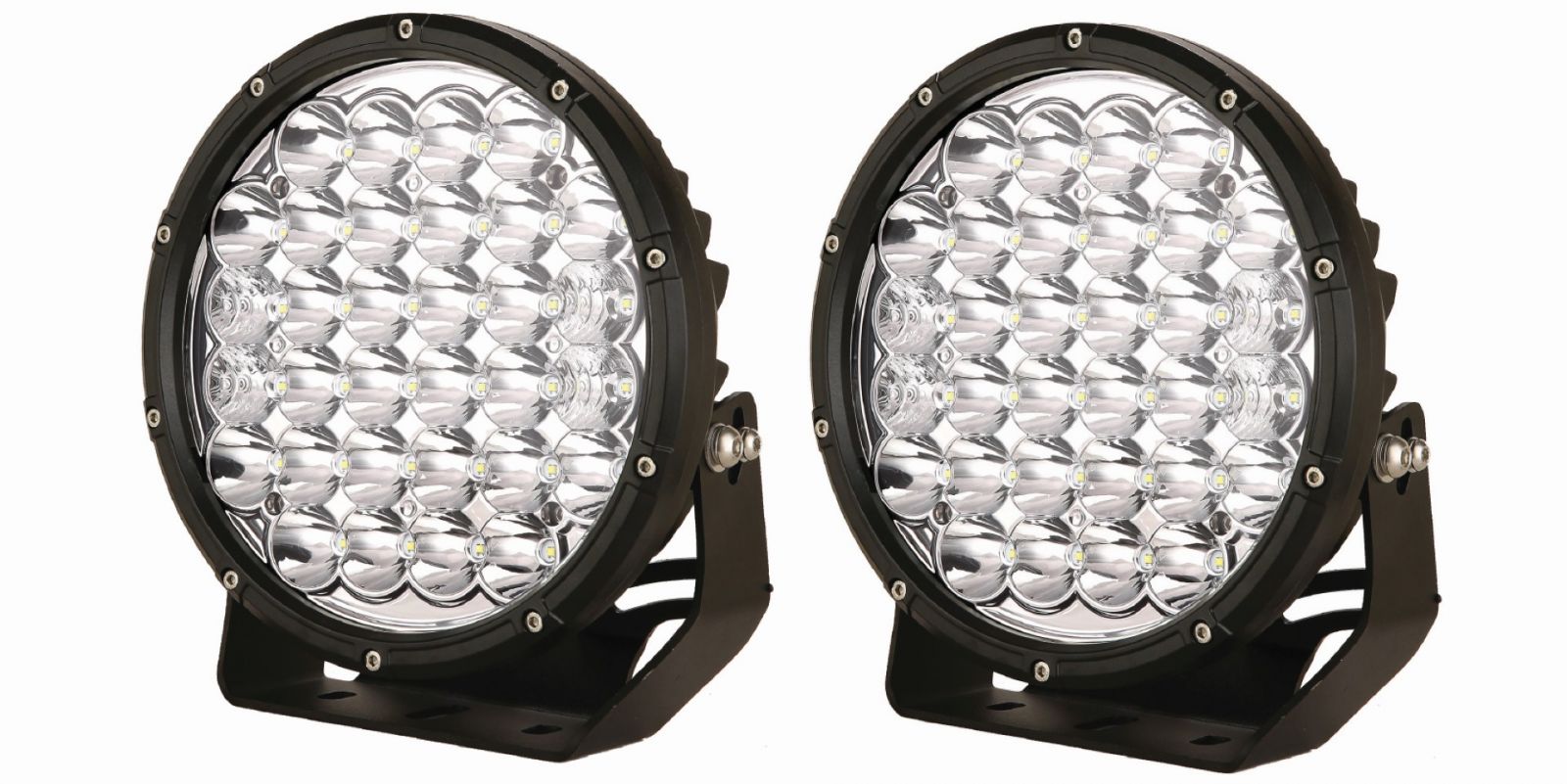

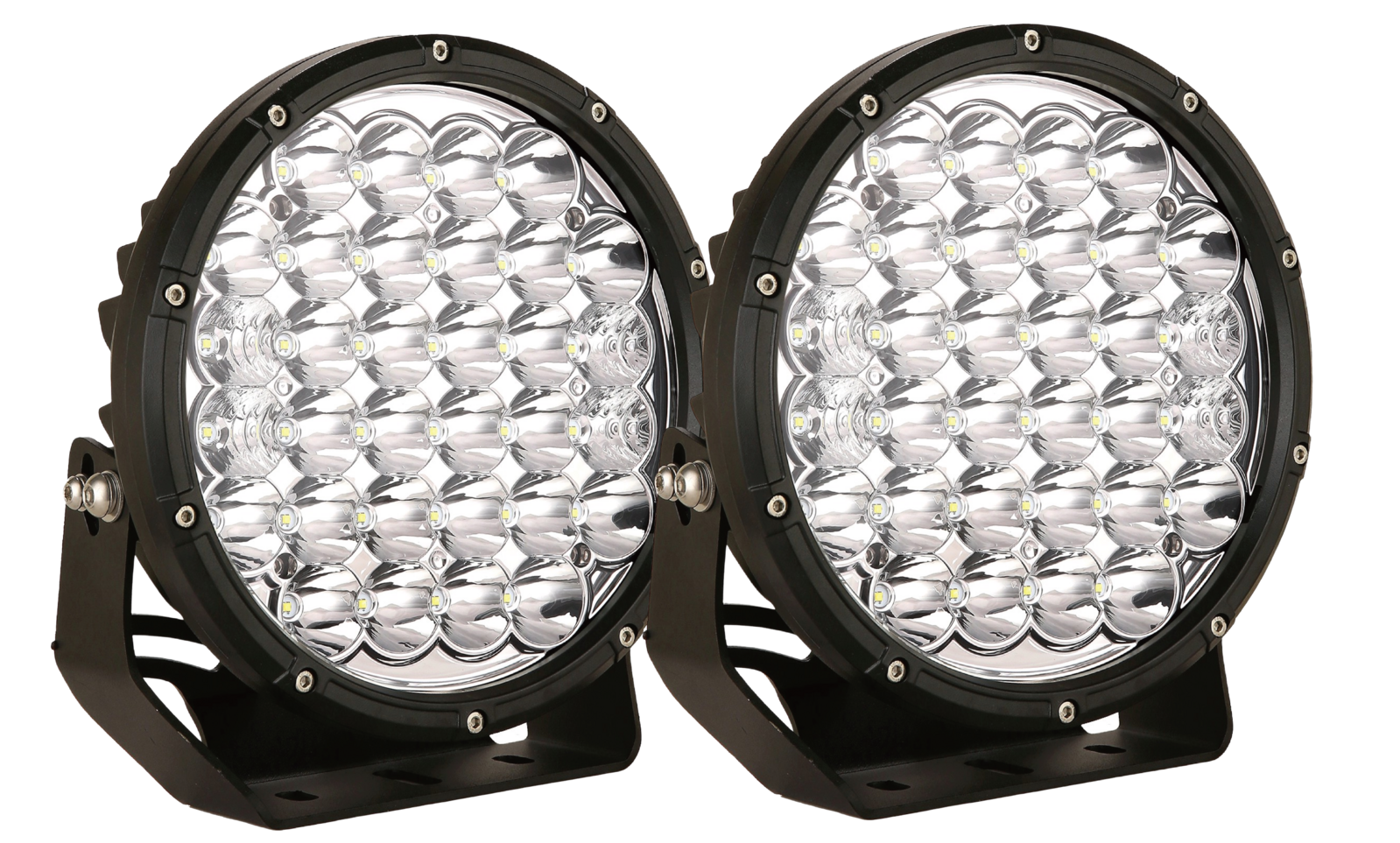

- 2 x 9” Adventure Series LED Driving Lights
- 2 x Bottom Mount Brackets
- 2 x Clear Protective Covers
- Male and Female Deutsch Plugs


810 METER BEAM DISTANCE

The 9" Adventure Series reflector was designed and tested to deliver the ultimate driving beam pattern. This resulted in an astonishing 810M @ 1 Lux without compromising flood performance. We achieved this by precisely focusing light where it's required.

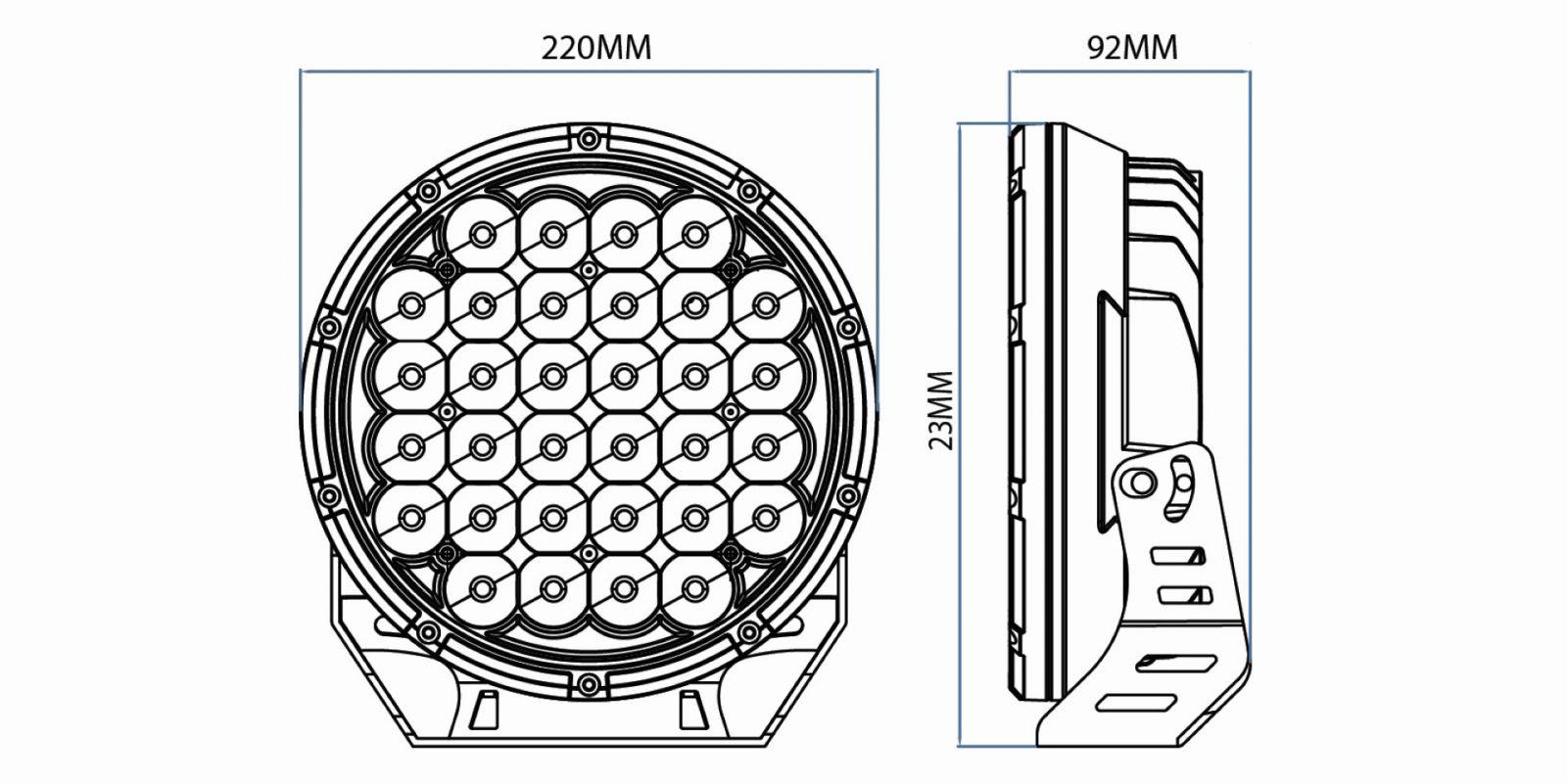

DIMENSIONS

SPECIFICATIONS

Lumens   14,600 Each
Lux    1 Lux @ 810M
Operating Voltage   11-32V DC
LED Power   160W (32 x 5 Watt LEDs)
Power Consumption   7.5A @ 12V (Each)
IP Rating   IP68 | Submersible up to 3m
Beam Pattern   Driving Beam (Combination)
Operating Voltage   10-30VDC
Colour Temperature   6000K
Weight   2.4KG (Each)
Body Material   Diecast Aluminium
Lens Material   PMMA Polycarbonate
Bracket   Powdercoated Steel
Bracket Adjustability   90 Degree
Lifespan   50,000 Hours
