DETAILS


7"Adventure Series LED Driving Lights






SLEEK. ELEGANT. POWERFUL.

Three keywords we kept in mind when designing our latest release for our entry level offering. Our Adventure Series LED Driving Lights to use the very best quality electronic componentry to ensure performance. This combined with the latest high performance 5W LED chips and custom designed reflector provides an unrivaled combination driving beam. Ensuring not only incredible distance also impressive flood performance where it matters.

KEY FEATURES

  • Adjustable bottom mount for versatility
  • Oversized heatsink ensured LEDs run cooler
  • IP68 Rating ensures the lights are 100% waterproof
  • Unbreakable lens: polycarbonate lens is unbreakable
  • Latest reflector technology achieves 97% efficiency

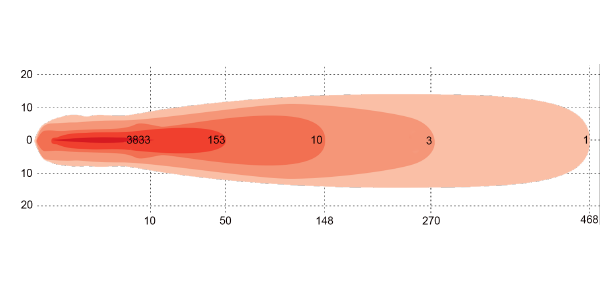

LUX DIAGRAM





WHAT’S INCLUDED

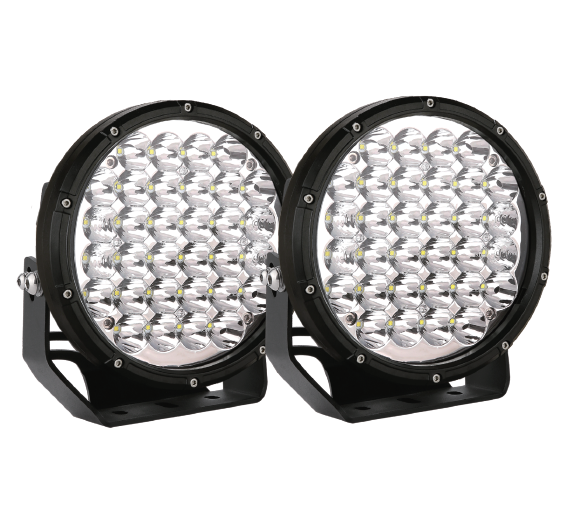

- 2 x 7” Adventure Series LED Driving Lights
- 2 x Bottom Mount Brackets
- 2 x Clear Protective Covers
- Male and Female Deutsch Plugs


468 METER BEAM DISTANCE

The 7" Adventure Series reflector was designed and tested to deliver the ultimate driving beam pattern. This resulted in an astonishing 468M @ 1 Lux without compromising flood performance. We achieved this by precisely focusing light where it's required



SPECIFICATIONS

LED POWER     160W (32 x 5W)
COLOUR TEMPREATURE   6000K
LUX (PAIR)   1 LUX @ 468m
BEAM DISTANCE   0.25 LUX @ 936m
WATERPROOF RATING   IP68
CURRENT DRAW   5.8A @ 12V
BEAM PATTERN   Combination Beam
OUTPUT   9,600 Lumens (Each)
HOUSING MATERIAL   Aluminium
LENS MATERIAL   Polycarbonate
MOUNTING BRACKET   Bottom
OPERATING VOLTAGE   10-32V DC
LED LIFESPAN   50,000 Hours
