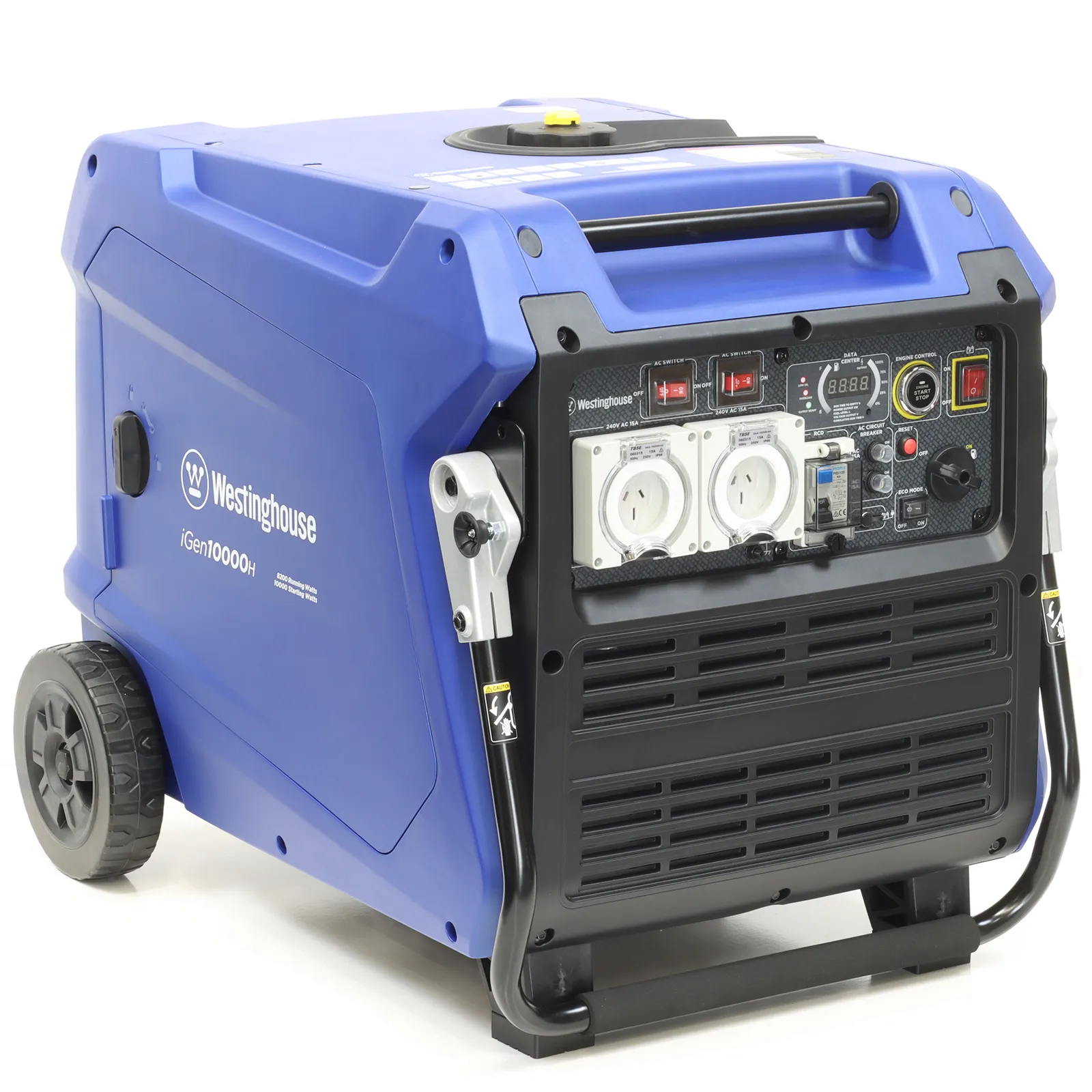

Westinghouse iGen10000H Inverter Generator with RCD Safety Switch
Buy Now, Pay Later.
DETAILS

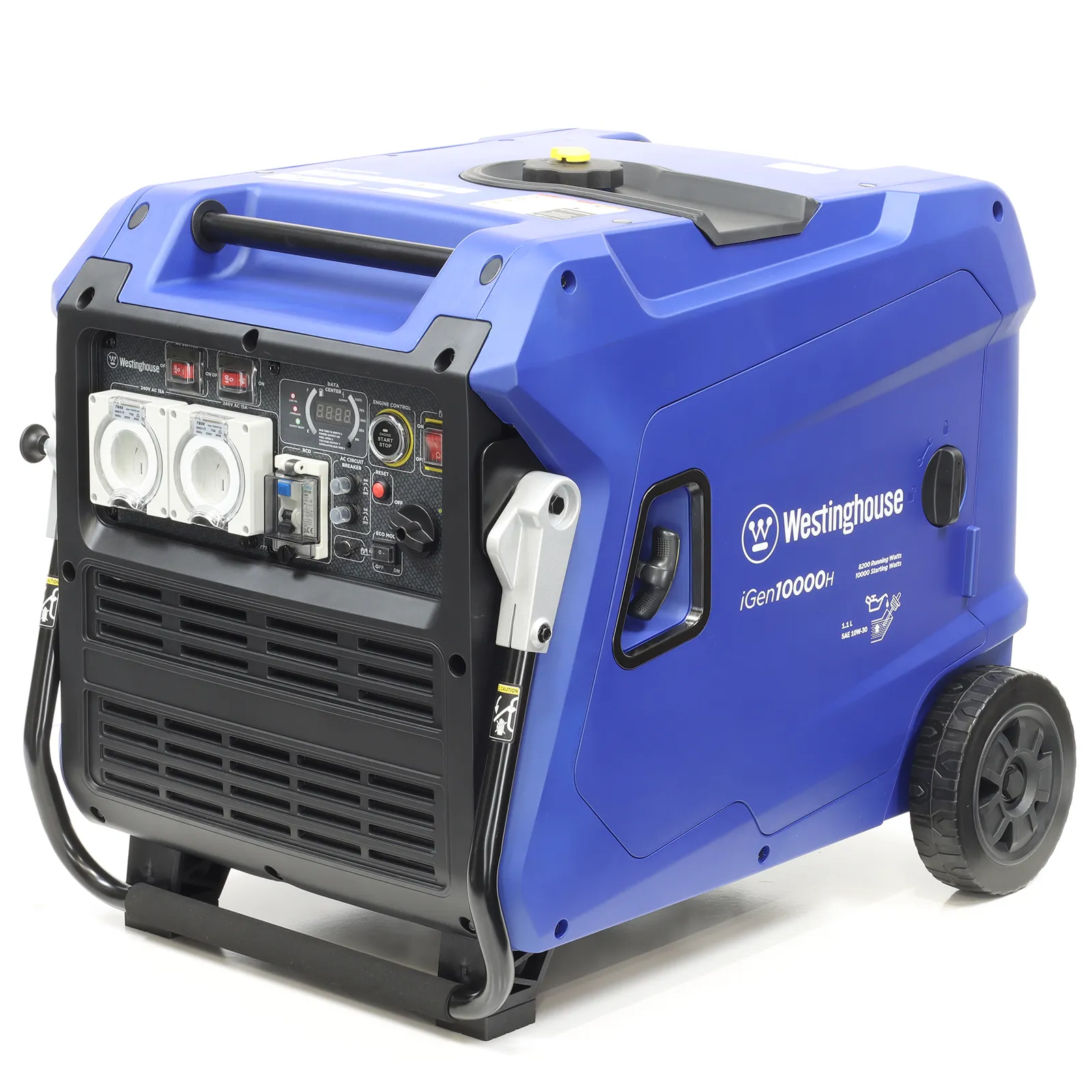

Westinghouse iGen10000H
10 kVA work site power with an RCD
The iGen10000H brings 10,000 starting watts and 8,200 running watts to the work site, with an RCD safety switch approved for workplace use and individually switched IP66 outlets.
It runs quietly enough for hearing-safe use around crews, and the 30 litre tank gives up to 19.8 hours at 1/4 load.
10,000
starting watts
8,200
running watts
85 kg
dry weight
58 dB(A)
at 1/4 load, 7 m
Where it fits
Power where you need it
- ✓Workplaces and job sites: built-in RCD safety switch approved for WH&S use
- ✓Trades and contractors: powers tools, lights and chargers on site
- ✓Events and hire: quiet running for public areas
- ✓Sensitive electronics: pure sine wave power that is safe for laptops and battery chargers
Easy to use
Everything at a glance

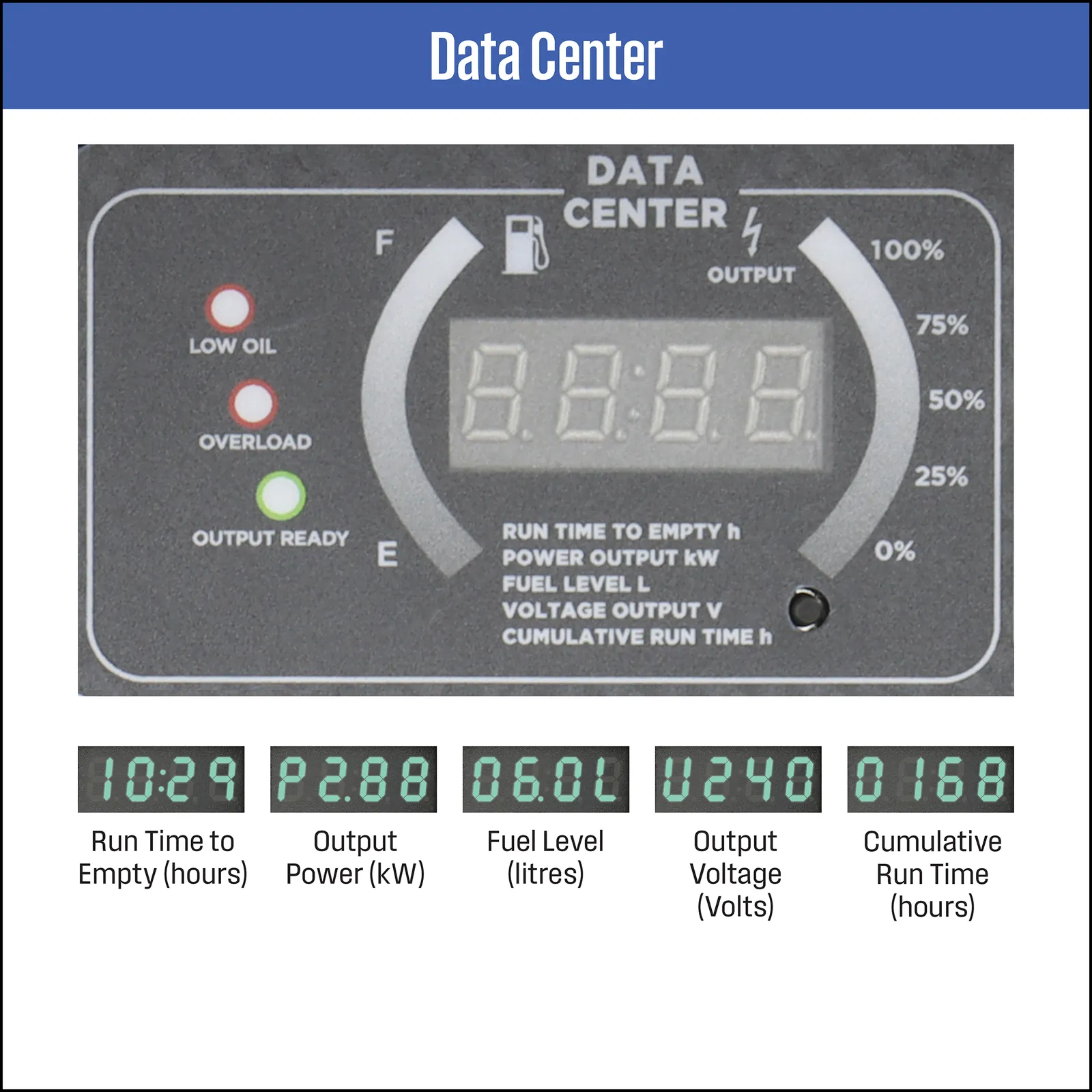

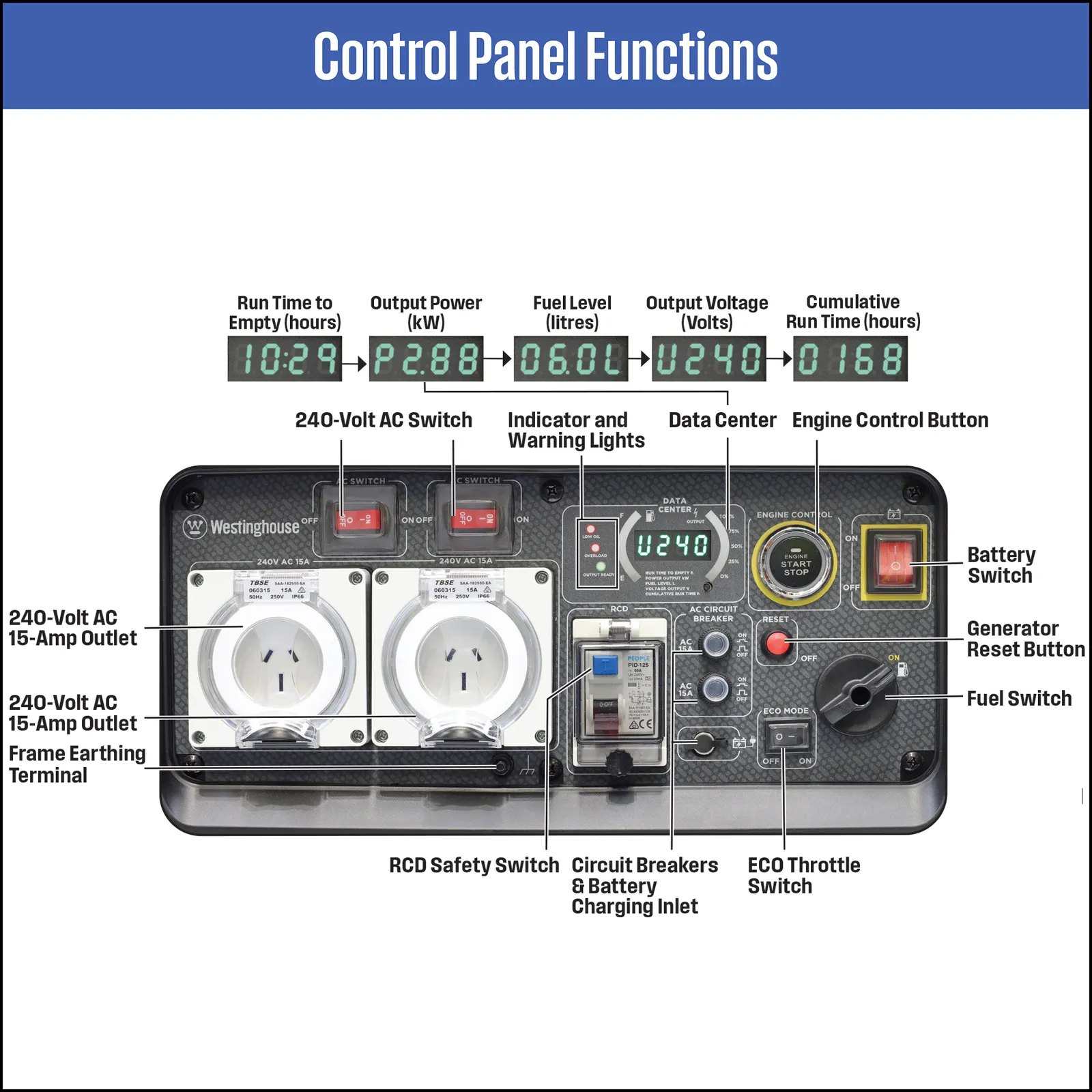

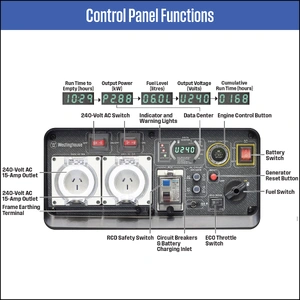

The digital data center shows output power & voltage, fuel level, fuel & cumulative run times, so you always know what the generator is doing. Overload and low oil alarms protect the engine and your appliances.
Look after it
Built to last
Keep dust, UV and rain off it in storage with the Westinghouse GC776368 cover. Need to crane it onto a ute or truck? The Westinghouse LK10000 lifting kit is made to fit. Use fresh 91, 95 or 98 RON unleaded petrol. Ethanol blends such as E10 are not recommended. Oil and air filter servicing is done without tools.
Frequently asked questions
Is the power safe for laptops, TVs and phones?
Yes. It is a digital inverter generator with pure sine wave output and less than 2.5% total harmonic distortion, so it is safe for sensitive electronics.
What does the RCD do?
The built-in RCD (residual current device) safety switch cuts power if it detects current leaking to earth. It is approved for WH&S workplace use.
How long will it run on a tank?
Up to 19.8 hours at 1/4 load and 7.3 hours at full load, from its 30 litre tank.
How loud is it?
58 dB(A) at 1/4 load, measured at 7 m.
What fuel does it use?
Unleaded petrol (91, 95 or 98 RON). Westinghouse does not recommend ethanol blends such as E10.
What warranty does it have?
2 years for domestic use (conditions apply). For questions about commercial use, contact our team.
FEATURES
- ✓Powerful 10,000 Starting Watts / 8,200 Running Watts
- ✓Push-button electric start
- ✓RCD safety switch WH&S approved for electrical protection
- ✓Super quiet for hearing safe use at the workplace or job site
- ✓Up to 19.8 hrs run time at 1/4 load on a 30-litre tank of fuel
- ✓Pure sine wave electricity safe to power your electronics
- ✓457 cc Westinghouse 4-stroke OHV petrol engine

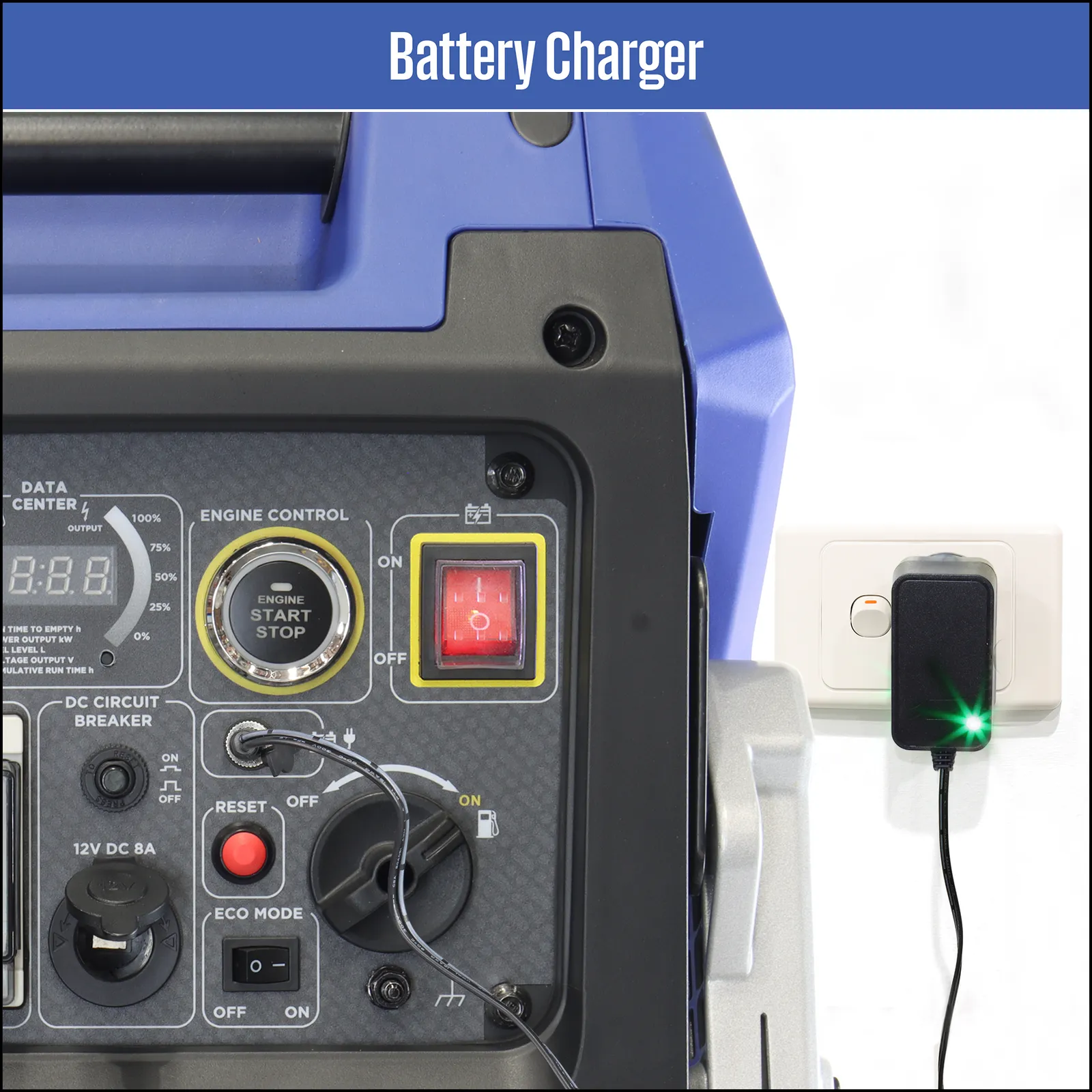

- ✓240 Volt AC plug-in charger to maintain onboard battery
- ✓240 Volt AC outlets, each with an individual switch
- ✓2-year domestic use warranty (conditions apply)
WHAT'S INCLUDED?
- 1 x Westinghouse iGen10000H inverter generator

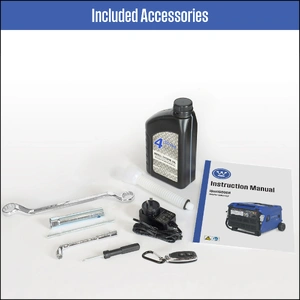

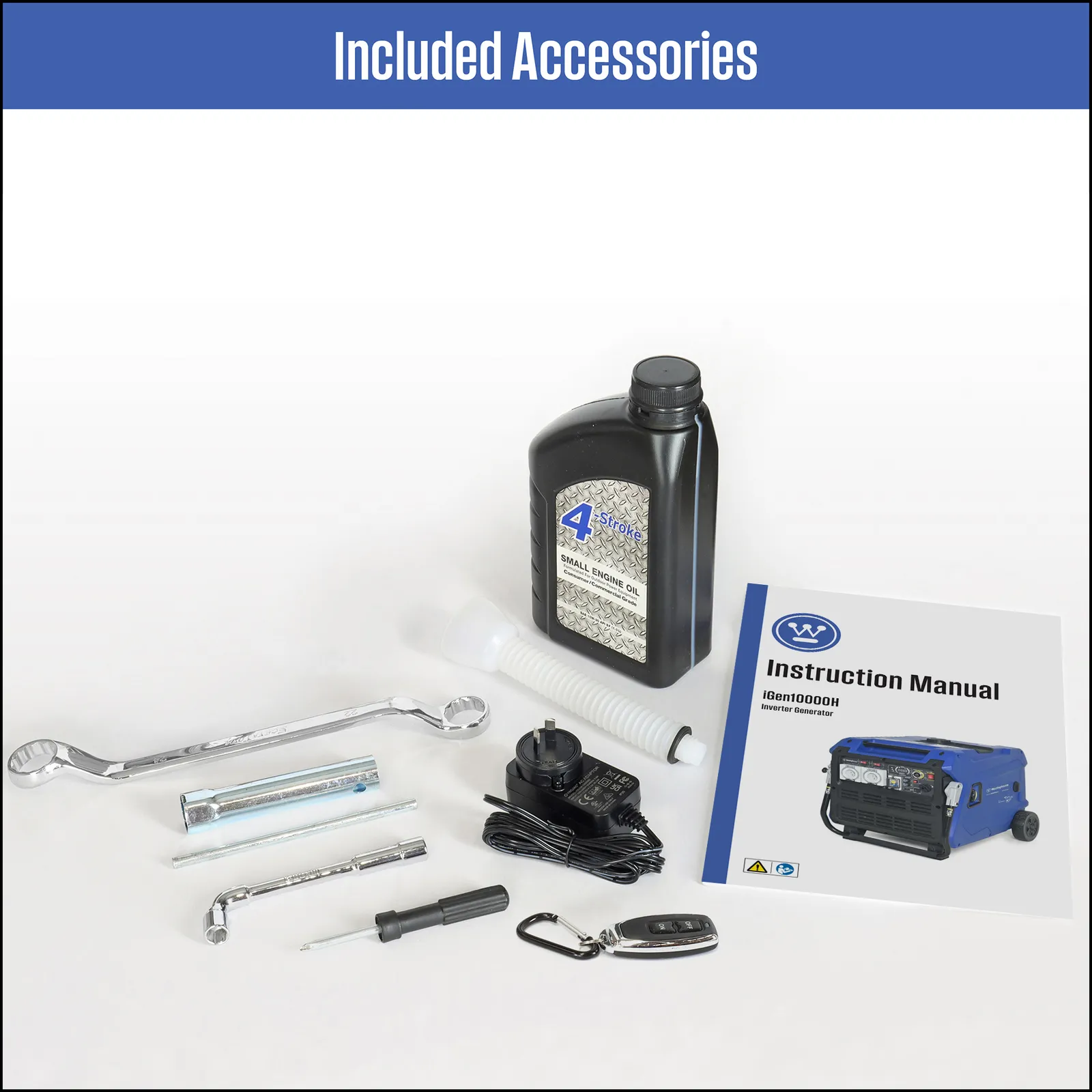

- Accessories as shown in the "in the box" photo
SPECIFICATIONS
Electrical output
| Starting (peak) power | 10,000 W |
| Running power | 8,200 W |
| AC output | 240 V, 50 Hz, single phase |
| Waveform | Digital inverter, pure sine wave output |
| Total harmonic distortion | Less than 2.5% |
| Running current | 34.2 A |
| 240V outlets | 2 x 15 A, IP66 |
| RCD safety switch | Yes |
| Overload protection | Electronic |
| Alternator | Brushless, Permanent Magnet |
| Data center display | Output Power & Voltage, Fuel Level, Fuel & Cumulative Run Times |
Engine and fuel
| Engine | Westinghouse 457 cc, 1-cylinder, 4-stroke, overhead valve, air cooled |
| Starting | Electric & Recoil |
| Start battery | 12 V, Lithium-Ion |
| Fuel | Unleaded Petrol (91, 95 or 98 RON); ethanol blends such as E10 are not recommended |
| Fuel tank | 30 L |
| Run time at 1/4 / full load | 19.8 / 7.3 hours |
| Noise at 1/4 / full load | 58 / 68 dB(A) @ 7 m |
| Oil capacity | 1.1 L |
| Low oil shutdown | Yes |
Size, weight and codes
| Dimensions (L x W x H) | 767 x 630 x 675 mm |
| Weight dry / wet | 85 / 109 kg |
| Packed size | 783 x 598 x 765 mm |
| Packed weight | 98 kg |
| Westinghouse product code | WP iGen10000H |
| Barcode (GTIN) | 9347923003529 |
| Warranty | 2 years domestic use (conditions apply) |
| SKU | iGen10000H |
| Brand | Westinghouse |
| Shipping Weight | 98.0000kg |
| Shipping Width | 0.598m |
| Shipping Height | 0.765m |
| Shipping Length | 0.783m |
